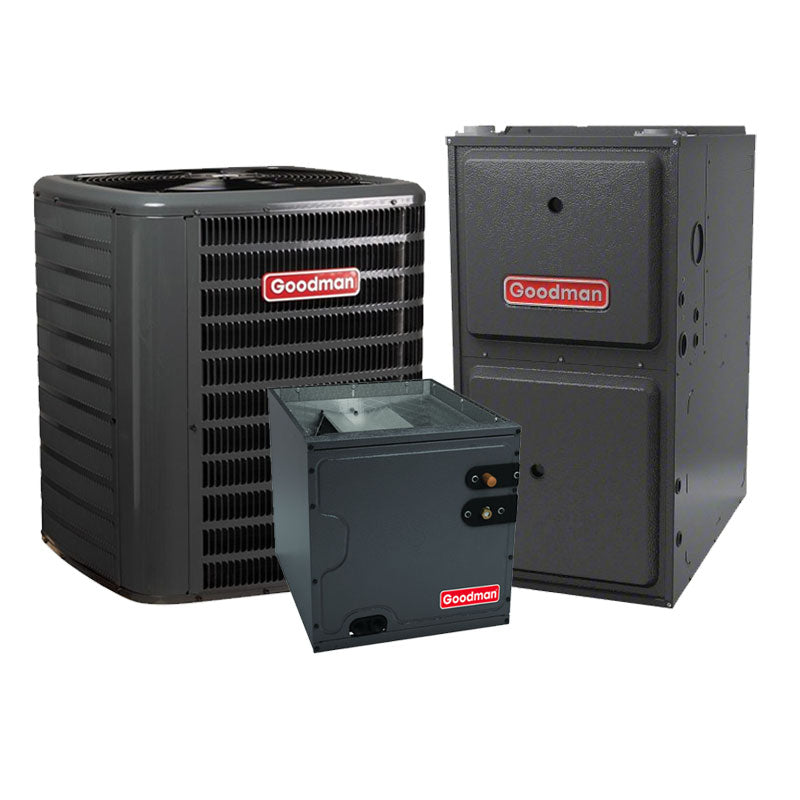

Goodman 2 Ton R32 AC & Gas Furnace System 13.8 SEER2 92% 40K BTU Vertical

Goodman 2 Ton R32 Split Air Conditioner 13.4 SEER2 Single Stage Non-Communicating GLXS3BN2410

The Goodman R32 Split Air Conditioner (GLXS3BN2410) delivers 24,000 BTU/h cooling capacity with a 13.4 SEER2 efficiency rating. Its energy-efficient rotary compressor ensures reliable performance and optimized energy use. Pre-charged for up to 15 feet of tubing, it simplifies installation. Key features include a copper tube with an aluminum fin coil for durability, a factory-installed filter drier for system protection, and a high-pressure switch for enhanced safety. The compact cabinet, with corrosion-resistant architectural gray powder-paint, offers convenient maintenance access and durable construction. AHRI Certified and ETL Listed for verified quality.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 27.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 114 lb
• Tonnage: 2
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top: Compliant with UL 60335-2-40 standards for safety.
• Venturi Design: Increases airflow velocity for enhanced cooling efficiency.
• Architectural Gray Powder-Paint Finish: Corrosion-resistant with 500-hour salt-spray approval.
• Wire Fan Discharge Grille: Protects fan components while ensuring optimal airflow.
• Steel Louver Coil Guard: Provides robust protection for the coil.
• Maintenance Access: Convenient top and side access for servicing.
• Single-Panel Control Access: Allows space for field-installed accessories and easy adjustments.
• Hurricane-Resistant Design: Meets 2023 Florida Building Code requirements for hurricane winds when anchored (optional anchor bracket kits available).

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

• Unit Height: 33-3/8 in
• Unit Width: 14 in
• AFUE: 92 %
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 106 lb
• Model Efficiency: 0.92
• 40,000 BTU
• R32
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled


Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

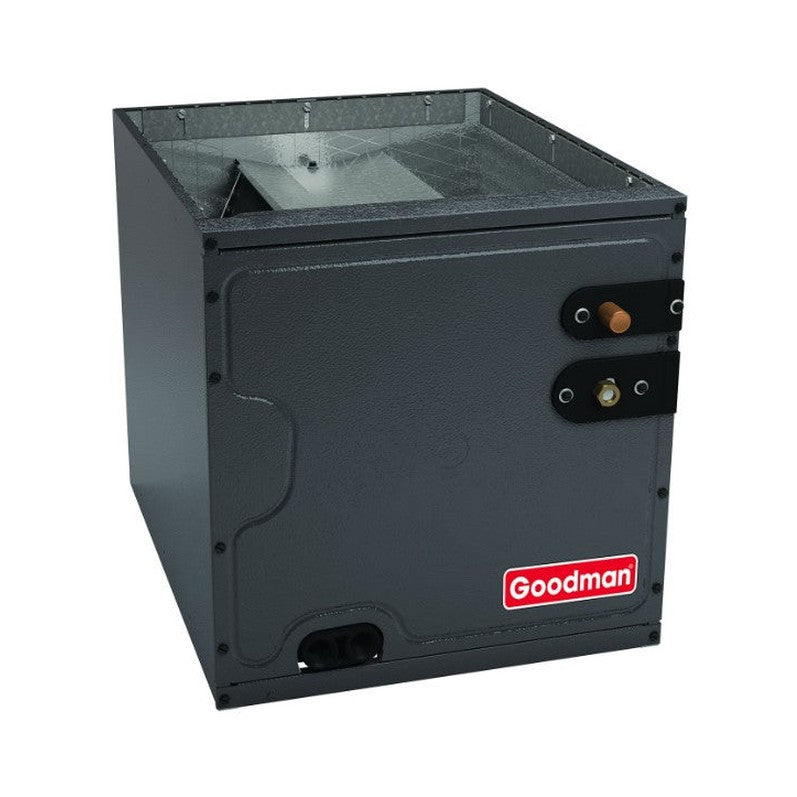

Goodman 2 Ton R32 Evaporator Coil Upflow/Downflow Cased 22"H x 17.5"W with Built-in TXV CAPTA2422B3

Explore the Goodman 1.5 - 2 Ton R32 Evaporator Coil (22"H x 17.5"W) with built-in TXV for efficient cooling and heating. This cased coil supports upflow/downflow installations and features foil-faced insulation, a UV-resistant drain pan, and a durable galvanized finish. AHRI-certified for reliable performance, it's perfect for high-performance HVAC systems

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 17.5 in
• Cased/Uncased: Cased
• Tonnage: 2.0
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

• Evaporator Coil
• R-32 Refrigerant Coil
• High-Performance HVAC Solutions
• Thermal Expansion Valves
• Flexible Installation Options
• Foil-Faced Insulation
• Durable Drain Pan
• AHRI Certified Coil
• UV-Resistant Drain Pan
• Galvanized Finish Coil

Product Features for High-Performance All-Aluminum Evaporator Coil

• R-32 Refrigerant Compatibility: Optimized specifically for R-32 refrigerant, ensuring efficient cooling and heating performance.
• Integrated Thermal Expansion Valves: Factory-installed thermal expansion valves in CAPTA and CHPTA models for seamless cooling and heat pump applications.
• Flexible Installation Options: Available in both vertical and horizontal configurations, providing versatile installation choices.
• Compact Design: With a 21-inch depth, this coil is designed for easy access in tight spaces like attics.
• Foil-Faced Insulation: Helps reduce cabinet condensation, enhancing overall system efficiency.
• Durable Drain Pan: Features a rust-resistant, UV-resistant thermoplastic drain pan with low water retention and additional drainage connections.
• Maintenance Convenience: Easy-to-remove drain pan rails simplify maintenance and repositioning.
• Galvanized Finish: Durable, leather grain-embossed galvanized finish enhances longevity and resistance to wear.
• AHRI Certified and ETL Listed: Certified for performance and safety, ensuring reliable operation in any HVAC system.
• Optimized Circuits and Manifolds: Standardized copper suction tube stub length for improved installation and efficiency.
• DecaBDE-Free Drain Pan: Environmentally friendly drain pan design with secondary drain connections for added functionality.
