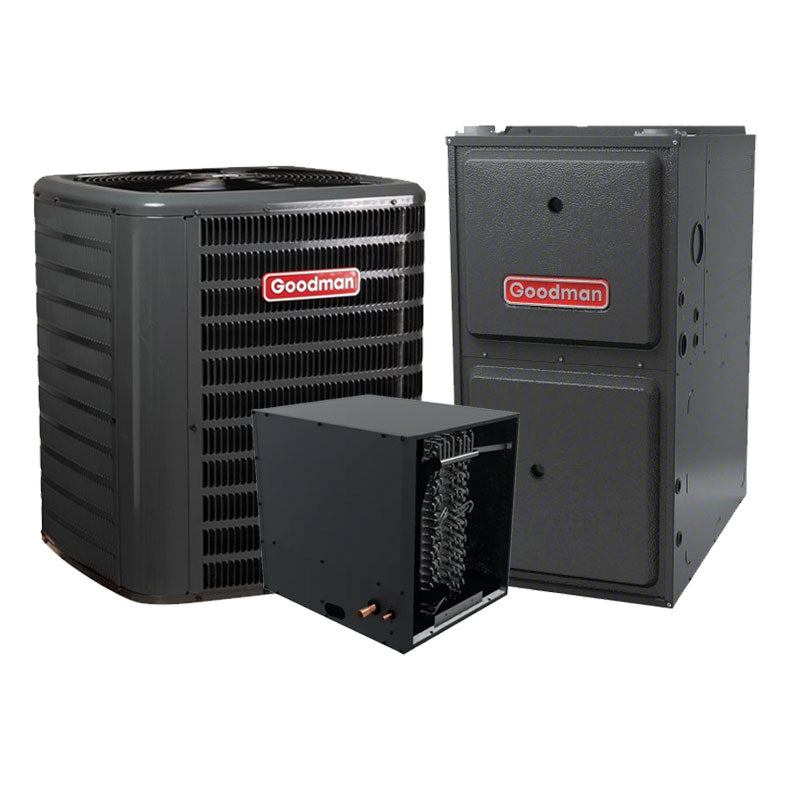

Goodman 2 Ton R32 AC & Gas Furnace 15.2 SEER2 92% 60K BTU Horizontal Coil

Goodman 2 Ton R32 Split System Air Conditioner 15.2 SEER2 208/230V 1-Phase GLXS5BA2410

The Goodman 2 Ton Air Conditioner, featuring R-32 refrigerant and a 15.2 SEER2 efficiency rating, ensures high-performance cooling with a single-stage scroll compressor. This compact unit (32" high and 29" wide) is pre-charged for up to 15 feet of tubing and offers durability with its copper and aluminum coils. Designed for easy installation with sweat connection service valves and simple maintenance with accessible gauge ports. AHRI-certified, ETL-listed for safety, and built to meet hurricane safety standards, this model is ideal for efficient, reliable home cooling.

• Refrigerant Type: R-32
• Unit Height: 32 in
• Unit Width: 29 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 20 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 2
• Model Efficiency: 15.2 SEER2
• Unit Depth: 29 in


Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable grille-style top meets UL 60335-2-40 safety standards.
• Venturi design enhances airflow velocity for better cooling efficiency.
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
• Wire fan discharge grille for additional protection.
• Steel louver coil guard ensures coil durability and safety.
• Top and side access for easier maintenance and servicing.
• Single-panel control access with space for field-installed accessories.
• Designed to meet 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

Goodman R32 92% AFUE Gas Furnace 60K BTU Multi-Speed ECM Upflow/Horizontal GR9S920603BN

Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 60,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.

• Unit Height: 33-3/8 in
• Unit Width: 17-1/2 in
• AFUE: 92 %
• 60,000 BTU
• R32
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 114 lb
• Model Efficiency: 0.92
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled

Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

Goodman 2.5 Ton R32 Cased Evaporator Coil Horizontal-A 21" Cabinet with TXV CHPTA3026C3

The Goodman R32 2.5 Ton Cased Evaporator Coil features a compact 21" cabinet designed for horizontal installation, optimized for R-32 refrigerant to enhance efficiency and minimize environmental impact. This all-aluminum evaporator coil ensures superior thermal conductivity, while factory-installed thermal expansion valves (TXV) improve cooling and heat pump applications. The unit includes a single front access panel for easy servicing and foil-faced insulation to reduce cabinet condensation. With rust-resistant thermoplastic drain pans and UV-resistant features, this durable coil meets AHRI certification and ETL listing standards for performance and safety, making it an ideal choice for efficient HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 21 in
• Unit Width: 26 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
