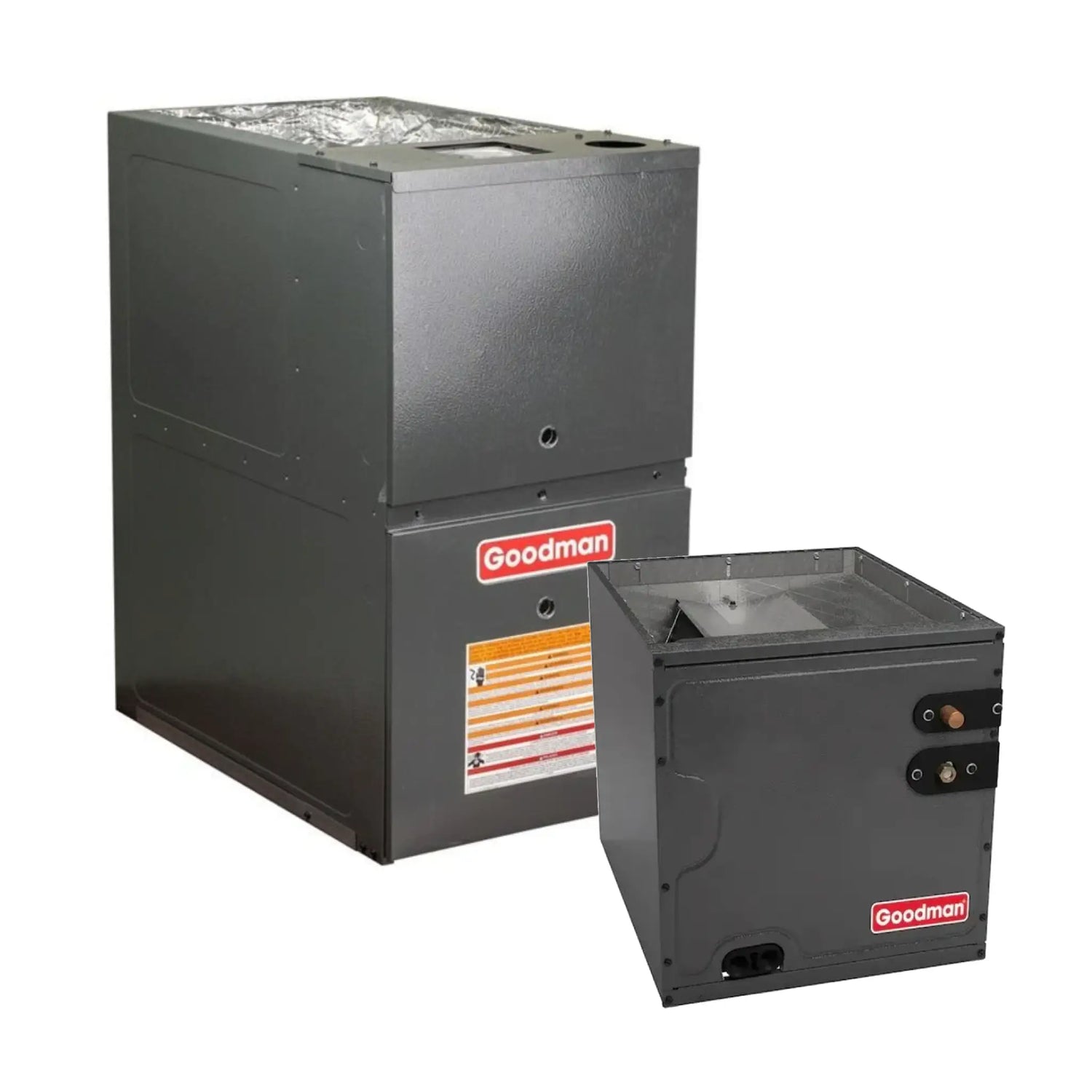

Goodman 2 Ton Furnace Coil System 80% AFUE 80,000 BTU Upflow/Downflow R32

By: Goodman
SKU: GR9S800803BN / CAPFA2422B3|ID: 101467
$1,941.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 80,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 2 Ton Furnace Coil System 80% AFUE 80,000 BTU Upflow/Downflow R32

Goodman 80% AFUE 80,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800803BN

The Goodman GR9S800803BN Gas Furnace delivers reliable, energy-efficient heating for medium-sized homes without compromising on performance or affordability. Built with a single-stage burner and a 9-speed ECM blower motor, this 80,000 BTU furnace is designed to offer consistent comfort, quiet operation, and long-lasting durability. Whether you're upgrading or installing a new heating system, this model combines trusted Goodman quality with flexible installation options.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 80,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Please Note

This 80% AFUE furnace requires metal flue venting and does not comply with California Low NOx or Ultra-Low NOx regulations. For compliant models, please consult a licensed installer or browse regional alternatives.

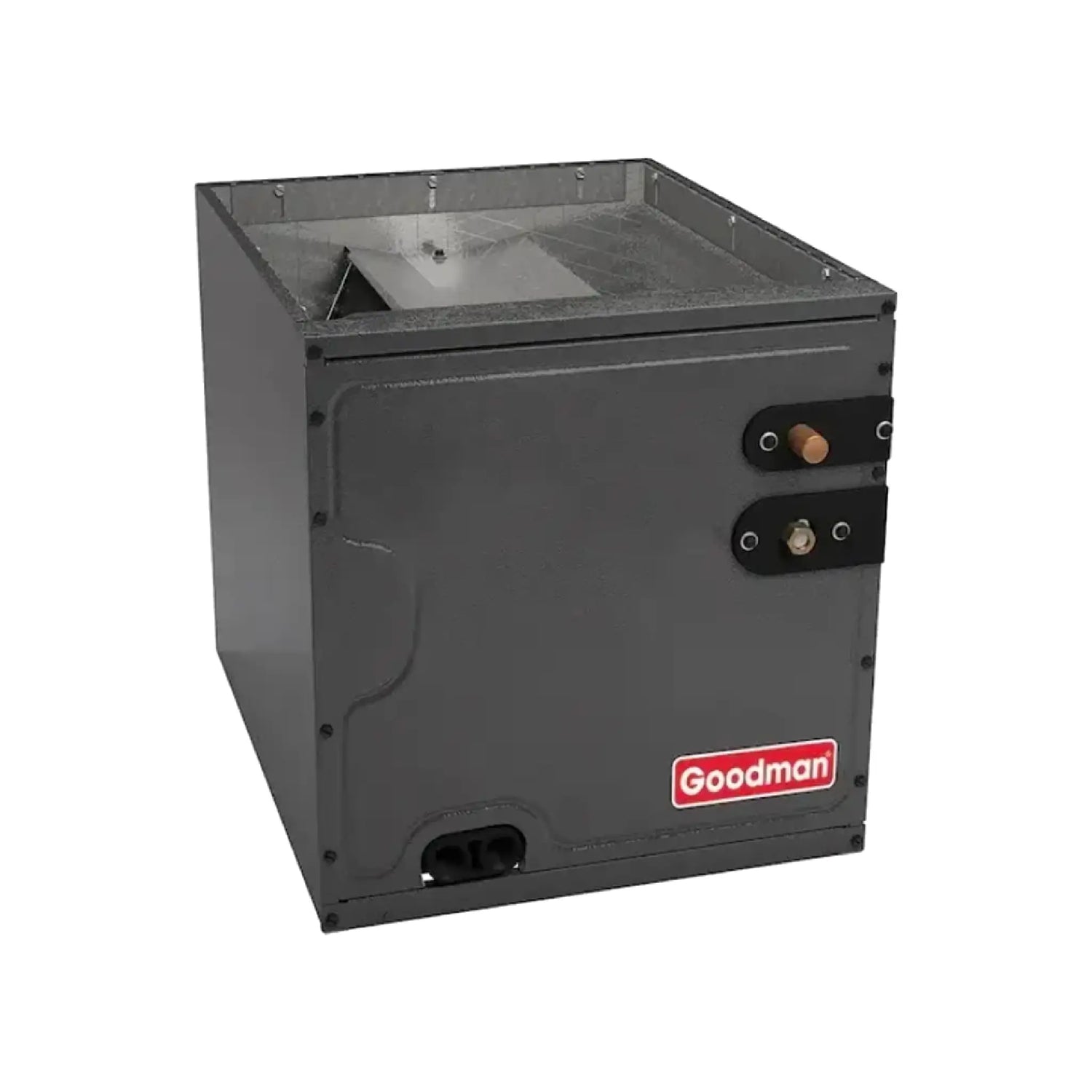

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 17.5" Width Cabinet R32 CAPFA2422B3

The Goodman CAPFA2422B3 evaporator coil offers reliable performance, flexible installation, and improved airflow efficiency. Compatible with both AC-only and heat pump systems, this 2-ton coil can be installed in either upflow or downflow configurations. With support for the latest R32 refrigerant and a durable design, it delivers long-term value and enhanced indoor comfort.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 80,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Please Note

This evaporator coil requires a compatible condenser and blower or furnace to operate (all sold separately). It is not intended to replace any single-piece air handler coils.

Learning Resources

GR9S80 / GD9S80 Installation Manual GR9S80 / GD9S80 Specification Sheets GR9S80 / GD9S80 Warranty Information CAPFA Installation Manual CAPFA Specification Sheets CAPFA Parts Manual CAPFA Warranty Information CAPFA Nomenclature

Specifications

Goodman 80% AFUE 80,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800803BN

BrandGoodman
SKUGR9S800803BN
Weight (in lbs)116
ManufacturerGoodman
ReplacesGM9S800803BN
AHRI Certificate Number215358053
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Heating BTU80,000
Blower Motor9 Speed - ECM
Maximum CFM1200
ConfigurationUpflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size7.7 Amps
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width17 1/2"
Depth28"
WarrantyLifetime Heat Exchanger and 10 Years Parts with Online Registration

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 17.5" Width Cabinet R32 CAPFA2422B3

BrandGoodman
SKUCAPFA2422B3
Tonnage2 Ton
Weight (in lbs)45
ManufacturerGoodman
ReplacesCAPFA2422B4 / CAPFA2422B6
Product FeaturesNew Refrigerant Compliant
ConfigurationUpflow / Downflow
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
StyleA-Coil
Height22"
Width17 1/2"
Depth21"
Warranty10 Years with Online Registration

Warranty and Product Information

Goodman 80% AFUE 80,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800803BN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 17.5" Width Cabinet R32 CAPFA2422B3

Standard Warranty5 years
Registered Warranty10 years
