Goodman 2 Ton Furnace Coil System 80% AFUE 60,000 BTU Upflow/Downflow R32

By: Goodman
SKU: GR9S800604BN / CAPFA2422B3|ID: 101462
$1,911.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

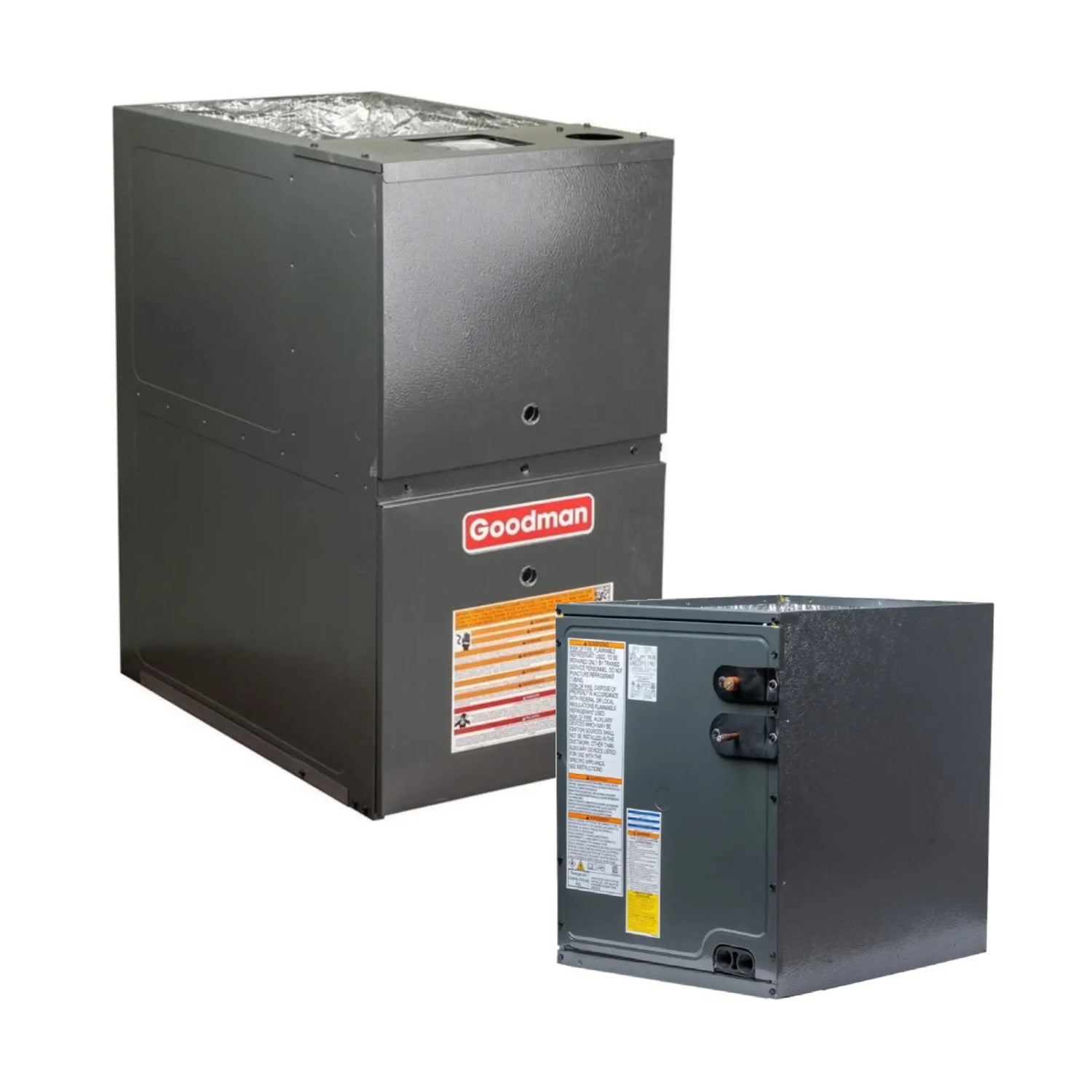

Goodman 2 Ton Furnace Coil System 80% AFUE 60,000 BTU Upflow/Downflow R32

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800604BN

The GR9S800604BN Goodman gas furnace features high-quality construction and efficient operation at a great value. This single-stage, 9-speed model utilizes Goodman’s advanced heat exchanger design to deliver reliable performance and long-term durability. If you're looking to lower your energy bills while enhancing home comfort, the Goodman GR9S800604BN is an ideal solution.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

The Goodman GR9S800604BN 60,000 BTU furnace is a smart choice for homeowners looking for a dependable, efficient gas heating solution at a budget-friendly price. Note: Requires professional installation to meet local code and ensure warranty coverage.

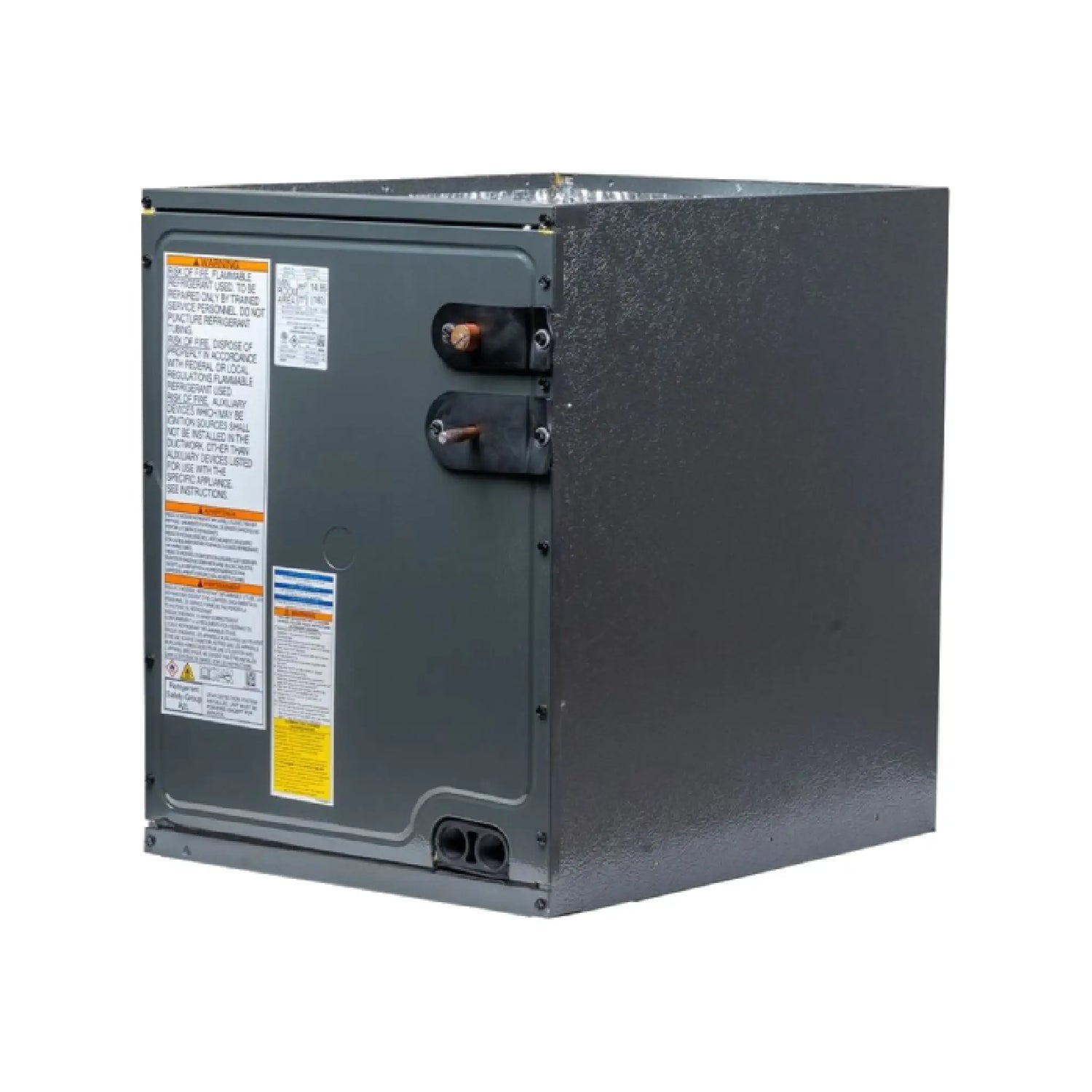

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 17.5" Width Cabinet R32 CAPFA2422B3

Upgrade your home HVAC system with the Goodman CAPFA2422B3 evaporator coil, a high-performance coil designed to deliver long-lasting comfort and energy efficiency. Built for flexibility and durability, this 2-ton coil is compatible with both AC-only systems and heat pumps, and can be installed in upflow or downflow configurations. Engineered with low air leakage, foil-faced insulation, and R32 refrigerant compatibility, it’s an excellent choice for homeowners seeking comfort, cost-effectiveness, and compliance with the latest environmental standards.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

The Goodman CAPFA2422B3 evaporator coil is an ideal component for upgrading your HVAC system with high-efficiency performance and flexible compatibility. Note: Requires a compatible furnace or air handler and condenser (sold separately).

Learning Resources

GR9S80 / GD9S80 Installation Manual GR9S80 / GD9S80 Specification Sheets GR9S80 / GD9S80 Warranty Information CAPFA Installation Manual CAPFA Specification Sheets CAPFA Parts Manual CAPFA Warranty Information CAPFA Nomenclature

Specifications

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800604BN

BrandGoodman
SKUGR9S800604BN
Weight108
ManufacturerGoodman
ReplacesGM9S800604BN
AHRI Certificate Number215358051
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Heating BTU60,000
Blower Motor9 Speed - ECM
Maximum CFM1200
ConfigurationUpflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size11.3 Amps
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width17 1/2"
Depth28"
WarrantyLifetime Heat Exchanger and 10 Years Parts with Online Registration

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 17.5" Width Cabinet R32 CAPFA2422B3

BrandGoodman
SKUCAPFA2422B3
Tonnage2 Ton
Weight45
ManufacturerGoodman
ReplacesCAPFA2422B4 & CAPFA2422B6
Product FeaturesNew Refrigerant Compliant
ConfigurationUpflow / Downflow
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
StyleA-Coil
Height22"
Width17 1/2"
Depth21"
Warranty10 Years with Online Registration

Warranty and Product Information

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800604BN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 17.5" Width Cabinet R32 CAPFA2422B3

Standard Warranty5 years
Registered Warranty10 years
