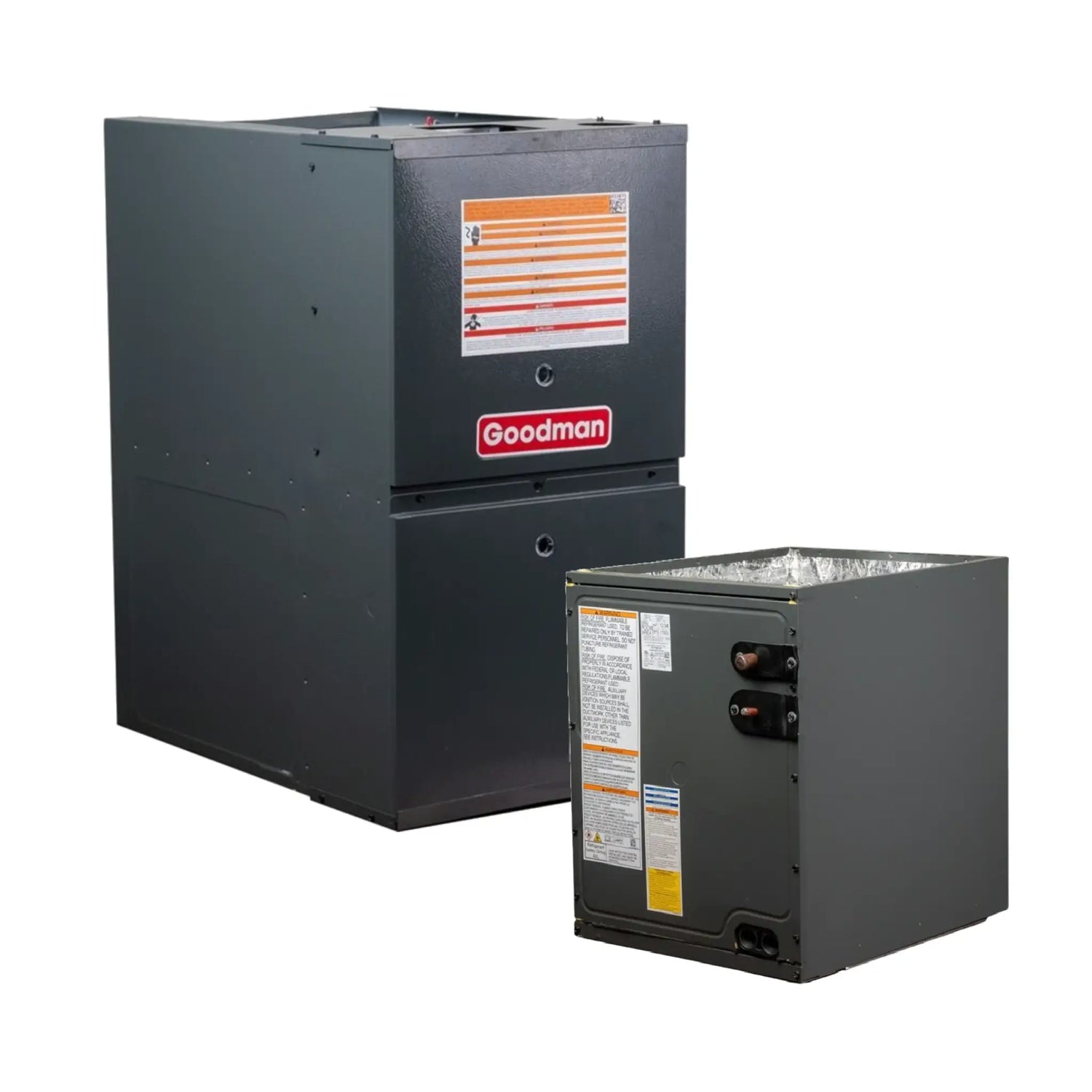

Goodman 2 Ton Furnace Coil System 80% AFUE 40,000 BTU Upflow/Downflow R32

By: Goodman
SKU: GD9S800403AN / CAPTA2422A3|ID: 101463
$1,919.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 40,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 2 Ton Furnace Coil System 80% AFUE 40,000 BTU Upflow/Downflow R32

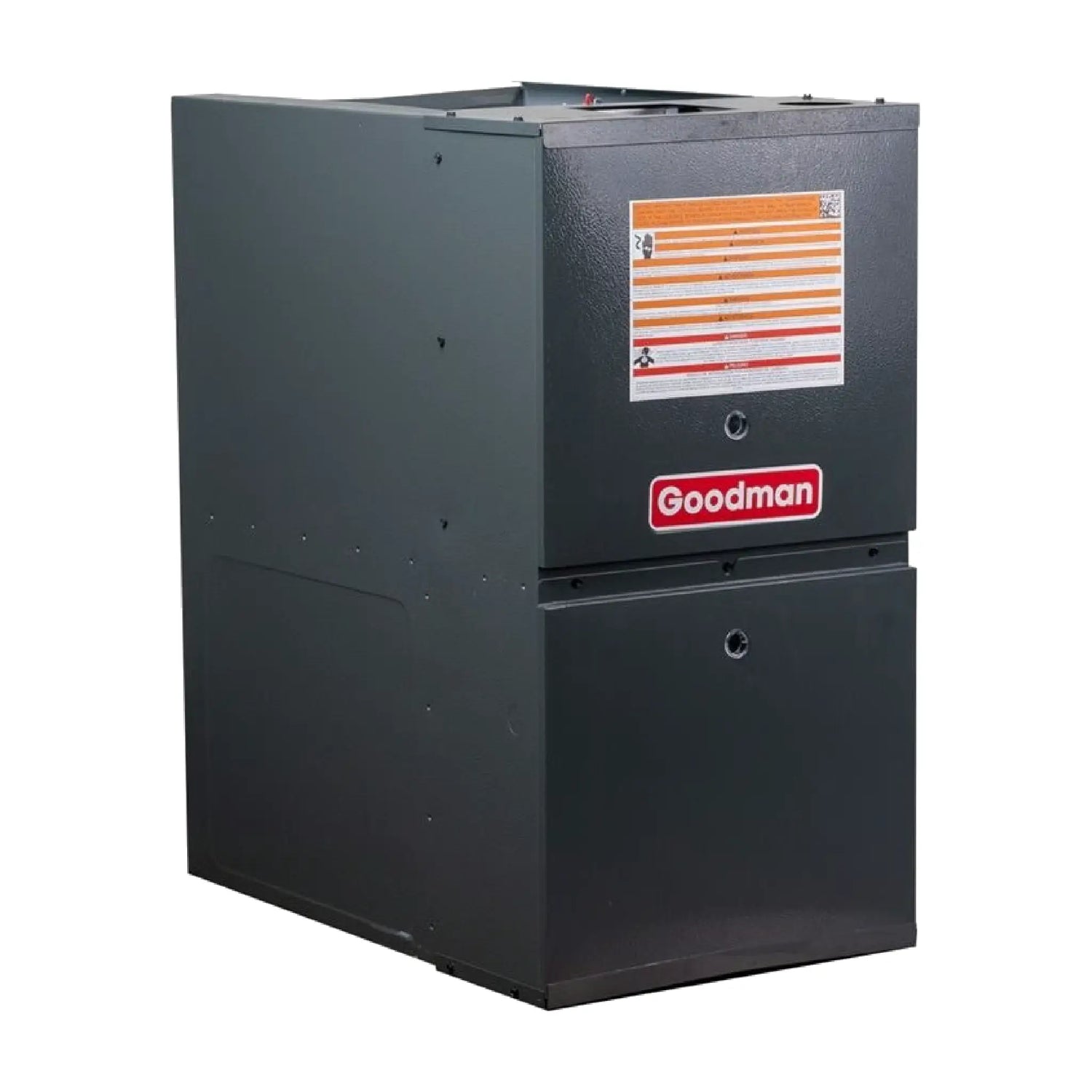

Goodman 80% AFUE 40,000 BTU Gas Furnace Single Stage Downflow/Horizontal GD9S800403AN

The Goodman GD9S800403AN is a high-performance, single-stage gas furnace designed to deliver dependable heating for smaller homes and residential spaces. With a 40,000 BTU capacity and 80% AFUE efficiency rating, it offers a cost-effective solution to keep your home warm during the colder months. Equipped with a multi-speed ECM blower motor, heavy-duty construction, and flexible installation options, this unit is built for long-lasting performance, quiet operation, and energy savings. It comes factory-configured for natural gas and can be converted to propane with an optional LP kit.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 40,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

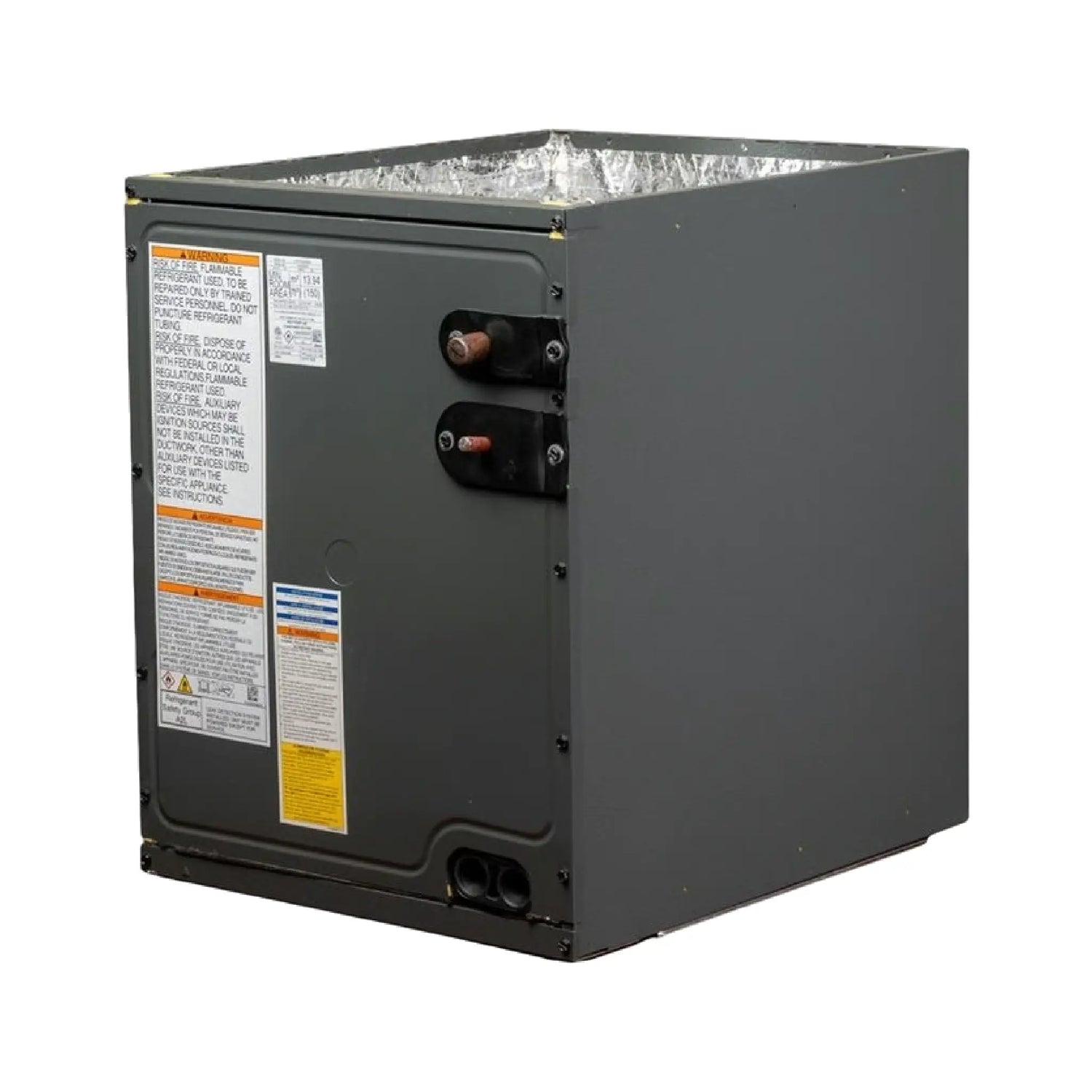

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 14"W Cabinet TXV R32 CAPTA2422A3

An air conditioning or heat pump system is only as efficient and reliable as the evaporator coil it uses. The Goodman CAPTA evaporator coil is engineered for performance, durability, and ease of installation. With an all-aluminum construction and a factory-installed thermostatic expansion valve (TXV), the CAPTA series ensures excellent heat transfer and compatibility with high-efficiency systems. Designed for use in upflow and downflow configurations, this cased A-coil delivers long-lasting value backed by rigorous factory testing and a 10-year limited warranty.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 40,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Learning Resources

GR9S80 / GD9S80 Installation Manual GR9S80 / GD9S80 Specification Sheets GR9S80 / GD9S80 Warranty Information CAPTA Installation Manual CAPTA Specification Sheets CAPTA Service Manual CAPTA Warranty Information

Specifications

Goodman 80% AFUE 40,000 BTU Gas Furnace Single Stage Downflow/Horizontal GD9S800403AN

BrandGoodman
SKUGD9S800403AN
Weight90
ManufacturerGoodman
ReplacesGC9S800403AN
AHRI Certificate Number215358036
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Heating BTU40,000
Blower Motor9 Speed - ECM
Maximum CFM1289
ConfigurationDownflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size7.7 Amps
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width14"
Depth28"
WarrantyLifetime Heat Exchanger and 10 Years Parts with Online Registration

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 14"W Cabinet TXV R32 CAPTA2422A3

BrandGoodman
SKUCAPTA2422A3
Tonnage2 Ton
Weight37
ManufacturerGoodman
ReplacesCAPTA2422A4
Product FeaturesNew Refrigerant Compliant
ConfigurationUpflow / Downflow
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
StyleA-Coil
CertificationETL Listed, AHRI Certified
Height22"
Width14"
Depth21"
Warranty10 Years Parts with Online Registration

Warranty and Product Information

Goodman 80% AFUE 40,000 BTU Gas Furnace Single Stage Downflow/Horizontal GD9S800403AN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 2 Ton Evaporator Coil Cased Upflow/Downflow 14"W Cabinet TXV R32 CAPTA2422A3

Standard Warranty5 years
Registered Warranty10 years
