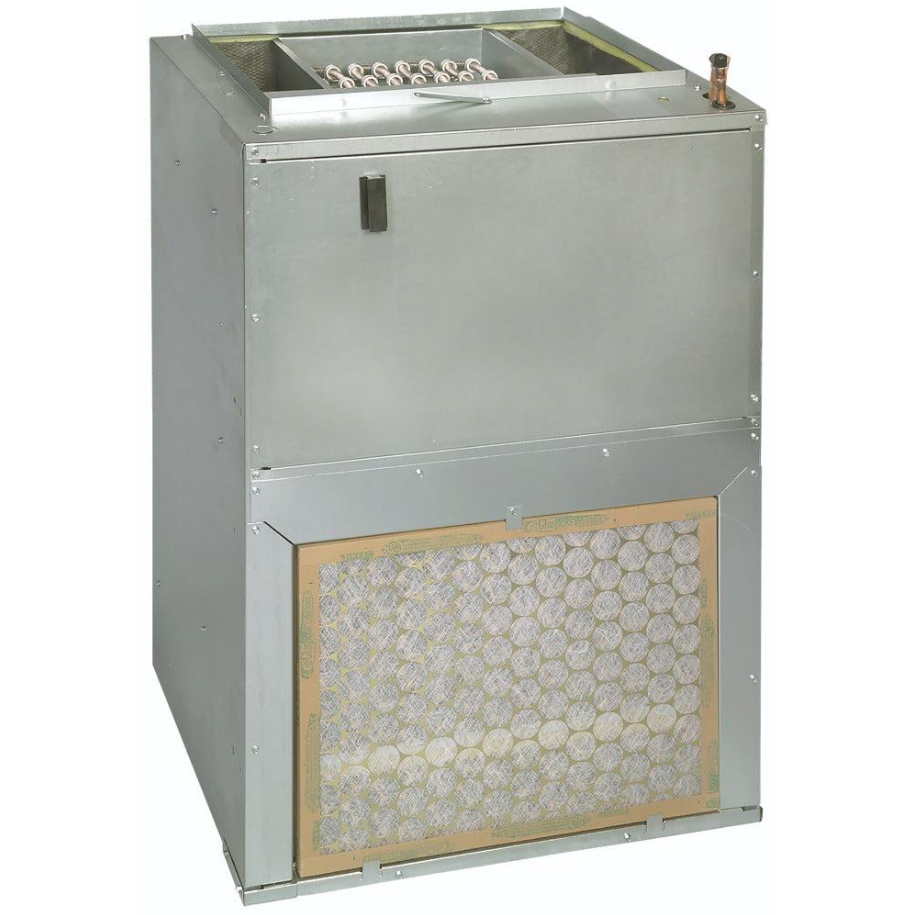

Goodman 2 Ton Ducted Air Handler Wall Mounted With Built-in 8KW Heat Kit

By: Goodman
SKU: AWST24SU1308|ID: 101188
$992.00
+ Shipping
Width: 20.23"
Depth: 13.125"

Key Features

  • Capacity: Delivers 24,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Multi-Speed ECM motor provides precise airflow control for consistent comfort
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 2 Ton Ducted Air Handler Wall Mounted With Built-in 8KW Heat Kit

Goodman 2 Ton R32 Ducted Air Handler Wall Mounted 20.2" Cabinet W/ 8KW Heat

The AWST Ducted Wall-Mounted Air Handler offers efficient and reliable climate control in a compact 20-3/13 inch cabinet. Designed for capacities ranging from 1.5 to 3 tons, this unit features a multi-speed ECM motor that ensures precise airflow and energy savings. The factory-installed Thermostatic Expansion Valve (TXV) enhances refrigerant management, facilitating a quicker installation and boosting efficiency.

Built for versatility, it accommodates both front and bottom return configurations (depending on the unit size) and includes a wall-hanging bracket for easy installation. With improved reliability and an all-aluminum coil, the AWST air handler delivers consistent performance and durability, making it an ideal choice for residential and light commercial applications.

  • Coil: All-aluminum construction
  • Reliability: Enhanced reliability and quality
  • TXV: Factory-installed Thermostatic Expansion Valve for quicker installation and more efficient refrigerant metering

Cabinet Features

  • Air Leakage:
    • Less than 2.0% at 1.0 inch H2O (ASHRAE Standard 193)
    • Less than 1.4% at 0.5 inch H2O (ASHRAE Standard 193)
  • Filter Rack: Built-in, with filter included
  • Chassis Sizes:
    • Large (2-1/2 and 3 tons): Front return only
    • Small (1-1/2 and 2 tons): Front or bottom return
  • Mounting: Wall-hanging bracket provided

Learning Resources

AWST Installation Manual AWST Specification Sheets AWST Parts Manual AWST Warranty Information

Specifications

BrandGoodman
Model #AWST24SU1308
Refrigerant TypeR32
Unit Depth13.125 in
Unit Height36 in
Unit Width20.23 in
Cooling Capacity Nominal24000 Btu/H
Max Overcurrent Protection40/45 A
Power Phase1 Ph
Power Voltage208/230 V
Tonnage2 Ton
Energy SourceElectric
Motor Speed TypeMulti-Speed ECM
RepalcesAWST24SU1408

Warranty and Product Information

Standard Warranty5 Years
Registered Warranty10 Years
