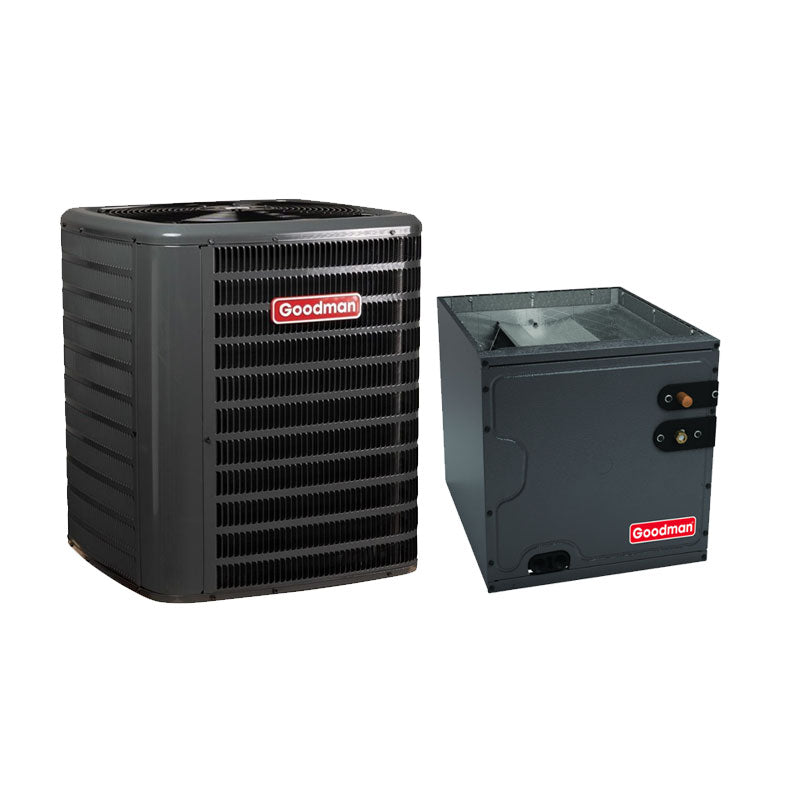

Goodman 2 Ton AC Evaporator Coil System 14.3 SEER2 21"W Cased Vertical R32

Goodman 2 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA2410

The Goodman 2 Ton (24,000 BTU) R32 Split Air Conditioner (Model GLXS5BA2410) combines efficiency and reliability with its 15.2 SEER2 single-stage scroll compressor and R-32 refrigerant for optimal energy savings. Compact yet powerful, the unit features a durable 5mm copper tube with aluminum fin coil, factory-installed filter drier, and enclosed contactor for added safety and ease of maintenance. With AHRI certification and ETL listing, this 208/230V system delivers superior cooling performance and hassle-free installation.

• Refrigerant Type: R-32
• Unit Height: 32 in
• Unit Width: 29 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 20 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 2
• Model Efficiency: 15.2 SEER2
• Unit Depth: 29 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable Grille-Style Top: Compliant with UL 60335-2-40 for safety and service access.
• Venturi Design: Increases airflow velocity for optimal performance.
• Architectural Gray Powder-Paint Finish: Provides corrosion resistance with 500-hour salt-spray approval.
• Wire Fan Discharge Grille: Protects the fan while maintaining airflow.
• Steel Louver Coil Guard: Shields coils from damage for enhanced durability.
• Top and Side Maintenance Access: Simplifies servicing and cleaning.
• Single-Panel Control Access: Includes space for field-installed accessories.
• Hurricane-Ready Design: Meets 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 2.0
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in


• High-performance all-aluminum evaporator coil
• Designed for R-32 refrigerant
• Integrated thermal expansion valves for cooling and heat pump applications
• Flexible vertical and horizontal installation options
• 21-inch depth for easy attic access
• Foil-faced insulation to minimize condensation
• Rust-resistant and UV-resistant drain pan
• Extra drainage connections
• Durable galvanized finish
• Removable drain pan rails for easy maintenance
• AHRI Certified
• ETL Listed
• Efficient and durable HVAC solution

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
