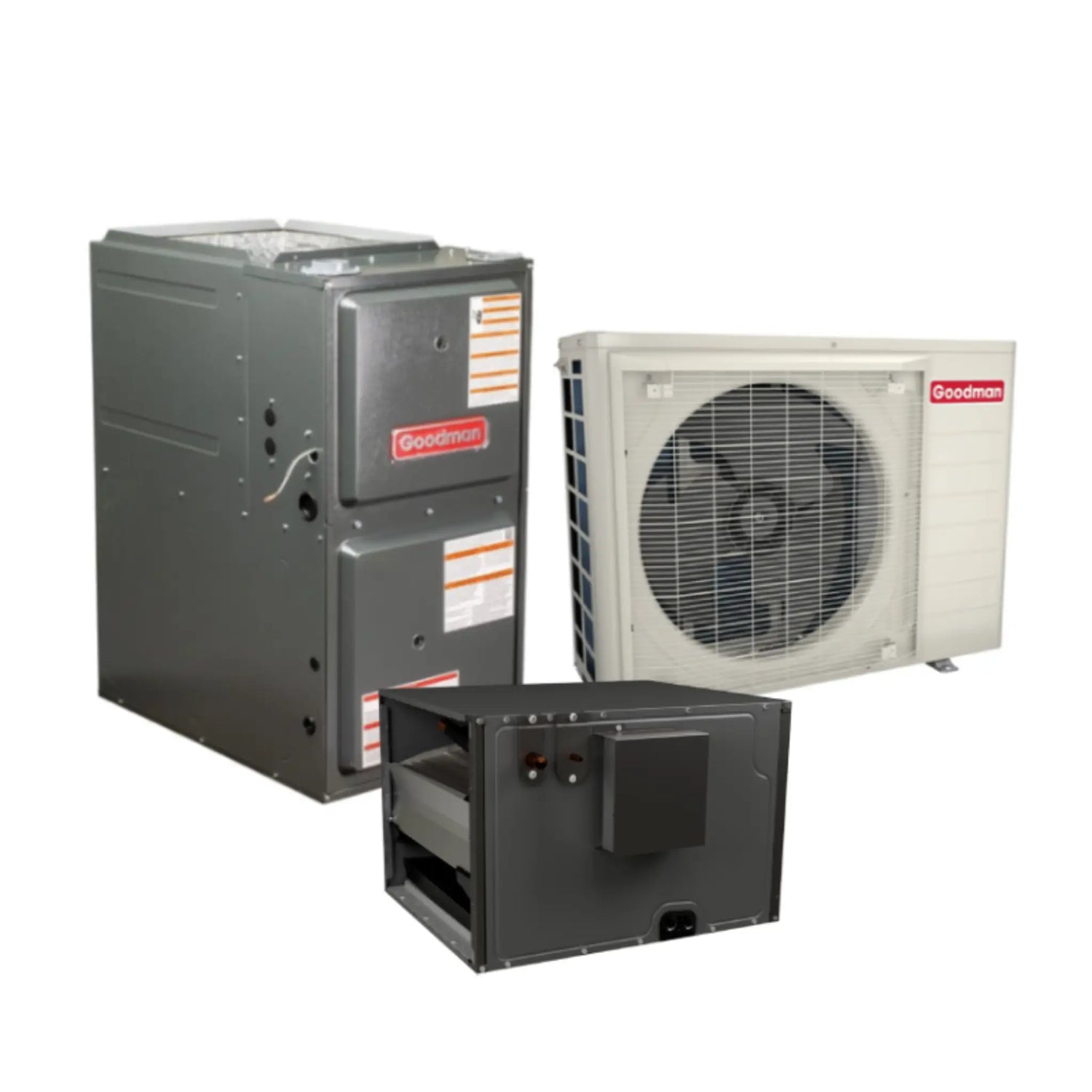

Goodman 2 Ton 19 SEER2 Furnace Heat Pump System 96% 80K BTU Ultra Low NOx Horizontal

By: Goodman
SKU: GZV7SA2410 / GRVS960805CU / CHPEA3026C3|ID: 101892
$7,614.00
+ Free shipping

Key Features

  • Efficiency: Rated at 19 SEER2 for energy-efficient performance
  • Heating: 96% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 24,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 2 Ton 19 SEER2 Furnace Heat Pump System 96% 80K BTU Ultra Low NOx Horizontal

Goodman 2 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA2410

The Goodman GZV7SA2410 is a high-efficiency 2-ton side discharge heat pump condenser designed for quiet operation, space-saving installation, and precise comfort control. Equipped with a variable-speed inverter compressor and environmentally friendly R-32 refrigerant, this unit meets the latest 2023 M1 test standards while delivering exceptional energy performance. ENERGY STAR® certification ensures reliable efficiency for residential applications.

Key Features

  • Efficiency: Rated at 19 SEER2 for energy-efficient performance
  • Heating: 96% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 24,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Superior Corrosion Resistance
  • Wire Fan Discharge Grille
  • Top and Side Maintenance Access Panels
  • Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored

This 2-ton inverter heat pump condenser is ideal for applications requiring high efficiency, compact outdoor footprint, and dependable long-term performance.

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx Variable Speed Upflow/Horizontal GRVS960805CU

The Goodman GRVS960805CU is a high-efficiency natural gas furnace designed to deliver reliable comfort while reducing energy costs. With an AFUE rating of 96%, this model maximizes fuel usage and ensures optimal indoor heating. Its ultra-low NOx emissions meet California compliance standards, making it ideal for environmentally conscious homeowners. Designed for upflow or horizontal installations, the unit features a variable-speed blower motor and single-stage gas valve for smooth and efficient operation. Whether you're looking to upgrade your heating system or comply with strict emission regulations, this Goodman furnace offers the durability, performance, and peace of mind you need.

Key Features

  • Efficiency: Rated at 19 SEER2 for energy-efficient performance
  • Heating: 96% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 24,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Perfect for homeowners seeking both high efficiency and low emissions, the GRVS960805CU is especially recommended in California counties requiring Ultra-Low NOx systems, including Los Angeles, Riverside, San Bernardino, and others. With a compact 34.5" height, this unit fits a variety of installation spaces while delivering superior heating and quiet operation.

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

The Goodman CHPEA3026C3 is a horizontal A coil evaporator designed for efficient air cooling. This unit is engineered for use with R-32 refrigerant, promoting lower environmental impact. The entire coil is constructed from aluminum, ensuring durability and reliable performance.

Key Features

  • Efficiency: Rated at 19 SEER2 for energy-efficient performance
  • Heating: 96% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 24,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Product Highlights

This evaporator coil features an all-aluminum design and is optimized for horizontal installation, providing consistent cooling. The unit includes a factory-installed EEV for precise refrigerant control, enhancing efficiency.

Learning Resources

GZV7S Application Guide GZV7S Installation Manual GZV7S Warranty Certificate GRVS96 Specifications Sheet GRVS96 Warranty Information CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 2 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA2410

BrandGoodman
SKUGZV7SA2410
Tonnage2 Ton
Heating Capacity24,000 BTU/H
Refrigerant TypeR32
SEER219
Model Efficiency17.5 SEER2
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection25 A
Communication TypeNon-Communicating
Unit Width36.625 in
Unit Height27.375 in
Unit Depth13.75 in
Unit Weight132 lb

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx Variable Speed Upflow/Horizontal GRVS960805CU

BrandGoodman
SKUGRVS960805CU
Weight (in lbs)147
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementPlastic / PVC
Product FeaturesNew Refrigerant Compliant, Ultra-Low NOx
Furnace Efficiency / AFUE96%
Heating BTU80,000
Horsepower1 HP
ConfigurationUpflow/Horizontal
Energy StarYes
Filter Size16" x 25"
Fuel TypePropane, Natural Gas
Height34 1/2"
Width21"
Depth28 7/8"
WarrantyLifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

BrandGoodman
Model NumberCHPEA3026C3
Product LineCHPEA
Refrigerant TypeR32
ConfigurationHorizontal
Capacity3.0 Tons
Cooling BTU36,000
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
Cabinet Width26 Inches
Product Height21 Inches
Product Width26 Inches
Product Depth21 Inches
Product Weight52 Pounds
Shipping Weight67 Pounds
TXV InstalledYes
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
Parts Warranty12 Limited Years

Warranty and Product Information

Goodman 2 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA2410

Manufacturer Warranty10 Years

Goodman 96% 80K BTU Gas Furnace Ultra-Low NOx Variable Speed Upflow/Horizontal GRVS960805CU

Standard Warranty20 years
Registered WarrantyLifetime warranty

Goodman 2.5 Ton Evaporator Coil Aluminum Cased Horizontal Cabinet with EEV CHPEA3026C3

Standard Warranty5 years
Registered Warranty12 years
