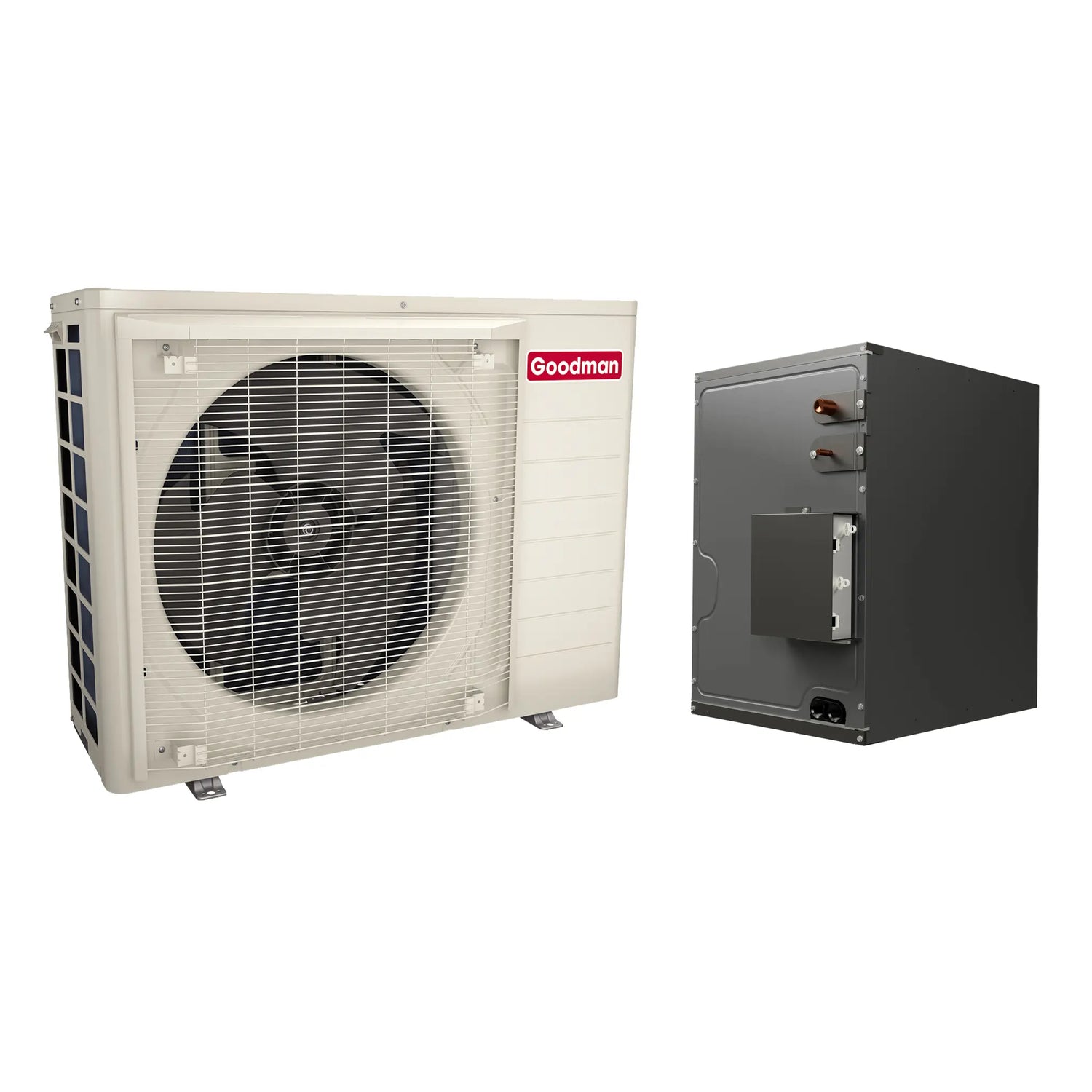

Goodman 2 Ton 16 SEER2 Heat Pump Inverter Split System 17.5" W Vertical R32

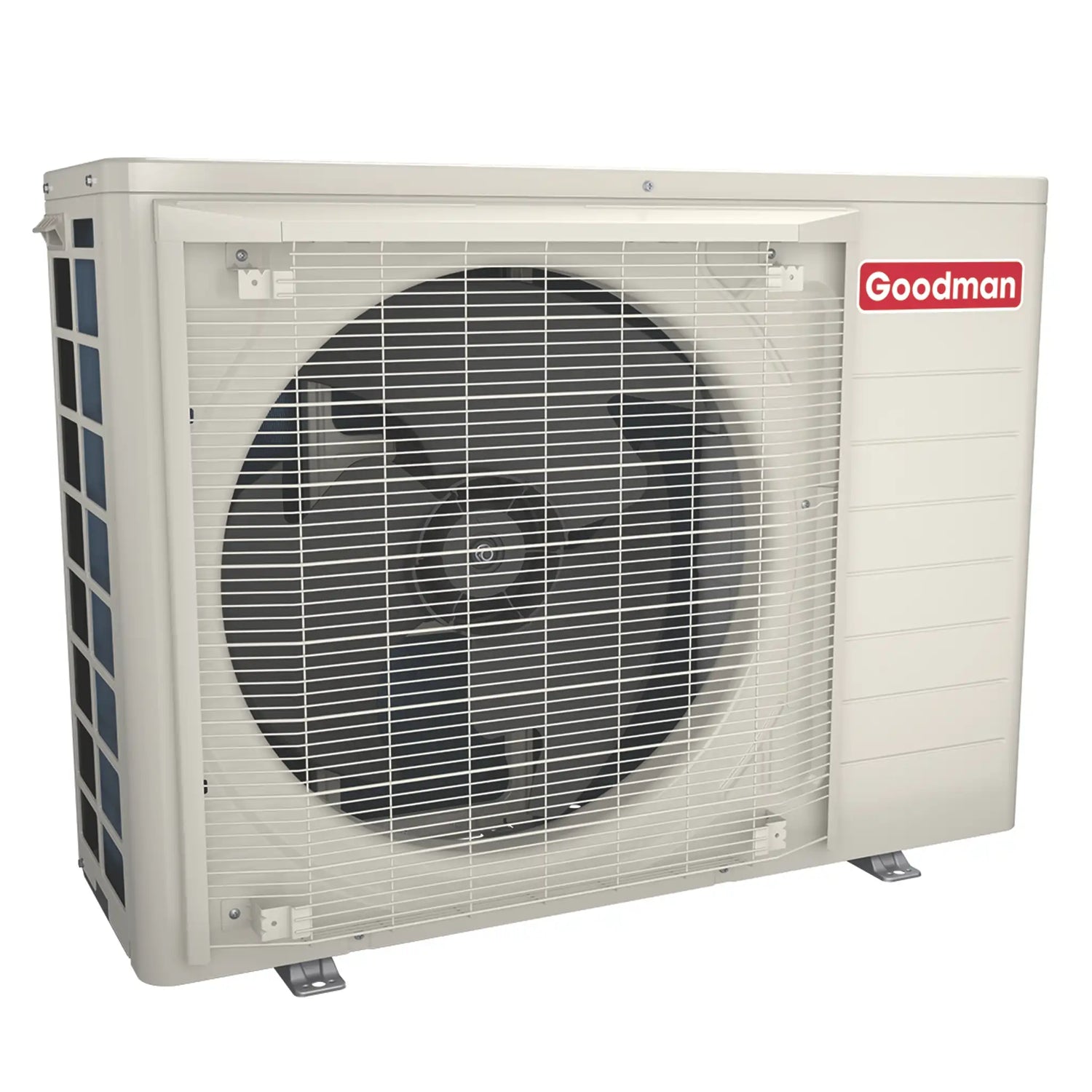

Goodman 2 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA2410

The Goodman GZV7SA2410 is a high-efficiency 2-ton side discharge heat pump condenser designed for quiet operation, space-saving installation, and precise comfort control. Equipped with a variable-speed inverter compressor and environmentally friendly R-32 refrigerant, this unit meets the latest 2023 M1 test standards while delivering exceptional energy performance. ENERGY STAR® certification ensures reliable efficiency for residential applications.

Key Features

• Efficiency: Rated at 16 SEER2 for energy-efficient performance
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
• Custom Ivory White Powder-Paint Finish
• High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
• 500-Hour Salt Spray Tested for Superior Corrosion Resistance
• Wire Fan Discharge Grille
• Top and Side Maintenance Access Panels
• Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored

This 2-ton inverter heat pump condenser is ideal for applications requiring high efficiency, compact outdoor footprint, and dependable long-term performance.

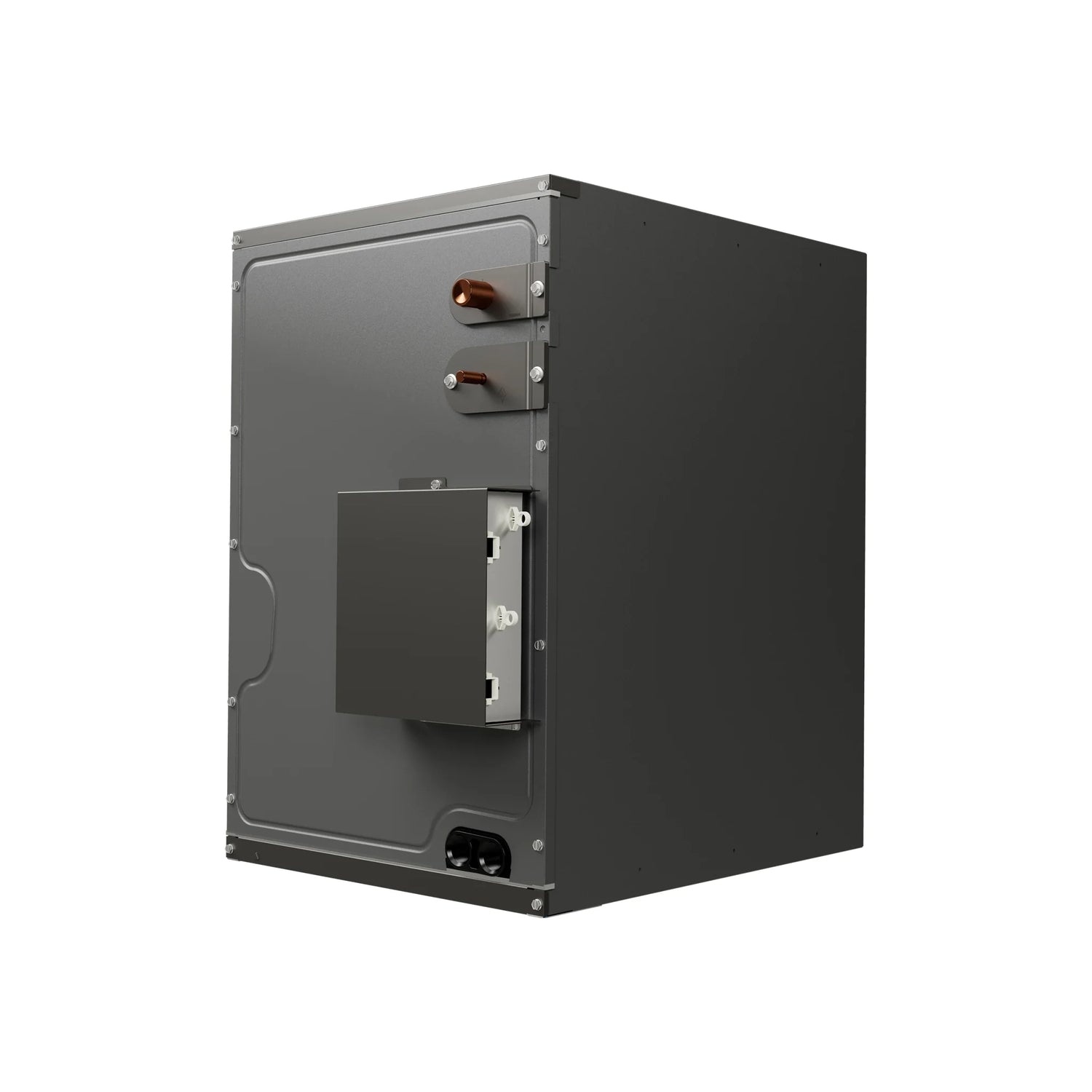

Goodman 3 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA3022B3

The Goodman CAPEA3022B3 is a versatile cased evaporator coil engineered for both upflow and downflow installations. Designed for modern R-32 refrigerant systems, this indoor coil features a factory-installed Electronic Expansion Valve (EEV) for enhanced refrigerant control and compatibility with advanced communicating HVAC systems. With a compact 21" depth, it's ideal for tight attic spaces and applications requiring flexible installation without sacrificing performance or efficiency.

Product Features:

• All-Aluminum Evaporator Coil – Built for durability and optimal heat transfer, reducing corrosion and increasing coil longevity.
• R-32 Refrigerant Optimization – Engineered with specialized circuits and manifolds to maximize performance with environmentally friendly R-32 refrigerant.
• Integrated R-32 Sensor – Designed to last the life of the coil and ensure optimal refrigerant management throughout system operation.
• Factory-Installed Electronic Expansion Valve (EEV) – Provides precision refrigerant control and supports compatibility with Daikin One+ smart thermostats and Daikin communicating equipment.
• Upflow & Downflow Configuration – Offers flexible installation options in a wide range of home HVAC setups.
• Seven-Millimeter Coil Tubing – Improves overall system efficiency and performance in both cooling and heat pump applications.
• Fault Recall Memory – Stores the six most recent system faults for simplified diagnostics and service.
• Standardized Copper Suction Tube Stub Length – Ensures easier installation across different system configurations.
• 21-Inch Depth – Compact design allows for easier access during attic or tight-space installations.
• Foil-Faced Internal Insulation – Helps reduce cabinet condensation, improves efficiency, and protects internal components.
• Galvanized, Leather Grain-Embossed Finish – Rugged exterior provides lasting protection and resists wear and corrosion.
• Rust-Resistant Thermoplastic Drain Pan – Low water-retention design helps prevent microbial growth and corrosion over time.
• DecaBDE-Free, UV-Resistant Drain Pan – Environmentally conscious and built for long-term UV exposure without degradation.
• Drain Pan Rails – Allow for easy removal and repositioning of the coil without compromising structural integrity.
• AHRI Certified & ETL Listed – Meets strict efficiency and safety standards for trusted performance and compliance.

Advanced Control & Compatibility:

With its built-in electronic expansion valve (EEV), the CAPEA3022B3 supports advanced system communication and control, making it an ideal match for Daikin One+ smart thermostats and other Daikin communicating HVAC equipment. This advanced compatibility ensures better system performance, precision diagnostics, and maximum energy efficiency.
