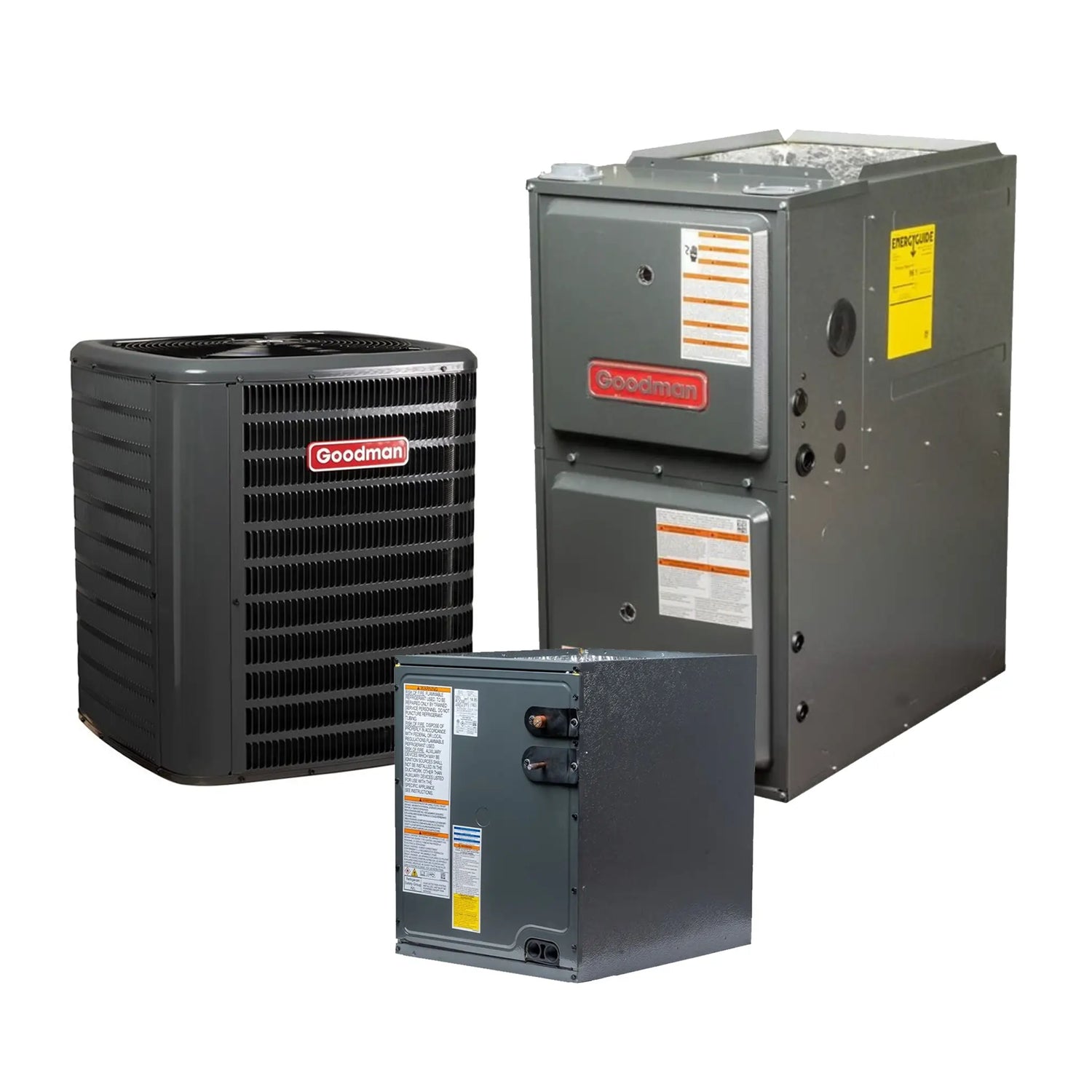

Goodman 2 Ton 15.2 SEER2 Heat Pump Furnace System 96% 80K BTU Vertical R32

Goodman 2 Ton 15.2 SEER2 Split Heat Pump Condenser Single Stage R32 GLZS4BA2410

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting. It includes enhanced aluminum fin coils. Additional components include a single-speed PSC fan motor, factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy access ports, is fully charged for 15 feet of tubing, and includes a fully enclosed contactor with a lug connection. The unit is AHRI Certified and ETL Listed.

The cabinet features a removable grille-style top design that complies with UL 60335-2-40 standards. It includes a steel louver coil guard and is constructed from heavy-gauge galvanized steel. The cabinet is finished in an attractive Architectural Gray powder-coat with 500-hour salt-spray approval. It provides top and side maintenance access and, when properly anchored, meets the 2023 Florida Building Code requirements for hurricane-type winds. Anchor bracket kits are available to ensure compliance.

• High-efficiency compressor

• New R32 Freon, meets the 2025 refrigerant change guidelines.
• Smart-Shift technology for quiet, reliable defrost

• Enhanced aluminum fin coil: 5 mm diameter (1.5T-3.5 Ton); 7 mm diameter copper tubes (4.0-5.0 Ton)

• Single-speed PSC condenser fan motor

• Factory-installed bi-flow liquid-line filter drier

• Factory-installed suction-line accumulator

• Factory-installed compressor crankcase heater

• Factory-installed high-capacity muffler

• High- and low-pressure switches

• Service valves with sweat connections and easy access to gauge ports

• Fully charged for 15 feet of tubing length

• Fully enclosed contactor with lug connection

• Ground lug connection

• Extended-life capacitors

• AHRI Certified; ETL Listed

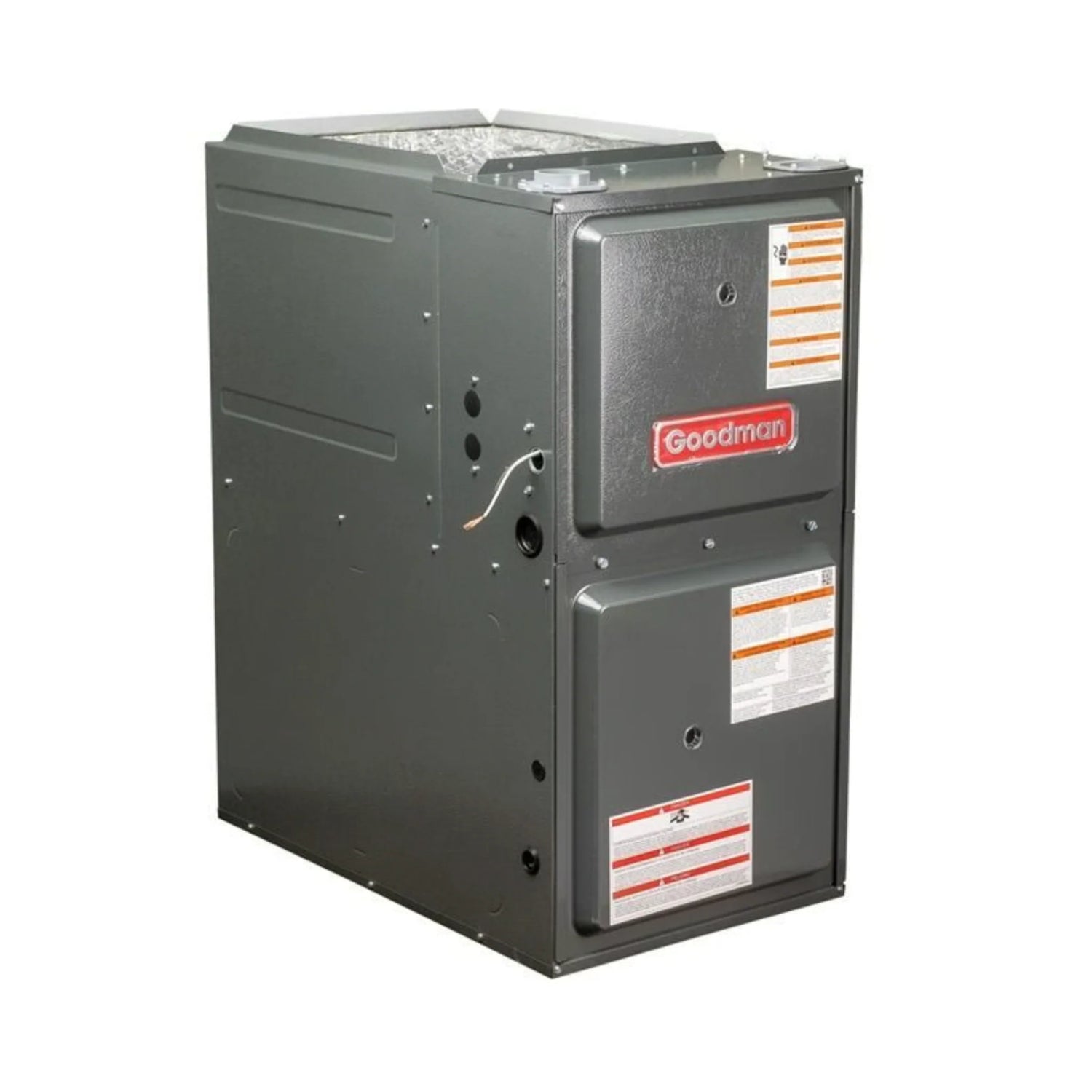

Goodman 80,000 BTU 96% AFUE Gas Furnace Variable Speed Two Stage 21" Upflow R32 GRVT960804CN

The Goodman GRVT960804CN is part of Goodman’s top-tier furnace lineup, offering exceptional heating efficiency and comfort. With a 96% AFUE rating, two-stage gas valve, and variable-speed ECM blower motor, this furnace is designed to provide consistent warmth, quiet operation, and reduced energy costs. Built with durable materials and advanced technology, the GRVT960804CN is an ideal heating solution for small to medium-sized homes.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

96% High-Efficiency Heating

With a 96% AFUE rating, the Goodman GRVT960804CN maximizes energy usage, ensuring that nearly all fuel is converted into heat for your home. Only 4% of fuel is lost through venting, making this furnace a cost-effective and eco-friendly choice.

Two-Stage Heating with Variable-Speed Blower

The two-stage gas valve allows the furnace to operate at a lower capacity for mild conditions and switch to full output when needed. Paired with a variable-speed blower motor, the system optimizes airflow, minimizes noise, and delivers steady indoor comfort while using less energy.

Durability and Reliability

Engineered with a heavy-duty insulated cabinet and aluminized steel heat exchanger, this Goodman furnace ensures long-lasting performance. The silicon nitride ignitor is built for durability and efficiency, lowering maintenance costs and improving reliability.

Ease of Installation and Maintenance

The GRVT960804CN is designed for hassle-free installation in either upflow or horizontal orientations. Its self-calibrating gas valve adapts automatically to the installation, while the integrated self-diagnostic board monitors performance and provides easy-to-read error codes. ComfortNet compatibility offers advanced maintenance alerts and performance optimization.

Warranty Protection

Goodman protects your investment with a 10-year parts warranty and a lifetime heat exchanger warranty, ensuring peace of mind when properly installed and registered online.

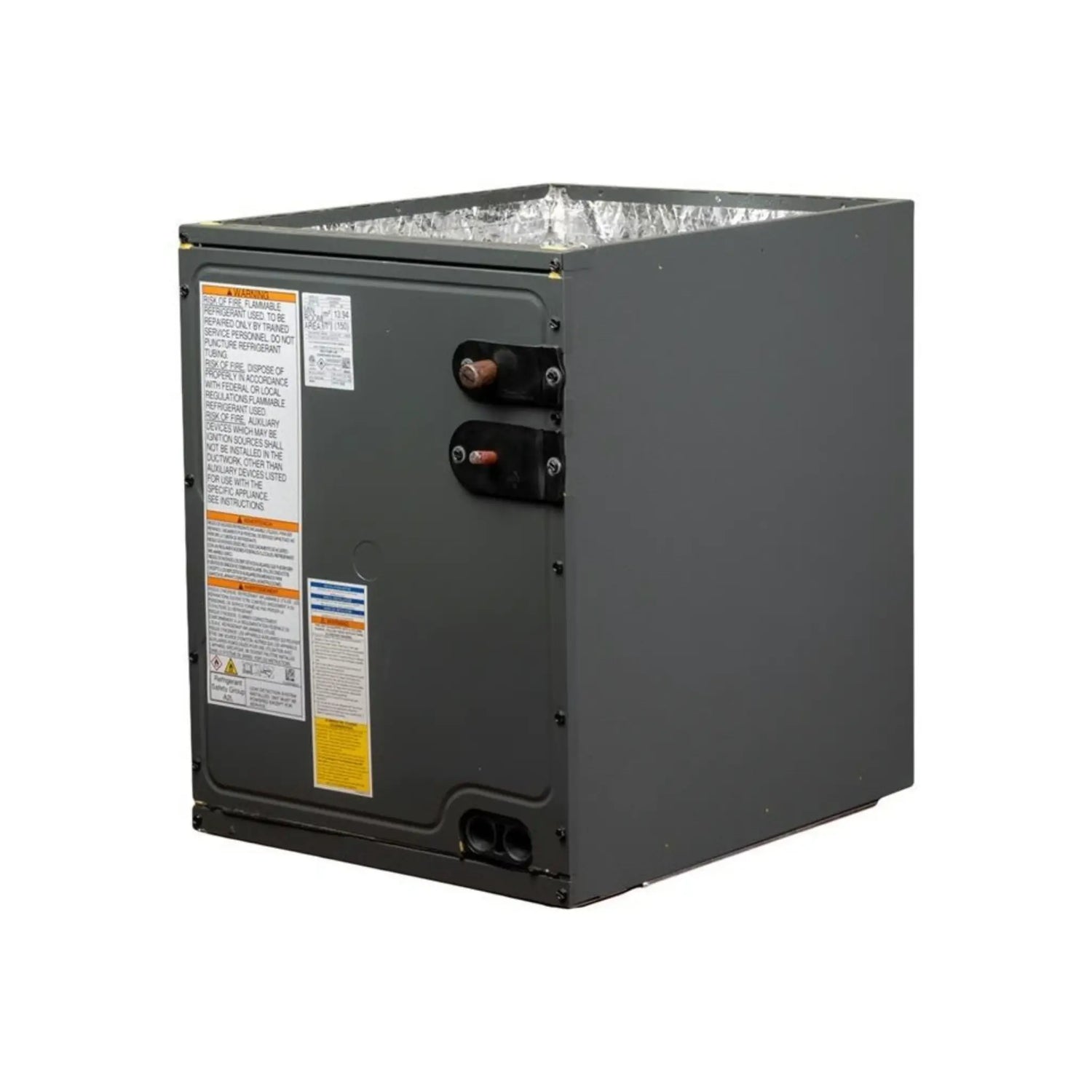

Goodman 2 Ton Cased Evaporator Coil R32 Upflow/Downflow 21" Cabinet W/ TXV CAPTA2422C3

This high-efficiency all-aluminum evaporator coil is specifically engineered for use with R-32 refrigerant, delivering superior performance, durability, and easy installation. Featuring integrated thermal expansion valves and multiple drainage connections, it’s ideal for both cooling and heat pump systems. With vertical and horizontal models available, its 21-inch depth design allows easier access in tight attic spaces, making it a flexible and dependable HVAC solution for residential installations.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
