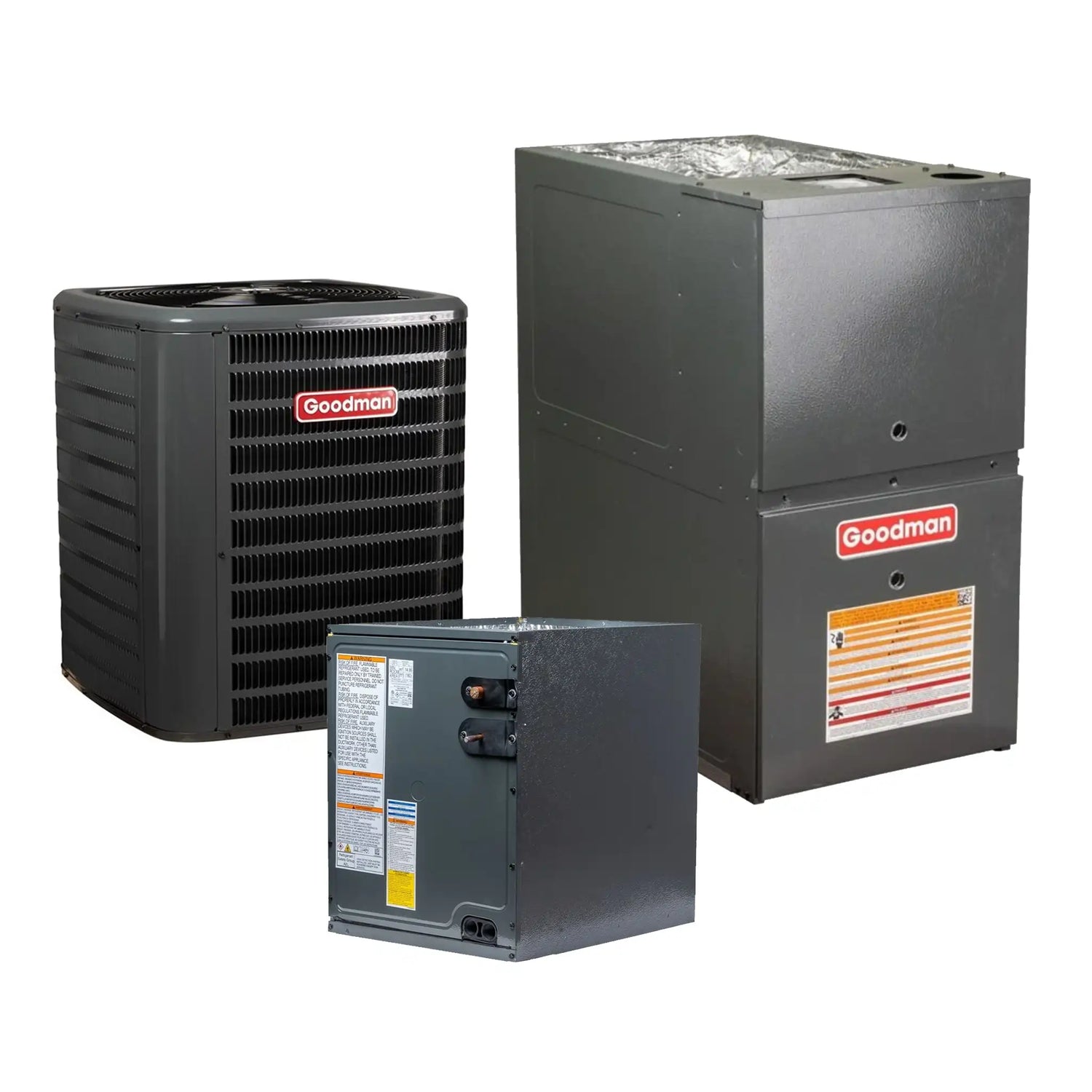

Goodman 2 Ton 15.2 SEER2 Heat Pump Furnace System 80% 60K BTU Vertical R32

Goodman 2 Ton 15.2 SEER2 Split Heat Pump Condenser Single Stage R32 GLZS4BA2410

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting. It includes enhanced aluminum fin coils. Additional components include a single-speed PSC fan motor, factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy access ports, is fully charged for 15 feet of tubing, and includes a fully enclosed contactor with a lug connection. The unit is AHRI Certified and ETL Listed.

The cabinet features a removable grille-style top design that complies with UL 60335-2-40 standards. It includes a steel louver coil guard and is constructed from heavy-gauge galvanized steel. The cabinet is finished in an attractive Architectural Gray powder-coat with 500-hour salt-spray approval. It provides top and side maintenance access and, when properly anchored, meets the 2023 Florida Building Code requirements for hurricane-type winds. Anchor bracket kits are available to ensure compliance.

• High-efficiency compressor

• New R32 Freon, meets the 2025 refrigerant change guidelines.
• Smart-Shift technology for quiet, reliable defrost

• Enhanced aluminum fin coil: 5 mm diameter (1.5T-3.5 Ton); 7 mm diameter copper tubes (4.0-5.0 Ton)

• Single-speed PSC condenser fan motor

• Factory-installed bi-flow liquid-line filter drier

• Factory-installed suction-line accumulator

• Factory-installed compressor crankcase heater

• Factory-installed high-capacity muffler

• High- and low-pressure switches

• Service valves with sweat connections and easy access to gauge ports

• Fully charged for 15 feet of tubing length

• Fully enclosed contactor with lug connection

• Ground lug connection

• Extended-life capacitors

• AHRI Certified; ETL Listed

Goodman 80% AFUE 60,000 BTU Gas Furnace 17.5" Wide Two Stage Upflow R32 GR9T800603BN

The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers quiet, efficient heating with a 60,000 BTU output and advanced features designed for reliable, long-term performance. Ideal for residential applications, this furnace includes a two-stage gas valve and a multi-speed ECM blower motor to enhance comfort while minimizing energy consumption.

Equipped with a SureStart® Silicon Nitride igniter, self-diagnostic control board, and a two-speed induced draft blower, this furnace ensures smooth, quiet operation throughout the heating cycle. The fully insulated, heavy-gauge steel cabinet allows for multi-position installation, while compliance with California Low NOx standards ensures eco-conscious performance in approved areas.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Fully Insulated Heavy-Gauge Steel Cabinet – Reduces heat loss and operating noise
• Durable Baked-Enamel Finish – Corrosion-resistant for long-term protection
• Multi-Position Installation Options:
  • GR9T80: Upflow, horizontal left or right
  • GD9T80: Downflow, horizontal left or right
• Removable Bottom Panel – Allows for bottom- or side-return air applications
• Left or Right Gas/Electric Service Connections – Simplifies flexible installation
• Cabinet Air Leakage: ≤ 2%
• Flush Fit with Most Coils – Designed to match up seamlessly with Goodman evaporator coils

This Goodman 2-stage gas furnace provides efficient, dependable performance with smart features and a versatile cabinet design, making it a perfect choice for new HVAC installations or upgrades in homes outside of restricted California districts.

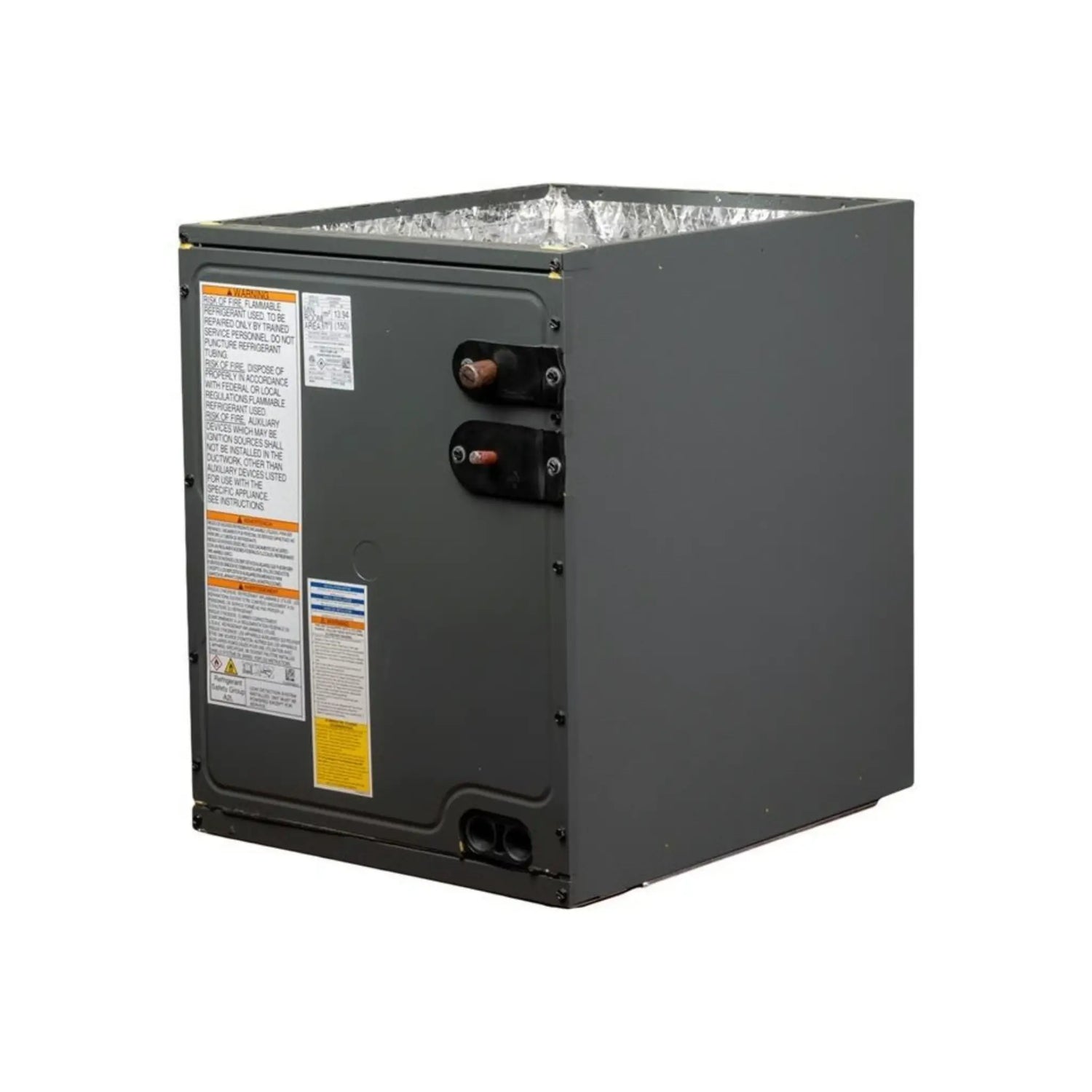

Goodman 2 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 With TXV CAPTA2422B3

The Goodman CAPTA2422B3 2 Ton Cased Evaporator Coil is engineered for long-lasting performance and optimal energy efficiency. Designed for both air conditioners and heat pump systems, this coil features an all-aluminum construction, factory-installed TXV, and a durable galvanized steel cabinet. Its compatibility with R-32 refrigerant and dual upflow/downflow orientation make it an ideal choice for residential and light commercial HVAC installations.

Built with reliability and efficiency in mind, the CAPTA Series coils are rigorously tested and backed by Goodman’s industry-leading warranty. Whether you're replacing an aging coil or designing a new system, the CAPTA2422B3 provides the flexibility, compatibility, and quality you can depend on.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Why Choose Goodman?

Goodman is a trusted leader in residential and light commercial HVAC systems across North America. Known for manufacturing high-performance products at an affordable price, Goodman is committed to delivering reliability, energy efficiency, and long-term value. When you choose a CAPTA Series evaporator coil, you're investing in quality components built to last.
