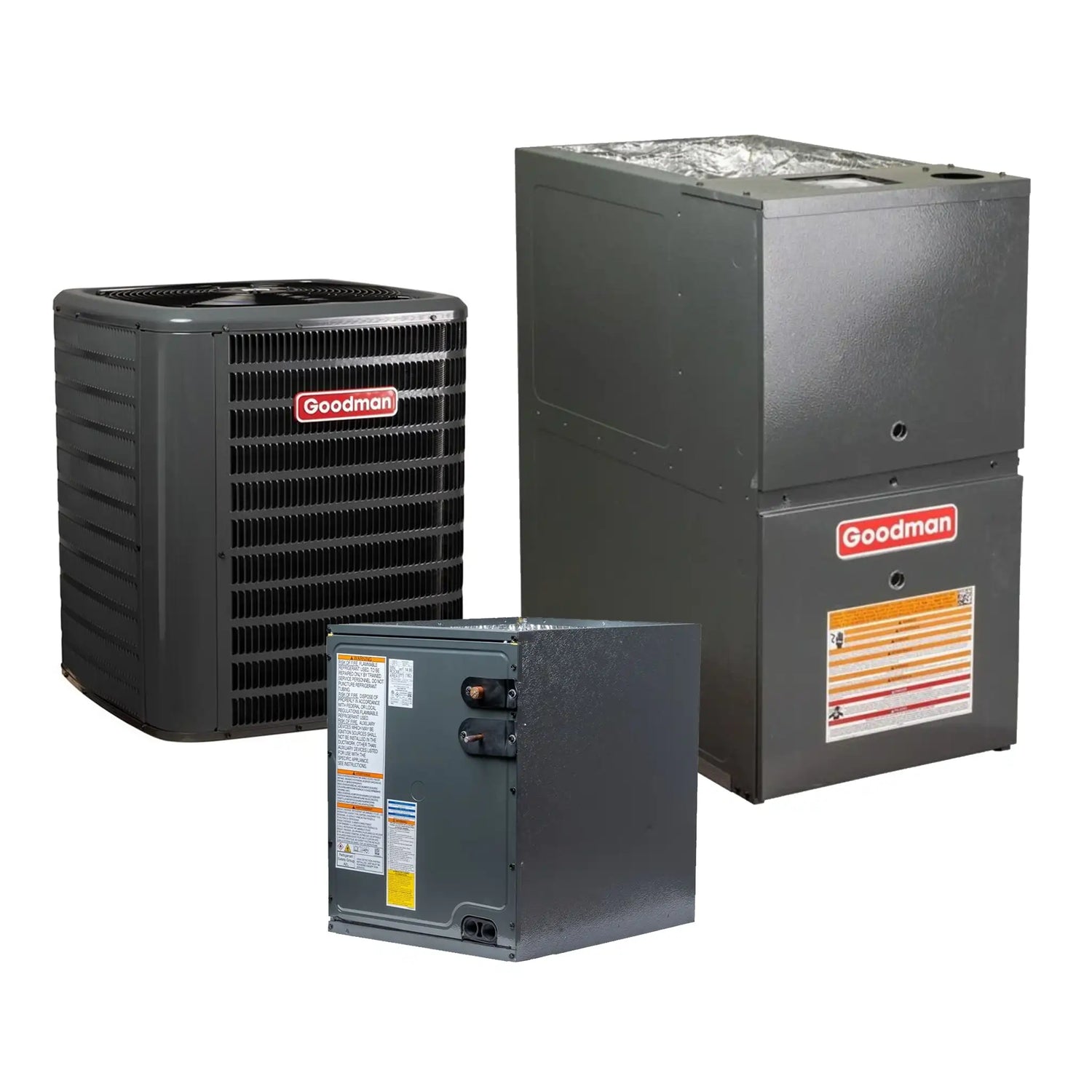

Goodman 2 Ton 15.2 SEER2 Heat Pump Furnace System 80% 60K BTU R32 Vertical

Goodman 2 Ton 15.2 SEER2 Split Heat Pump Condenser Single Stage R32 GLZS4BA2410

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting. It includes enhanced aluminum fin coils. Additional components include a single-speed PSC fan motor, factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy access ports, is fully charged for 15 feet of tubing, and includes a fully enclosed contactor with a lug connection. The unit is AHRI Certified and ETL Listed.

The cabinet features a removable grille-style top design that complies with UL 60335-2-40 standards. It includes a steel louver coil guard and is constructed from heavy-gauge galvanized steel. The cabinet is finished in an attractive Architectural Gray powder-coat with 500-hour salt-spray approval. It provides top and side maintenance access and, when properly anchored, meets the 2023 Florida Building Code requirements for hurricane-type winds. Anchor bracket kits are available to ensure compliance.

• High-efficiency compressor

• New R32 Freon, meets the 2025 refrigerant change guidelines.
• Smart-Shift technology for quiet, reliable defrost

• Enhanced aluminum fin coil: 5 mm diameter (1.5T-3.5 Ton); 7 mm diameter copper tubes (4.0-5.0 Ton)

• Single-speed PSC condenser fan motor

• Factory-installed bi-flow liquid-line filter drier

• Factory-installed suction-line accumulator

• Factory-installed compressor crankcase heater

• Factory-installed high-capacity muffler

• High- and low-pressure switches

• Service valves with sweat connections and easy access to gauge ports

• Fully charged for 15 feet of tubing length

• Fully enclosed contactor with lug connection

• Ground lug connection

• Extended-life capacitors

• AHRI Certified; ETL Listed

Goodman 60,000 BTU 80% Gas Furnace Variable Two Stage 17.5"W Upflow R32 GRVT800603BN

The Goodman GRVT800603BN is a high-performance gas furnace designed to deliver reliable heating, energy efficiency, and superior comfort for small to medium-sized homes. Operating at 80% AFUE, this model features a two-stage gas valve and a variable-speed ECM blower motor that ensures quiet operation, consistent indoor temperatures, and lower energy usage throughout the heating season.

With its rugged build and advanced airflow control, the GRVT800603BN is an excellent choice for homeowners seeking dependable heating in moderate climates. Built to last, this unit also includes a 10-year parts warranty and lifetime heat exchanger warranty when registered online.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

60,000 BTU Heating Power

With a 60,000 BTU input and 48,000 BTU output, the Goodman GRVT800603BN provides consistent warmth ideal for small to medium homes in moderate climates. It balances heating power and fuel efficiency to meet comfort needs without unnecessary energy consumption.

80% AFUE Efficiency

This gas furnace operates at 80% AFUE, meaning 80% of the fuel is converted into usable heat while 20% is lost through exhaust. It requires standard metal flue venting and is a solid choice for homes not requiring ultra-high-efficiency (90%+) models.

Two-Stage Heating and Variable-Speed Blower

The two-stage burner operates at a lower capacity during milder weather and ramps up when full heating is needed. Paired with a variable-speed ECM motor, this system delivers quieter operation, improved airflow control, and better temperature consistency throughout the home.

Durability and Quiet Performance

The heavy-duty aluminized steel heat exchanger provides excellent corrosion resistance and heat transfer. Combined with a tightly sealed, insulated cabinet, the GRVT800603BN minimizes sound and air leakage for quieter, more efficient operation over time.

Warranty Protection

This model includes a 10-year parts warranty and a lifetime heat exchanger warranty, ensuring long-term peace of mind. Registration is required within a limited time after installation to activate full warranty coverage.

Installation Flexibility

The Goodman GRVT800603BN ships ready for natural gas operation and can be field-converted to propane using an optional LP conversion kit. It supports upflow and horizontal installations, providing versatility for various home layouts and space constraints.

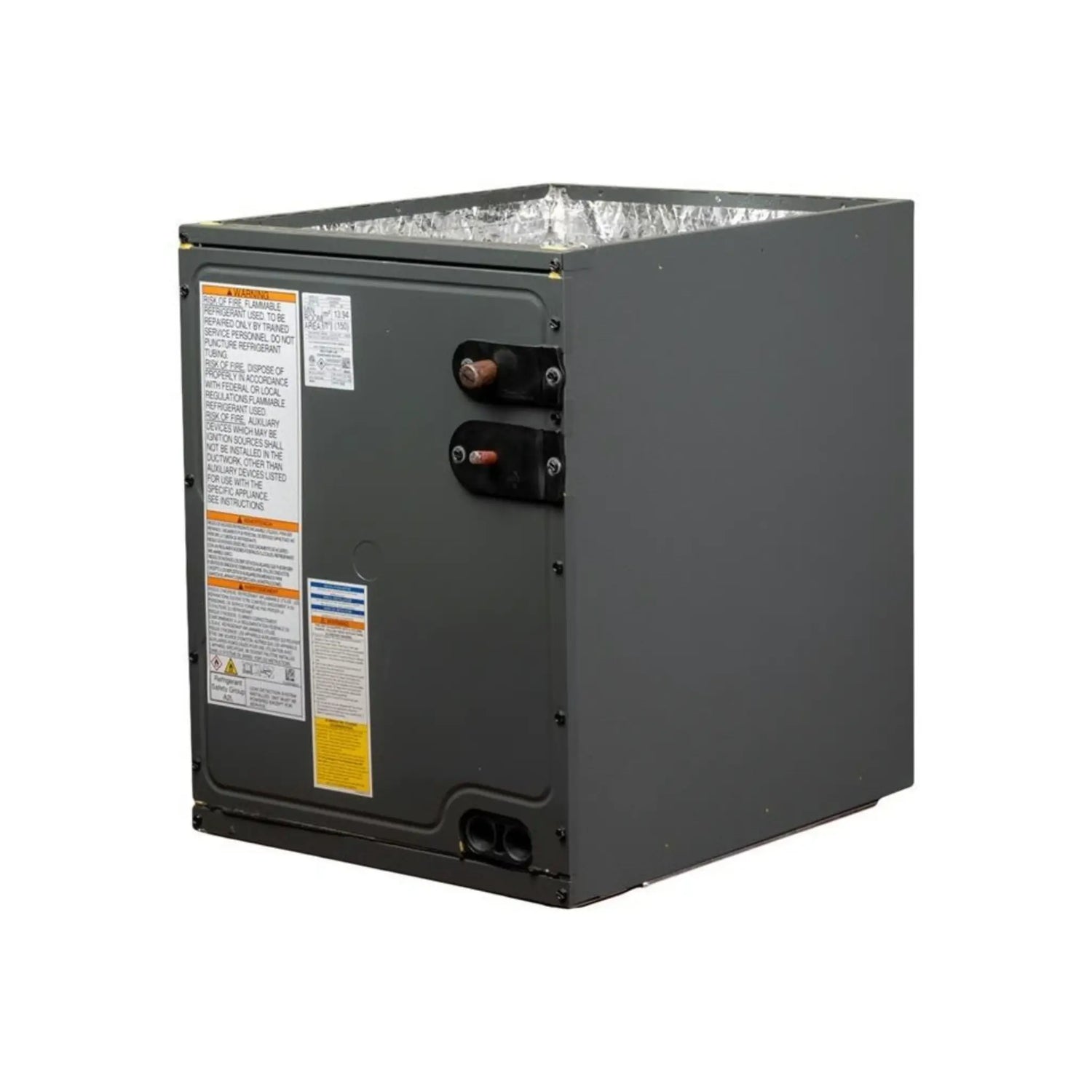

Goodman 2 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 With TXV CAPTA2422B3

The Goodman CAPTA2422B3 2 Ton Cased Evaporator Coil is engineered for long-lasting performance and optimal energy efficiency. Designed for both air conditioners and heat pump systems, this coil features an all-aluminum construction, factory-installed TXV, and a durable galvanized steel cabinet. Its compatibility with R-32 refrigerant and dual upflow/downflow orientation make it an ideal choice for residential and light commercial HVAC installations.

Built with reliability and efficiency in mind, the CAPTA Series coils are rigorously tested and backed by Goodman’s industry-leading warranty. Whether you're replacing an aging coil or designing a new system, the CAPTA2422B3 provides the flexibility, compatibility, and quality you can depend on.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Why Choose Goodman?

Goodman is a trusted leader in residential and light commercial HVAC systems across North America. Known for manufacturing high-performance products at an affordable price, Goodman is committed to delivering reliability, energy efficiency, and long-term value. When you choose a CAPTA Series evaporator coil, you're investing in quality components built to last.
