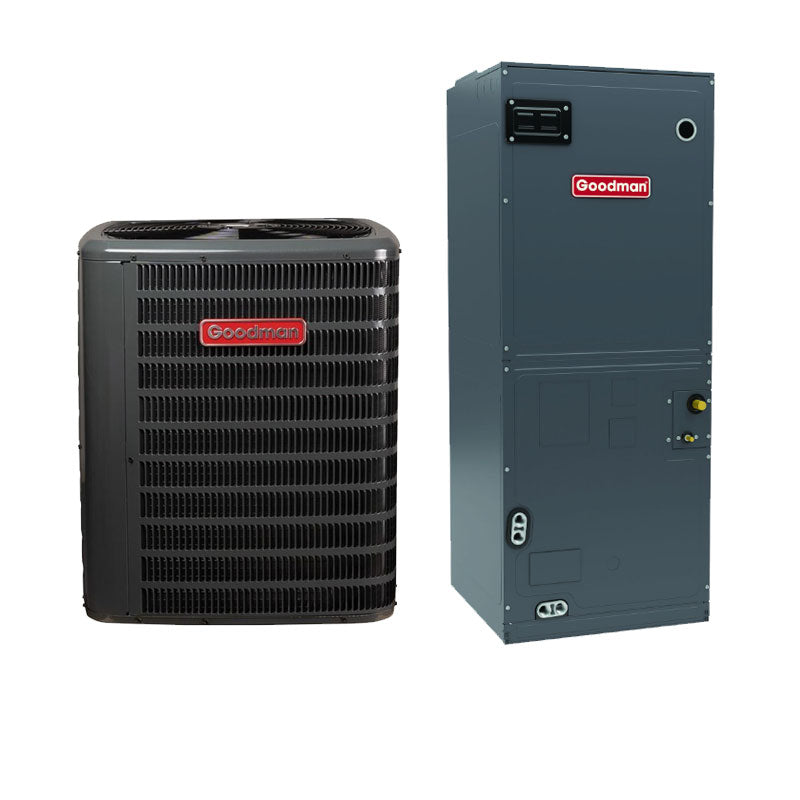

Goodman 2 Ton 14.5 SEER2 Air Conditioner Split System Multi-Position R32

Goodman 2 Ton R32 Air Conditioner Condenser 14.3 SEER2 GLXS4BA2410

This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.

• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 70 lb
• Tonnage: 2
• Unit Depth: 26 in

• Brand: Goodman
• Model: GLXS4BA2410
• Refrigerant Type: R-32
• SEER2 Rating: 14.3
• Cooling Capacity: 24,000 Btu/H

Product Features for Goodman 2 Ton R32 AC Condenser (GLXS4BA2410)

• High-Efficiency Scroll Compressor: Provides optimal cooling and energy savings.
• Sound Reduction: Equipped with a high-density foam sound blanket for quieter operation.
• Advanced Copeland CoreSense Technology: Ensures enhanced reliability and diagnostics.
• Pre-Charged Refrigerant: Ready for up to 15 feet of tubing, simplifying installation.
• Durable Coil Design: Copper tube with enhanced aluminum fin coil (5mm diameter).
• Factory-Installed Filter Drier: Improves system longevity.
• Easy Service Access: Sweat connection service valves with easy access to gauge ports.
• Safety Features: Includes an enclosed contactor with lug connection, high-pressure switch, and long-lasting capacitors.
• Certified for Quality: AHRI Certified for performance and ETL Listed for safety.
• Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
• Venturi Design: Enhances airflow velocity for improved cooling efficiency.
• Architectural Gray Finish: Powder-coated with 500-hour salt-spray approval for durability.
• Wire Fan Grille & Steel Coil Guard: Ensures protection and safety.
• Maintenance & Control Access: Convenient top and side access, with a single-panel control area.
• Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.

Goodman 2 Ton R32 Air Handler Ducted Multi-Position w/ 17-9/16" Cabinet TXV AMST24BU1300

Elevate your HVAC performance with the AMST Ducted Multi-Position Air Handler. Featuring a nine-speed ECM motor for precise airflow control and a compact 17-9/16 inch cabinet, this unit fits in tight spaces while handling 2 to 5 tons efficiently. The integrated TXV expansion valve ensures optimal refrigerant management, enhancing both energy savings and reliability. Ideal for versatile installations, the AMST air handler delivers superior comfort and performance for any residential or light commercial setting.

• Refrigerant Type: R-32
• Unit Height: 45 in
• Unit Width: 17-9/16 in
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 112 lb
• Tonnage: 2
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Rotary compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features:

• SmartFrame Cabinet: Rigid, durable design with 21” depth for easy attic installation.
• Configuration: Versatile horizontal or vertical setup.
• Drain Pan: DecaBDE-free thermoplastic with secondary drain connections.
• Insulation: Foil-faced to reduce condensation; glue-less retention and tool-less filter access.
• Finish: Galvanized, leather grain-embossed for durability and aesthetic appeal.

Certifications: AHRI Certified and ETL Listed for quality assurance.
