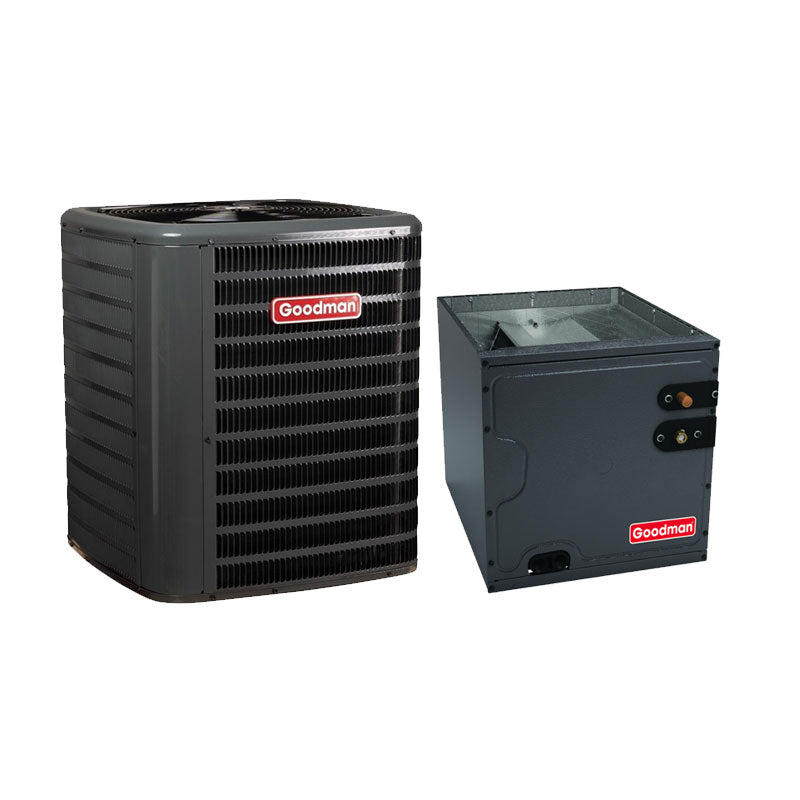

Goodman 2 Ton 14.3 SEER2 Split Air Conditioner Coil System 21" Vertical R32

Goodman 2 Ton R32 Air Conditioner Condenser 14.3 SEER2 GLXS4BA2410

This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.

• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 70 lb
• Tonnage: 2
• Unit Depth: 26 in

• Brand: Goodman
• Model: GLXS4BA2410
• Refrigerant Type: R-32
• SEER2 Rating: 14.3
• Cooling Capacity: 24,000 Btu/H

• High-Efficiency Scroll Compressor: Provides optimal cooling and energy savings.
• Sound Reduction: Equipped with a high-density foam sound blanket for quieter operation.
• Advanced Copeland CoreSense Technology: Ensures enhanced reliability and diagnostics.
• Pre-Charged Refrigerant: Ready for up to 15 feet of tubing, simplifying installation.
• Durable Coil Design: Copper tube with enhanced aluminum fin coil (5mm diameter).
• Factory-Installed Filter Drier: Improves system longevity.
• Easy Service Access: Sweat connection service valves with easy access to gauge ports.
• Safety Features: Includes an enclosed contactor with lug connection, high-pressure switch, and long-lasting capacitors.
• Certified for Quality: AHRI Certified for performance and ETL Listed for safety.
• Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
• Venturi Design: Enhances airflow velocity for improved cooling efficiency.
• Architectural Gray Finish: Powder-coated with 500-hour salt-spray approval for durability.
• Wire Fan Grille & Steel Coil Guard: Ensures protection and safety.
• Maintenance & Control Access: Convenient top and side access, with a single-panel control area.
• Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 2.0
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in


• High-performance all-aluminum evaporator coil
• Designed for R-32 refrigerant
• Integrated thermal expansion valves for cooling and heat pump applications
• Flexible vertical and horizontal installation options
• 21-inch depth for easy attic access
• Foil-faced insulation to minimize condensation
• Rust-resistant and UV-resistant drain pan
• Extra drainage connections
• Durable galvanized finish
• Removable drain pan rails for easy maintenance
• AHRI Certified
• ETL Listed
• Efficient and durable HVAC solution

Product Features For Goodman R32 Vertical Evaporator Coil

• Optimized for R-32 Refrigerant: Designed with circuits and manifolds specifically for R-32 refrigerant compatibility.
• Durable R-32 Sensor: Engineered to maximize the lifespan of the coil with an efficient R-32 sensor.
• Factory-Installed Thermal Expansion Valves: CAPTA and CHPTA models come equipped with factory-installed thermal expansion valves for enhanced performance.
• Standardized Copper Suction Tube: Features a standardized suction tube stub length for easy installation.
• Single Front Access Panel: Convenient single front access panel on CAPTA and CHPTA models for simplified maintenance.
• Foil-Faced Insulation: Reduces cabinet condensation for improved efficiency and comfort.
• Galvanized Finish: Durable galvanized, leather grain-embossed finish for long-lasting performance.
• Rust-Resistant Drain Pans: Low water-retention thermoplastic drain pans designed for rust resistance.
• DecaBDE-Free Drain Pan: Includes a DecaBDE-free drain pan with secondary connections for added versatility.
• UV-Resistant Drain Pan: UV-resistant design ensures durability against environmental elements.
• Easy Coil Removal: Drain pan rails facilitate easy removal and repositioning of coils for maintenance.
• Certified for Quality: AHRI certified and ETL listed for reliability and performance assurance.
