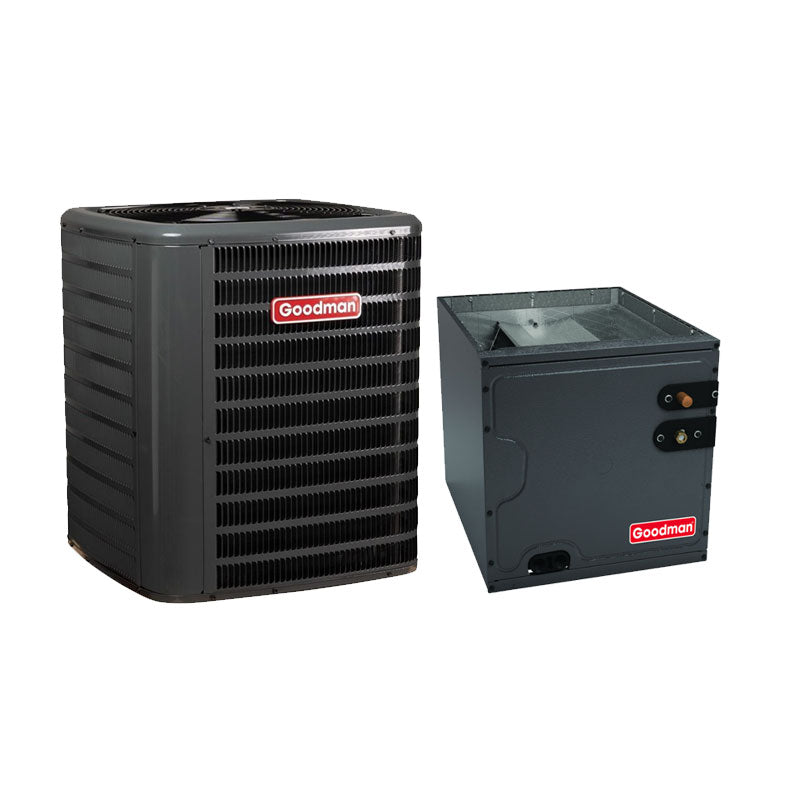

Goodman 2 Ton 14.3 SEER2 Split Air Conditioner Coil System 17" Vertical R32

Goodman 2 Ton R32 Air Conditioner Condenser 14.3 SEER2 GLXS4BA2410

This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.

• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 70 lb
• Tonnage: 2
• Unit Depth: 26 in

• Brand: Goodman
• Model: GLXS4BA2410
• Refrigerant Type: R-32
• SEER2 Rating: 14.3
• Cooling Capacity: 24,000 Btu/H

Product Features for Goodman 2 Ton R32 AC Condenser (GLXS4BA2410)

• High-Efficiency Scroll Compressor: Provides optimal cooling and energy savings.
• Sound Reduction: Equipped with a high-density foam sound blanket for quieter operation.
• Advanced Copeland CoreSense Technology: Ensures enhanced reliability and diagnostics.
• Pre-Charged Refrigerant: Ready for up to 15 feet of tubing, simplifying installation.
• Durable Coil Design: Copper tube with enhanced aluminum fin coil (5mm diameter).
• Factory-Installed Filter Drier: Improves system longevity.
• Easy Service Access: Sweat connection service valves with easy access to gauge ports.
• Safety Features: Includes an enclosed contactor with lug connection, high-pressure switch, and long-lasting capacitors.
• Certified for Quality: AHRI Certified for performance and ETL Listed for safety.
• Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
• Venturi Design: Enhances airflow velocity for improved cooling efficiency.
• Architectural Gray Finish: Powder-coated with 500-hour salt-spray approval for durability.
• Wire Fan Grille & Steel Coil Guard: Ensures protection and safety.
• Maintenance & Control Access: Convenient top and side access, with a single-panel control area.
• Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.

Goodman 2.5 Ton R32 Evaporator Coil Upflow/Downflow CAPTA3022B3

This high-performance all-aluminum evaporator coil, designed for R-32 refrigerant, features integrated thermal expansion valves for cooling and heat pump applications. With flexible vertical and horizontal installation, its 21-inch depth allows easier attic access. The foil-faced insulation reduces condensation, while the rust-resistant, UV-resistant drain pan and galvanized finish ensure durability. Easy-to-remove drain pan rails simplify maintenance. AHRI certified and ETL listed, this coil delivers efficiency, durability, and reliability for HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 17.5 in
• Cased/Uncased: Cased
• Tonnage: 2.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

• Brand: Goodman
• Model Number: CAPTA3022B3
• Type: Cased Evaporator Coil
• Tonnage: 2 - 2.5 Ton
• Refrigerant Type: R-32
• Suction Valve Size: 3/4''
• Liquid Valve Size: 3/8''
• Height: 22"
• Width: 17.5"
• Depth: 21''
• Shipping Weight: 40 lbs
• Application: Vertical

Product Features For Goodman 2 - 2.5 Ton R32 Vertical Evaporator Coil CAPTA3022B3

• All-Aluminum Evaporator Coil: Designed for enhanced durability and performance.
• Optimized for R-32 Refrigerant: Includes circuits and manifolds specifically for R-32 applications.
• Long-lasting R-32 Sensor: Engineered for the lifespan of the coil, ensuring efficient operation.
• Factory-Installed Thermal Expansion Valves: Ideal for both cooling and heat pump applications.
• Standardized Copper Suction Tube: Stub length for consistent installation.
• Check Flowrator: Ensures optimal performance for cooling and heat pump systems.
• Vertical Application: Flexible design for various installation configurations.
• 21" Depth: Allows easier access in attic spaces for installation and maintenance.
• Single Front Access Panel: Simplifies service and maintenance tasks.
• Foil-Faced Insulation: Reduces cabinet condensation for improved efficiency.
• Galvanized Leather Grain Finish: Provides a durable and aesthetically pleasing surface.
• Rust-Resistant Thermoplastic Drain Pan: Features a low water-retention design for reliability.
• DecaBDE-Free Drain Pan: Equipped with secondary drain connections for added convenience.
• Easy-Remove Drain Pan Rails: Facilitates quick removal and repositioning without compromising structural integrity.
• UV-Resistant Drain Pan: Enhances longevity and performance under various environmental conditions.
• AHRI Certified: Guarantees performance and efficiency standards.
• ETL Listed: Ensures safety and quality compliance for HVAC systems.
