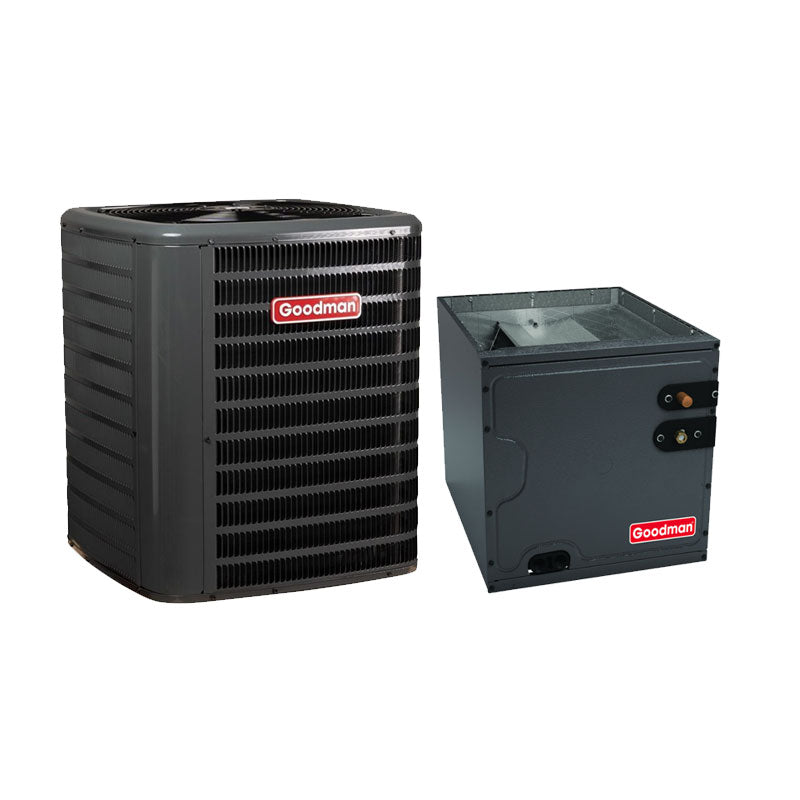

Goodman 2 Ton 14.3 SEER2 Central Air Conditioner Coil System Vertical R32

Goodman 2 Ton R32 Air Conditioner Condenser 14.3 SEER2 GLXS4BA2410

This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.

• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 70 lb
• Tonnage: 2
• Unit Depth: 26 in

• Brand: Goodman
• Model: GLXS4BA2410
• Refrigerant Type: R-32
• SEER2 Rating: 14.3
• Cooling Capacity: 24,000 Btu/H

Product Features for Goodman 2 Ton R32 AC Condenser (GLXS4BA2410)

• High-Efficiency Scroll Compressor: Provides optimal cooling and energy savings.
• Sound Reduction: Equipped with a high-density foam sound blanket for quieter operation.
• Advanced Copeland CoreSense Technology: Ensures enhanced reliability and diagnostics.
• Pre-Charged Refrigerant: Ready for up to 15 feet of tubing, simplifying installation.
• Durable Coil Design: Copper tube with enhanced aluminum fin coil (5mm diameter).
• Factory-Installed Filter Drier: Improves system longevity.
• Easy Service Access: Sweat connection service valves with easy access to gauge ports.
• Safety Features: Includes an enclosed contactor with lug connection, high-pressure switch, and long-lasting capacitors.
• Certified for Quality: AHRI Certified for performance and ETL Listed for safety.
• Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
• Venturi Design: Enhances airflow velocity for improved cooling efficiency.
• Architectural Gray Finish: Powder-coated with 500-hour salt-spray approval for durability.
• Wire Fan Grille & Steel Coil Guard: Ensures protection and safety.
• Maintenance & Control Access: Convenient top and side access, with a single-panel control area.
• Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.

Goodman 2-2.5 Ton R32 Evaporator Coil Upflow/Downflow Cased CAPTA3022C3

The Goodman 2-2.5 Ton R32 Evaporator Coil CAPTA3022C3 offers high efficiency with an all-aluminum construction optimized for heat exchange. Designed for upflow/downflow applications, it features eco-friendly R-32 refrigerant, a factory-installed thermal expansion valve, and foil-faced insulation to reduce condensation. The compact 21" depth allows for easy attic access, while the UV-resistant, DecaBDE-free drain pan ensures durability. This cased evaporator coil is ideal for cooling and heat pump applications, with a galvanized finish for rust resistance and AHRI Certification for reliability.

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 2.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in


Product Features For Goodman 2-2.5 Ton R32 Vertical Evaporator Coil

• All-aluminum evaporator coil optimized for efficient heat exchange
• R-32 refrigerant circuits and manifolds for compatibility with eco-friendly refrigerants
• R-32 sensor designed for the lifespan of the coil
• Factory-installed thermal expansion valves for both cooling and heat pump applications
• Standardized copper suction tube stub length for streamlined installation
• Check flowrator for enhanced cooling and heat pump performance
• Vertical application design with a compact 21" depth for easier attic access
• Single front access panel for convenient servicing
• Foil-faced insulation to reduce internal condensation and maintain efficiency
• Galvanized, leather grain-embossed finish for durability and rust resistance
• DecaBDE-free thermoplastic drain pan with a low water-retention design and secondary drain connections
• UV-resistant drain pan for long-lasting performance
• Drain pan rails allow easy coil removal and repositioning without compromising the structure
• AHRI Certified and ETL Listed for reliability and compliance
