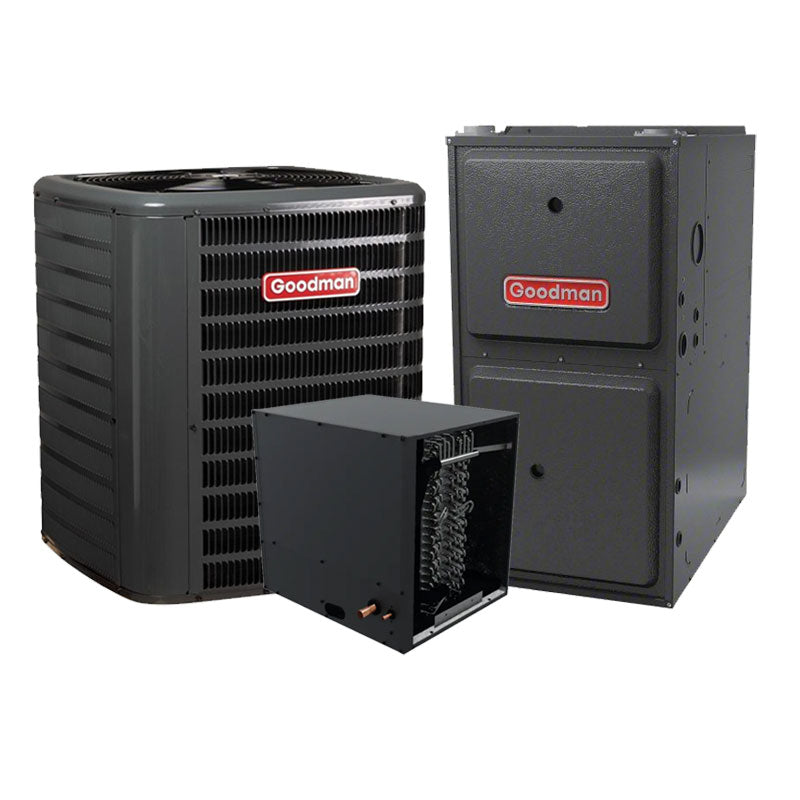

Goodman 2.5 Ton Split AC Gas Furnace 14.5 SEER2 92% 60K BTU Horizontal R32

Goodman 2.5 Ton 14.3 SEER2 Air Conditioner R32 Single Stage GLXS4BA3010

The Goodman 2.5 Ton Air Conditioner Condenser GLXS4BA3010 offers efficient cooling performance for your home. With a 14.3 SEER2 rating, this unit is designed to provide exceptional energy efficiency, helping to lower your utility bills. It delivers a robust 30,000 BTU of cooling power, ideal for medium-sized spaces. The single-stage operation ensures reliable and consistent comfort, while the R32 refrigerant promotes environmental sustainability. Operating on 208/230V single-phase power, this condenser is a smart choice for homeowners seeking reliable and eco-friendly cooling solutions. Experience comfort with Goodman!

• Energy Star Certified: No
• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 32 in
• Unit Width: 29 in
• Cooling Capacity Nominal: 30000 Btu/H
• Max Overcurrent Protection: 25 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 155.4 lb
• Unit Depth: 29 in

Product Features

• High-Efficiency Scroll Compressor: Maximizes performance and energy savings.
• High-Density Foam Compressor Sound Blanket: Ensures quiet operation.
• Advanced Copeland CoreSense Technology: Enhances diagnostics and efficiency.
• Fully Charged for 15' of Tubing Length: Convenient installation.
• Copper Tube/Enhanced Aluminum Fin Coil (5mm Diameter): Superior heat exchange for effective cooling.
• Factory-Installed Filter Drier: Simplifies maintenance.
• Sweat Connection Service Valves: Easy access to gauge ports.
• Enclosed Contactor with Lug Connection: Increases reliability.
• High-Pressure Switch: Protects the system from pressure issues.
• Capacitors with Extended Life: Ensures long-lasting performance.
• AHRI Certified: Validated efficiency and performance.
• ETL Listed: Meets safety standards.

Cabinet Features

• Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
• Venturi Design: Enhances airflow velocity for improved cooling.
• Architectural Gray Powder-Coat Finish: 500-hour salt-spray approved for durability.
• Wire Fan Grille: Durable and safe design.
• Steel Coil Guard: Protects the coil from damage.
• Maintenance Access: Convenient top and side access for servicing.
• Control Access: Single-panel design with space for accessories.
• Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.

Goodman R32 92% AFUE Gas Furnace 60K BTU Multi-Speed ECM Upflow/Horizontal GR9S920603BN

Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 60,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.

• Unit Height: 33-3/8 in
• Unit Width: 17-1/2 in
• AFUE: 92 %
• 60,000 BTU
• R32
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 114 lb
• Model Efficiency: 0.92
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled

Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

Goodman 2.5 Ton R32 Cased Evaporator Coil Horizontal-A 21" Cabinet with TXV CHPTA3026C3

The Goodman R32 2.5 Ton Cased Evaporator Coil features a compact 21" cabinet designed for horizontal installation, optimized for R-32 refrigerant to enhance efficiency and minimize environmental impact. This all-aluminum evaporator coil ensures superior thermal conductivity, while factory-installed thermal expansion valves (TXV) improve cooling and heat pump applications. The unit includes a single front access panel for easy servicing and foil-faced insulation to reduce cabinet condensation. With rust-resistant thermoplastic drain pans and UV-resistant features, this durable coil meets AHRI certification and ETL listing standards for performance and safety, making it an ideal choice for efficient HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 21 in
• Unit Width: 26 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
