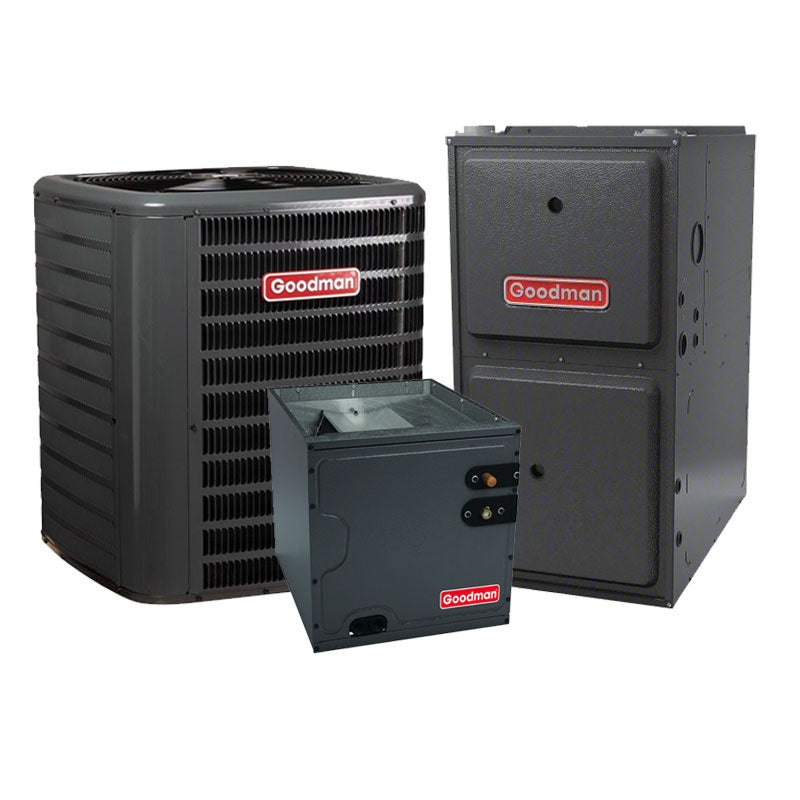

Goodman 2.5 Ton R32 Split AC & Gas Furnace 13.5 SEER2 92% 40K BTU Vertical

R32 Goodman 2.5 Ton Split Air Conditioner Condenser 13.4 SEER2 Single-Phase GLXS3BN3010

This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 32.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 30,000 Btu/H
• Max Overcurrent Protection: 25 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 134 lb
• Tonnage: 2.5
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 13.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for enhanced safety and accessibility.
• Venturi Design: Increases airflow velocity for improved system performance and efficiency.
• Attractive Architectural Gray Powder-Paint Finish: Offers durability with 500-hour salt-spray approval for coastal environments.
• Wire Fan Discharge Grille: Ensures efficient airflow while providing protection to internal components.
• Steel Louver Coil Guard: Protects the coil from physical damage while enhancing durability.
• Top and Side Maintenance Access: Facilitates easy servicing and maintenance from multiple angles.
• Single-Panel Access to Controls: Provides convenient access to controls with space for field-installed accessories.
• Hurricane Integrity Compliance: When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds; anchor bracket kits available for installation.

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

• Unit Height: 33-3/8 in
• Unit Width: 14 in
• AFUE: 92 %
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 106 lb
• Model Efficiency: 0.92
• 40,000 BTU
• R32
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled


Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

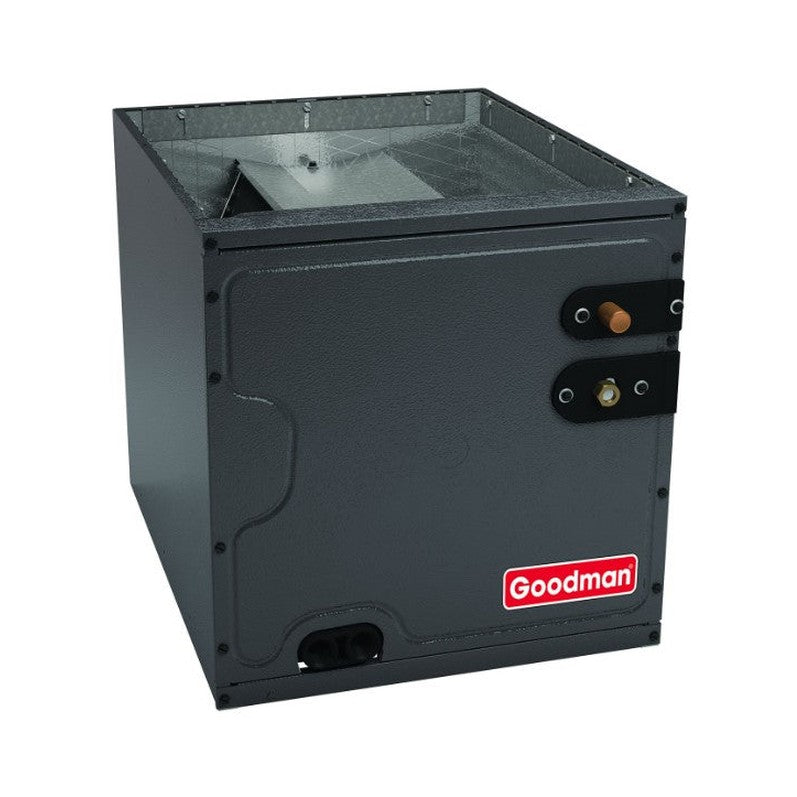

Goodman 2.5 Ton R32 Evaporator Coil Upflow/Downflow Cased CAPTA3026B3

The Goodman 2.5 Ton R32 Evaporator Coil CAPTA3026B3 is engineered for optimal cooling efficiency and versatility. Designed for both upflow and downflow applications, this cased coil features a compact size of 26"H x 17.5"W, making it easy to integrate into various HVAC systems. The built-in TXV (Thermal Expansion Valve) ensures precise refrigerant flow for enhanced performance and comfort. Compatible with R32 refrigerant, it promotes eco-friendliness while delivering reliable cooling. Upgrade your system with Goodman’s quality and efficiency for year-round comfort.

• Refrigerant Type: R-32
• Unit Height: 26 in
• Unit Width: 17.5 in
• Cased/Uncased: Cased
• Tonnage: 2.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 13.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
