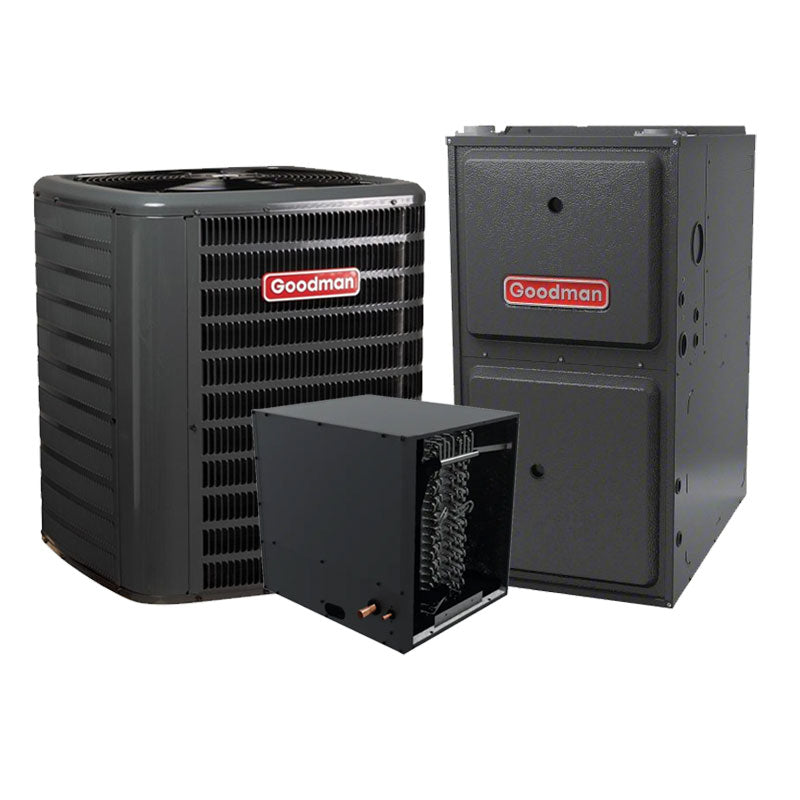

Goodman 2.5 Ton R32 AC & Gas Furnace System 16 SEER2 92% 60K BTU Horizontal

Goodman 2.5 Ton 15.2 SEER2 Split Air Conditioner Condenser R32 GLXS5BA3010

Stay cool with the Goodman 2.5 Ton Air Conditioner, featuring R-32 refrigerant and 15.2 SEER2 efficiency. This unit delivers reliable performance with a single-stage scroll compressor, factory-installed filter drier, and durable copper/aluminum coils. It’s pre-charged for up to 15 feet of refrigerant tubing and includes features like easy-access gauge ports and an enclosed contactor for safety. Designed for durability with a powder-coated gray finish and enhanced airflow design, it's ETL-listed, AHRI-certified, and built to withstand hurricane-type winds when anchored.

• Refrigerant Type: R-32
• Unit Height: 39.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 25 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 2.5
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in


Key Features

• Efficiency: Rated at 16 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable grille-style top meets UL 60335-2-40 safety standards.
• Venturi design enhances airflow velocity for better cooling efficiency.
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
• Wire fan discharge grille for additional protection.
• Steel louver coil guard ensures coil durability and safety.
• Top and side access for easier maintenance and servicing.
• Single-panel control access with space for field-installed accessories.
• Designed to meet 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

Goodman 92% AFUE 60K BTU Gas Furnace Multi-Speed ECM Upflow/Horizontal R32 GR9S920603BN

The Goodman GR9S920603BN is a high-quality, energy-efficient natural gas furnace engineered to deliver reliable comfort and long-lasting performance. With a 92% AFUE rating, a 9-speed ECM blower motor, and a rugged cabinet design, this furnace is ideal for small to medium homes seeking dependable heating and reduced energy costs.

Key Features

• Efficiency: Rated at 16 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

92% AFUE High-Efficiency Heating

This Goodman furnace features a 92% Annual Fuel Utilization Efficiency rating, meaning 92% of the fuel consumed is used to directly heat your home. This high-efficiency rating helps reduce utility costs while minimizing fuel waste. PVC flue venting is required for all installations.

Reliable Single-Stage Performance

The single-stage burner operates at full capacity whenever heat is required, offering consistent comfort with a simple and proven design. This makes it a reliable solution for homeowners in a wide range of climate zones.

Energy-Efficient ECM Blower

Equipped with a 9-speed ECM motor, the GR9S920603BN delivers smoother airflow and more efficient electricity use compared to traditional PSC motors. This results in quieter operation and improved air circulation throughout your home.

Durability and Safety

The furnace is built with a heavy-duty steel cabinet, a durable hot surface igniter, and a self-diagnostic control board for enhanced safety and long-term system protection. Its cabinet design minimizes air leakage, reduces sound levels, and maximizes heating performance.

Flexible Installation

Designed for upflow or horizontal applications, the GR9S920603BN offers flexible installation options suitable for basements, attics, or utility rooms. Color-coded terminals simplify wiring and reduce labor time during setup.

Warranty Protection

Goodman offers a strong warranty package with this furnace: a 10-year limited parts warranty and a lifetime heat exchanger warranty, provided the unit is registered online after installation. This ensures peace of mind and long-term value.

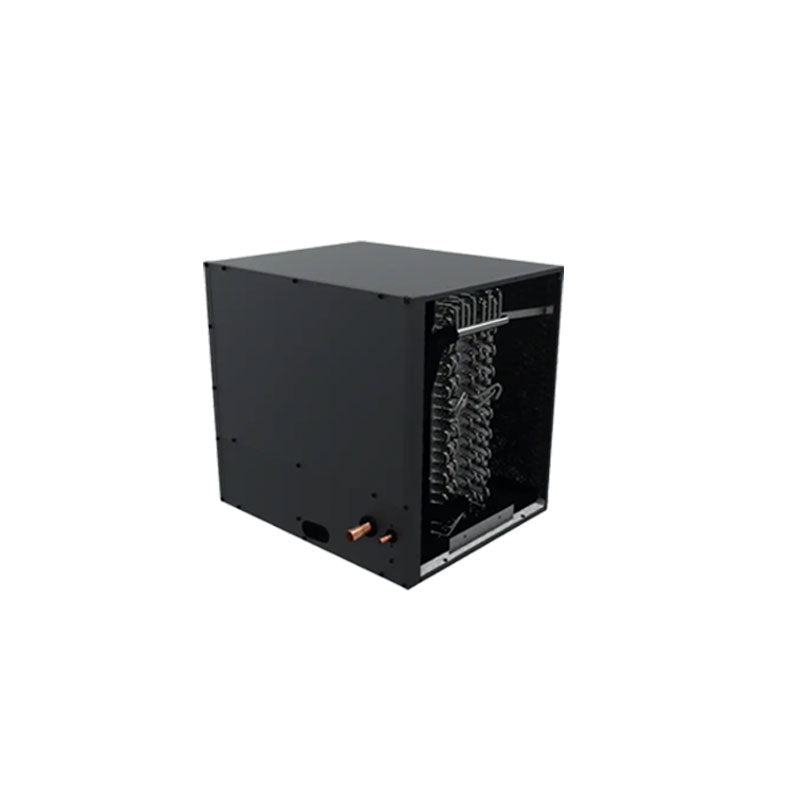

Goodman 3 Ton Evaporator Coil Cased 17.5" Height Horizontal With TXV CHPTA3630B3

The Goodman CHPTA3630B3 3 Ton Horizontal Evaporator Coil is built for energy-efficient performance and reliability in residential HVAC systems. Designed for horizontal installations, this evaporator coil is compatible with both AC-only and heat pump condensers and comes with a factory-installed TXV kit to enhance system precision and overall performance. Engineered to support the latest R32 refrigerant requirements, this coil delivers comfort, compliance, and value.

Whether you're upgrading an older system or building a new HVAC configuration, the CHPTA3630B3 provides long-term reliability and efficient cooling performance.

Key Features

• Efficiency: Rated at 16 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

System Compatibility and Use

The Goodman CHPTA3630B3 is designed for 3-ton cooling systems and should be installed in horizontal ducted configurations. It requires a compatible R32 outdoor condenser and a blower or furnace for operation. This coil is not compatible with packaged HVAC units or as a direct replacement in one-piece air handlers.

Easy Installation and Durable Build

Featuring aluminum coil construction and a pre-installed TXV valve, this model reduces installation time and improves reliability. The insulated galvanized cabinet protects against environmental wear and energy loss, while the split-seam front panel allows technicians to quickly access the coil for service or cleaning.

Reliable Comfort and Energy Efficiency

Engineered for optimal performance, the Goodman CHPTA3630B3 ensures better refrigerant control, lower energy consumption, and consistent indoor comfort. The built-in TXV kit fine-tunes refrigerant flow, and the mold-resistant drain pan helps prevent buildup of harmful particulates—making it an excellent choice for both comfort and air quality.
