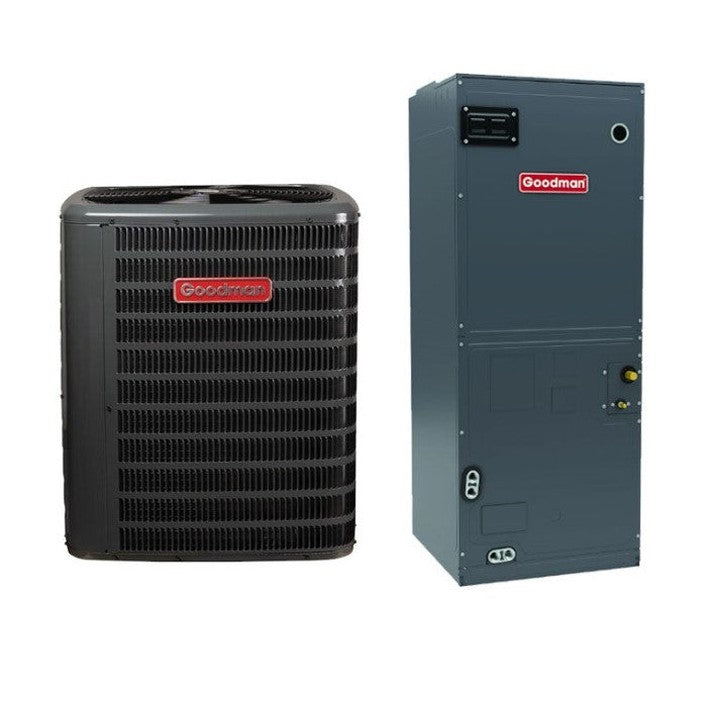

Goodman 2.5 Ton Heat Pump Air Handler System 15.2 SEER2 Multi Position R32

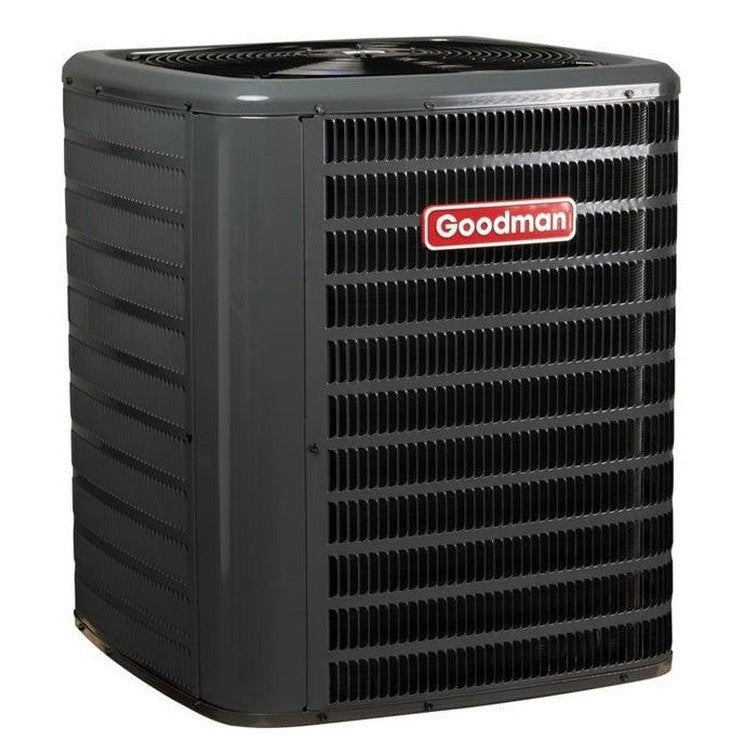

Goodman 2.5 Ton R32 Heat Pump Condenser 14.3 SEER2 GLZS4BA3010

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting. It includes enhanced aluminum fin coils. Additional components include a single-speed PSC fan motor, factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy access ports, is fully charged for 15 feet of tubing, and includes a fully enclosed contactor with a lug connection. The unit is AHRI Certified and ETL Listed.

• Heating Capacity Nominal: 30000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 39.5 in
• Unit Width: 29 in
• Max Overcurrent Protection: 25 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 174 lb
• Unit Depth: 29 in

Key Features

• High-efficiency compressor – Ensures optimal performance and energy savings.
• SmartShift® technology for quiet, reliable defrost – Reduces noise during defrost cycles.
• Enhanced aluminum fin coil (5 mm for 1.5T-3.5 Ton) – Improves heat transfer efficiency in smaller models.
• Enhanced aluminum fin coil (7 mm copper tubes for 4.0-5.0 Ton) – Enhances durability and performance in larger models.
• Single-speed PSC condenser fan motor – Provides consistent airflow and cooling performance.
• Factory-installed bi-flow liquid-line filter drier – Protects the system by removing moisture and debris.
• Factory-installed suction-line accumulator – Prevents liquid refrigerant from damaging the compressor.
• Factory-installed compressor crankcase heater – Protects the compressor in colder temperatures.
• Factory-installed high-capacity muffler – Reduces noise and ensures smoother operation.
• High- and low-pressure switches – Monitors system pressure for safe and efficient operation.
• Service valves with sweat connections and easy gauge access – Simplifies maintenance and service access.
• Fully charged for 15’ of tubing – Ready for easy installation with no additional refrigerant needed.
• Fully enclosed contactor with lug connection – Protects electrical components and ensures secure connections.
• Ground lug connection – Ensures proper grounding for electrical safety.
• Capacitors with extended life – Increases reliability and reduces the need for frequent replacements.
• AHRI Certified; ETL Listed – Meets industry standards for performance and safety.
• Removable grille-style top design compliant with UL 60335-2-40 – Easy access for maintenance and compliant with safety standards.
• Steel louver coil guard – Protects the coil from damage and debris.
• Heavy-gauge galvanized-steel cabinet – Durable construction for long-lasting protection.
• Architectural Gray powder-paint finish with 500-hour salt-spray approval – Corrosion-resistant finish for harsh environments.
• Top and side maintenance access – Simplifies service and reduces maintenance time.
• Meets 2023 Florida Building Code for hurricane-type winds when anchored – Designed to withstand severe weather conditions (Anchor bracket kits available).

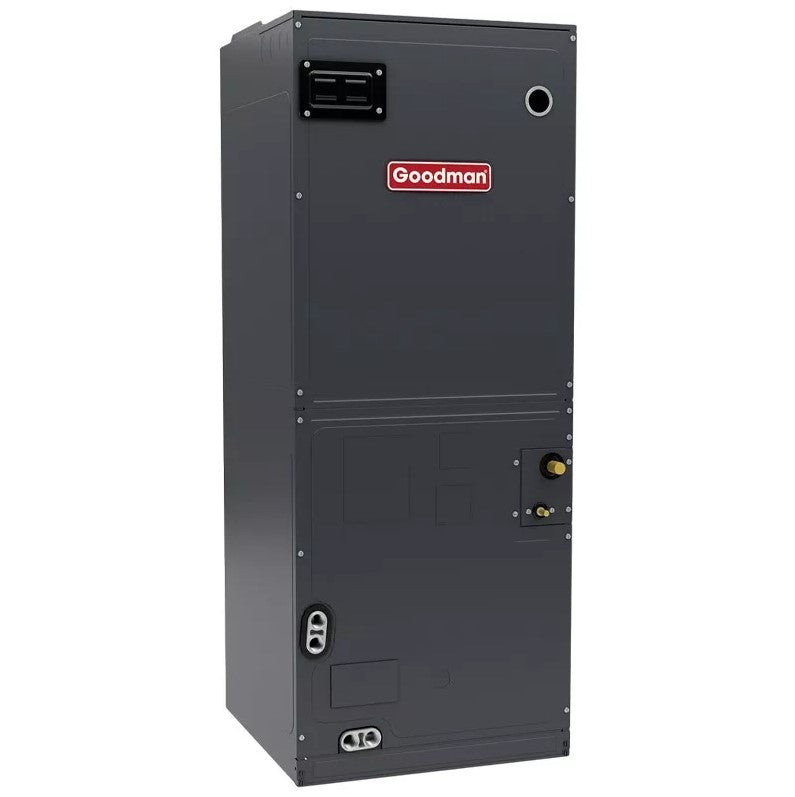

Goodman R32 Air Handler 2-5 Ton Multi-position Nine Speed ECM Motor Ducted with TXV Expansion AMST42CU1300

The Goodman R32 Air Handler, 2-5 Ton, model AMST42CU1300, features a nine-speed ECM motor for optimal airflow and efficient cooling. Designed for R-32 refrigerant, it includes internal thermal expansion valves for enhanced performance in cooling and heat pump applications. The all-aluminum evaporator coil ensures superior heat exchange, while the cabinet boasts less than 2.0% air leakage at 1.0 inch H₂O, adhering to ASHRAE standards. With a rigid SmartFrame™ cabinet and a sleek galvanized finish, this air handler offers horizontal or vertical installation flexibility, easy attic access, and tool-less filter maintenance.

• Refrigerant Type: R-32
• Unit Height: 53-7/16 in
• Unit Width: 21-1/8 in
• Cooling Capacity Nominal: 42000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 153 lb
• Tonnage: 3.5
• Unit Depth: 21 in


Product Feature For Goodman Multi-Position Air Handler AMST42CU1300

• Internal factory-installed thermal expansion valves for efficient cooling and heat pump applications
• Direct drive multi-speed ECM blower motor for optimal airflow
• All-aluminum evaporator coil ensures superior heat exchange
• Coil mounting track allows for quick repositioning
• Optimized for R-32 refrigerant for enhanced performance
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O, tested per ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O, tested per ASHRAE standard 193
• AHRI certified and ETL listed for quality assurance
• UL 60335 2-40 compliant for safety standards
• Factory-installed R-32 sensor designed for the coil's lifespan
• Rigid SmartFrame™ cabinet for durability
• Horizontal or vertical configuration capabilities for installation flexibility
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back reduce condensation in humid locations
• Foil-faced insulation covers the internal casing to minimize cabinet condensation
• Galvanized leather grain-embossed finish for aesthetic appeal
• Glue-less cabinet insulation retention enhances efficiency
• Tool-less filter access for convenient maintenance
• Field installed 3 kW – 25 kW electric heater kits available for added heating options
