Goodman 2.5 Ton Evaporator Coil with Built-in TXV Horizontal A R32

By: Goodman
SKU: CHPEA3026B3|ID: 101270
$691.00
+ Shipping
Width: 26"
Depth: 21"

Key Features

  • Capacity: Delivers 30,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Cabinet Width: 17.5"

17.5"21"24.5"

Configuration: Horizontal

Horizontal

Tonnage: 2.5 Ton

2 Ton2.5 Ton3 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

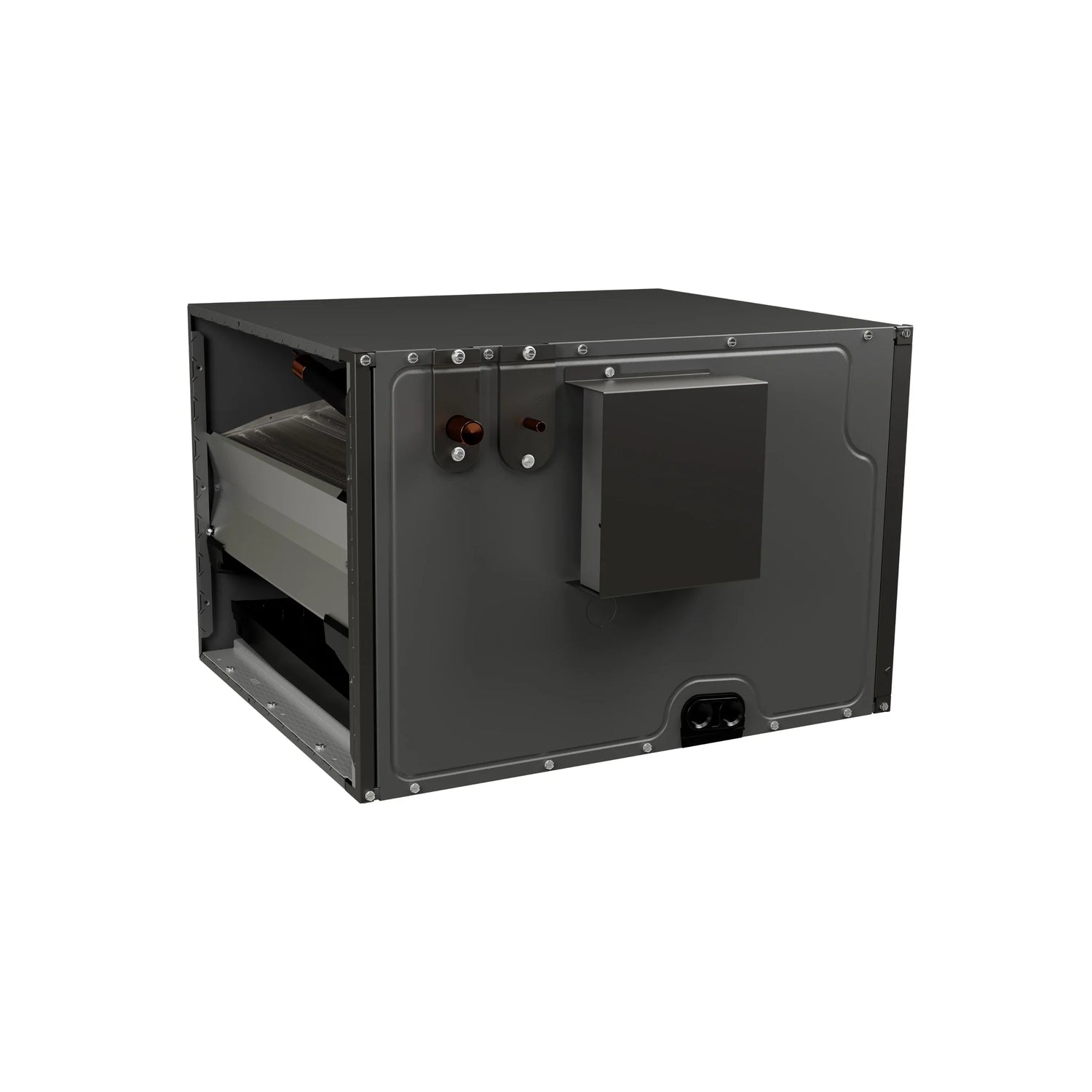

Goodman 2.5 Ton Evaporator Coil with Built-in TXV Horizontal A R32

Goodman 2.5 Ton Evaporator Coil with Built-in TXV Horizontal A R32 CHPEA3026B3

The Goodman CHPEA3026B3 is a 2.5-ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

Key Features

  • Capacity: Delivers 30,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Learning Resources

CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

BrandGoodman
SKUCHPEA3026B3
Product TypeEvaporator Coil
Product LineCHPTA
Refrigerant TypeR32
ConfigurationHorizontal
Coil StyleA Coil
CasingCased
TXV InstalledYes
Capacity2.5 Tons
Cooling BTU30,000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
Product Width26 Inches
Product Height17.5 Inches
Product Depth21 Inches
Product Weight44 Pounds
Shipping Weight59 Pounds
CertificationsETL, AHRI , ISO
Metering DeviceTXV
Mobile Home CompatibleNo
Plenum Opening Width19 Inches
Plenum Opening Height16.5 Inches
Parts Warranty10 Limited Years

Warranty and Product Information

Standard Warranty5 years
Registered Warranty10 years
