Goodman 2.5 Ton Evaporator Coil Uncased Upflow/Downflow TXV Expansion R32

By: Goodman
SKU: CAUTA3026C3|ID: 101287
$798.00
+ Shipping
Width: 20"
Depth: 21.3"

Key Features

  • Capacity: Delivers 30,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Configuration: Vertical

Vertical

Tonnage: 2.5 Ton

1.5 Ton2 Ton2.5 Ton3 Ton3.5 Ton5 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

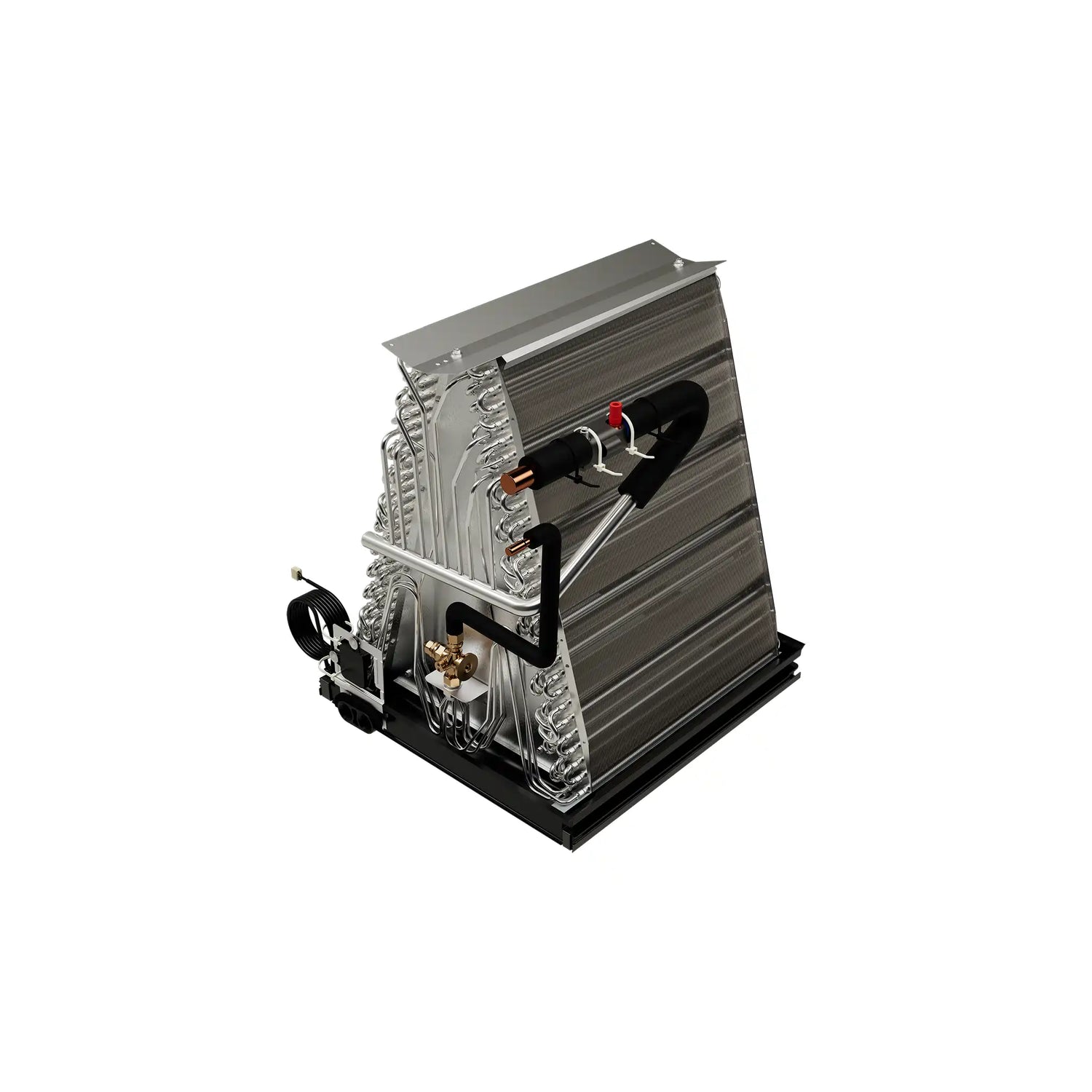

Goodman 2.5 Ton Evaporator Coil Uncased Upflow/Downflow TXV Expansion R32

Goodman 2.5 Ton Evaporator Coil Uncased Upflow/Downflow TXV Expansion R32 CAUTA3026C3

The Goodman CAUTA3026C3 is a high-performance uncased evaporator coil designed for upflow and downflow HVAC applications. Built with a corrosion-resistant all-aluminum construction, this coil is optimized for R-32 refrigerant systems and includes a factory-installed TXV to improve cooling efficiency. With a 2.5-ton capacity and a space-saving 20-inch cabinet width, it is ideal for residential installations requiring reliability, flexibility, and performance.

Key Features

  • Capacity: Delivers 30,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Ideal for residential applications needing a flexible, energy-efficient cooling solution with modern refrigerant compatibility.

Learning Resources

CAUTA Specifications Sheet CAUTA Warranty Information

Specifications

BrandGoodman
SKUCAUTA3026C3
Tonnage1.5 – 2.5 Ton
Cooling Capacity (BTU)30,000 BTU
Nominal Min. Capacity18,000 BTU
ApplicationUpflow / Downflow
Cased / UncasedUncased
Refrigerant TypeR32
Expansion ValveFactory-Installed TXV
Suction Line Size7/8 Inch
Liquid Line Size3/8 Inch
Drain Pan TypeRust-Resistant Thermoplastic
InsulationFoil-Faced Internal
Cabinet Width20 Inches
Unit Height22 1/3 Inches
Unit Depth21 1/3 Inches
Unit Width20 Inches
Weight19 lbs
AHRI CertifiedYes
ETL ListedYes
Warranty10-year limited parts warranty

Warranty and Product Information

Standard Warranty5 years
Registered Warranty10 years
