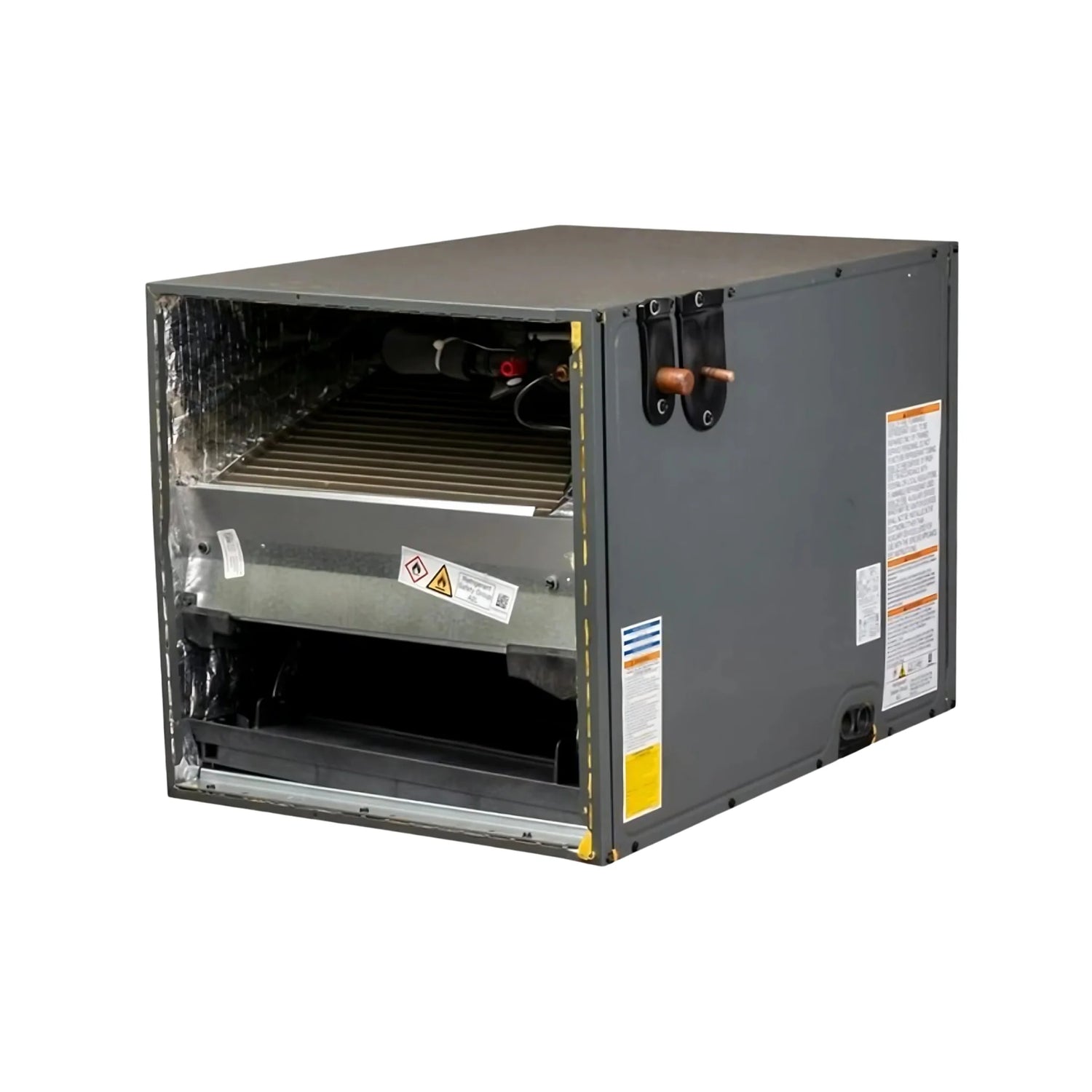

Goodman 2.5 Ton Evaporator Coil Cased 21" Height Horizontal R32 With TXV

Goodman 2.5 Ton Evaporator Coil Cased 21" Height Horizontal R32 With TXV CHPTA3026C3

The Goodman CHPTA3026C3 2.5 Ton Horizontal Evaporator Coil is engineered for maximum efficiency and reliability in residential HVAC systems. Perfect for horizontal installations, this evaporator coil is designed to work with both AC-only and heat pump condensers. It comes with a factory-installed TXV kit for improved refrigerant control and system performance. This unit is also R32 refrigerant compliant, meeting the latest Clean Air Act requirements while providing superior cooling and heating efficiency.

Whether you’re upgrading an existing system or completing a new installation, the Goodman CHPTA3026C3 delivers exceptional comfort and value, all while maintaining budget-friendly efficiency.

Key Features

• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
• Installation: Designed for easy installation as a matched system with compatible Goodman components

Product Application and System Requirements

The Goodman CHPTA3026C3 is a 2.5-ton evaporator coil suitable for horizontal HVAC system configurations. For optimal performance, it must be paired with a compatible R32 condenser and a blower or furnace (sold separately). It is not designed to replace coils in single-piece air handlers or packaged units.

Enhanced Durability and Easy Installation

This horizontal evaporator coil is built with high-quality materials, including aluminum tubing and galvanized steel for longevity and resistance to wear and tear. The TXV kit comes pre-installed, simplifying installation and reducing costs. The insulated, embossed coil cabinet protects internal components and prevents energy loss, ensuring efficient operation for years to come.

Comfort and Efficiency You Can Count On

The Goodman CHPTA3026C3 ensures superior comfort by providing precise refrigerant control, thanks to its built-in TXV kit. This increases overall system efficiency, stabilizes temperature, and enhances cooling or heating performance. The mold-resistant drain pan further improves system reliability by reducing the risk of harmful particle buildup, helping maintain healthy indoor air quality.
