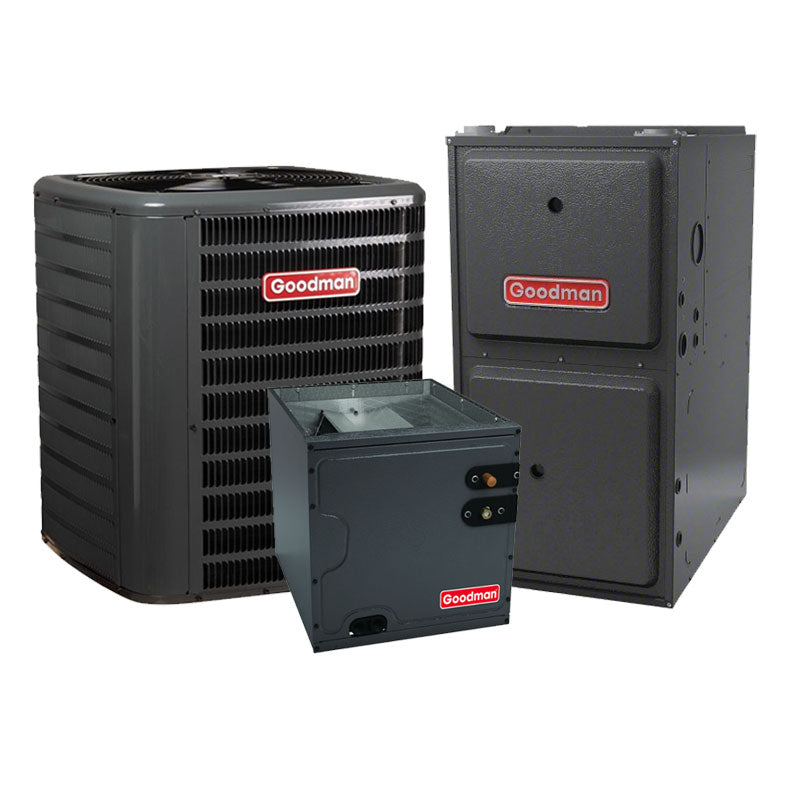

Goodman 2.5 Ton AC Furnace 13.4 SEER2 92% 60K BTU 17.5"W Coil Vertical R32

Goodman 2.5 Ton R32 Split Air Conditioner Condenser 13.4 SEER2 Single-Phase GLXS3BN3010

This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 32.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 30,000 Btu/H
• Max Overcurrent Protection: 25 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 134 lb
• Tonnage: 2.5
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 13.4 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for enhanced safety and accessibility.
• Venturi Design: Increases airflow velocity for improved system performance and efficiency.
• Attractive Architectural Gray Powder-Paint Finish: Offers durability with 500-hour salt-spray approval for coastal environments.
• Wire Fan Discharge Grille: Ensures efficient airflow while providing protection to internal components.
• Steel Louver Coil Guard: Protects the coil from physical damage while enhancing durability.
• Top and Side Maintenance Access: Facilitates easy servicing and maintenance from multiple angles.
• Single-Panel Access to Controls: Provides convenient access to controls with space for field-installed accessories.
• Hurricane Integrity Compliance: When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds; anchor bracket kits available for installation.

Goodman R32 92% AFUE Gas Furnace 60K BTU Multi-Speed ECM Upflow/Horizontal GR9S920603BN

Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 60,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.

• Unit Height: 33-3/8 in
• Unit Width: 17-1/2 in
• AFUE: 92 %
• 60,000 BTU
• R32
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 114 lb
• Model Efficiency: 0.92
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled

Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

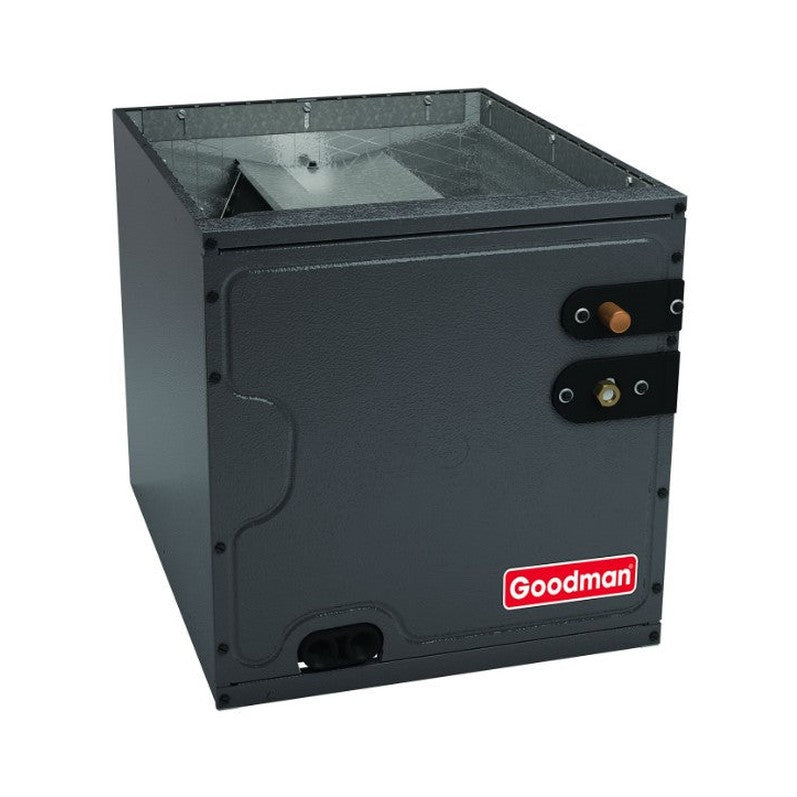

Goodman 3 Ton R32 Cased Evaporator Coil Vertical 17.5" Cabinet with Orifice CAPFA3626B3

The All-Aluminum evaporator coil is optimized for R-32 refrigerant, featuring a lifespan-matched R-32 sensor and a factory-installed metering device (piston). It has a standardized copper suction tube stub length and a 21-inch depth for easy attic access. The coil includes a single front access panel, foil-faced insulation to reduce condensation, and a galvanized, leather grain-embossed finish. The rust-resistant, thermoplastic drain pan has a low water-retention design, secondary drain connections, and UV resistance. It’s AHRI certified and ETL listed, with drain pan rails for easy coil removal and repositioning.

• Refrigerant Type: R-32
• Unit Height: 21 in
• Unit Width: 17.5 in
• Cased/Uncased: Cased
• Tonnage: 3
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 13.4 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Ideal for high-performance cooling and heat pump applications with R-32 refrigerant, offering long-lasting efficiency and durability.
