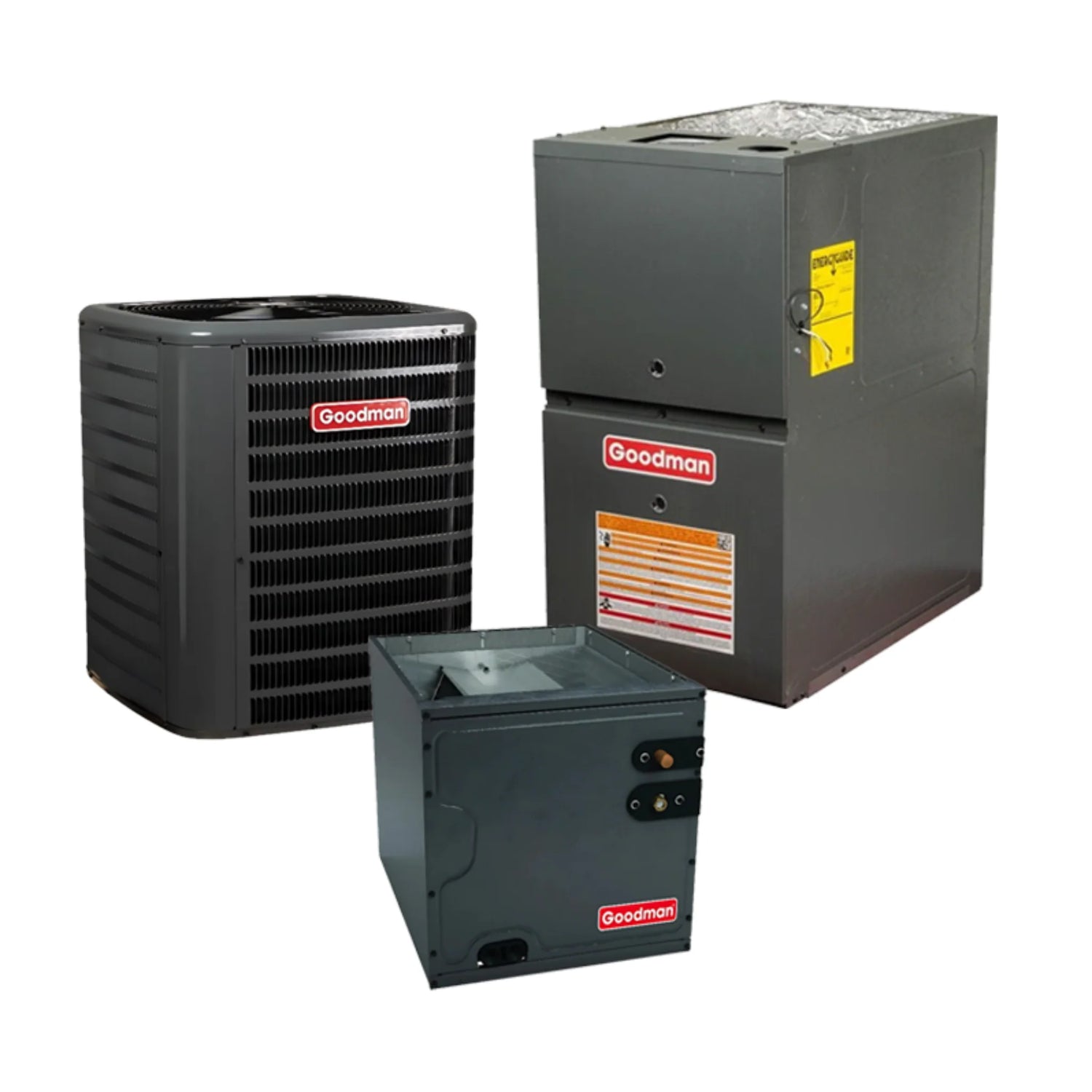

Goodman 2.5 Ton 15.2 SEER2 AC Furnace System 80% AFUE 60K BTU Two Stage R32

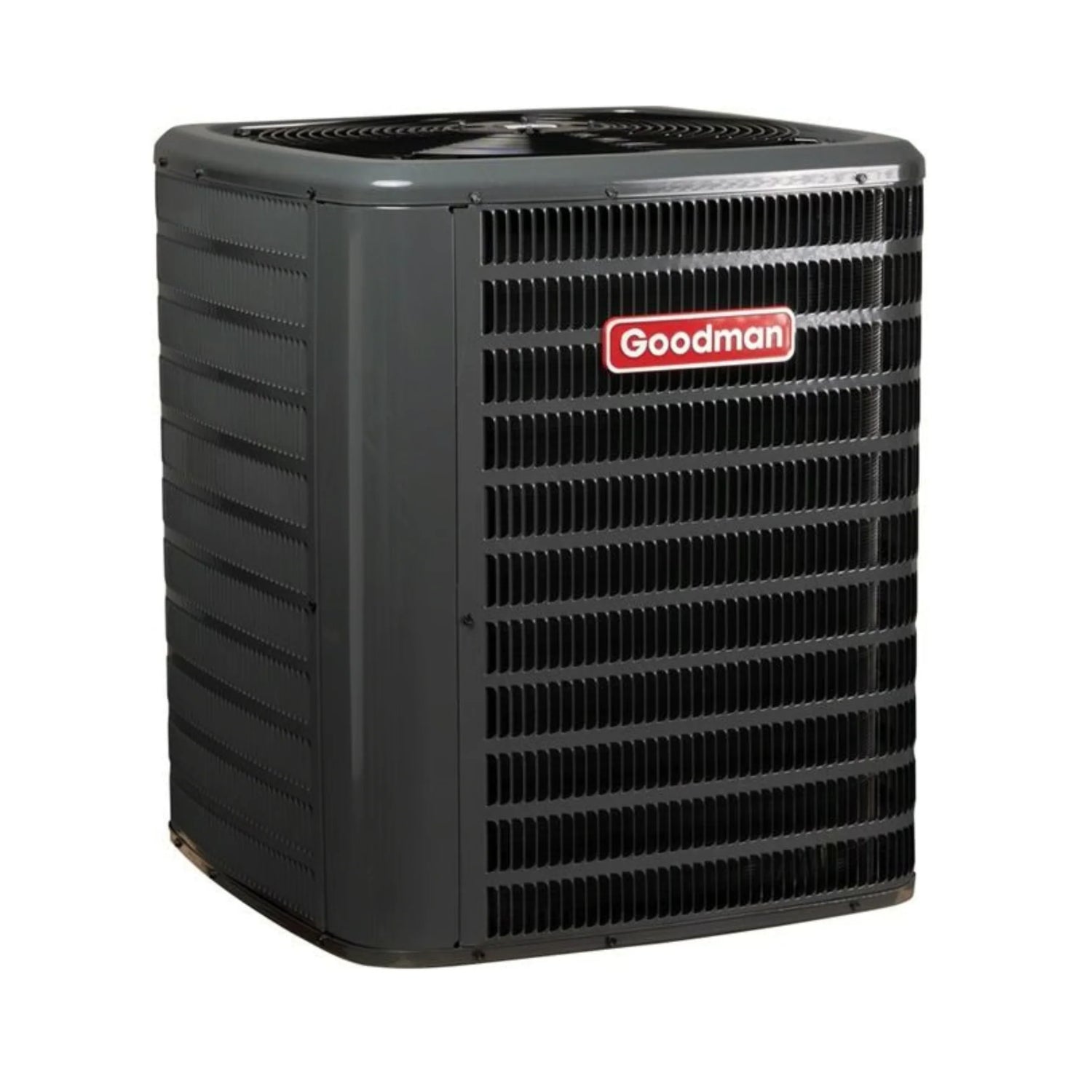

Goodman 2.5 Ton 15.2 SEER2 Split Air Conditioner Condenser High Efficiency R32 GLXS5BA3010

High-Efficiency Air Conditioner Condenser – Model GLXS5BA3010

Goodman continues to set industry standards for superior comfort, high efficiency, and cost-effectiveness. The GLXS5BA3010 model exemplifies this commitment, offering durability, reliability, and one of the highest efficiencies available in the market.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Warranty

The GLXS5BA3010 condenser comes with Goodman's standard 10-year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Installation and Maintenance

• Maintenance Access Panels – Designed with two maintenance access panels—one on the top and one on the side—for easier servicing.
• Service Valves with Sweat Connections – Made with easy-access gauge ports and service valves with sweat connections, lowering installation and maintenance times and costs.
• Secure Electrical Grounding – Features a ground lug connection for secure electrical grounding, enhancing safety during operation.

Comfort and Performance

The GLXS5BA3010 condenser is designed with superior comfort in mind. Made with high-quality parts and engineered for low sound output, it ensures a comfortable environment while staying within budget.

Important Safety Notice

This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.

Goodman 60,000 BTU 80% Gas Furnace Two-Stage 9-Speed 14" Upflow/Horizontal R32 GR9T800603AN

The Goodman GR9T800603AN gas furnace delivers exceptional performance, quiet operation, and proven reliability at a competitive price point. Built for energy-efficient heating and superior comfort, this two-stage, 9-speed gas furnace is ideal for small to medium homes or spaces where optimized airflow and temperature control are essential.

With its advanced engineering and durable construction, the Goodman GR9T800603AN offers an excellent balance of efficiency, noise reduction, and installation flexibility—making it a standout choice in the 80% AFUE category.

Key Features and Benefits

• Two-Stage Gas Valve Operation Provides quiet and efficient heating by adjusting output based on demand—enhancing comfort and reducing energy use.
• 9-Speed ECM Blower Motor Maximizes air circulation while using less electricity than traditional PSC motors, helping lower utility bills.
• High-Efficiency Heat Exchanger Design Engineered for long-lasting performance and optimal heat transfer for consistent indoor comfort.
• SureStart® Silicon Nitride Igniter Increases reliability and igniter lifespan, reducing maintenance needs and ensuring consistent starts.
• Self-Diagnostic Control Board Simplifies troubleshooting with real-time system monitoring and maintenance alerts.
• Quiet Induced Draft Blower Two-speed design helps maintain quiet operation during both low- and high-stage heating cycles.
• Low Constant Fan Speed Keeps air circulating throughout your home for better air quality and more consistent temperatures.
• Heavy-Gauge Insulated Steel Cabinet Built for durability, thermal efficiency, and noise reduction with a baked enamel finish.
• Flexible Installation Options Supports upflow and horizontal configurations for easier placement in attics, basements, or closets.
• Universal Gas Connections Easy access with left or right connections for both gas and electrical services.
• Low NOx Compliant (select models) Meets emissions requirements for most regions—except SCAQMD and SJVAPCD in California.

Product Specifications

• Model Number: Goodman GR9T800603AN
• Heating Capacity: 60,000 BTU input / 48,000 BTU output
• Efficiency: 80% AFUE (Annual Fuel Utilization Efficiency)
• Stages: Two-stage heating
• Blower Motor: 9-speed ECM
• Ignition Type: Hot surface igniter (Silicon Nitride)
• Fuel Type: Natural Gas (LP conversion kit available)
• Orientation: Upflow or Horizontal (left/right)
• Flue Venting: Metal venting required (standard for 80% furnaces)
• Certifications: AHRI Certified, ETL Listed
• Cabinet Air Leakage: ≤ 2%

Perfect for Smaller to Mid-Sized Homes

This 60,000 BTU model is designed to heat small to medium-sized homes efficiently (climate-dependent), making it ideal for those who want to upgrade their HVAC system with a dependable, quiet, and energy-conscious furnace.

Natural Gas or LP Compatible

The Goodman GR9T800603AN comes factory-equipped for natural gas but can be converted to propane (LP) with an optional LP conversion kit (sold separately). This flexibility makes it suitable for a wide range of heating applications and fuel availability.

Easy to Install and Maintain

The smart layout and multi-position cabinet simplify installation, and color-coded low-voltage terminals help reduce labor time. The durable hot surface igniter, diagnostic board, and robust heat exchanger all contribute to lower lifetime maintenance costs.

Warranty Coverage

Enjoy peace of mind with industry-leading coverage:

• Lifetime Heat Exchanger Warranty
• 10-Year Parts Warranty
• 10-Year Unit Replacement Warranty (with proper installation and online registration)

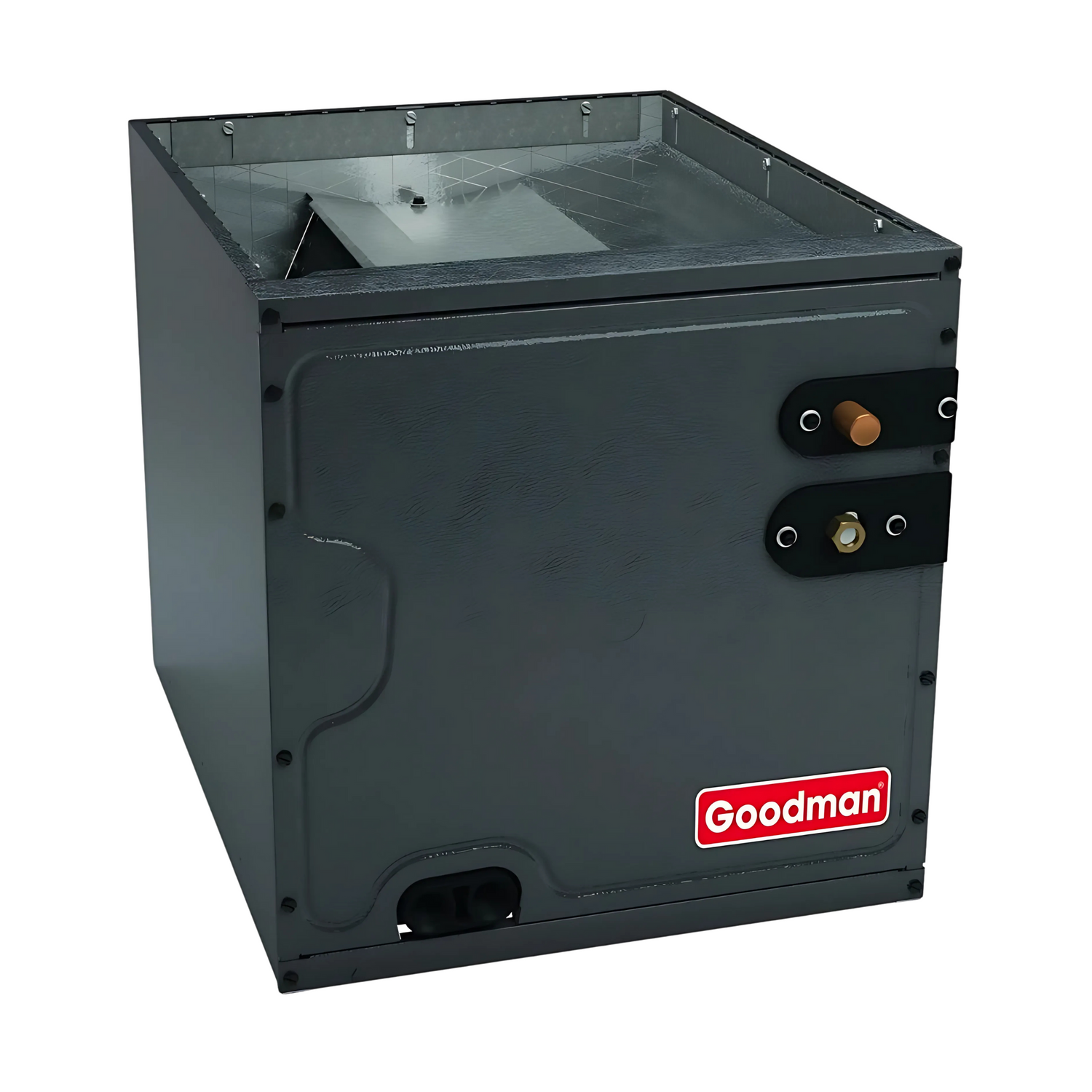

Goodman 2.5 Ton Cased Evaporator Coil 14" Width Upflow/Downflow R32 With TXV CAPTA3022A3

Goodman CAPTA Series Cased A-Coil Evaporator Coil – Upflow/Downflow | Internal TXV | All-Aluminum Coil | R32 Compatible

The Goodman CAPTA Series evaporator coils are engineered for reliable performance, energy efficiency, and long-term durability — making them an essential component of any high-efficiency HVAC system. With an all-aluminum construction, a factory-installed TXV, and compatibility with upflow or downflow configurations, these cased A-coils are built for both new installations and replacements. Whether you’re using a heat pump or an AC-only system, the CAPTA coil series delivers superior comfort and hassle-free performance.

Key Features & Benefits

• All-Aluminum Coil with Sine Fins & Grooved Tubes
  Maximizes surface area for faster and more efficient heat transfer, while offering superior corrosion resistance compared to copper-aluminum coils.
• Factory-Installed Internal TXV (Thermostatic Expansion Valve)
  Regulates refrigerant flow with precision, ensuring consistent system performance and compatibility with high-efficiency HVAC setups.
• Versatile Upflow/Downflow Configuration
  Designed to fit both upflow and downflow HVAC systems, allowing for flexible installation in a wide variety of home and light commercial applications.
• Durable, Insulated Galvanized Steel Cabinet
  Built for longevity with a galvanized and embossed exterior, plus internal insulation to reduce noise, prevent air leakage, and increase energy efficiency.
• Advanced Condensate Control System
  Includes a UV-resistant, rust-proof, DecaBDE-free thermoplastic drain pan with secondary drain connections to manage moisture and prevent buildup. Foil-faced insulation further inhibits condensate formation inside the coil housing.
• R-32 Refrigerant Compatibility
  Fully compliant with the latest Clean Air Act refrigerant guidelines, making it environmentally friendly and ready for the next generation of HVAC systems.
• Double Pressure-Tested for Leak Prevention
  Every CAPTA coil is pressure tested twice at the factory to ensure it meets strict performance and reliability standards before it ships.
• 10-Year Limited Parts Warranty
  Protected by Goodman’s 10-Year Warranty when registered online and installed by a licensed professional, offering peace of mind and long-term value.

Why Choose Goodman?

Goodman is a trusted leader in residential and light commercial HVAC solutions, offering advanced engineering, high-efficiency products, and industry-leading reliability. With low failure rates and top-tier component quality, the CAPTA coil series continues Goodman’s mission of delivering premium performance at an affordable price.
