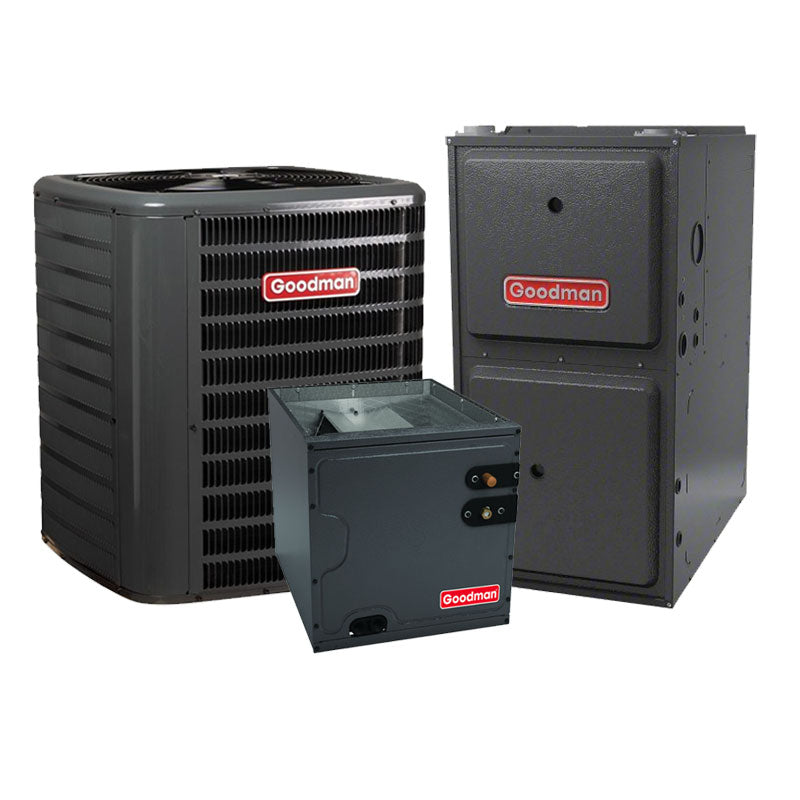

Goodman 1.5 Ton R32 Split AC & Gas Furnace 14.5 SEER2 92% 40K BTU Vertical

The Goodman HVAC bundle combines the Goodman 1.5 Ton R32 Split Air Conditioner (GLXS5BA1810), Goodman 92% AFUE Gas Furnace (GR9S920403AN), and Goodman 2.5 Ton R32 Evaporator Coil (CAPTA3022B3) for an efficient and reliable heating and cooling solution. The air conditioner features 18,000 BTU cooling with a 15.2 SEER2 rating, a high-efficiency scroll compressor, and a factory-installed filter drier for enhanced durability and performance. Paired with the highly efficient gas furnace, it offers 40,000 BTU heating with a 92% AFUE rating, a multi-speed ECM blower motor for quiet operation, and compliance with California’s low NOx emissions standards. The evaporator coil, designed for R32 refrigerant, includes integrated thermal expansion valves, a durable galvanized finish, and easy maintenance features, ensuring optimal cooling and heating efficiency. Together, these components provide a comprehensive, eco-friendly HVAC system that maximizes energy savings and comfort.

Goodman 1.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA1810

The Goodman 1.5 Ton R32 Split Air Conditioner delivers 18,000 BTU cooling with 15.2 SEER2 efficiency, ensuring reliable performance and energy savings. Equipped with a high-efficiency scroll compressor and factory-installed filter drier, it offers enhanced protection and longevity. Its 5mm copper tube with aluminum fin coil ensures superior heat transfer, while the enclosed contactor, high-pressure switch, and extended-life capacitors prioritize safety and durability. This compact, single-stage unit is AHRI-certified, ETL-listed, and optimized for dependable cooling.

• Refrigerant Type: R-32
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 1.5
• Model Efficiency: 15.2 SEER2
• 18,000 BTU Cooling
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top Design: UL 60335-2-40 compliant for safe operation.
• Venturi Design: Enhances airflow velocity for improved efficiency.
• Architectural Gray Powder-Paint Finish: Durable, weather-resistant finish approved for 500-hour salt spray.
• Wire Fan Discharge Grille: Provides protection and optimized airflow.
• Steel Louver Coil Guard: Shields coils from damage while maintaining airflow.
• Top and Side Maintenance Access: Simplifies service and upkeep.
• Single-Panel Access to Controls: Includes space for field-installed accessories.
• Hurricane-Resistant Design: Meets the 2023 Florida Building Code for high winds when properly anchored (anchor bracket kits available).

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

• Unit Height: 33-3/8 in
• Unit Width: 14 in
• AFUE: 92 %
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 106 lb
• Model Efficiency: 0.92
• 40,000 BTU
• R32
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled


Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

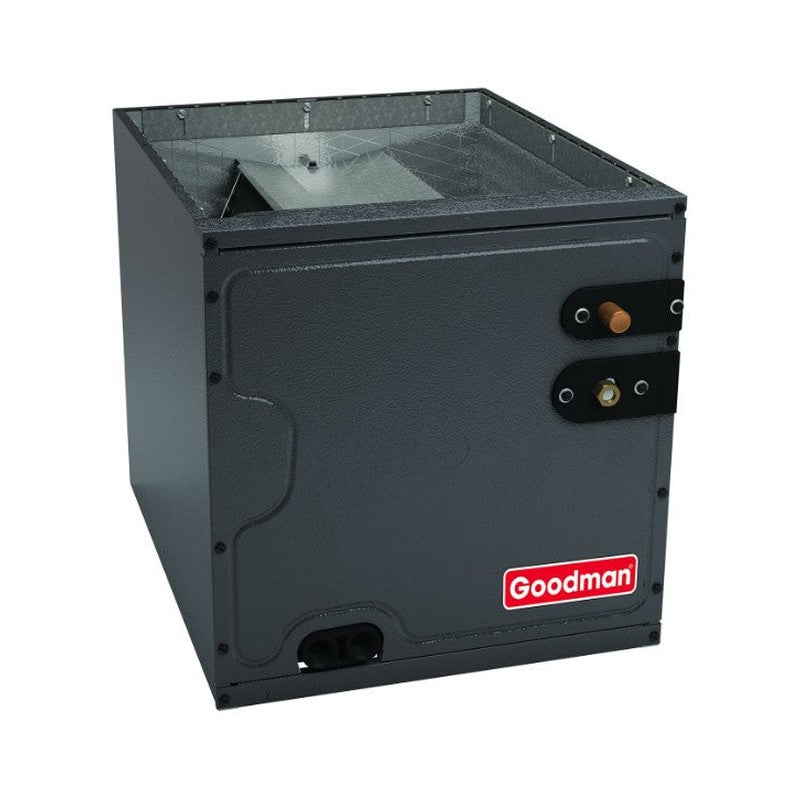

Goodman 2.5 Ton R32 Evaporator Coil Upflow/Downflow CAPTA3022B3

This high-performance all-aluminum evaporator coil, designed for R-32 refrigerant, features integrated thermal expansion valves for cooling and heat pump applications. With flexible vertical and horizontal installation, its 21-inch depth allows easier attic access. The foil-faced insulation reduces condensation, while the rust-resistant, UV-resistant drain pan and galvanized finish ensure durability. Easy-to-remove drain pan rails simplify maintenance. AHRI certified and ETL listed, this coil delivers efficiency, durability, and reliability for HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 17.5 in
• Cased/Uncased: Cased
• Tonnage: 2.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

• Brand: Goodman
• Model Number: CAPTA3022B3
• Type: Cased Evaporator Coil
• Tonnage:  2.5 Ton
• Refrigerant Type: R-32
• Suction Valve Size: 3/4''
• Liquid Valve Size: 3/8''
• Height: 22"
• Width: 17.5"
• Depth: 21''
• Shipping Weight: 40 lbs
• Application: Vertical

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
