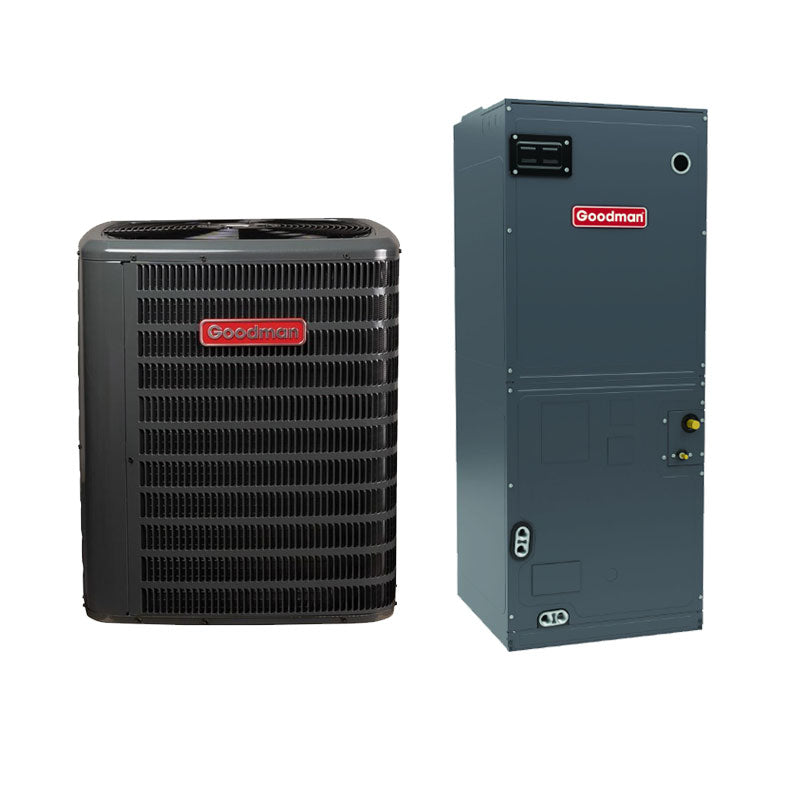

Goodman 1.5 Ton R32 Multi-Family Heat Pump & Air Handler 15.2 SEER2 30K BTU

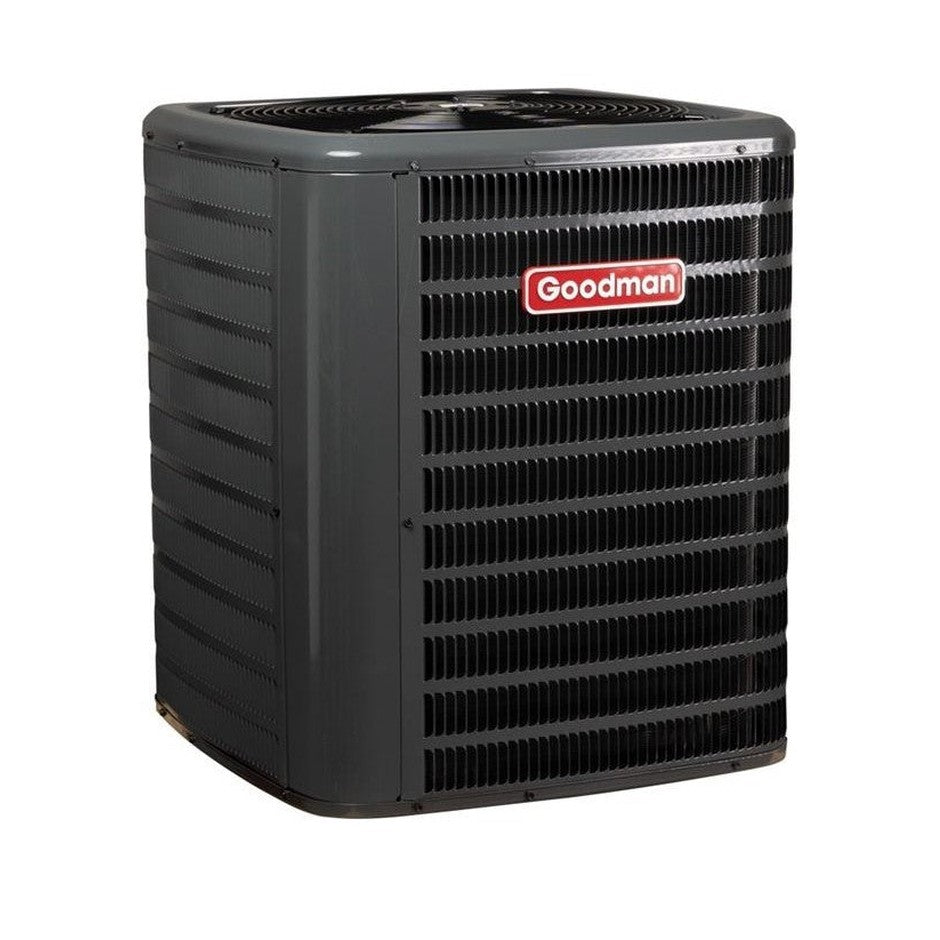

Goodman 1.5 Ton R32 Split System Heat Pump Multi-Family 14.3 SEER2 Single Stage GLZS4MA1810

The Goodman 1.5 Ton R32 Multi-Family Heat Pump (Model GLZS4MA1810) offers a heating capacity of 18,000 BTU/H and a SEER2 rating of 14.3, making it ideal for multi-family applications. This single-stage unit utilizes R-32 refrigerant and features a high-efficiency scroll compressor for optimal performance. Key features include SmartShift® Technology for quiet defrosting, enhanced aluminum fin coils for efficient heat transfer, and factory-installed refrigerant management components. Built for easy installation, durability, and year-round comfort, it meets industry standards and is a reliable choice for your heating and cooling needs.

• Heating Capacity Nominal: 18000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 15.2
• Unit Height: 32.5 in
• Unit Width: 29 in
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 160 lb
• Model Efficiency: 14.3 SEER2
• Unit Depth: 29

Key Features

• High-Efficiency Scroll Compressor for superior performance and energy savings
• SmartShift® Technology for quiet and reliable defrosting capabilities
• Enhanced Aluminum Fin Coil with 5 mm diameter for efficient heat transfer in 1.5T to 3.5T models
• Enhanced Aluminum Fin Coil featuring 7 mm diameter copper tubes for improved efficiency in 4.0 to 5.0-ton units
• Single-Speed PSC Condenser Fan Motor providing consistent airflow and operational efficiency
• Factory-Installed Bi-Flow Liquid-Line Filter Drier for optimal refrigerant management
• Factory-Installed Suction-Line Accumulator to enhance compressor protection and performance
• Factory-Installed Compressor Crankcase Heater prevents refrigerant migration in low temperatures
• Factory-Installed High-Capacity Muffler reduces noise levels for improved comfort
• High and Low-Pressure Switches for enhanced system safety and reliability
• Service Valves with Sweat Connections and easy access to gauge ports for hassle-free maintenance
• Fully Charged for 15 Feet of Tubing Length, simplifying installation
• Contactor with Lug Connection for secure electrical connections
• Ground Lug Connection to ensure proper grounding and safety
• Capacitors with Extended Life designed for long-lasting performance and reliability
• AHRI Certified and ETL Listed for compliance with industry standards
• Removable Grille-Style Top Design compliant with UL 60335-2-40 for easy access
• Steel Louver Coil Guard protects the condenser coil from environmental damage
• Heavy-Gauge Galvanized-Steel Cabinet for durability and weather resistance
• Attractive Architectural Gray Powder-Paint Finish with 500-hour salt-spray approval for corrosion resistance
• Top and Side Maintenance Access for convenient servicing and repairs
• Meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds when properly anchored (anchor bracket kits available)

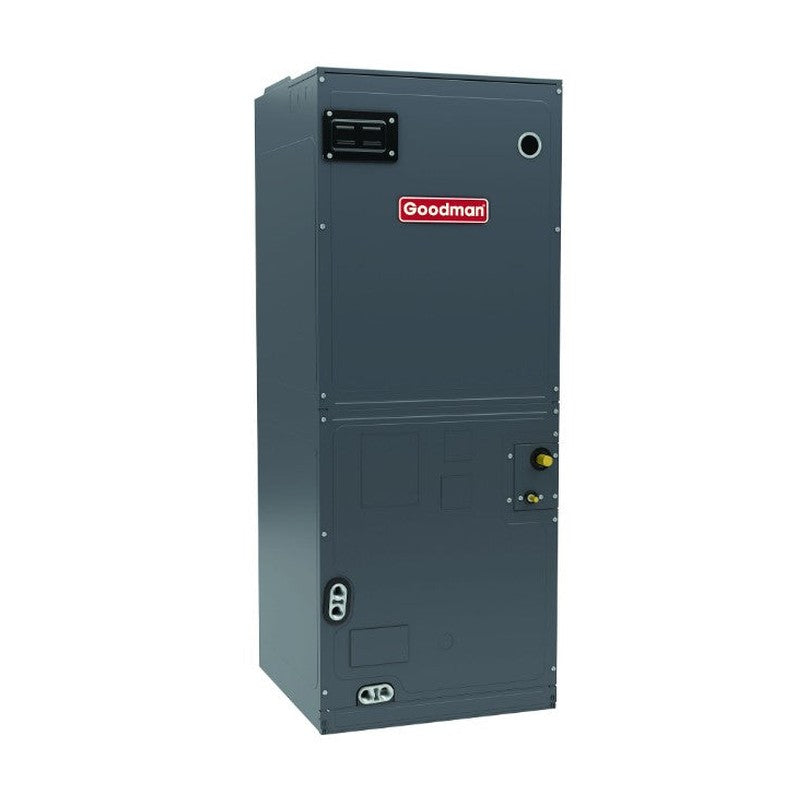

Goodman 2.5 Ton R32 Ducted Air Handler Multi-Position 17-9/16" Cabinet TXV AMST30BU1300

Elevate your HVAC performance with the AMST Ducted Multi-Position Air Handler. Featuring a nine-speed ECM motor for precise airflow control and a compact 17-9/16 inch cabinet, this unit fits in tight spaces while handling 2.5 to 5 tons efficiently. The integrated TXV expansion valve ensures optimal refrigerant management, enhancing both energy savings and reliability. Ideal for versatile installations, the AMST air handler delivers superior comfort and performance for any residential or light commercial setting.

• Refrigerant Type: R-32
• Unit Height: 53-7/16 in
• Unit Width: 17-9/16 in
• Cooling Capacity Nominal: 30,000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 129 lb
• Tonnage: 2.5
• Unit Depth: 21 in

Key Features

• Coil: All-aluminum tube/aluminum fin for enhanced durability and heat exchange efficiency.
• Motor: Direct-drive, 9-speed ECM motor with resilient mounts for quiet, efficient operation.
• Heating Options: Choose from models with or without rust-resistant nickel chromium heating elements, available in 5, 6, 8, or 10 kW. (Sold Separately)
• Evaporator Coil: High-efficiency design for optimal cooling.
• Drain Connections: Primary and secondary in a high-temperature plastic drain pan; suitable for free-return installation.
• Construction: Galvanized steel with a leather grain-embossed finish; easy access with a factory-installed pull-type disconnect.

Cabinet Features

• SmartFrame Cabinet: Rigid, durable design with 21” depth for easy attic installation.
• Configuration: Versatile horizontal or vertical setup.
• Drain Pan: DecaBDE-free thermoplastic with secondary drain connections.
• Insulation: Foil-faced to reduce condensation; glue-less retention and tool-less filter access.
• Finish: Galvanized, leather grain-embossed for durability and aesthetic appeal.

Certifications: AHRI Certified and ETL Listed for quality assurance.
