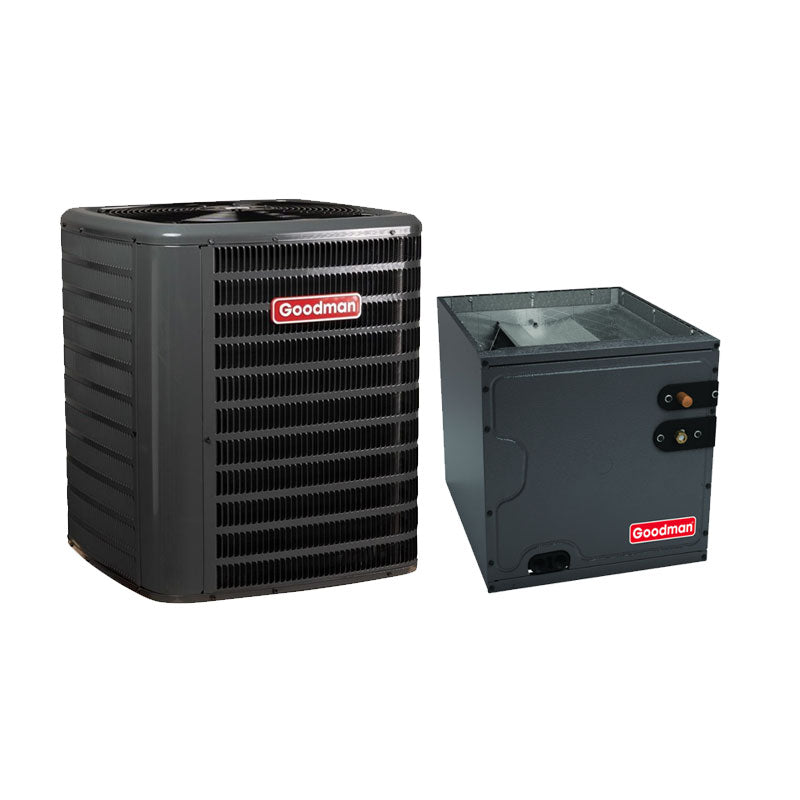

Goodman 1.5 Ton R32 AC & Evaporator Coil System 14.3 SEER2 21"W Vertical

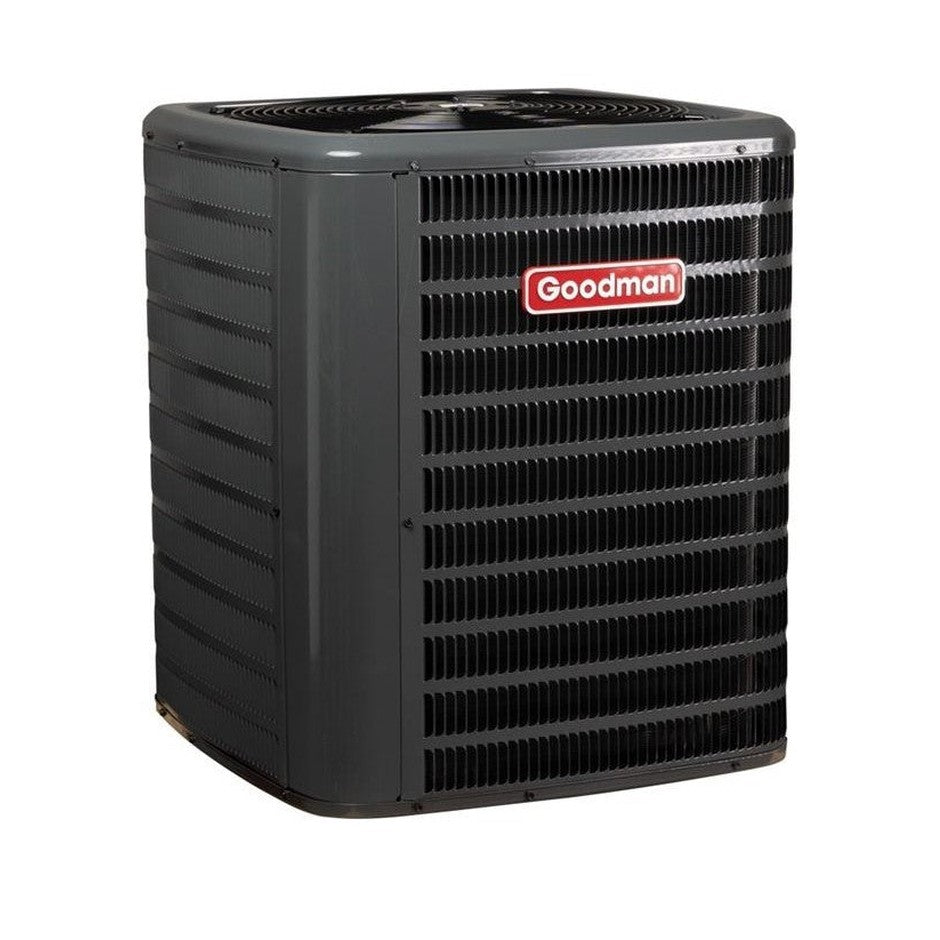

Goodman 1.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA1810

The Goodman 1.5 Ton R32 Split Air Conditioner delivers 18,000 BTU cooling with 15.2 SEER2 efficiency, ensuring reliable performance and energy savings. Equipped with a high-efficiency scroll compressor and factory-installed filter drier, it offers enhanced protection and longevity. Its 5mm copper tube with aluminum fin coil ensures superior heat transfer, while the enclosed contactor, high-pressure switch, and extended-life capacitors prioritize safety and durability. This compact, single-stage unit is AHRI-certified, ETL-listed, and optimized for dependable cooling.

• Refrigerant Type: R-32
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 1.5
• Model Efficiency: 15.2 SEER2
• 18,000 BTU Cooling
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable Grille-Style Top Design: UL 60335-2-40 compliant for safe operation.
• Venturi Design: Enhances airflow velocity for improved efficiency.
• Architectural Gray Powder-Paint Finish: Durable, weather-resistant finish approved for 500-hour salt spray.
• Wire Fan Discharge Grille: Provides protection and optimized airflow.
• Steel Louver Coil Guard: Shields coils from damage while maintaining airflow.
• Top and Side Maintenance Access: Simplifies service and upkeep.
• Single-Panel Access to Controls: Includes space for field-installed accessories.
• Hurricane-Resistant Design: Meets the 2023 Florida Building Code for high winds when properly anchored (anchor bracket kits available).

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 2.0
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

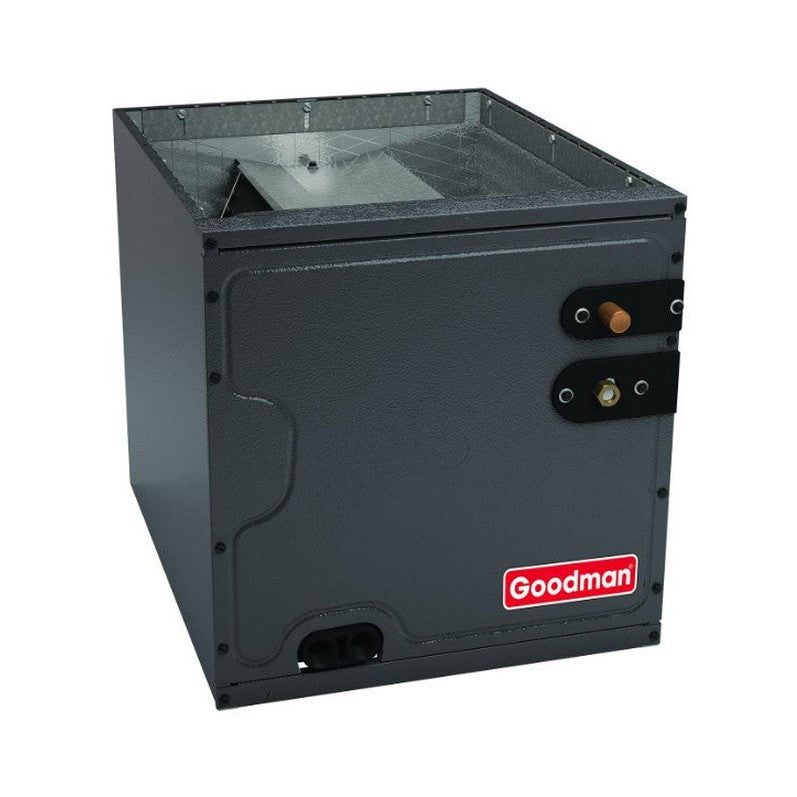

• High-performance all-aluminum evaporator coil
• Designed for R-32 refrigerant
• Integrated thermal expansion valves for cooling and heat pump applications
• Flexible vertical and horizontal installation options
• 21-inch depth for easy attic access
• Foil-faced insulation to minimize condensation
• Rust-resistant and UV-resistant drain pan
• Extra drainage connections
• Durable galvanized finish
• Removable drain pan rails for easy maintenance
• AHRI Certified
• ETL Listed
• Efficient and durable HVAC solution

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
