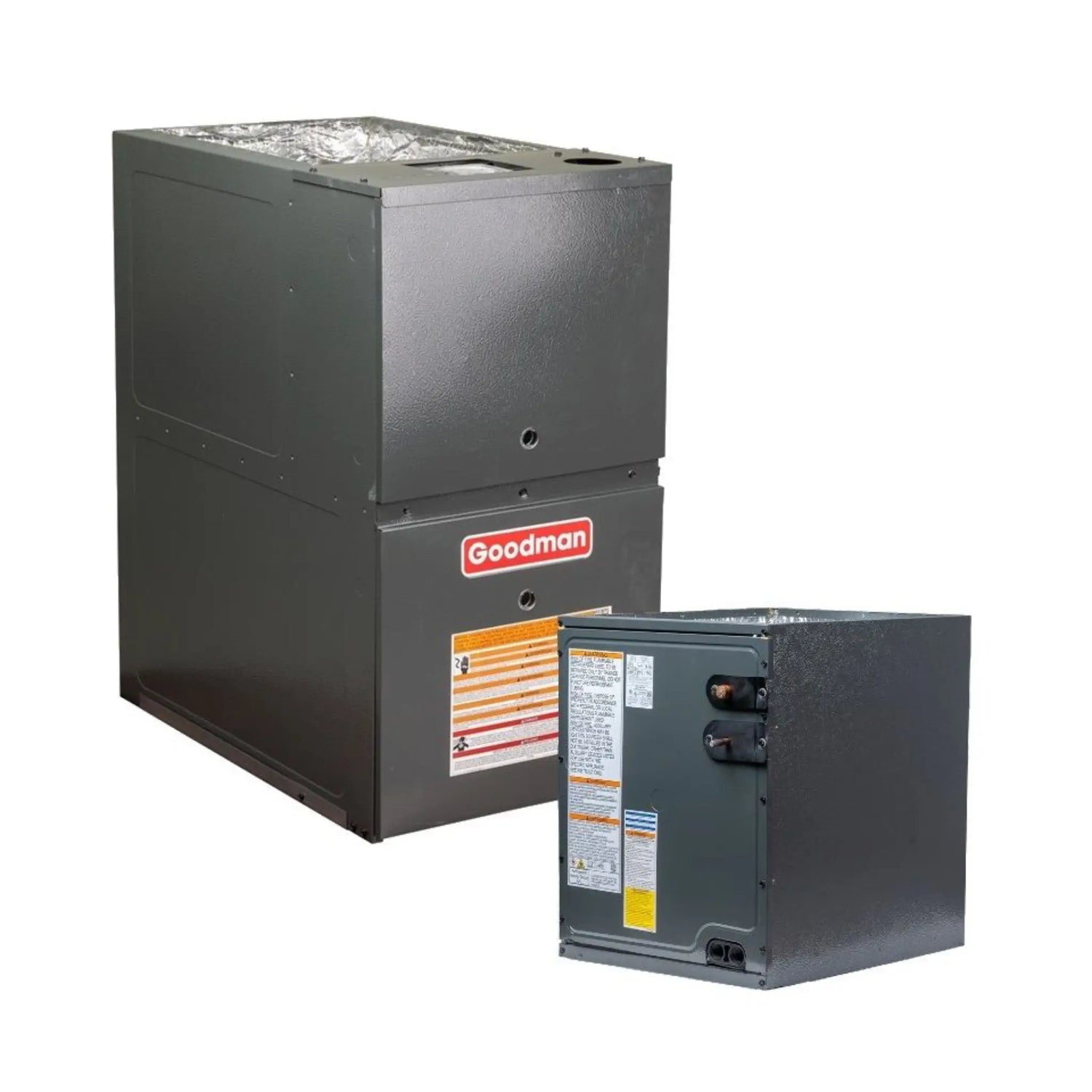

Goodman 1.5 Ton Furnace Coil System 80% AFUE 80,000 BTU Upflow/Downflow R32

By: Goodman
SKU: GR9S800803BN / CAPFA1818B3|ID: 101464
$1,920.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 80,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 1.5 Ton Furnace Coil System 80% AFUE 80,000 BTU Upflow/Downflow R32

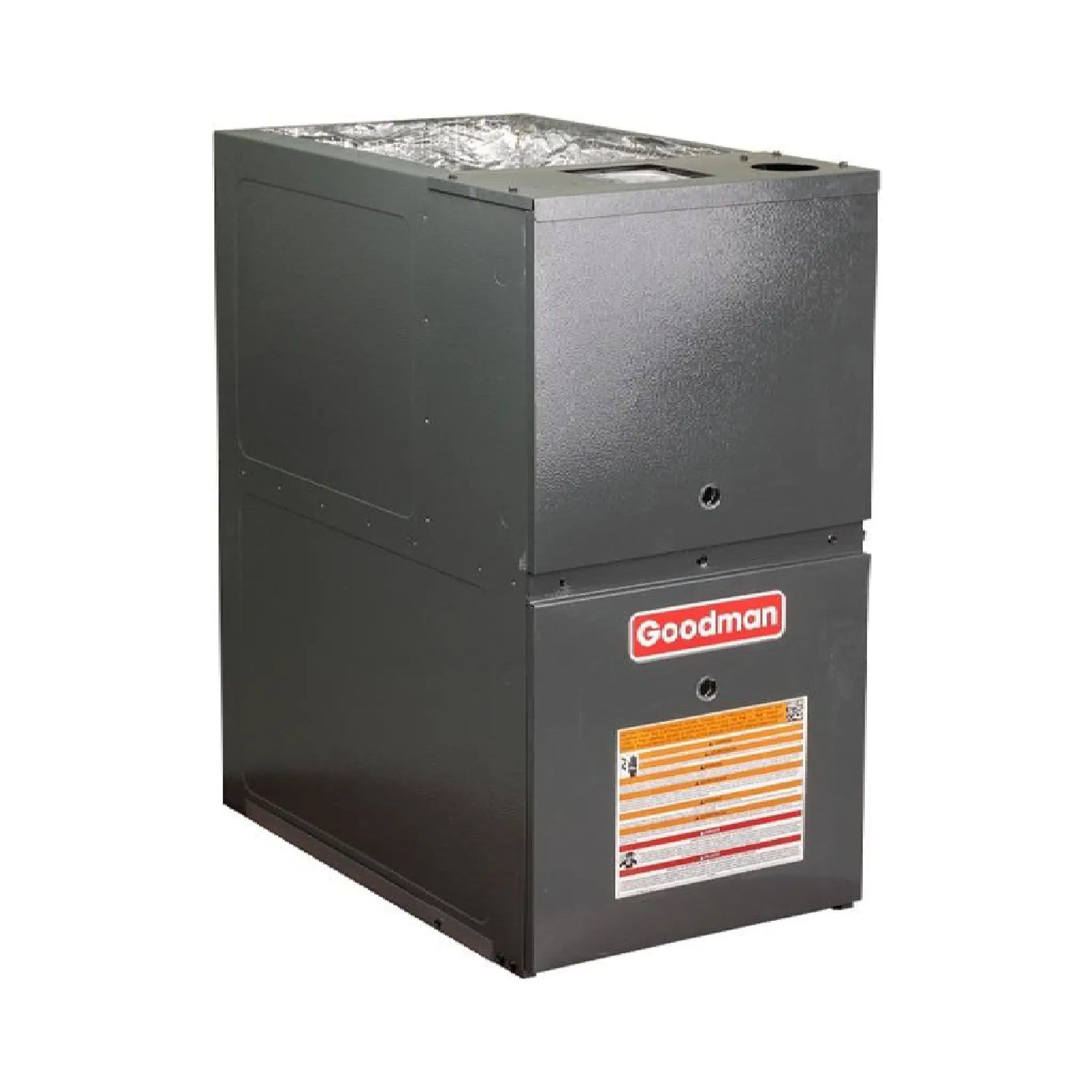

Goodman 80% AFUE 80,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800803BN

The Goodman GR9S800803BN is a high-efficiency, single-stage gas furnace built to provide reliable and cost-effective heating for medium-sized homes. With an 80,000 BTU input and 80% AFUE rating, this unit delivers 64,000 BTUs of heat output per hour. Designed with a 9-speed ECM blower motor and advanced heat exchanger, the GR9S800803BN offers improved airflow, lower energy usage, and quieter operation. Its flexible installation options and durable construction make it an excellent choice for both new installs and replacements.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 80,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

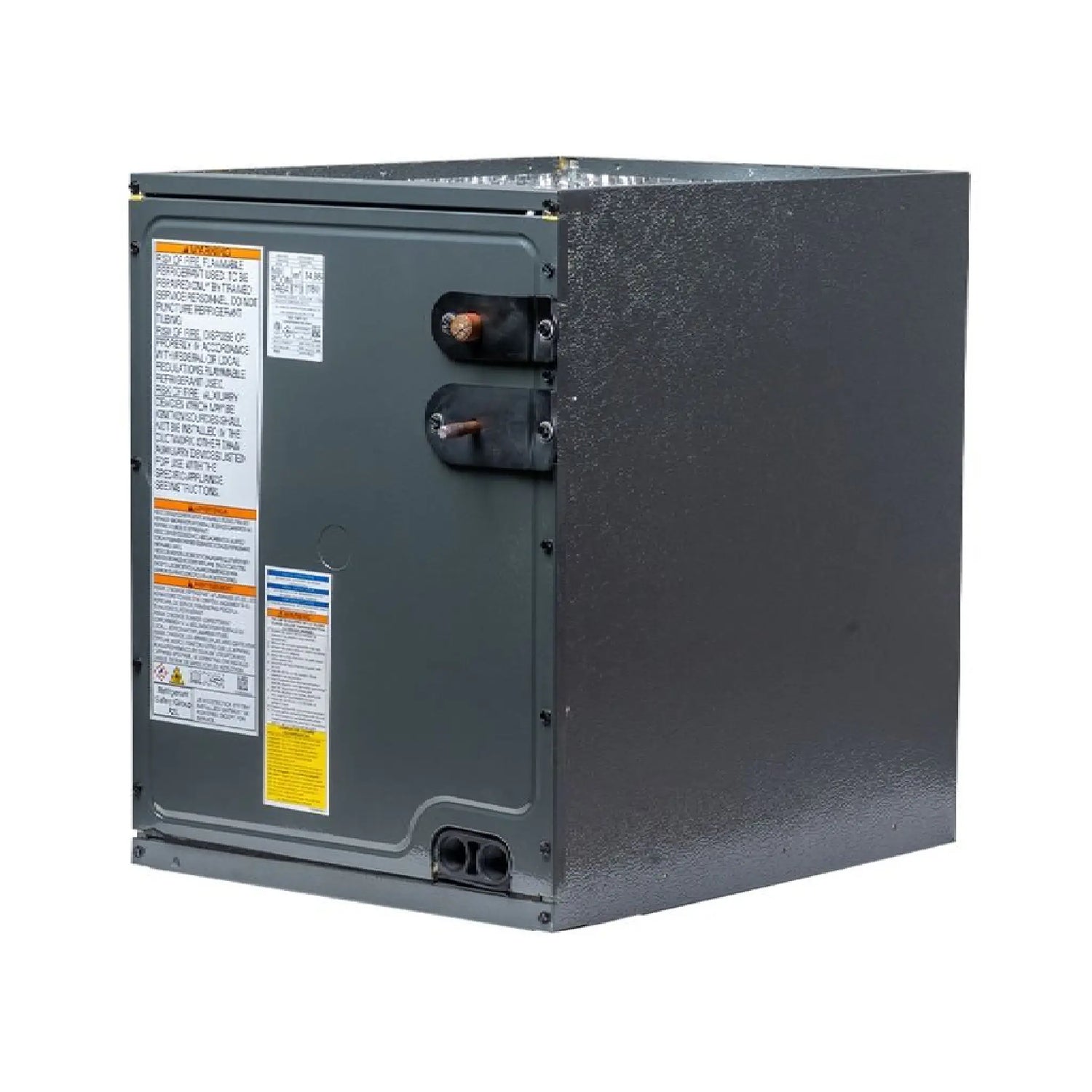

Goodman 1.5 Ton Evaporator Coil Cased Vertical With 17.5" Width Cabinet R32 CAPFA1818B3

The Goodman CAPFA1818B3 1.5 Ton Evaporator Coil delivers flexible installation options and enhanced efficiency for central air systems and heat pumps. Designed for use in both upflow and downflow configurations, this cased A-coil is compatible with AC-only or heat pump systems. Built with durable materials and equipped with a check flowrater expansion device, the CAPFA1818B3 supports long-term comfort and performance. Its foil-faced insulation, galvanized-steel cabinet, and low air leakage make it an ideal component for reliable home climate control.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 80,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Learning Resources

GR9S80 / GD9S80 Installation Manual GR9S80 / GD9S80 Specification Sheets GR9S80 / GD9S80 Warranty Information CAPFA Installation Manual CAPFA Specification Sheets CAPFA Parts Manual CAPFA Warranty Information CAPFA Nomenclature

Specifications

Goodman 80% AFUE 80,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800803BN

BrandGoodman
SKUGR9S800803BN
Weight116
ManufacturerGoodman
ReplacesGM9S800803BN
AHRI Certificate Number215358053
Config SearchUpflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Heating BTU80,000
Blower Motor9 Speed - ECM
Maximum CFM1200
ConfigurationUpflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size7.7 Amps
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width17 1/2"
Depth28"
WarrantyLifetime Heat Exchanger and 10 Years Parts with Online Registration

Goodman 1.5 Ton Evaporator Coil Cased Vertical With 17.5" Width Cabinet R32 CAPFA1818B3

BrandGoodman
SKUCAPFA1818B3
Tonnage1.5 Ton
Weight38
ManufacturerGoodman
ReplacesCAPFA1818B4
Product FeaturesNew Refrigerant Compliant
ConfigurationUpflow / Downflow
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
StyleA-Coil
Height18"
Width17 1/2"
Depth21"
Warranty10 Years with Online Registration

Warranty and Product Information

Goodman 80% AFUE 80,000 BTU Gas Furnace Single Stage 17.5" Width Horizontal GR9S800803BN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 1.5 Ton Evaporator Coil Cased Vertical With 17.5" Width Cabinet R32 CAPFA1818B3

Standard Warranty5 years
Registered Warranty10 years
