Goodman 1.5 Ton Furnace Coil System 80% AFUE 40,000 BTU Upflow/Downflow R32

By: Goodman
SKU: GR9T800403AN / CAPFA1818A3|ID: 101466
$1,941.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 40,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

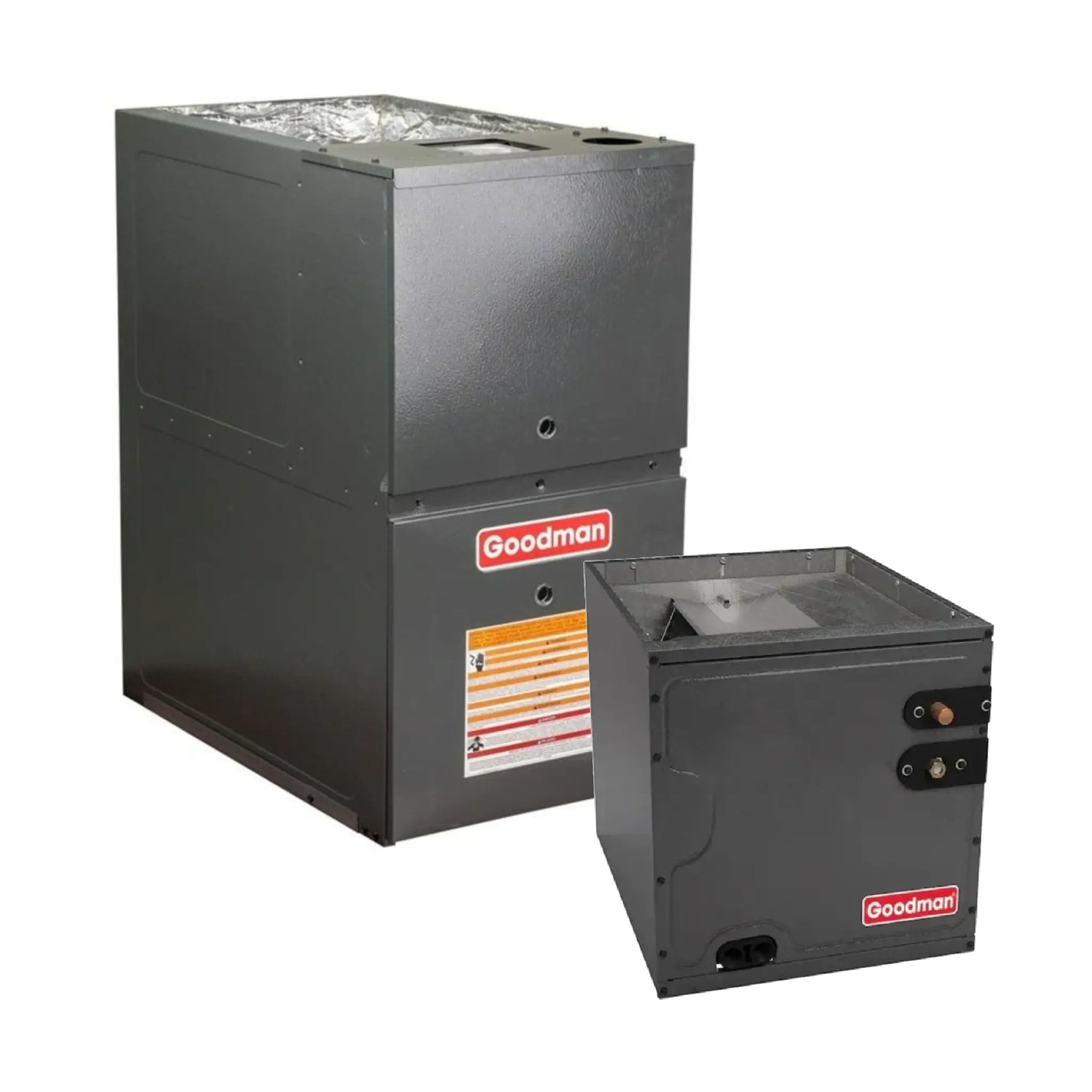

Goodman 1.5 Ton Furnace Coil System 80% AFUE 40,000 BTU Upflow/Downflow R32

Goodman 80% AFUE 40,000 BTU Gas Furnace Two Stage 14"W Upflow/Horizontal GR9T800403AN

The GR9T800403AN Goodman Gas Furnace delivers efficient, quiet, and reliable heating performance at a competitive price point. Built with Goodman’s trusted engineering and high-quality components, this two-stage, 9-speed ECM blower furnace is an ideal choice for homeowners looking to reduce energy costs and improve indoor comfort. With 80% AFUE efficiency and a 40,000 BTU input, it's best suited for small homes and spaces in moderate climates.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 40,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Please Note

This model does not comply with California Low NOx or Ultra-Low NOx regulations. Contact us for compliant alternatives if you're located in California or other regulated regions.

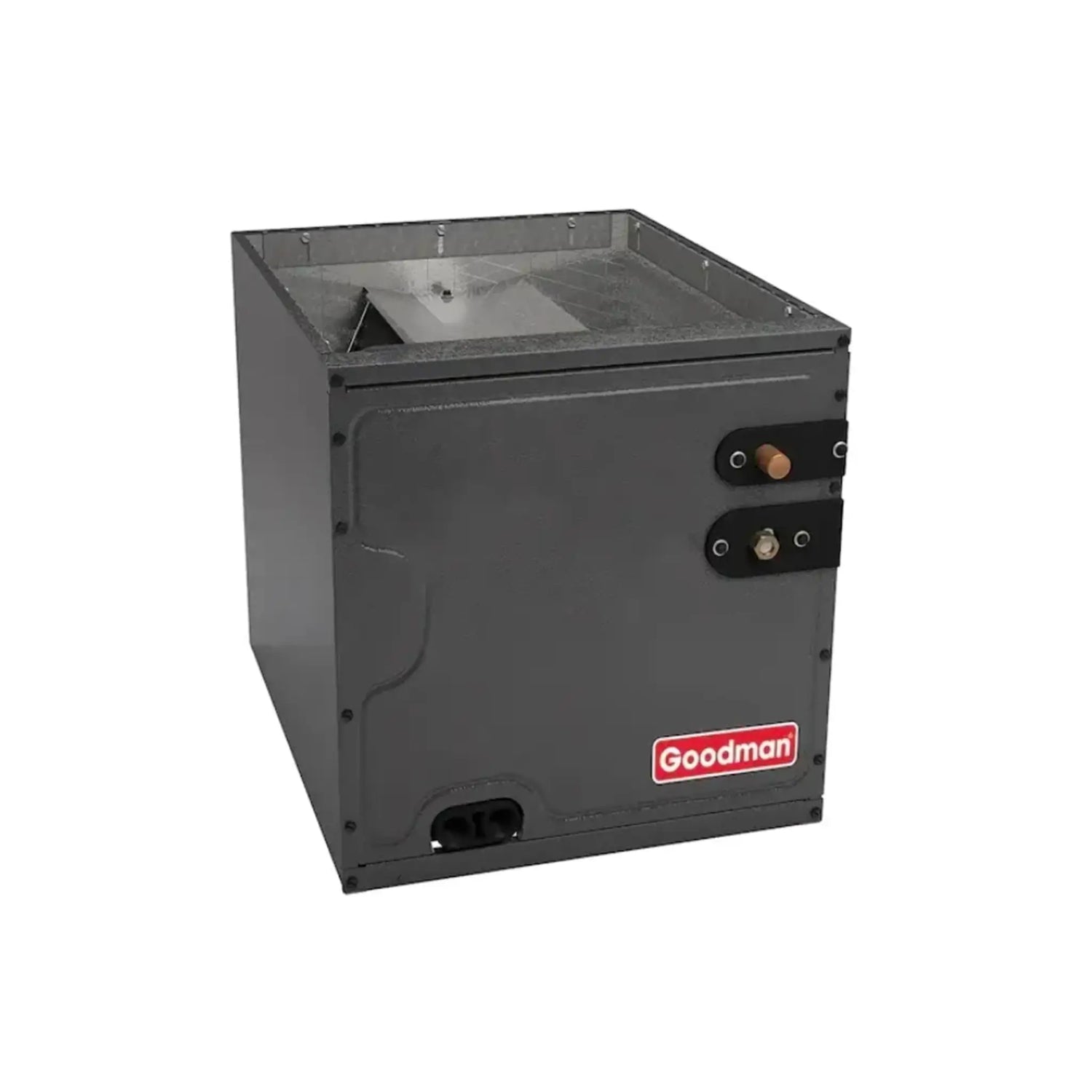

Goodman 1.5 Ton Evaporator Coil Cased Upflow/Downflow 14" Width Cabinet R32 CAPFA1818A3

The Goodman CAPFA1818A3 evaporator coil delivers flexible installation options, enhanced durability, and optimized airflow for efficient home comfort. Designed to work with both AC-only and heat pump systems, this coil can be installed in either upflow or downflow configurations. Its R32 refrigerant compatibility and low-leakage insulation ensure energy-efficient operation that complies with modern environmental standards.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 40,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Please Note

This evaporator coil requires a compatible condenser and blower or furnace to operate (sold separately). It is not suitable as a replacement for single-piece air handler coils.

Learning Resources

GR9T80 / GD9T80 Installation Manual GR9T80 / GD9T80 Specification Sheets GR9T80 / GD9T80 Warranty Information CAPFA Installation Manual CAPFA Specification Sheets CAPFA Parts Manual CAPFA Warranty Information CAPFA Nomenclature

Specifications

Goodman 80% AFUE 40,000 BTU Gas Furnace Two Stage 14"W Upflow/Horizontal GR9T800403AN

BrandGoodman
SKUGR9T800403AN
Weight (in lbs)105
ManufacturerGoodman
ReplacesGM9C800403AN & GMEC800403AN
AHRI Certificate Number215358017
ConfigurationUpflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Heating BTU40,000
Blower Motor9 Speed - ECM
Maximum CFM1200
Electrical115v 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size7.7 Amps
Burner StagesTwo
Fuel TypePropane, Natural Gas
Height33 3/8"
Width14"
Depth28"
WarrantyLifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration

Goodman 1.5 Ton Evaporator Coil Cased Upflow/Downflow 14" Width Cabinet R32 CAPFA1818A3

BrandGoodman
SKUCAPFA1818A3
Tonnage1.5 Ton
Weight (in lbs)33
ManufacturerGoodman
ReplacesCAPFA1818A4
Product FeaturesNew Refrigerant Compliant
ConfigurationUpflow / Downflow
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
StyleA-Coil
Height18"
Width14"
Depth21"
Warranty10 Years with Online Registration

Warranty and Product Information

Goodman 80% AFUE 40,000 BTU Gas Furnace Two Stage 14"W Upflow/Horizontal GR9T800403AN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 1.5 Ton Evaporator Coil Cased Upflow/Downflow 14" Width Cabinet R32 CAPFA1818A3

Standard Warranty5 years
Registered Warranty10 years
