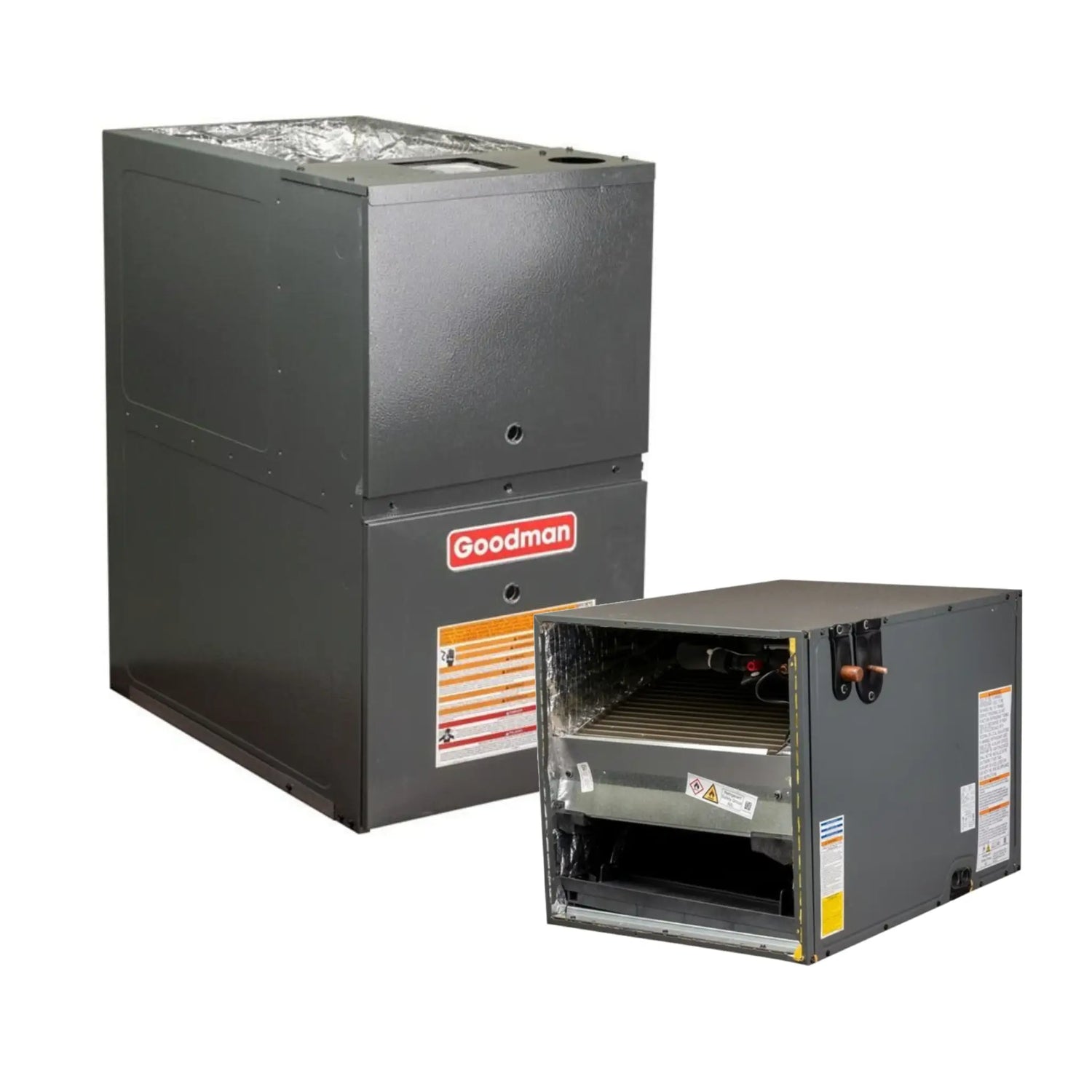

Goodman 1.5 Ton Furnace And Coil System 80% AFUE 60,000 BTU Horizontal R32

By: Goodman
SKU: GR9S800603AN / CHPTA1822A3|ID: 101520
$1,929.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Btu: 60,000 BTUs

40,000 BTUs60,000 BTUs

Configuration: Upflow/Horizontal

Upflow/Horizontal

Tonnage: 1.5 Ton

1.5 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 1.5 Ton Furnace And Coil System 80% AFUE 60,000 BTU Horizontal R32

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

The Goodman GR9S800603AN is a 60,000 BTU, single-stage gas furnace designed to deliver dependable comfort for small to medium-sized homes. With an 80% AFUE rating, this unit converts 80% of fuel into usable heat, providing up to 48,000 BTUs of output. Equipped with a 9-speed ECM blower motor and a durable heat exchanger, the GR9S800603AN offers greater efficiency, quieter operation, and a longer lifespan. Its flexible installation options and energy-saving features make it a cost-effective choice for homeowners looking to enhance comfort without overspending.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

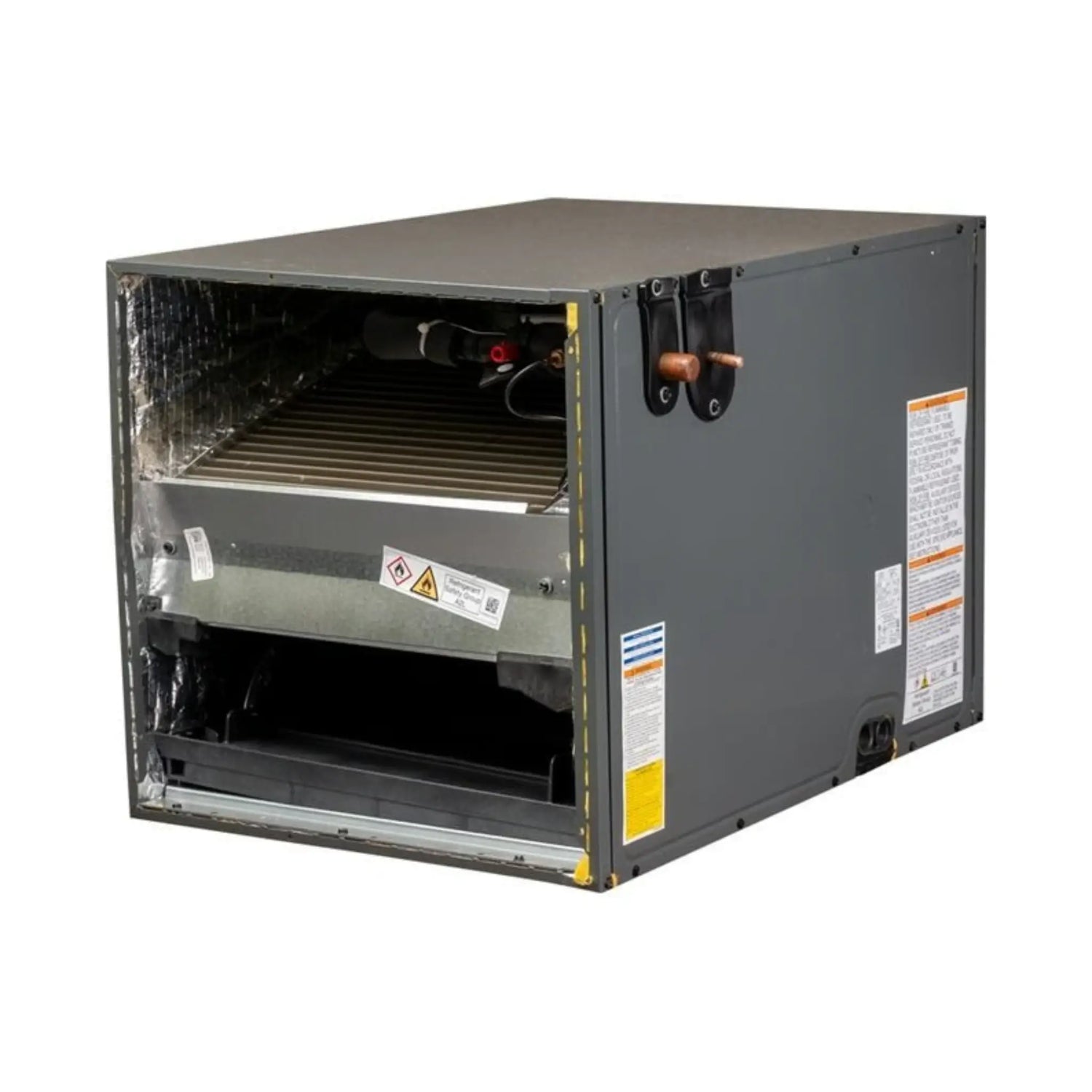

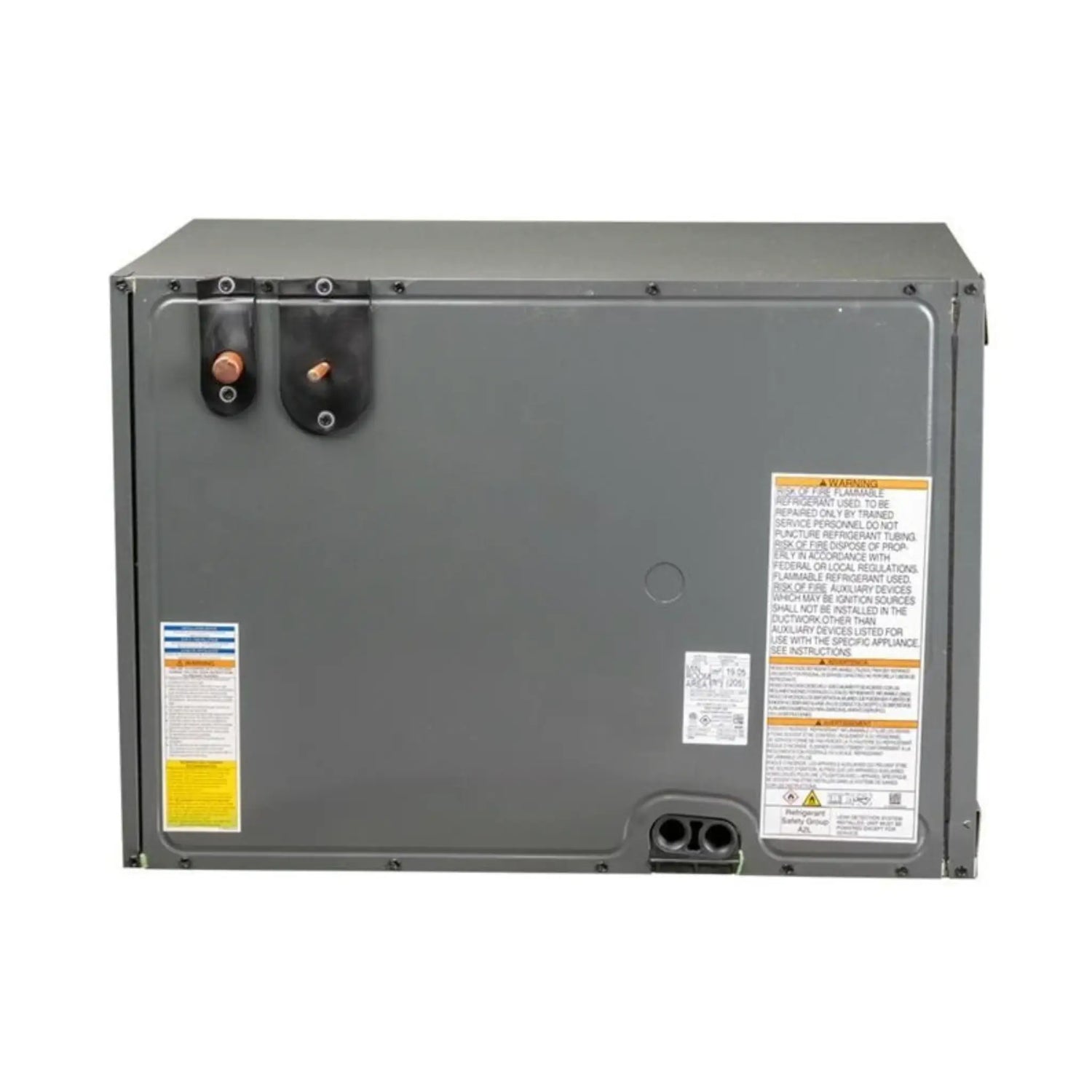

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

The Goodman CHPTA1822A3 is a 1.5 ton horizontal evaporator coil engineered for superior comfort and long-lasting performance. Featuring an all-aluminum coil design and a factory-installed TXV kit, this model enhances system efficiency while maintaining precise refrigerant control. Designed for horizontal applications, the CHPTA1822A3 can be used with both heat pump and AC-only systems. Its durable, galvanized steel cabinet with foil-faced insulation prevents air leakage, while its mold-resistant drain pan and easy-access design make it both reliable and serviceable.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Learning Resources

GR9S80 / GD9S80 Installation Manual GR9S80 / GD9S80 Specification Sheets GR9S80 / GD9S80 Warranty Information CHPTA Installation Manual CHPTA Specifications Sheet CHPTA Service Manual CHPTA Goodman Evaporator Coil Warranty

Specifications

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

BrandGoodman
SKUGR9S800603AN
Weight (in lbs)90
ManufacturerGoodman
ReplacesGM9S800603AN
AHRI Certificate Number215358047
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Heating BTU60,000
Blower Motor9 Speed - ECM
Maximum CFM1600
ConfigurationUpflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size7.7 Amps
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height33 3/8"
Width14"
Depth28"
WarrantyLifetime Heat Exchanger and 10 Years Parts with Online Registration

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

BrandGoodman
SKUCHPTA1822A3
Tonnage1.5 Ton
Weight (in lbs)46
ManufacturerGoodman
ReplacesCHPTA1822A4
Product FeaturesNew Refrigerant Compliant
ConfigurationHorizontal
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
StyleA-Coil
CertificationETL Listed
Height14"
Width22"
Depth21"
Warranty10 Years Parts with Online Registration

Warranty and Product Information

Goodman 80% AFUE 60,000 BTU Gas Furnace Single Stage 14"W Upflow/Horizontal GR9S800603AN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 1.5 Ton Evaporator Coil Cased Horizontal With 14"H Cabinet TXV R32 CHPTA1822A3

Standard Warranty5 years
Registered Warranty10 years
