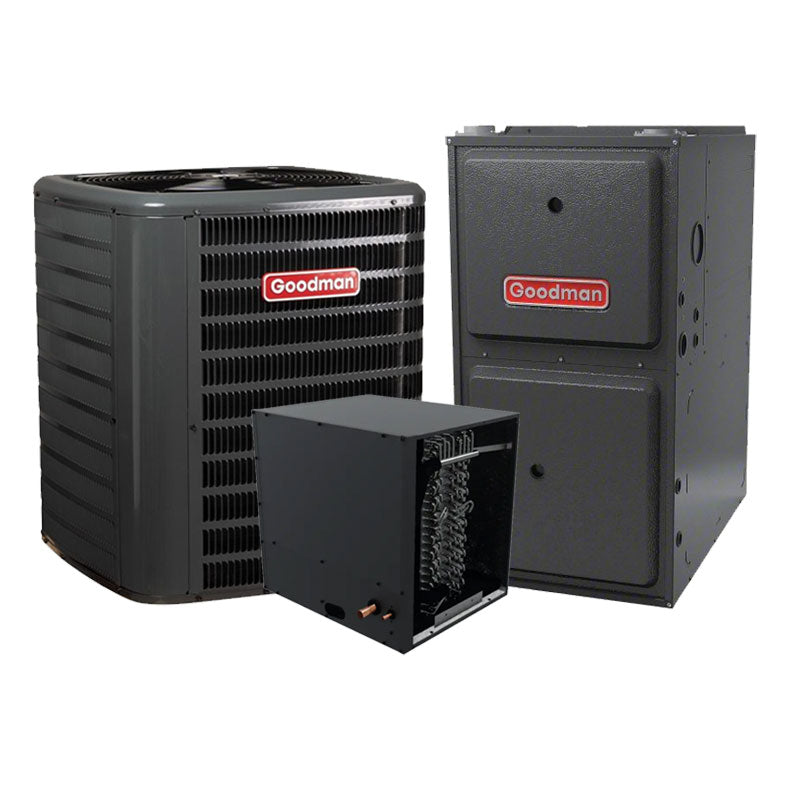

Goodman 1.5 Ton AC Gas Furnace System 13.8 SEER2 92% 40K BTU Horizontal R32

Goodman 1.5 Ton R32 Split Air Conditioner 13.4 SEER2 208/230V 1-Phase GLXS3BN1810

Introducing the Goodman 1.5 Ton R32 Split Air Conditioner (Model GLXS3BN1810) with a 13.4 SEER2 efficiency rating. This energy-efficient split air conditioner operates on R-32 refrigerant, offering a nominal cooling capacity of 18,000 BTU/H while reducing energy consumption. Measuring 27.5 inches in height, 26 inches in width, and 26 inches in depth, it features a single-stage rotary compressor, factory-installed filter drier, and easy-access sweat connection service valves for quick maintenance. AHRI Certified and ETL Listed, this unit meets strict efficiency and safety standards, making it a reliable choice for effective cooling solutions.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 27.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 18000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 114 lb
• Tonnage: 1.5
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in


Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for enhanced safety and accessibility.
• Venturi Design: Increases velocity of airflow for improved cooling efficiency.
• Architectural Gray Powder-Paint Finish: Attractive and durable, with 500-hour salt-spray approval for corrosion resistance.
• Wire Fan Discharge Grille: Provides safety and enhances airflow.
• Steel Louver Coil Guard: Protects the coil from damage while maintaining airflow.
• Top and Side Maintenance Access: Facilitates easy servicing and repairs.
• Single-Panel Access to Controls: Convenient access for operators with space for field-installed accessories.
• Hurricane Integrity Compliance: When properly anchored, meets 2023 Florida Building Code requirements for hurricane winds (anchor bracket kits available).

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

• Unit Height: 33-3/8 in
• Unit Width: 14 in
• AFUE: 92 %
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 106 lb
• Model Efficiency: 0.92
• 40,000 BTU
• R32
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled


Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

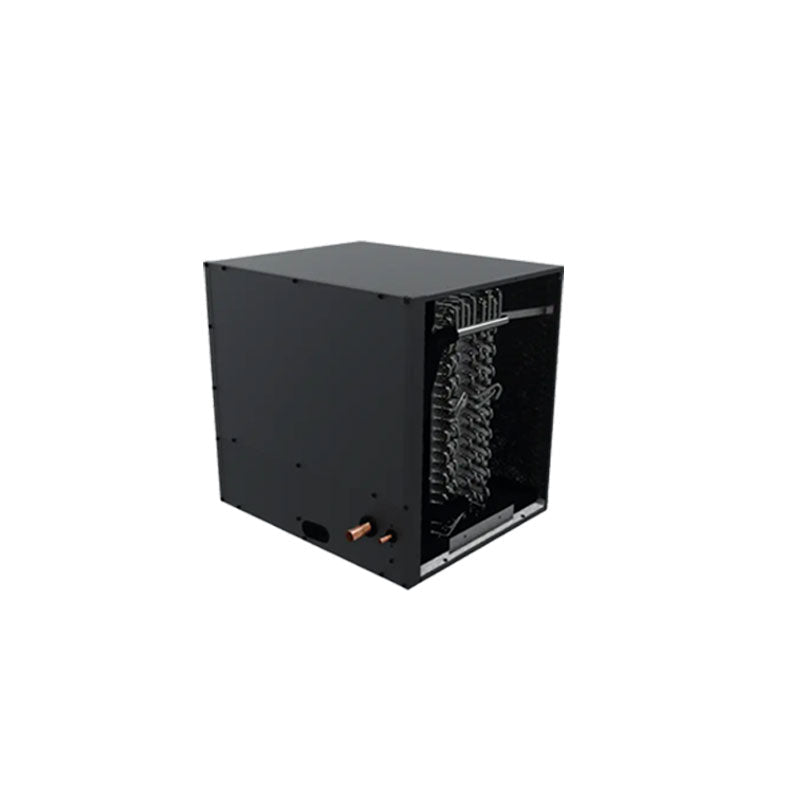

Goodman 1.5 Ton R32 Cased Evaporator Coil Horizontal 14"H x 22"W Internal TXV CHPTA1822A3

The Goodman 1.5 Ton R32 Cased Evaporator Coil (Model CHPTA1822A3) is designed for horizontal applications, with dimensions of 14 inches high, 22 inches wide, and 21 inches deep. This all-aluminum coil is optimized for R-32 refrigerant, featuring factory-installed thermal expansion valves for both cooling and heat pump systems. Its galvanized leather grain-embossed finish ensures durability, while the rust-resistant thermoplastic drain pan provides secondary drain connections for convenience. With a single front access panel for easy maintenance, this AHRI Certified and ETL Listed evaporator coil is a dependable choice for efficient HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 14 in
• Unit Width: 22 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in


Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
