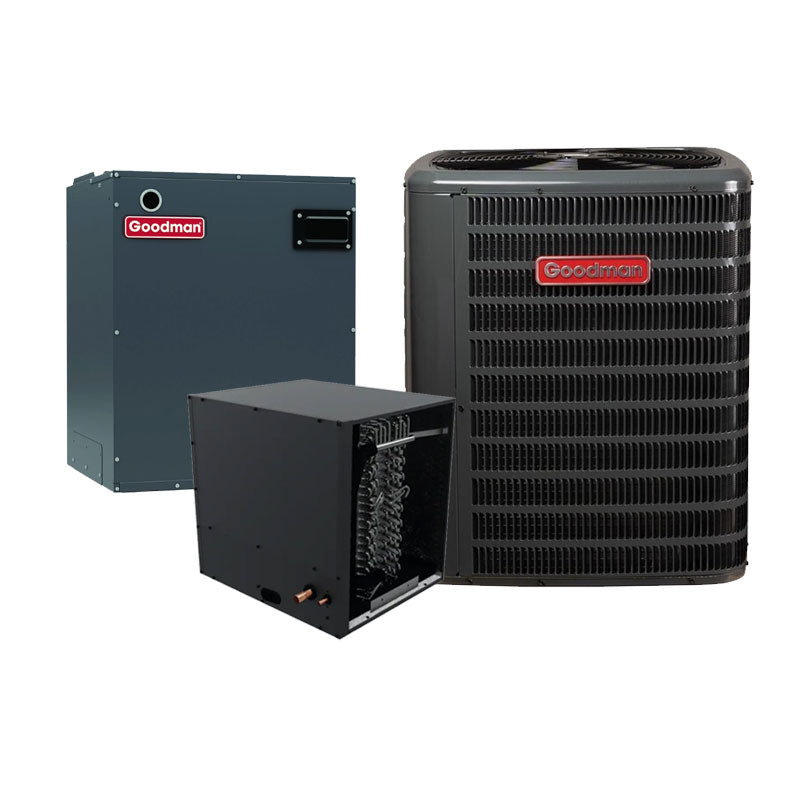

Goodman 1.5 Ton 15.2 SEER2 Air Conditioner Split System Horizontal Coil R32

Goodman 1.5 Ton R32 Air Conditioner Condenser 14.3 SEER2 GLXS4BA1810

The Goodman 1.5 Ton Air Conditioner Condenser GLXS4BA1810 delivers efficient cooling with a 14.3 SEER2 rating and a capacity of 18,000 BTUs. Designed for single-stage operation, this unit is optimized for R32 refrigerant, promoting eco-friendly performance. Operating on a 208/230V, 1-phase power supply, it ensures compatibility with various residential setups. Its durable construction features a robust cabinet designed to withstand the elements, while easy access for maintenance enhances convenience. Ideal for both new installations and replacements, this condenser ensures reliable cooling for your home.

• Energy Star Certified: No
• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 18000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 69 lb
• Tonnage: 1.5
• Unit Depth: 26 in


Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Rotary compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for easy maintenance access.
• Venturi Design: Increases airflow velocity for enhanced cooling efficiency.
• Architectural Gray Powder-Paint Finish: Approved for 500-hour salt-spray exposure, ensuring durability against the elements.
• Wire Fan Discharge Grille: Promotes efficient airflow and cooling.
• Steel Louver Coil Guard: Protects the coil from damage and enhances durability.
• Flexible Access: Offers top and side maintenance access with a single-panel control layout for field-installed accessories.
• Hurricane Compliance: Meets the 2023 Florida Building Code for unit integrity when properly anchored, ensuring reliability in extreme conditions.

This Goodman HVAC system combines advanced technology and robust construction, making it an ideal choice for efficient, reliable cooling solutions.

Goodman 2 Ton R32 Horizontal Evaporator Coil 26"W x 17.5"H CHPTA2426B3

This high-performance evaporator coil is designed for R-32 refrigerant and includes integrated thermal expansion valves for cooling and heat pump applications. It offers flexible installation with both vertical and horizontal models and a 21-inch depth for easy attic access. Equipped with foil-faced insulation to reduce condensation, it features a rust-resistant, UV-resistant drain pan with extra drainage connections. Its durable galvanized finish and removable drain pan rails enhance longevity and maintenance. Certified by AHRI and ETL listed, this coil provides efficiency, durability, and ease of use for a reliable HVAC solution.

• Refrigerant Type: R-32
• Unit Height: 17.5 in
• Unit Width: 26 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in

• R-32 refrigerant optimized coil
• R-32 sensor lifespan
• Thermal expansion valves
• Copper suction tube stub
• Check Flowrator design
• Horizontal installation evaporator
• Compact attic access coil
• Foil-faced insulation benefits
• Durable galvanized finish
• Rust-resistant drain pan
• Secondary drain connections
• UV-resistant coil design
• AHRI certified efficiency

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Rotary compressor ensures quiet, consistent, and energy-efficient operation
