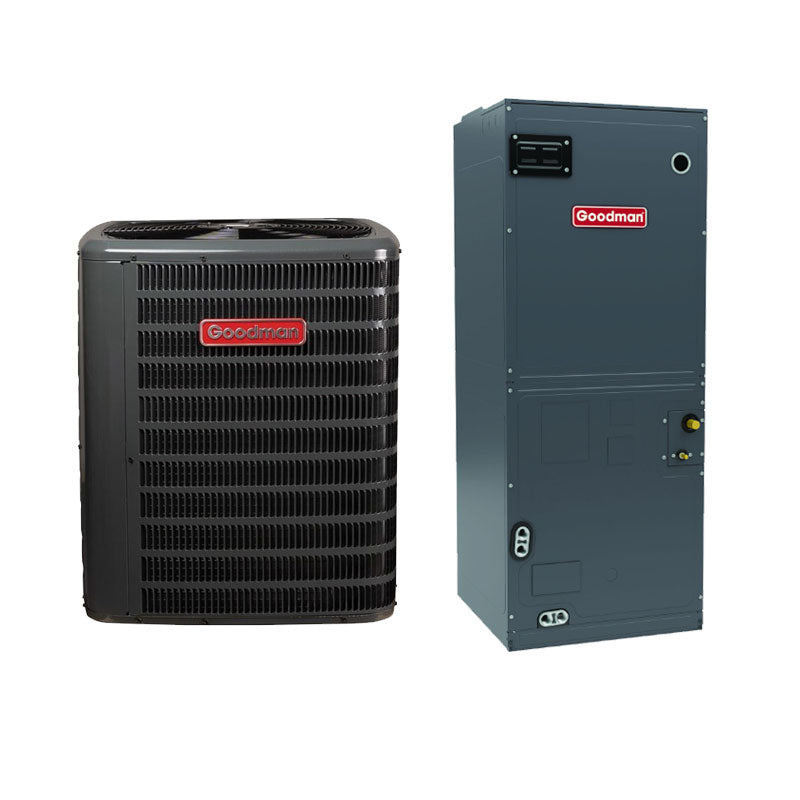

Goodman 1.5 Ton 15.2 SEER2 Air Conditioner Split System 24K BTU R32

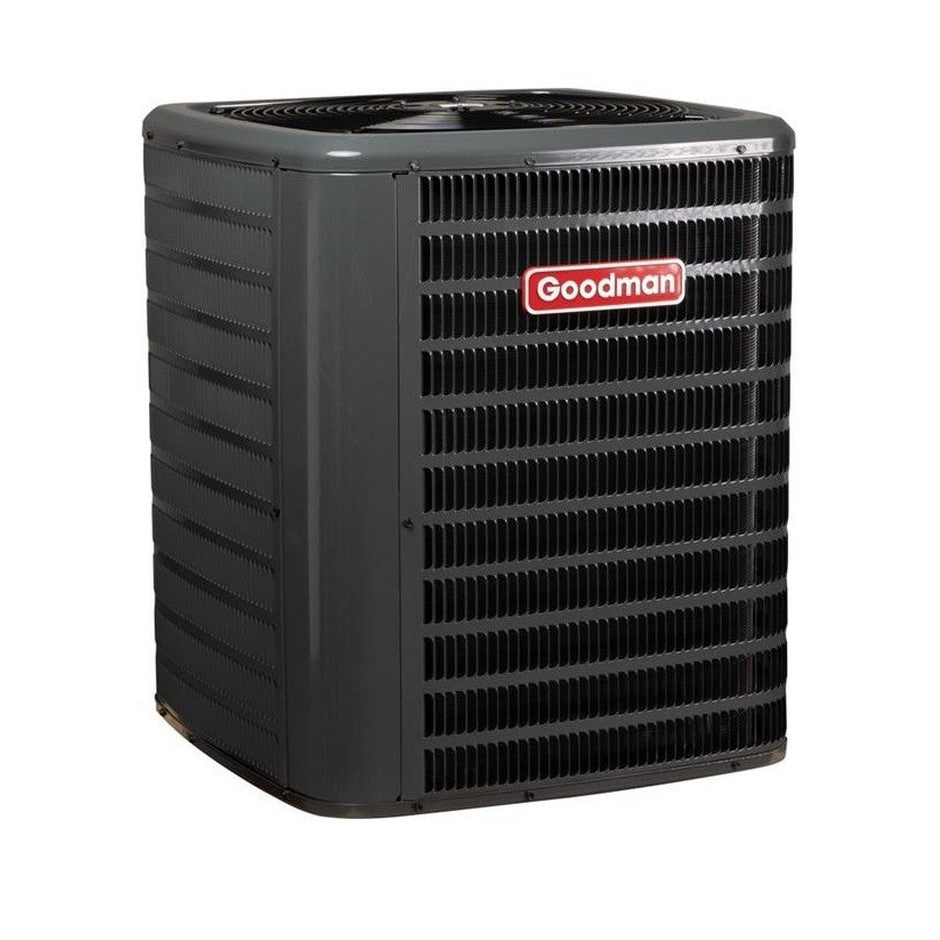

Goodman 1.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA1810

The Goodman 1.5 Ton R32 Split Air Conditioner delivers 18,000 BTU cooling with 15.2 SEER2 efficiency, ensuring reliable performance and energy savings. Equipped with a high-efficiency scroll compressor and factory-installed filter drier, it offers enhanced protection and longevity. Its 5mm copper tube with aluminum fin coil ensures superior heat transfer, while the enclosed contactor, high-pressure switch, and extended-life capacitors prioritize safety and durability. This compact, single-stage unit is AHRI-certified, ETL-listed, and optimized for dependable cooling.

• Refrigerant Type: R-32
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 1.5
• Model Efficiency: 15.2 SEER2
• 18,000 BTU Cooling
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable Grille-Style Top Design: UL 60335-2-40 compliant for safe operation.
• Venturi Design: Enhances airflow velocity for improved efficiency.
• Architectural Gray Powder-Paint Finish: Durable, weather-resistant finish approved for 500-hour salt spray.
• Wire Fan Discharge Grille: Provides protection and optimized airflow.
• Steel Louver Coil Guard: Shields coils from damage while maintaining airflow.
• Top and Side Maintenance Access: Simplifies service and upkeep.
• Single-Panel Access to Controls: Includes space for field-installed accessories.
• Hurricane-Resistant Design: Meets the 2023 Florida Building Code for high winds when properly anchored (anchor bracket kits available).

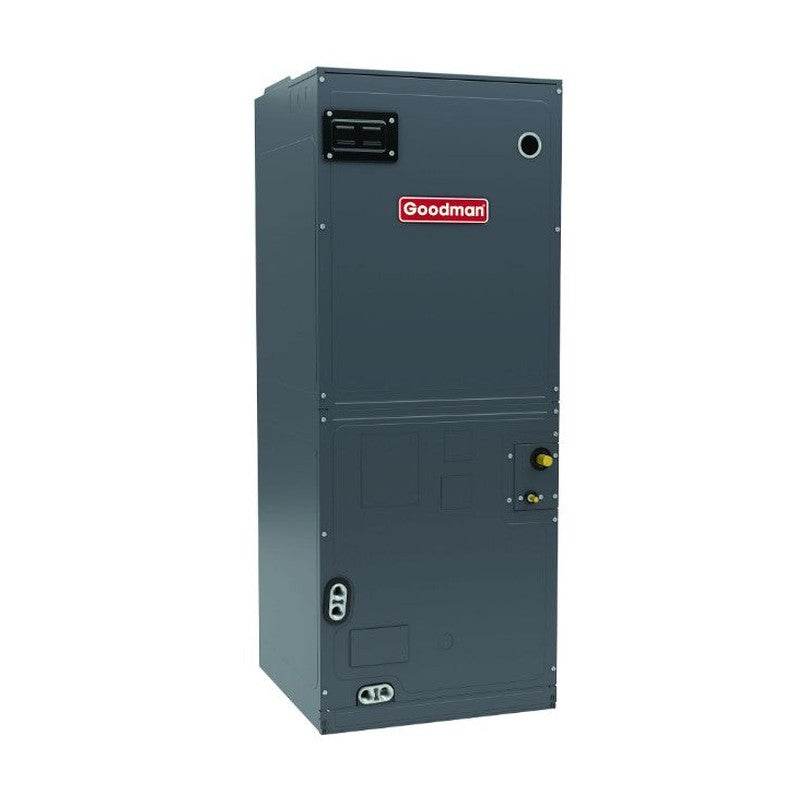

Goodman 2 Ton R32 Air Handler Ducted Multi-Position w/ 17-9/16" Cabinet TXV AMST24BU1300

Elevate your HVAC performance with the AMST Ducted Multi-Position Air Handler. Featuring a nine-speed ECM motor for precise airflow control and a compact 17-9/16 inch cabinet, this unit fits in tight spaces while handling 2 to 5 tons efficiently. The integrated TXV expansion valve ensures optimal refrigerant management, enhancing both energy savings and reliability. Ideal for versatile installations, the AMST air handler delivers superior comfort and performance for any residential or light commercial setting.

• Refrigerant Type: R-32
• Unit Height: 45 in
• Unit Width: 17-9/16 in
• Cooling Capacity Nominal: 24000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 112 lb
• Tonnage: 2
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features:

• SmartFrame Cabinet: Rigid, durable design with 21” depth for easy attic installation.
• Configuration: Versatile horizontal or vertical setup.
• Drain Pan: DecaBDE-free thermoplastic with secondary drain connections.
• Insulation: Foil-faced to reduce condensation; glue-less retention and tool-less filter access.
• Finish: Galvanized, leather grain-embossed for durability and aesthetic appeal.

Certifications: AHRI Certified and ETL Listed for quality assurance.
