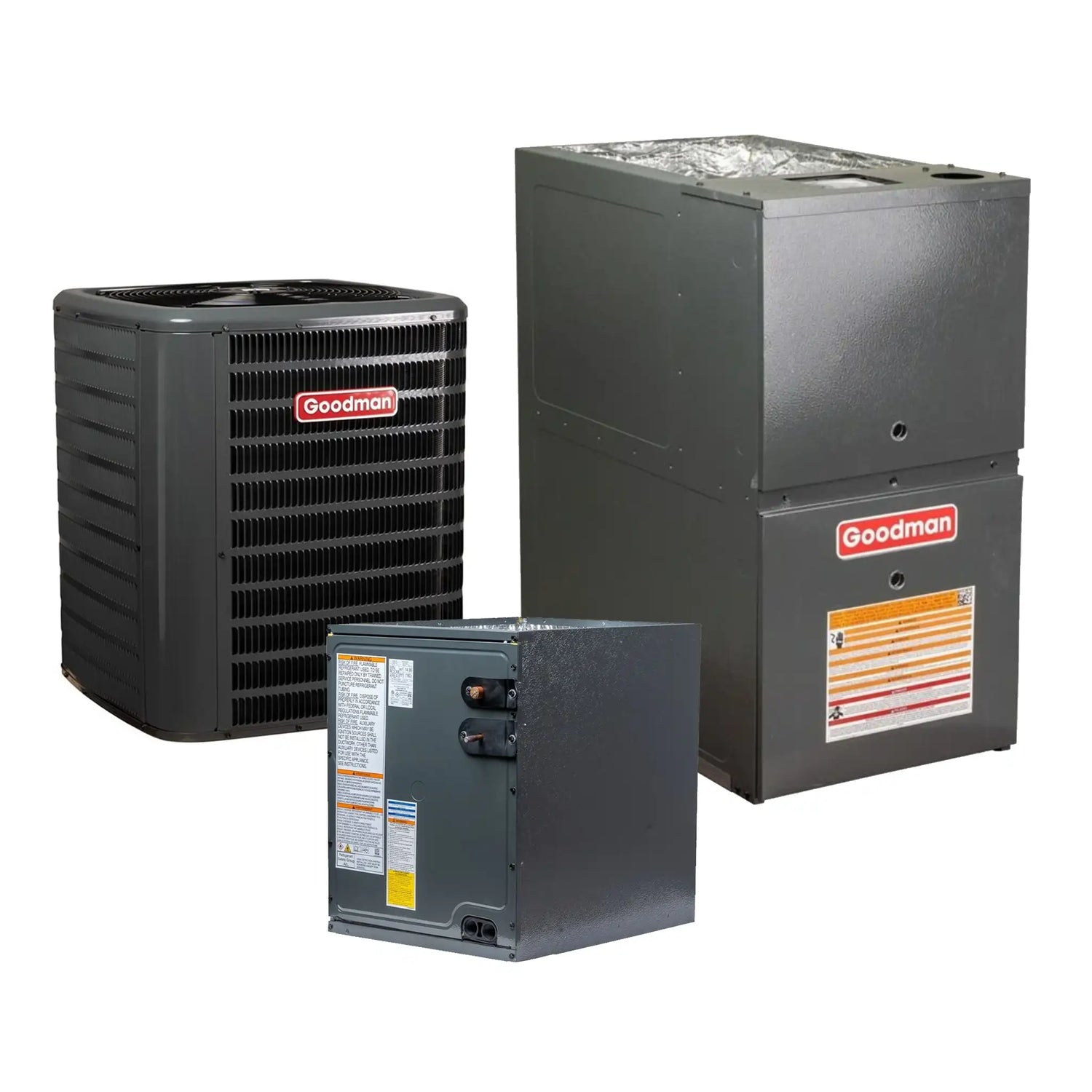

Goodman 1.5 Ton 15.2 SEER2 AC & Gas Furnace System 80% 80K BTU Vertical R32

Goodman 1.5 Ton 14.3 SEER2 Central Air Conditioner Condenser Single Stage GLXS4BA1810

This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.

Product Benefits:

• High efficiency scroll compressor
• High-density foam compressor sound blanket
• Advanced Copeland CoreSense Technology
• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor with lug connection
• High-pressure switch
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds

Goodman 80% 80,000 BTU Gas Furnace Two Stage 17.5"W Upflow/Horizontal R32 GR9T800803BN

The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers efficient, reliable, and quiet home heating. With an 80,000 BTU capacity, a durable SureStart® Silicon Nitride igniter, and a two-stage gas valve, this furnace is designed to provide enhanced comfort, reduced noise, and consistent performance. The multi-speed ECM blower motor improves energy efficiency and airflow throughout your home, while the self-diagnostic control board streamlines maintenance and system checks.

This model complies with California Low NOx emissions standards and is AHRI Certified and ETL Listed for quality assurance. It also offers flexible installation options and a fully insulated, heavy-duty cabinet for quieter operation and increased energy retention. Whether you’re upgrading or installing new, this Goodman furnace is built for dependable comfort in a variety of home configurations.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Fully Insulated Heavy-Gauge Steel Cabinet – Reduces heat loss and noise with a durable baked-enamel finish
• Multi-Position Installation Options – GR9T80: upflow or horizontal (left/right); GD9T80: downflow or horizontal (left/right)
• Removable Bottom Panel – Supports side- or bottom-return air configurations
• Convenient Service Access – Left or right side gas and electrical connections simplify setup and maintenance
• Coil and Furnace Flush Mounting – Allows for a clean, professional installation
• Cabinet Air Leakage ≤ 2% – Enhances efficiency and indoor air quality by minimizing conditioned air loss

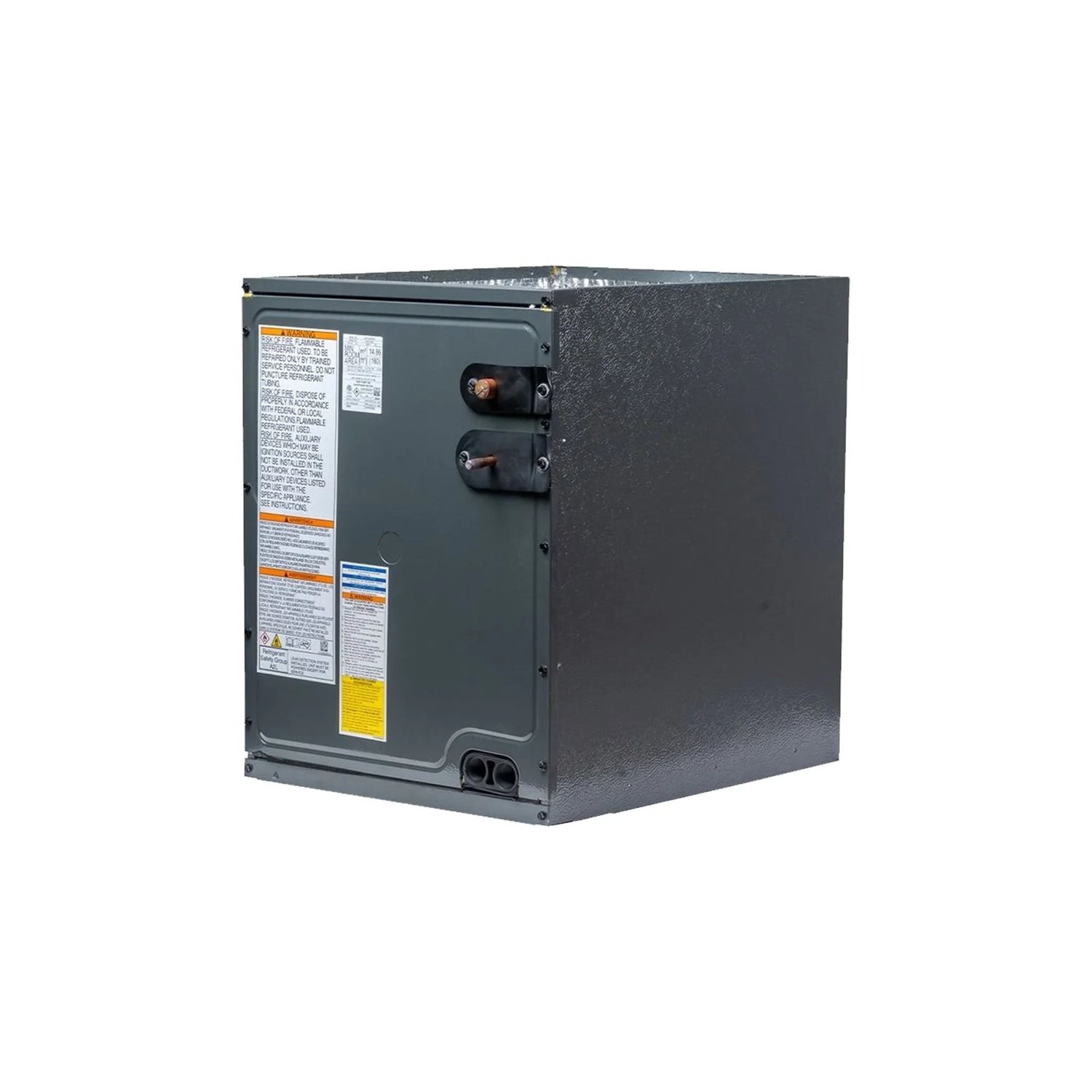

Goodman 2 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 With TXV CAPTA2422B3

The Goodman CAPTA2422B3 2 Ton Cased Evaporator Coil is engineered for long-lasting performance and optimal energy efficiency. Designed for both air conditioners and heat pump systems, this coil features an all-aluminum construction, factory-installed TXV, and a durable galvanized steel cabinet. Its compatibility with R-32 refrigerant and dual upflow/downflow orientation make it an ideal choice for residential and light commercial HVAC installations.

Built with reliability and efficiency in mind, the CAPTA Series coils are rigorously tested and backed by Goodman’s industry-leading warranty. Whether you're replacing an aging coil or designing a new system, the CAPTA2422B3 provides the flexibility, compatibility, and quality you can depend on.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Why Choose Goodman?

Goodman is a trusted leader in residential and light commercial HVAC systems across North America. Known for manufacturing high-performance products at an affordable price, Goodman is committed to delivering reliability, energy efficiency, and long-term value. When you choose a CAPTA Series evaporator coil, you're investing in quality components built to last.
