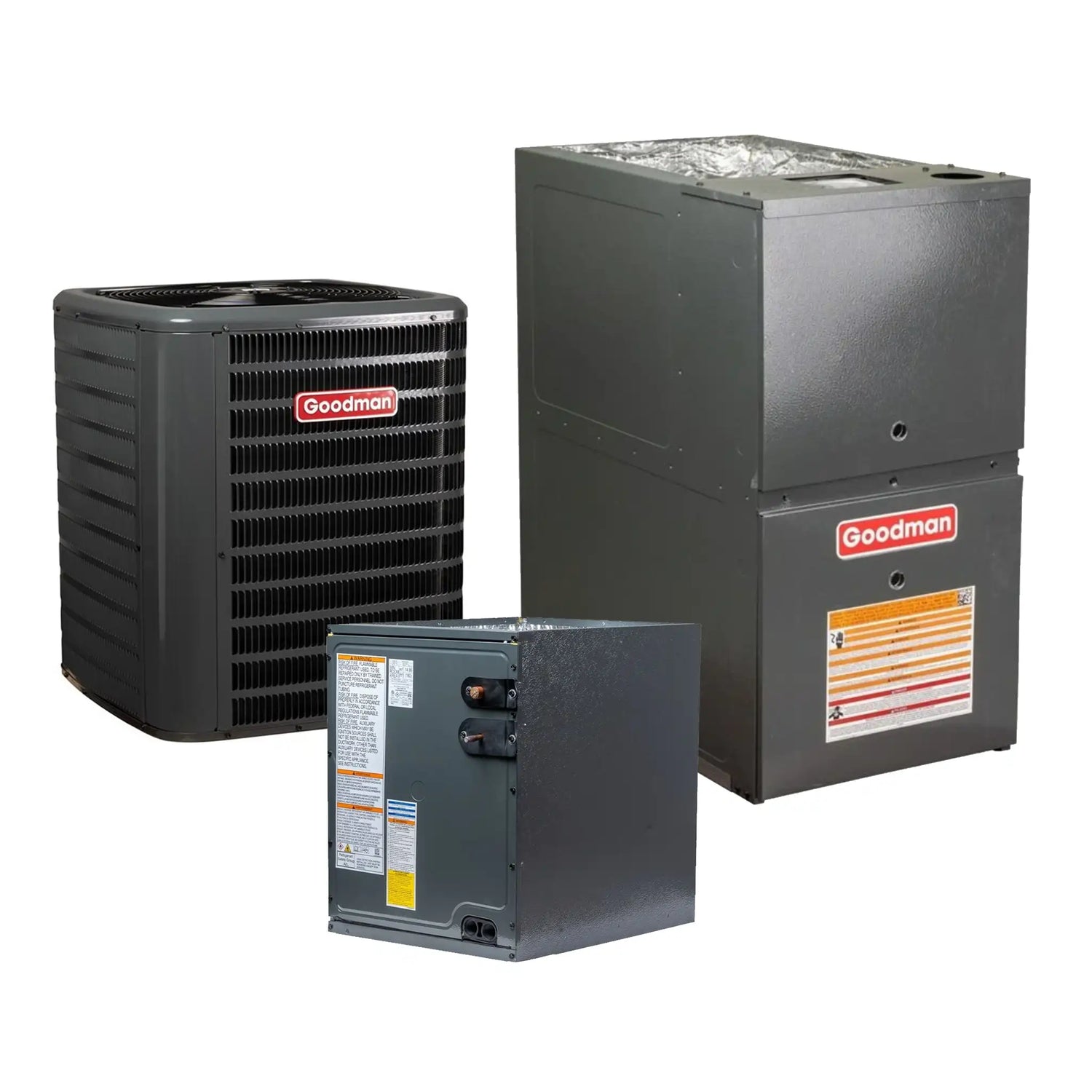

Goodman 1.5 Ton 14.7 SEER2 Gas Furnace & AC System 80% 80K BTU Vertical R32

By: Goodman
SKU: GLXS4BA1810 / GRVT800803BN / CAPTA1818B3|ID: 102668
$4,712.00
+ Free shipping

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 18,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 1.5 Ton 14.7 SEER2 Gas Furnace & AC System 80% 80K BTU Vertical R32

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

This HVAC system delivers efficient cooling performance with a high-efficiency scroll compressor and eco-friendly R32 refrigerant. Featuring advanced Copeland CoreSense Technology and a durable cabinet design, this unit offers long-lasting reliability and quieter operation. Pre-charged for simplified installation and equipped with user-friendly service access, it's ideal for both residential and light commercial use. AHRI Certified and ETL Listed, it ensures consistent performance and safety compliance.

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 18,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

  • Removable grille-style top design – Compliant with UL 60335-2-40 and allows easy coil access for cleaning
  • Venturi for increased airflow velocity – Enhances system airflow for better performance
  • Architectural Gray powder-coated finish – Approved for 500-hour salt-spray exposure for weather resistance
  • Wire fan discharge grille – Durable and designed for safety
  • Steel louver coil guard – Protects coil from debris and external damage
  • Top and side maintenance access – Simplifies service and diagnostics
  • Single-panel control access – Includes space for field-installed accessories for flexible configurations
  • Florida Building Code compliant (2023) – Meets hurricane-type wind integrity requirements when properly anchored

Goodman 80% 80K BTU Gas Furnace Two Stage Variable Upflow/Horizontal R32 GRVT800803BN

The Goodman GRVT800803BN is part of Goodman’s top-tier 80% AFUE furnace series, combining powerful two-stage heating with a variable-speed blower motor for exceptional comfort, efficiency, and durability. Built with heavy-duty aluminized steel heat exchangers and a tightly sealed cabinet, this furnace ensures reliable performance and quieter operation, making it a trusted heating solution for small to medium homes in average climate conditions.

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 18,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

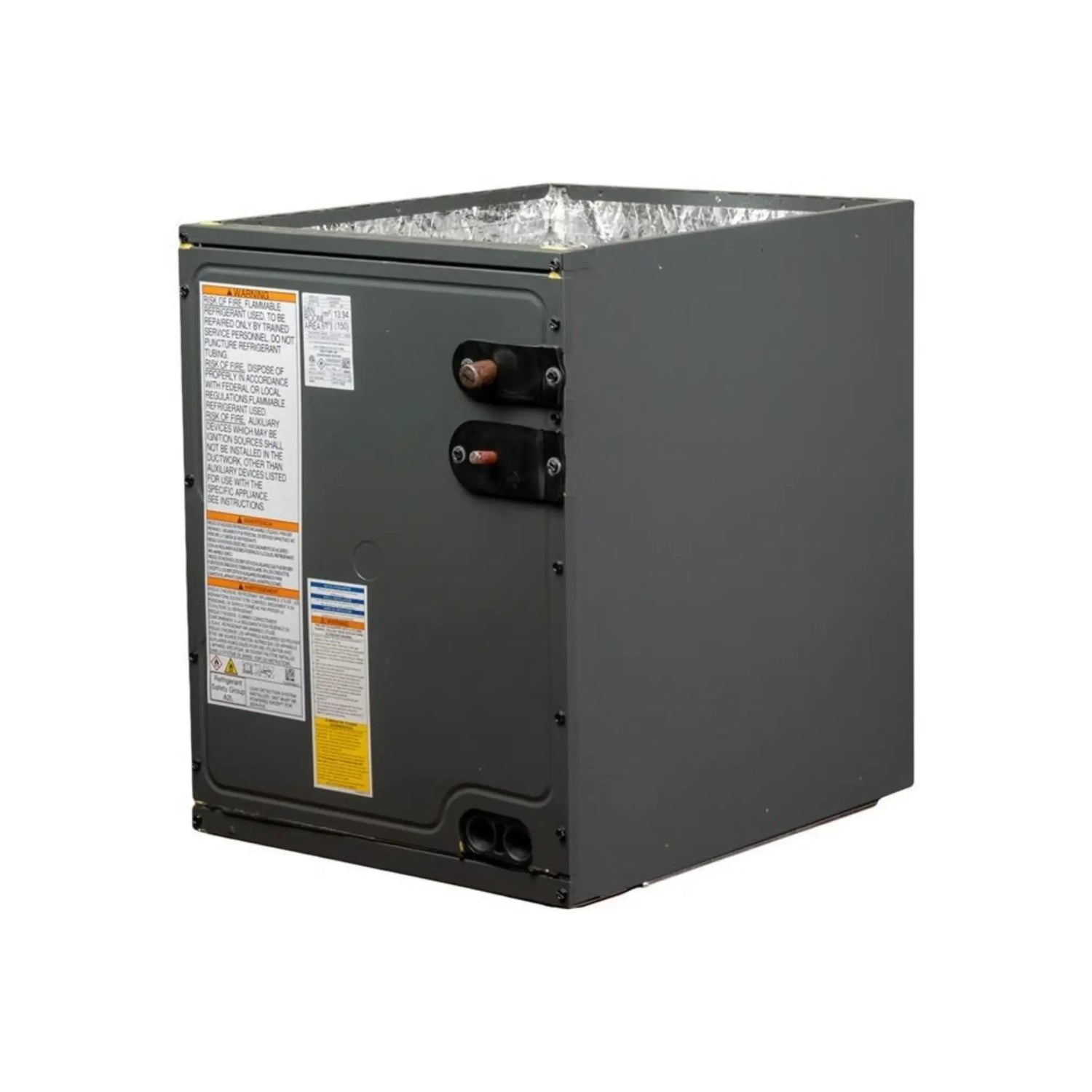

Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 18,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Learning Resources

GLXS4 Installation Manual GLXS4 Specifications Sheet GLXS4 Service Manual GLXS4 Goodman Condenser Warranty GRVT80 / GDVT80 Installation Manual GRVT80 / GDVT80 Specifications Sheet GRVT80 / GDVT80 Goodman Furnace Warranty CAPTA Installation Manual CAPTA Specification Sheets CAPTA Service Manual CAPTA Warranty Information

Specifications

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

BrandGoodman
SKUGLXS4BA1810
Tonnage1.5 Tons
Weight132 lbs
ManufacturerGoodman
ReplacesGSXN401810, GSXM401810 & GSX140181
SEER2 (Efficiency)14.3
Cooling BTU18,000
Product FeaturesNew Refrigerant Compliant
Decibel Level (dBA)74
RefrigerantR32
Condenser StagesSingle Stage
Compressor TypeRotary
Liquid Line3/8"
Suction Line3/4"
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size15 Amps
Min. Breaker Size10.9 Amps
ConnectionSweat
Height27"
Width26"
Warranty10-Limited Years

Goodman 80% 80K BTU Gas Furnace Two Stage Variable Upflow/Horizontal R32 GRVT800803BN

BrandGoodman
SKUGRVT800803BN
Weight110 lbs
ManufacturerGoodman
ReplacesGMVC800803BN
Heating BTU80,000
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE80%
Blower MotorVariable Speed
Maximum CFM1200
ConfigurationUpflow/Horizontal
Burner StagesTwo
Fuel TypePropane, Natural Gas
Height33 3/8"
Width17 1/2"
Depth28"
WarrantyLifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration

Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

BrandGoodman
SKUCAPTA1818B3
Tonnage1.5 Tons
ManufacturerGoodman
ReplacesCAPTA1818B4
TypeEvaporator Coils
RefrigerantR32
Liquid Line3/8''
Suction Line3/4''
Height18''
Width17.5''
Depth21''
ApplicationVertical
WarrantyParts Warranty 10-Limited Years

Warranty and Product Information

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

Standard Warranty (Residential)5 year parts
Standard Warranty (Multi-Family)5 year parts
Standard Warranty (Commercial)5 year parts
Registered Warranty (Residential)10 year parts
Registered Warranty (Multi-Family)10 year parts
Registered Warranty (Commercial)5 year parts

Goodman 80% 80K BTU Gas Furnace Two Stage Variable Upflow/Horizontal R32 GRVT800803BN

Standard Warranty5 years
Registered WarrantyLifetime

Goodman 1.5 Ton Cased Evaporator Coil 17.5"W Upflow/Downflow R32 with TXV CAPTA1818B3

Standard Warranty (Residential)5 year parts
Standard Warranty (Multi-Family)5 year parts
Standard Warranty (Commercial)5 year parts
Registered Warranty (Residential)10 year parts
Registered Warranty (Multi-Family)10 year parts
Registered Warranty (Commercial)5 year parts
