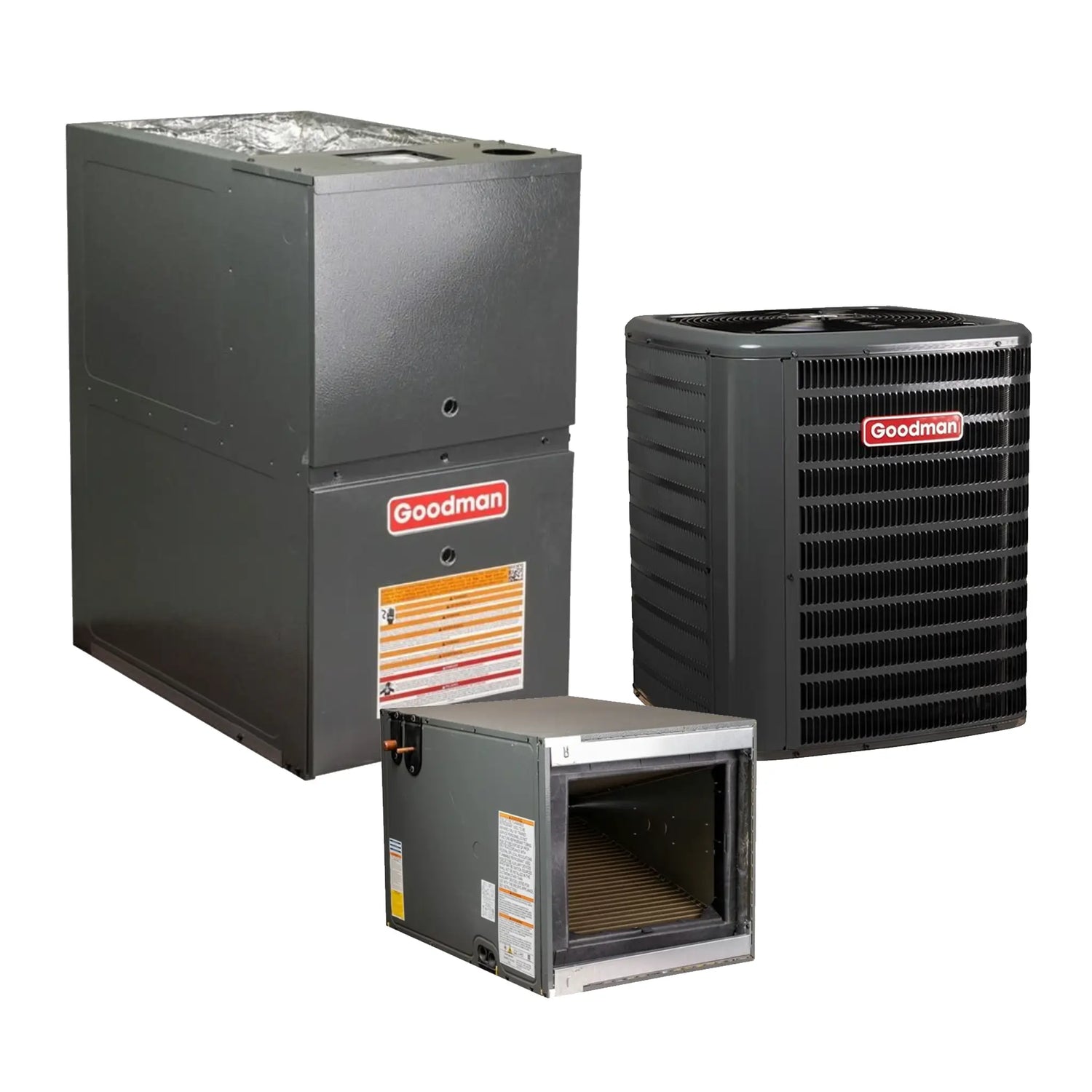

Goodman 1.5 Ton 14.7 SEER2 AC & Furnace System 80% 60K BTU R32 Horizontal

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4BA1810

This HVAC system delivers efficient cooling performance with a high-efficiency scroll compressor and eco-friendly R32 refrigerant. Featuring advanced Copeland CoreSense Technology and a durable cabinet design, this unit offers long-lasting reliability and quieter operation. Pre-charged for simplified installation and equipped with user-friendly service access, it's ideal for both residential and light commercial use. AHRI Certified and ETL Listed, it ensures consistent performance and safety compliance.

Key Features

• Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable grille-style top design – Compliant with UL 60335-2-40 and allows easy coil access for cleaning
• Venturi for increased airflow velocity – Enhances system airflow for better performance
• Architectural Gray powder-coated finish – Approved for 500-hour salt-spray exposure for weather resistance
• Wire fan discharge grille – Durable and designed for safety
• Steel louver coil guard – Protects coil from debris and external damage
• Top and side maintenance access – Simplifies service and diagnostics
• Single-panel control access – Includes space for field-installed accessories for flexible configurations
• Florida Building Code compliant (2023) – Meets hurricane-type wind integrity requirements when properly anchored

Goodman R32 80% AFUE Gas Furnace 60K BTU Two Stage Low NOx 17.5"W Upflow

The Goodman 80% AFUE R32 2-Stage Gas Furnace provides 60,000 BTU of efficient, quiet heating with a multi-speed ECM circulator motor and two-stage gas valve for optimal comfort. Equipped with a SureStart® Silicon Nitride igniter for long life, it operates smoothly with a low constant fan speed and quiet, two-speed draft blower. The furnace features a self-diagnostic control board, is AHRI Certified and ETL Listed for quality, and meets California Low NOx emissions standards. With flexible installation options and a durable, insulated cabinet, it ensures reliable home heating and easy setup.

In California, many counties have a lower NOx emission requirement than the rest of the United States. The GR9T800603BX Goodman gas furnace is California Low NOx compliant. With a built-in low emission filter, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.

Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra-Low NOx furnace. If you have any questions, please contact us.

Key Features

• Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
• Multi-position installation:
  • GR9T80: Upflow, horizontal left or right
  • GD9T80: Downflow, horizontal left or right
• Removable bottom for side- or bottom-return applications
• Convenient left or right gas/electric service connections
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush for most installations

Goodman 1.5 Ton R32 Cased Evaporator Coil Horizontal 22"W with Internal TXV CHPTA1822B3

This evaporator coil is a high-performance, all-aluminum unit specifically designed for R-32 refrigerant, featuring integrated thermal expansion valves for both cooling and heat pump applications. It offers flexible installation options with vertical and horizontal models, and its 21-inch depth facilitates easier access in attic spaces. The coil is equipped with a foil-faced insulation to reduce condensation and includes a rust-resistant, UV-resistant drain pan with additional drainage connections. Its durable galvanized finish and easy-to-remove drain pan rails enhance both longevity and maintenance convenience. Certified by AHRI and listed by ETL, this coil combines efficiency, durability, and ease of use for a reliable HVAC solution.

• Optimized for R-32 refrigerant, including circuits and manifolds

• R-32 sensor designed for the coil's lifespan

• Factory-installed thermal expansion valves for cooling and heat pump applications

• Standardized copper suction tube stub length

• Check flowrator for cooling and heat pump applications

• Designed for horizontal application

• 21" depth for easier attic access

• Single front access panel

• Foil-faced insulation to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Rust-resistant, thermoplastic drain pan with a low water-retention design

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• Drain pan rails for easy removal and repositioning of coils

• UV-resistant drain pan

• AHRI certified

• ETL listed
