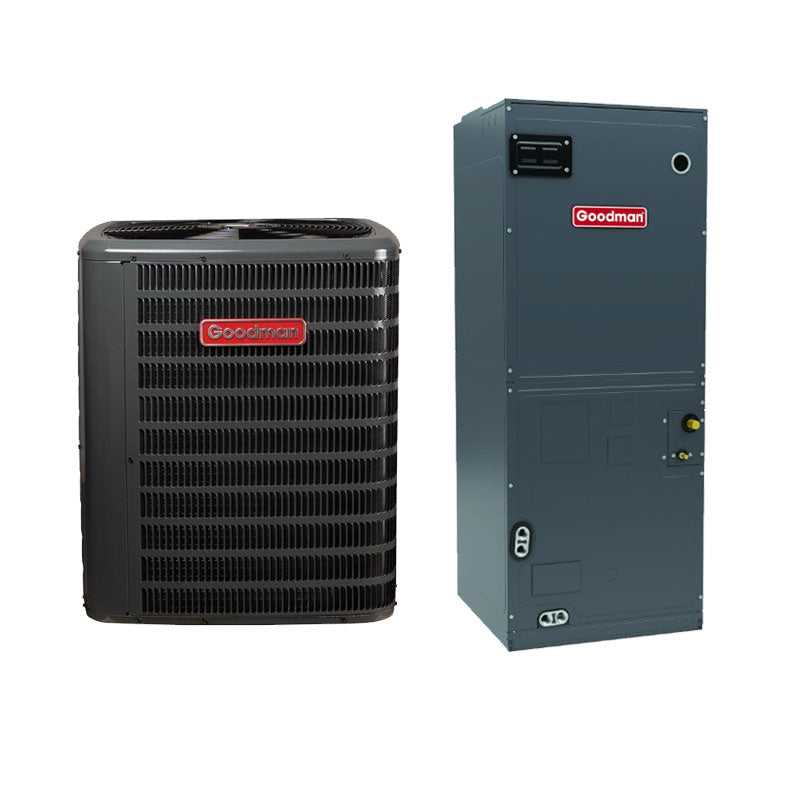

Goodman 1.5 Ton 14.5 SEER2 Air Conditioner Split System Multi-Position R32

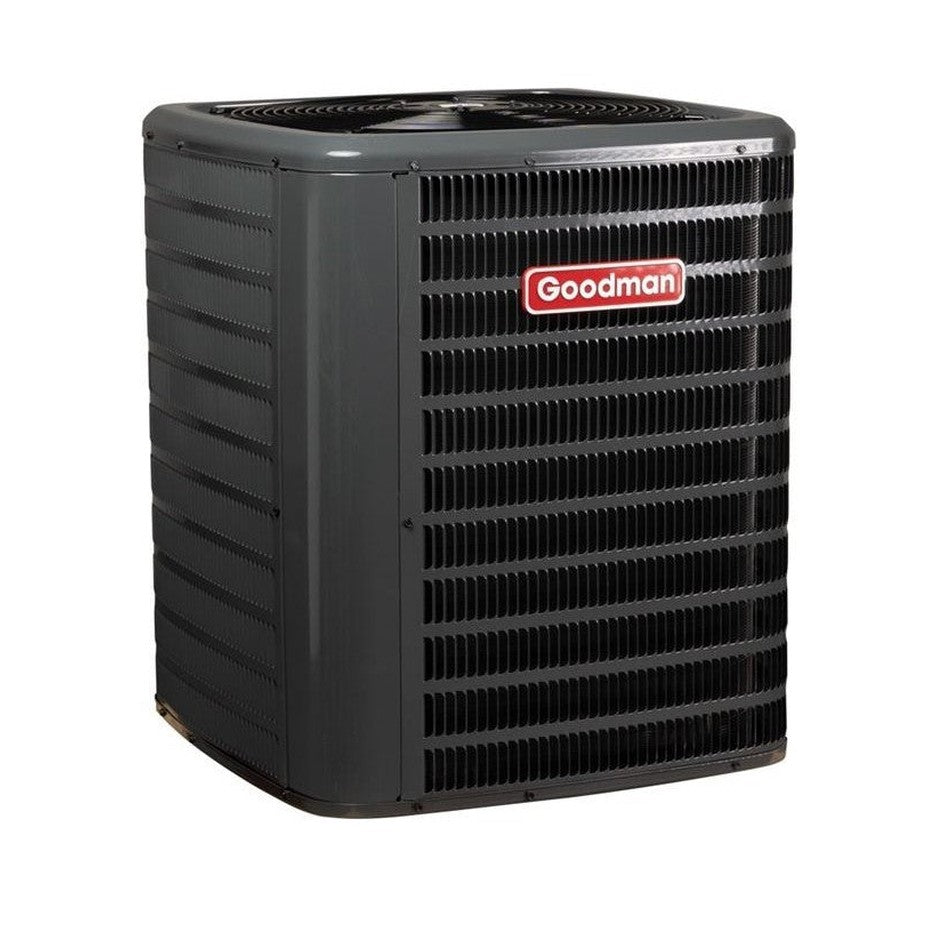

Goodman 1.5 Ton R32 Split Air Conditioner 13.4 SEER2 208/230V 1-Phase GLXS3BN1810

Introducing the Goodman 1.5 Ton R32 Split Air Conditioner (Model GLXS3BN1810) with a 13.4 SEER2 efficiency rating. This energy-efficient split air conditioner operates on R-32 refrigerant, offering a nominal cooling capacity of 18,000 BTU/H while reducing energy consumption. Measuring 27.5 inches in height, 26 inches in width, and 26 inches in depth, it features a single-stage rotary compressor, factory-installed filter drier, and easy-access sweat connection service valves for quick maintenance. AHRI Certified and ETL Listed, this unit meets strict efficiency and safety standards, making it a reliable choice for effective cooling solutions.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 27.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 18000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 114 lb
• Tonnage: 1.5
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in


Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Nine Speed ECM motor provides precise airflow control for consistent comfort

Cabinet Features

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for enhanced safety and accessibility.
• Venturi Design: Increases velocity of airflow for improved cooling efficiency.
• Architectural Gray Powder-Paint Finish: Attractive and durable, with 500-hour salt-spray approval for corrosion resistance.
• Wire Fan Discharge Grille: Provides safety and enhances airflow.
• Steel Louver Coil Guard: Protects the coil from damage while maintaining airflow.
• Top and Side Maintenance Access: Facilitates easy servicing and repairs.
• Single-Panel Access to Controls: Convenient access for operators with space for field-installed accessories.
• Hurricane Integrity Compliance: When properly anchored, meets 2023 Florida Building Code requirements for hurricane winds (anchor bracket kits available).

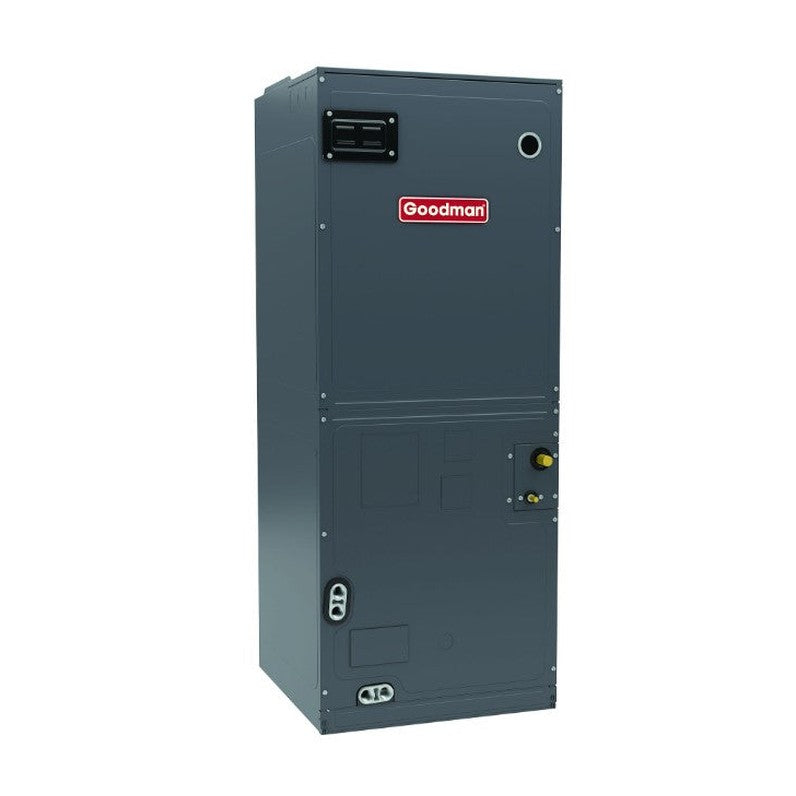

Goodman 2.5 Ton R32 Ducted Air Handler Multi-Position 17-9/16" Cabinet TXV AMST30BU1300

Elevate your HVAC performance with the AMST Ducted Multi-Position Air Handler. Featuring a nine-speed ECM motor for precise airflow control and a compact 17-9/16 inch cabinet, this unit fits in tight spaces while handling 2.5 to 5 tons efficiently. The integrated TXV expansion valve ensures optimal refrigerant management, enhancing both energy savings and reliability. Ideal for versatile installations, the AMST air handler delivers superior comfort and performance for any residential or light commercial setting.

• Refrigerant Type: R-32
• Unit Height: 53-7/16 in
• Unit Width: 17-9/16 in
• Cooling Capacity Nominal: 30,000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 129 lb
• Tonnage: 2.5
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Nine Speed ECM motor provides precise airflow control for consistent comfort

Cabinet Features

• SmartFrame Cabinet: Rigid, durable design with 21” depth for easy attic installation.
• Configuration: Versatile horizontal or vertical setup.
• Drain Pan: DecaBDE-free thermoplastic with secondary drain connections.
• Insulation: Foil-faced to reduce condensation; glue-less retention and tool-less filter access.
• Finish: Galvanized, leather grain-embossed for durability and aesthetic appeal.

Certifications: AHRI Certified and ETL Listed for quality assurance.
