Goodman 1.5 Ton 14.5 SEER2 AC & Furnace System 96% 80000 BTU R32 Horizontal

Goodman 1.5 Ton R32 Split Air Conditioner Condenser 13.4 SEER2 Single Stage GLXS3BN1810

This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 80,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

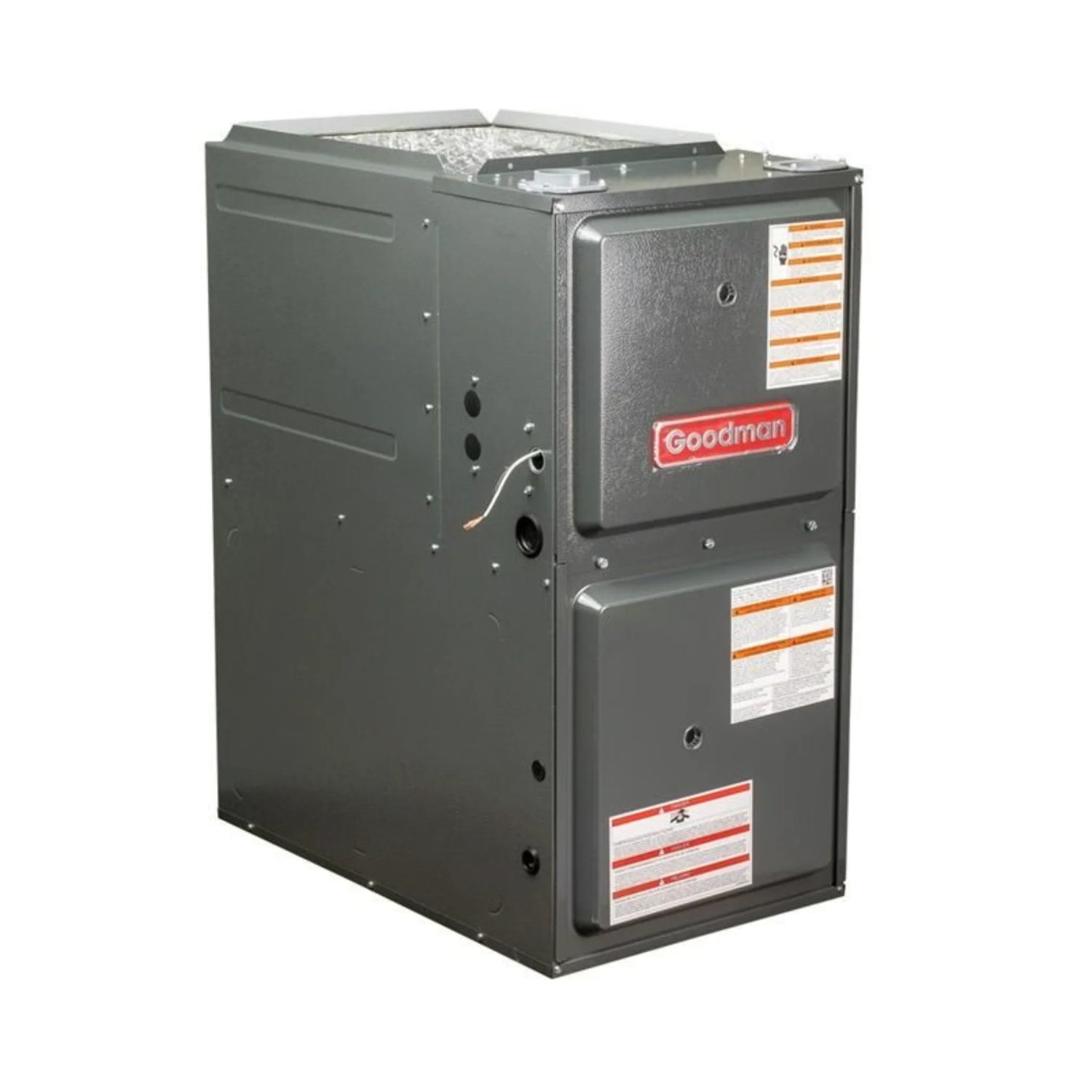

Goodman 96% AFUE 80K BTU Gas Furnace Two Stage 17.5"W R32 Upflow/Horizontal GR9T960803BN

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 80,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Efficient 96% AFUE Performance

The GR9T960803BN provides high-efficiency heating with a 96% AFUE rating, converting nearly all fuel into usable heat. Only 4% is lost through venting, delivering superior performance while helping reduce utility costs over time.

Advanced Two-Stage Heating

With a two-stage burner, the furnace runs at a lower setting during milder weather and ramps up to full capacity when needed. Combined with a 9-speed ECM blower motor, it ensures more even temperatures, reduced energy consumption, and quiet operation.

Durability You Can Trust

Built with a heavy-gauge steel cabinet and aluminized steel heat exchanger, the GR9T960803BN is engineered for long-term reliability. Its insulated cabinet helps contain heat and suppress operational noise, while the hot surface ignitor enhances efficiency and dependability.

Installation & Maintenance

• Installation Options: Supports both upflow and horizontal orientations to fit various layouts.
• Wiring: Color-coded low-voltage terminals simplify the wiring process.
• Fuel Type: Factory-configured for natural gas; convertible to propane with an LP conversion kit.
• Drainage: Horizontal installations require a drain kit (sold separately); upflow configurations do not.

Warranty Information

Backed by a 10-year parts warranty and a lifetime heat exchanger warranty (registration required), this furnace offers long-term protection and value when installed per manufacturer and local code requirements.

Goodman 2 Ton Evaporator Coil Cased With TXV 17.5" Height Horizontal CHPTA2426B3

The Goodman CHPTA2426B3 horizontal evaporator coil is engineered to provide efficient cooling and heating system performance when paired with a compatible condenser and furnace or air handler. Designed for horizontal installations, this coil features a factory-installed TXV valve, a mold-resistant drain pan, and durable aluminum construction. Its R32 refrigerant compatibility makes it a future-ready, environmentally responsible choice that complies with the Clean Air Act requirements.

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 80,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
