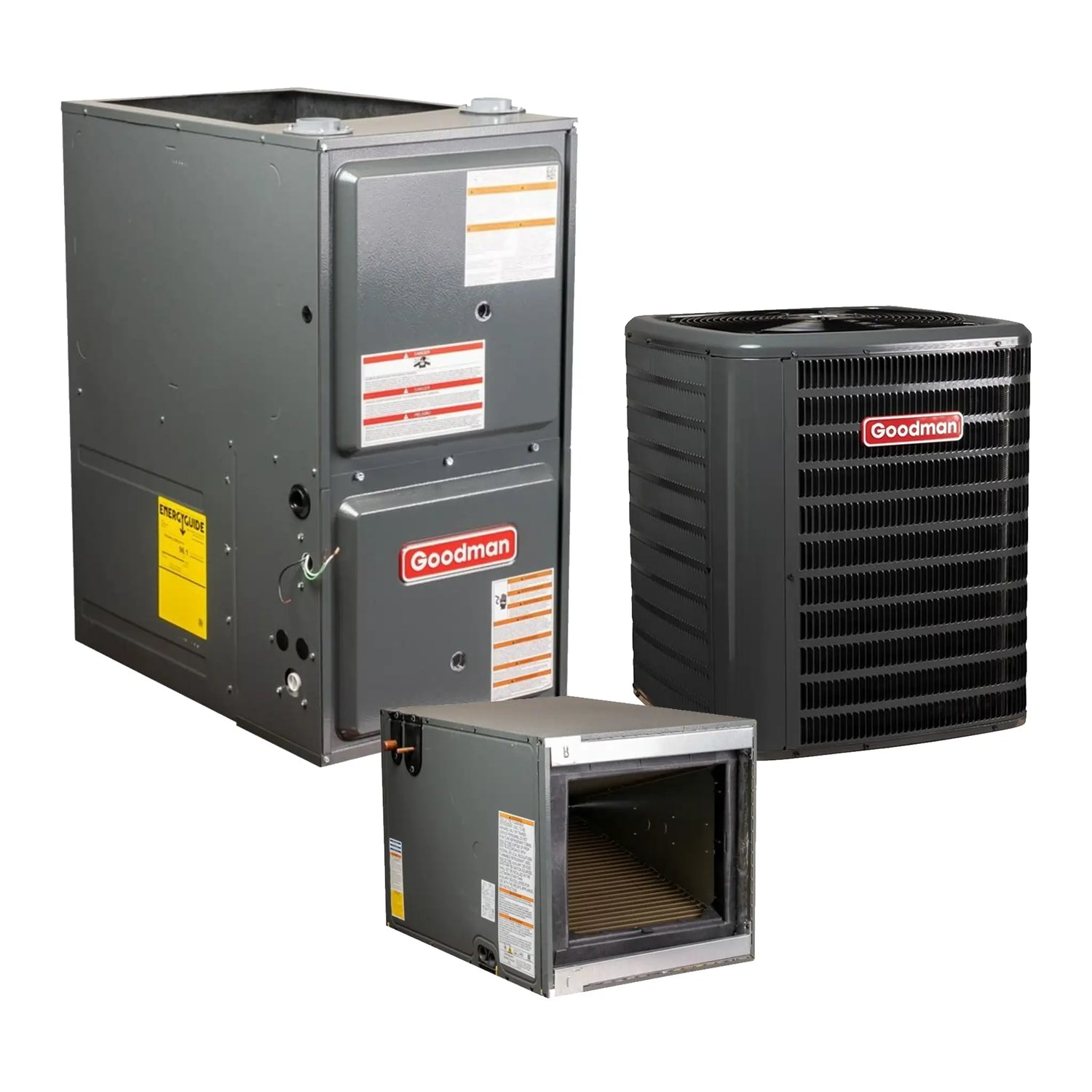

Goodman 1.5 Ton 13.8 SEER2 AC & Furnace System 96% 60000 BTU R32 Horizontal

Goodman 1.5 Ton R32 Split Air Conditioner 13.4 SEER2 208/230V 1-Phase GLXS3BN1810

Introducing the Goodman 1.5 Ton R32 Split Air Conditioner (Model GLXS3BN1810) with a 13.4 SEER2 efficiency rating. This energy-efficient split air conditioner operates on R-32 refrigerant, offering a nominal cooling capacity of 18,000 BTU/H while reducing energy consumption. Measuring 27.5 inches in height, 26 inches in width, and 26 inches in depth, it features a single-stage rotary compressor, factory-installed filter drier, and easy-access sweat connection service valves for quick maintenance. AHRI Certified and ETL Listed, this unit meets strict efficiency and safety standards, making it a reliable choice for effective cooling solutions.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 27.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 18000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 114 lb
• Tonnage: 1.5
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in


Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top Design: Compliant with UL 60335-2-40 for enhanced safety and accessibility.
• Venturi Design: Increases velocity of airflow for improved cooling efficiency.
• Architectural Gray Powder-Paint Finish: Attractive and durable, with 500-hour salt-spray approval for corrosion resistance.
• Wire Fan Discharge Grille: Provides safety and enhances airflow.
• Steel Louver Coil Guard: Protects the coil from damage while maintaining airflow.
• Top and Side Maintenance Access: Facilitates easy servicing and repairs.
• Single-Panel Access to Controls: Convenient access for operators with space for field-installed accessories.
• Hurricane Integrity Compliance: When properly anchored, meets 2023 Florida Building Code requirements for hurricane winds (anchor bracket kits available).

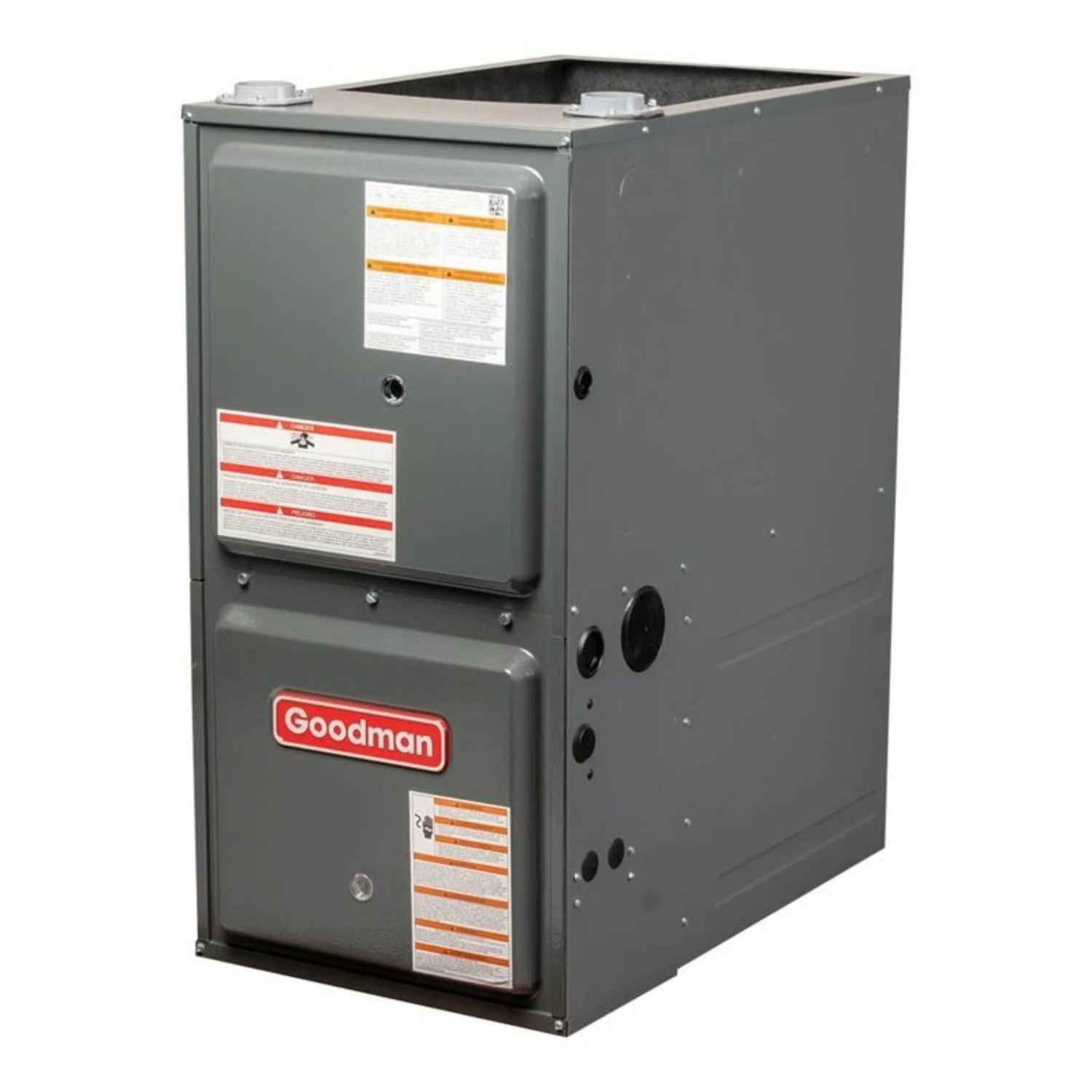

Goodman 96% AFUE Gas Furnace 60,000 BTU Two Stage Downflow/Horizontal Multi Speed ECM GC9C960603BN

The Goodman GC9C960603BN 96% AFUE Gas Furnace delivers 60,000 BTU with a two-stage gas valve for quiet, economical heating. Designed for downflow or horizontal installation, it features a multi-speed ECM blower motor for optimal airflow and reduced energy consumption. This unit includes a durable aluminized-steel tubular heat exchanger and a stainless-steel secondary heat exchanger for enhanced efficiency and longevity. The Silicon Nitride igniter ensures reliable performance, while the self-diagnostic control board simplifies troubleshooting. Compliant with California's low NOx emissions standards and AHRI Certified, this furnace provides flexible installation options and minimal cabinet air leakage, ensuring energy savings and reliability.

• Unit Height: 33-3/8 in
• Unit Width: 17-1/2 in
• AFUE: 96 %
• 60,000 BTU
• Installation Configuration: Downflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 115 lb
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Goodman 1.5 Ton R32 Evaporator Coil Horizontal Cased 22"W with Internal TXV CHPTA1822B3

The Goodman 1.5 Ton R32 Evaporator Coil is a cased unit for horizontal applications, measuring 17.5 inches high, 22 inches wide, and 21 inches deep. Optimized for R-32 refrigerant, this all-aluminum coil features factory-installed thermal expansion valves for improved efficiency. Its design allows for both vertical and horizontal installations, ideal for attic access. With foil-faced insulation to minimize condensation and rust-resistant drain pans with secondary connections, this AHRI Certified and ETL Listed evaporator coil ensures reliable performance and safety compliance, making it a solid choice for efficient HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 17.5 in
• Unit Width: 22 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in
• All-aluminum evaporator coil
• R-32 refrigerant compatibility
• Thermal expansion valves
• Vertical and horizontal models
• Attic access evaporator coil
• Foil-faced insulation
• Rust-resistant drain pans
• AHRI certified HVAC equipment
• ETL listed cooling systems

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Goodman Furnace Integration Kit for R-32 Refrigerant Systems 0230K00044

The Goodman Furnace Integration Kit for R-32 Refrigerant Systems is designed to facilitate the installation of Goodman gas furnaces in systems using R-32 refrigerant. This kit typically includes components necessary to ensure proper compatibility and functionality between the furnace and the R-32 cooling system.

Key Features:

• Compatibility: Ensures that the furnace and refrigerant system work seamlessly together.
• Enhanced Efficiency: Optimizes performance when using R-32 refrigerant, which has a lower global warming potential compared to traditional refrigerants.
• Installation Components: May include items like sensors, wiring harnesses, and other connectors needed for integration.
• Improved Comfort: Aids in achieving more efficient heating and cooling, enhancing overall comfort in the home.

This integration kit is essential for HVAC professionals when retrofitting or installing systems with R-32 refrigerant, ensuring compliance with safety and performance standards.
