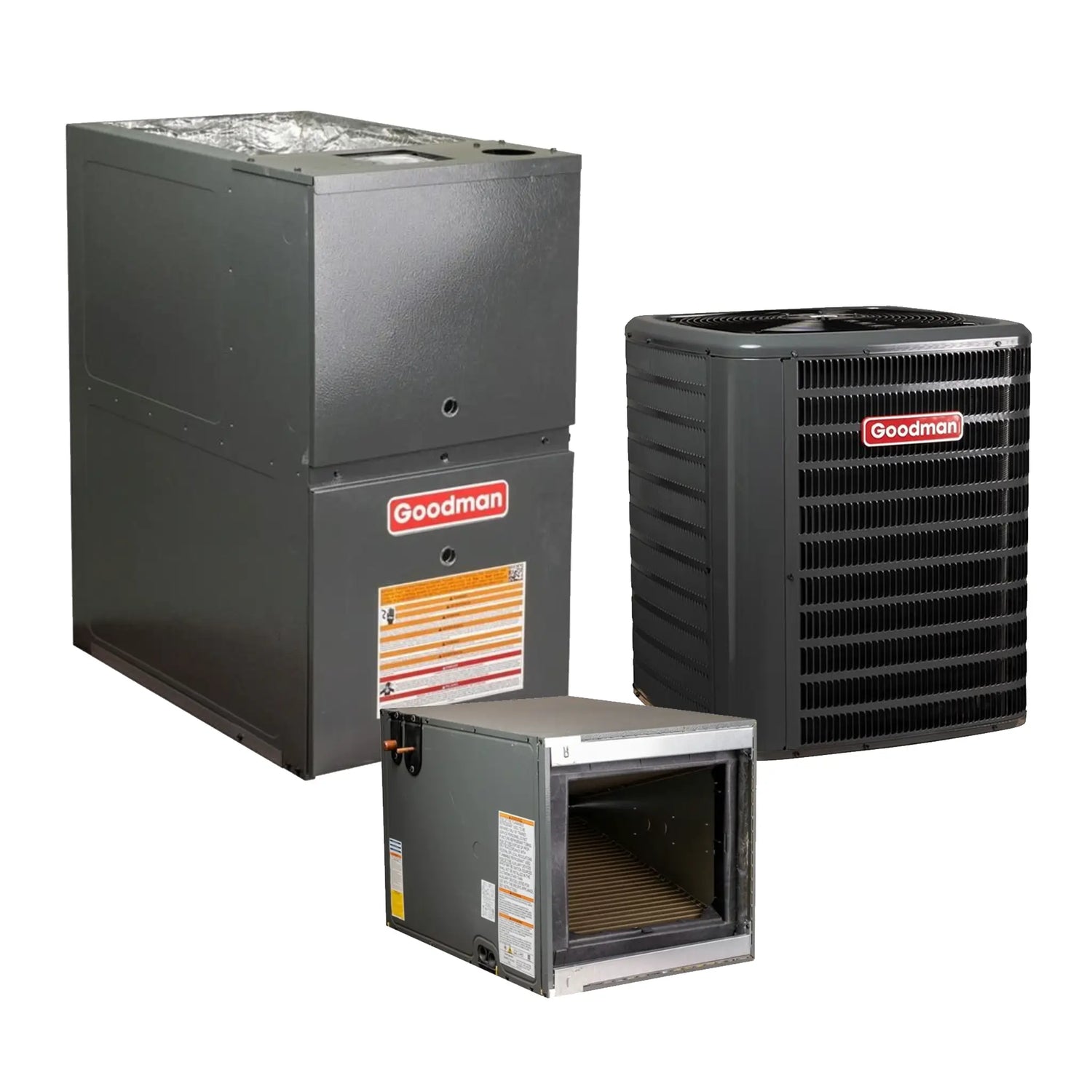

Goodman 1.5 Ton 13.8 SEER2 AC Furnace System 80% 60,000 BTU R32 Horizontal

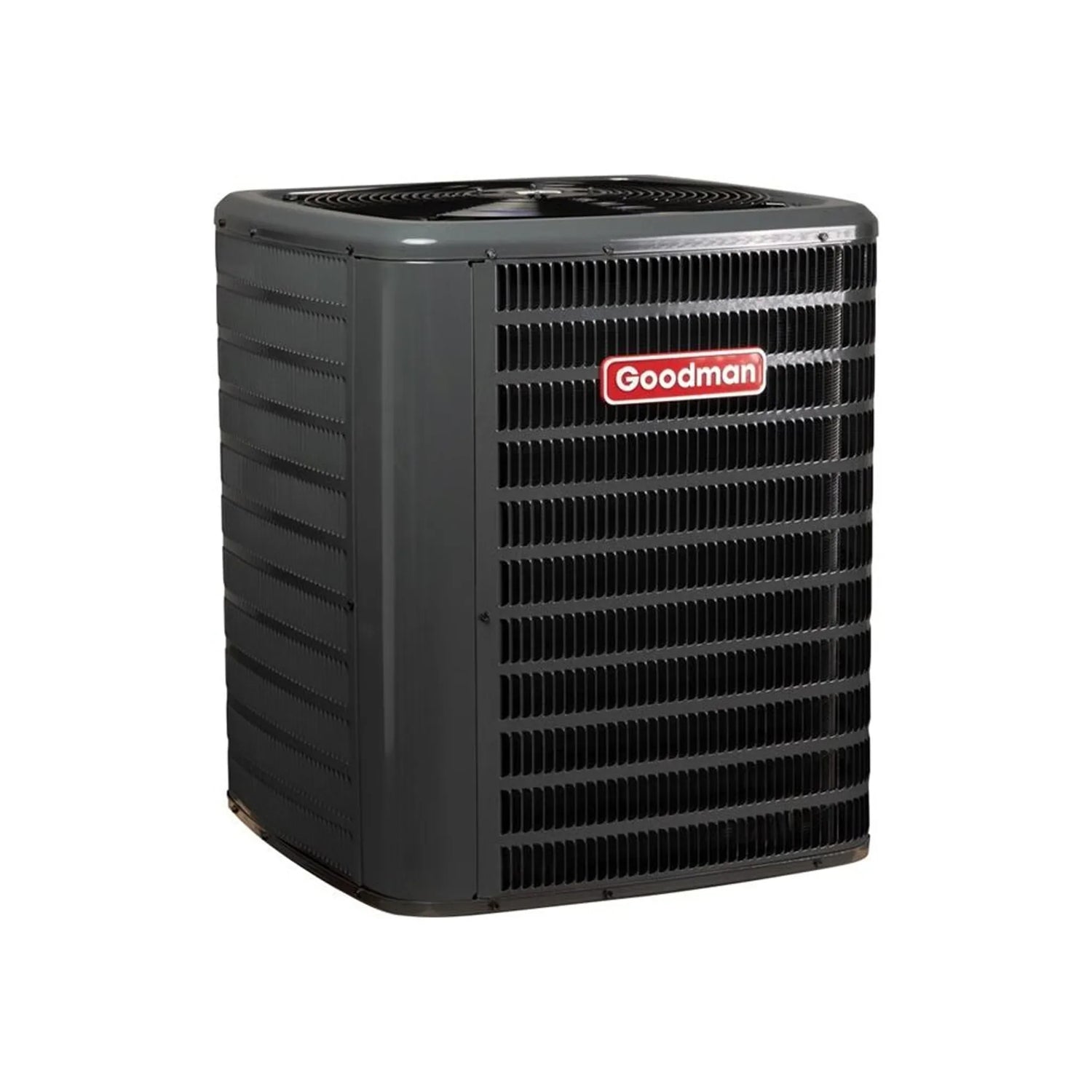

Goodman 1.5 Ton R32 Split Air Conditioner Condenser 13.4 SEER2 Single Stage GLXS3BN1810

This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

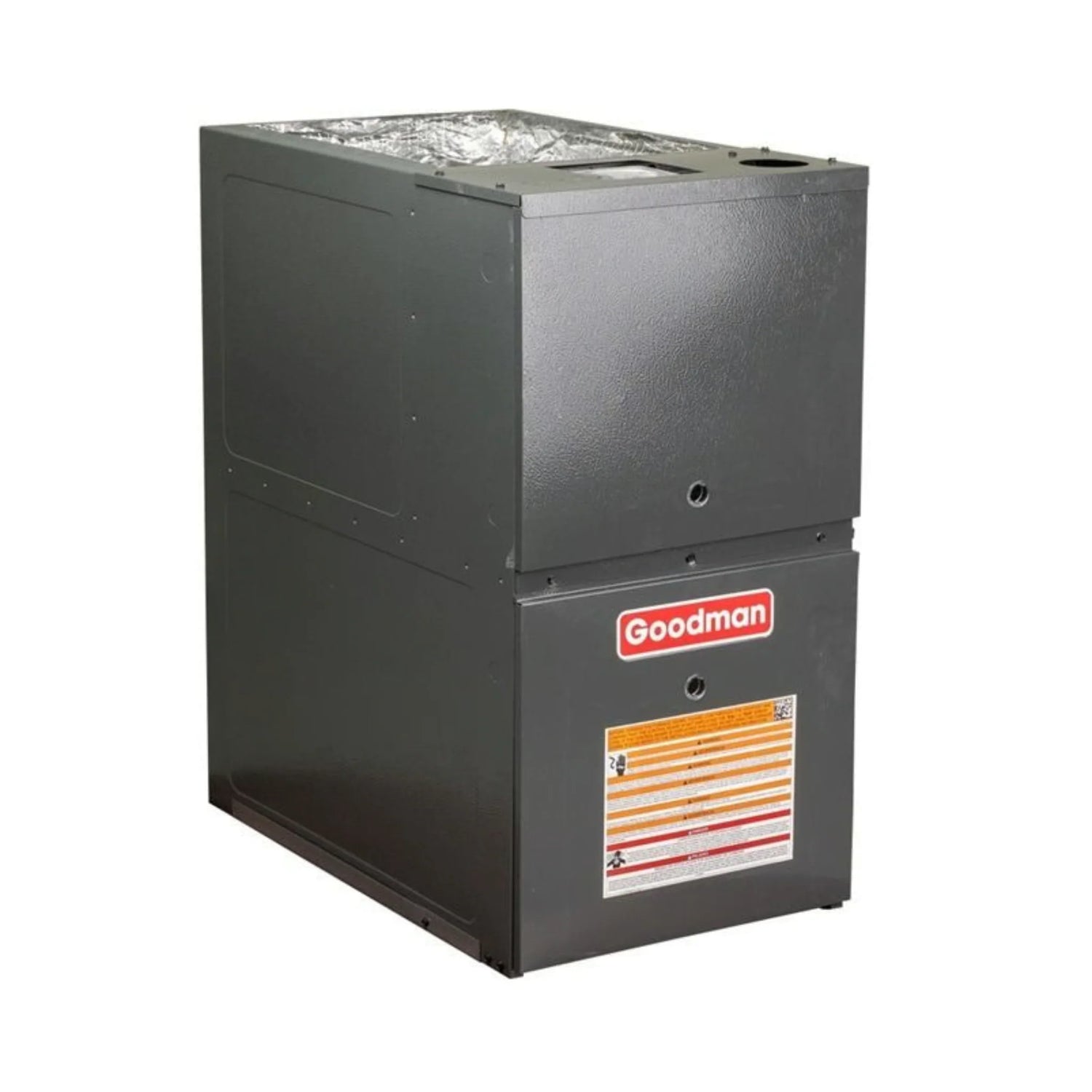

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W 1200 CFM Downflow/Horizontal GD9S800603AN

The Goodman GD9S800603AN gas furnace delivers reliable performance and energy savings for small to medium homes. With a 60,000 BTU input and 80% AFUE, this single-stage furnace is designed to maintain comfort without high energy bills. It features a durable hot surface igniter, 9-speed ECM blower motor for improved airflow control, and a self-diagnostic control board for simplified maintenance. Its flexible downflow or horizontal configuration makes installation quick and convenient, while metal flue venting supports efficient exhaust for 80% models.

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Engineered with Goodman’s trusted performance and long-lasting design, the GD9S800603AN offers reliable comfort and simple installation at an affordable price point.

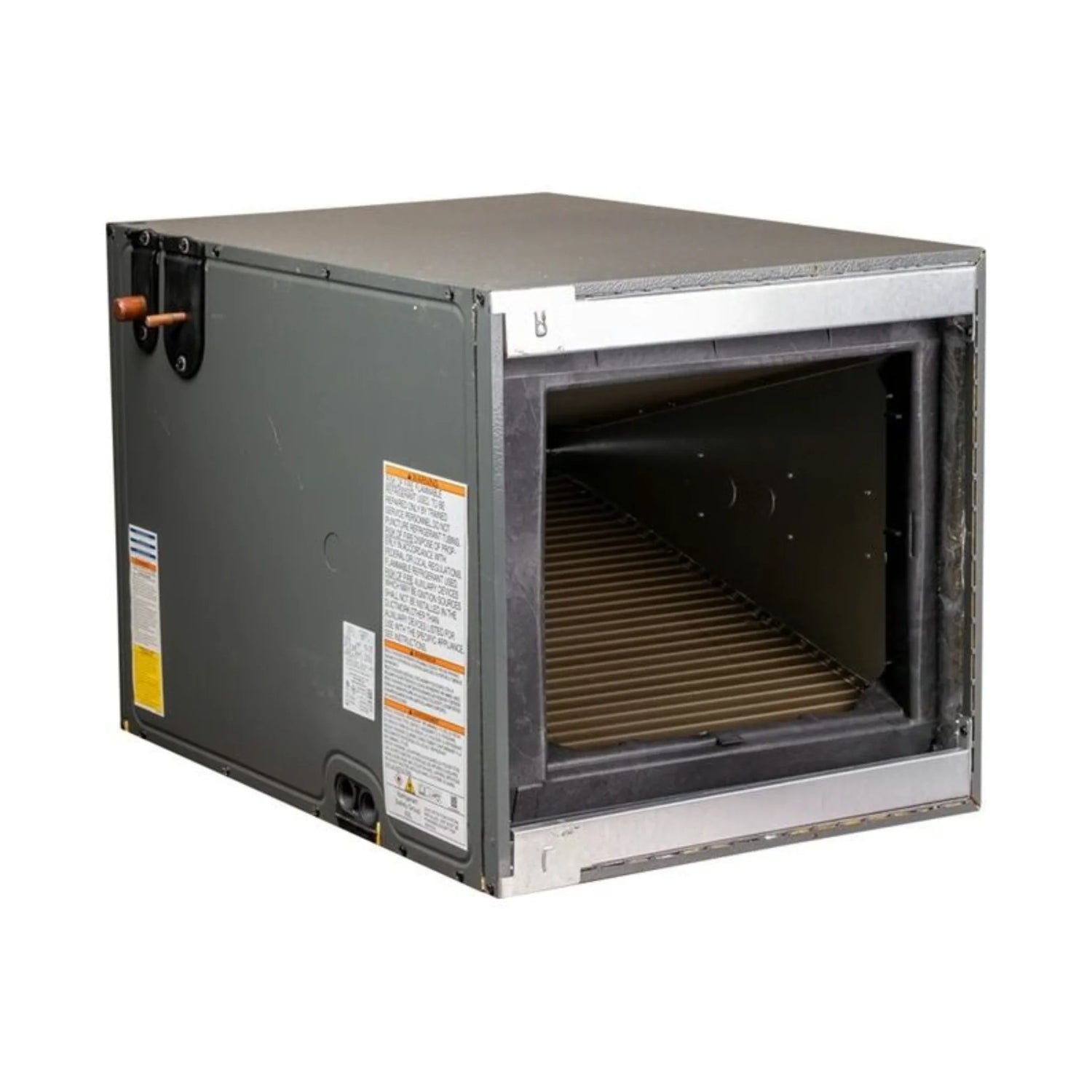

Goodman 1.5 Ton R32 Cased Evaporator Coil Horizontal 14" x 22" Internal TXV CHPTA1822A3

Upgrade your HVAC system with the Goodman CHPTA1822A3 1.5 Ton Horizontal Evaporator Coil, engineered for high-efficiency performance, long-term durability, and superior comfort. Designed for horizontal installations, this central air evaporator coil is fully compatible with R32 refrigerant systems and works with both AC-only and heat pump condensers. With a factory-installed TXV valve, it ensures optimized refrigerant flow and energy efficiency, helping homeowners save on long-term utility costs.

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Product Performance and Installation Notes

The Goodman CHPTA1822A3 is rated for 1.5 tons of cooling and is ideal for horizontal system configurations where airflow moves left-to-right or right-to-left. To function properly, it must be paired with a compatible R32 outdoor condenser and an appropriately sized blower or furnace. This evaporator coil is not intended for use in packaged units or as a replacement in single-piece air handlers.

Long-Term Efficiency and Comfort

With its built-in TXV valve and insulated cabinet, the CHPTA1822A3 helps HVAC systems run more efficiently while delivering precise temperature control. Its aluminum coil construction minimizes corrosion and wear over time, while the mold-resistant drain pan reduces airborne particulates and potential allergens, ensuring cleaner, healthier air in your home.
