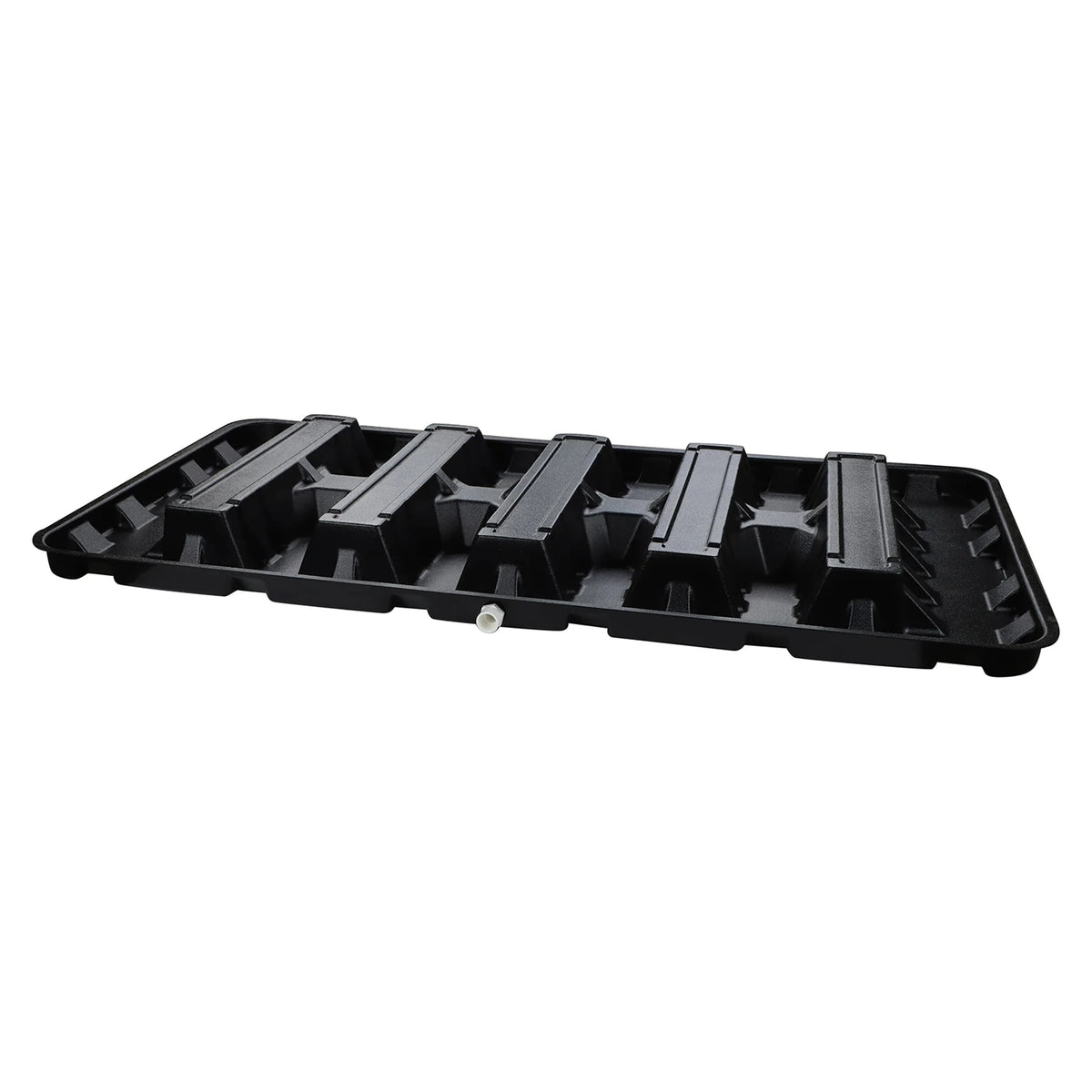

Diversitech High Rise Condensate Drain Pan 30" x 60" ABS For Air Handlers

The High Rise Pan™ is an advanced plastic condensate drain pan engineered to elevate air handlers 2-3/4 inches above the outer rim of the pan without requiring additional mounting blocks. Featuring a molded-in riser system that delivers up to a 5-inch total lift, this HVAC drain pan is designed for improved installation efficiency, enhanced drainage performance, and reduced job site complexity.

Key Features

• Integrated high-rise drain pan design for elevating HVAC air handlers without separate mounting blocks
• Built-in molded riser system providing up to 5 inches of total lift for improved condensate drainage slope
• Supports a wide variety of air handler sizes with strategically positioned structural risers
• Designed for HVAC condensate drainage optimization, reducing standing water and stagnant moisture buildup
• One-piece heavy-duty plastic construction eliminates seams, leaks, rust, and corrosion failure points
• Increased material thickness (approximately 80% thicker than standard drain pans) for enhanced job site durability
• Heavy-duty reinforced structure supports air handlers up to 350 lb horizontal load capacity
• Integrated anti-vibration pad mounting zones for 2" x 2" EVA™ pads for improved stability and noise reduction
• EVA™ anti-vibration pads improve equipment leveling, airflow alignment, and HVAC condensate drain pitch
• Vibration and sound dampening design reduces operational noise and minimizes service callbacks
• Includes Condensate Cop™ float switch for HVAC overflow detection and automatic system protection
• Universal float switch can be positioned anywhere in the drain pan or used in secondary drain pan applications
• Complete installation kit includes six EVA™ pads and one 3/4" PVC male adapter for simplified setup
• Nestable design reduces storage space requirements and improves shipping efficiency
• Engineered to reduce stagnant water accumulation, helping prevent slime, algae growth, and odor issues
• Standardized anti-vibration pad compatibility eliminates need for specialty or hard-to-source components
• Wide operating temperature resistance from -13°F to 140°F for diverse HVAC installation environments
• High heat distortion resistance rated at 199°F at 264 psi and 211°F at 66 psi (ASTM D648)
• High flexural strength (9300 psi ASTM D790) for structural rigidity under load
• Strong tensile strength (5300 psi ASTM D638) for long-term mechanical durability
• Time-tested plastic material proven in HVAC applications for over 15 years of field performance
• Designed for fast and easy installation in tight mechanical spaces and retrofit applications
