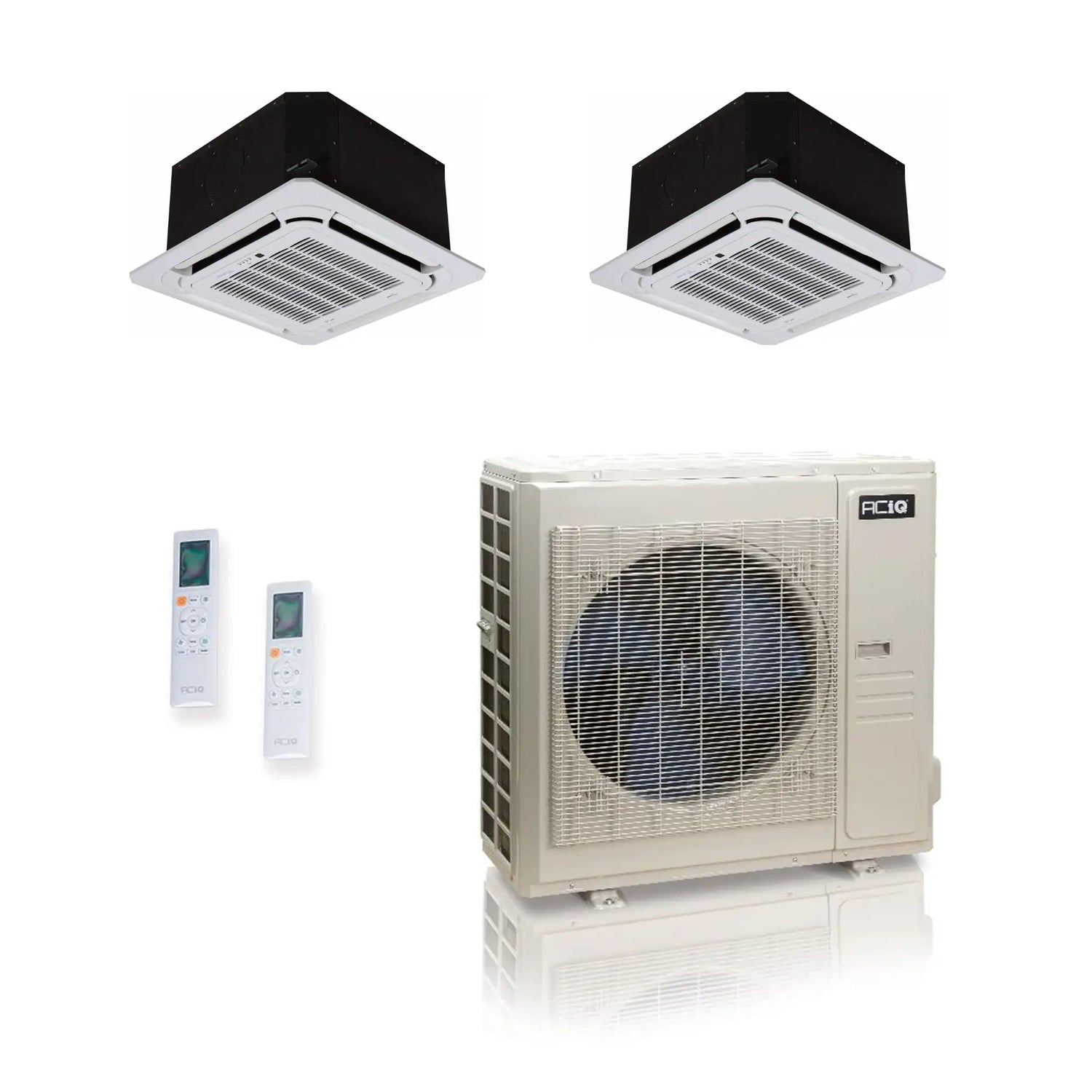

ACiQ 55K BTU 22 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 24+24

By: ACiQ
SKU: ES-55Z-M6C / ACIQ-24CC-HH-MC-2|ID: 103579
$6,599.99
+ Free shipping

Key Features

  • Efficiency: Rated at 22 SEER2 and 9.1 HSPF2, this inverter system delivers efficient heating and cooling for larger installations.
  • Capacity: The 55,000 BTU (4.5 ton) multi-zone condenser powers 2 independently controlled zones, each served by a 24,000 BTU ceiling cassette (24K+24K).
  • Refrigerant: Uses R454B refrigerant for efficient, low-GWP operation.
  • Design: Flush-mounted ceiling cassettes provide 4-way air distribution and a discreet look, each with a factory-installed condensate pump for easy maintenance.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 55K BTU 22 SEER2 Ceiling Cassette Mini Split System 2-Zone 230V 24+24

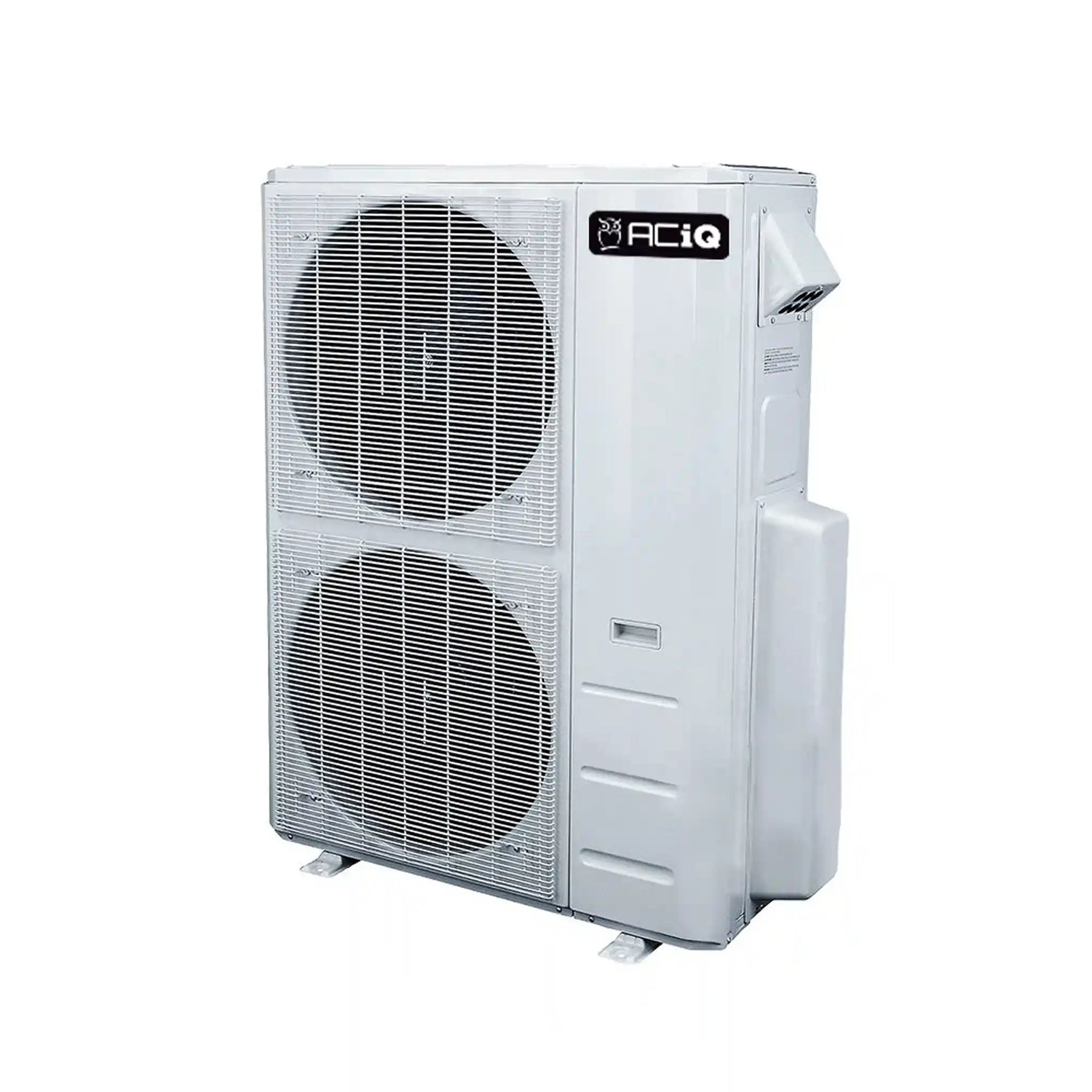

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

  • 55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

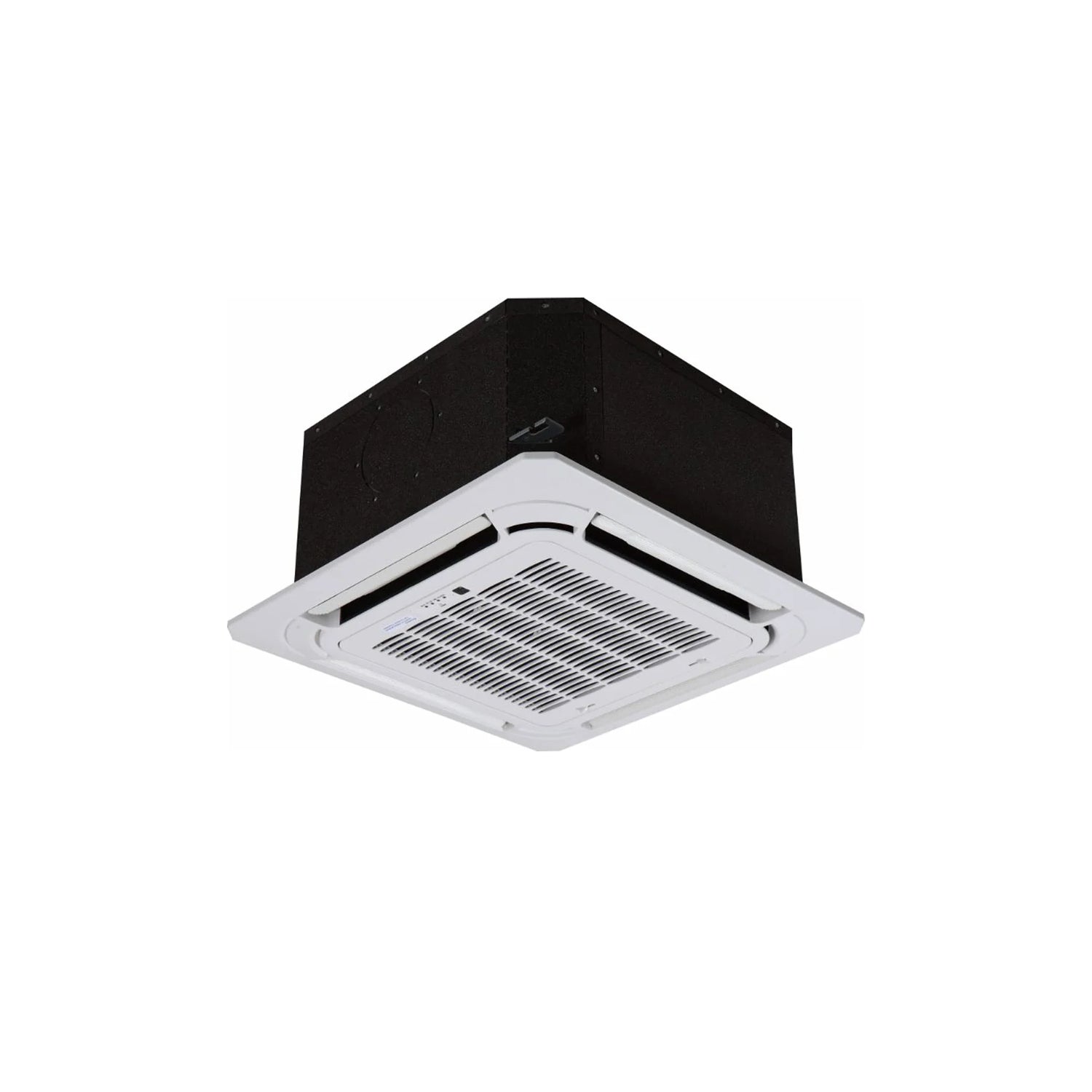

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC x2

Looking for a more hidden appearance and centralized air distribution? The ACiQ-24CC-HH-MC ceiling cassette air handler is the perfect solution. This ceiling cassette unit offers high-efficiency heating and cooling, with a sleek and understated appearance once installed.

Key Features

  • 24,000 BTU of Heating or Cooling
  • Dry and Fan modes available
  • Good for a medium room in most climates
  • 4 Way Air Supply for consistent room coverage
  • Handheld remote included
  • Decorative Grille included
  • Ceiling Cassette for hidden appearance

Ceiling Cassettes offer a flush-mounted design for a discreet look and provide quiet comfort with precision engineering to maintain set temperatures efficiently. The unit comes with a factory-installed condensation pump for easy maintenance.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-55Z-M6C

ACiQ Ceiling Cassette Mini Split Air Handler

Brochure Installation & Owner's Manual Remote Control Manual — 24K-48K Submittal — 24K Ceiling Cassette ACiQ Warranty

Specifications

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

BrandACiQ
SKUES-55Z-M6C
Refrigerant Charge147.6'
Weight270.280000
HSPF29.1
Cooling BTU55000 BTU
Heating BTU55000 BTU
Maximum CFM4500
Decibel Level (dBA)62
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
SEER221.3
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 Amps
Min. Breaker Size40 Amps
BTU/Tonnage55,000 BTU/4.5 Ton
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height52.48"
Width37.48"
Depth16.34"

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC x2

BrandACiQ
SKUACIQ-24CC-HH-MC
ControllerWireless Included
Product FeaturesWiFi
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM765.2
Decibel Level (dBA)As low as 33.5
Electric HeatHeat Pump
RefrigerantR454B
SEER220
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split TypeCeiling Cassette
Zone CompatibilityMulti Zone, Single Zone
Height8.07"
Width32.68"
Depth32.68"
ReplacesN/A

Warranty and Product Information

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler R454B ACIQ-24CC-HH-MC x2

Standard Warranty5 year parts
Registered Warranty10 year parts
