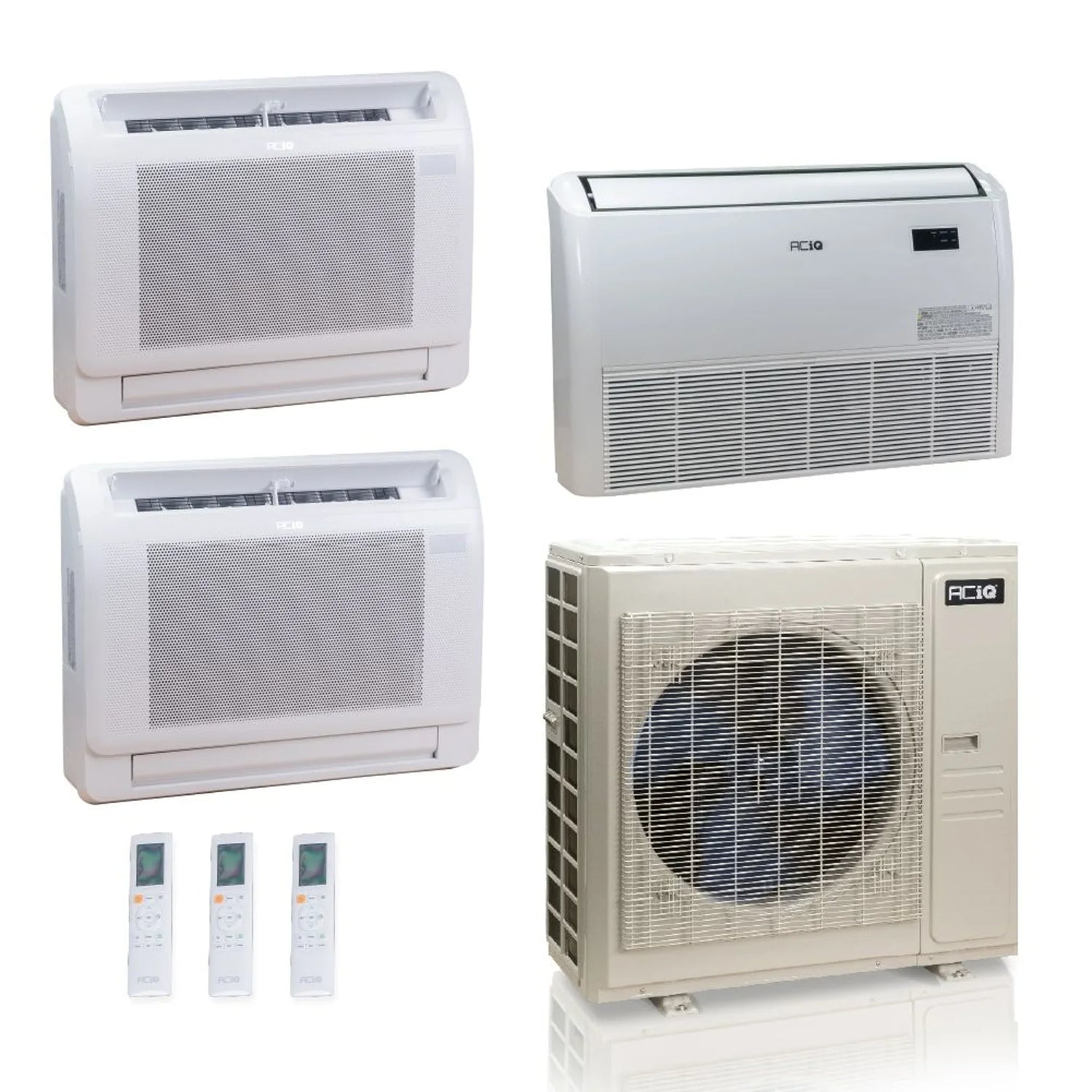

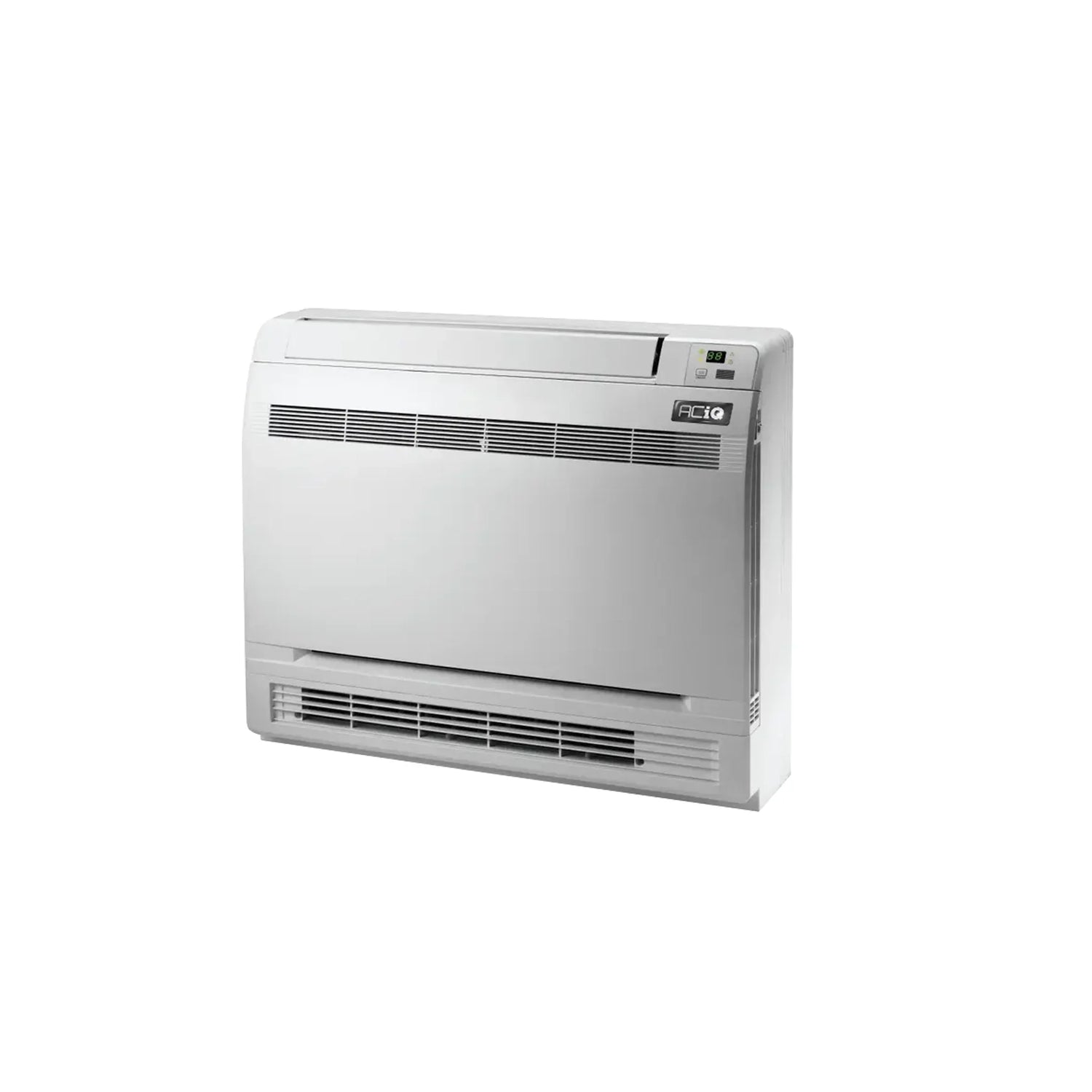

ACiQ 55K BTU 22 SEER2 3-Zone Floor Mount Mini Split R454B 230V 9+12+24

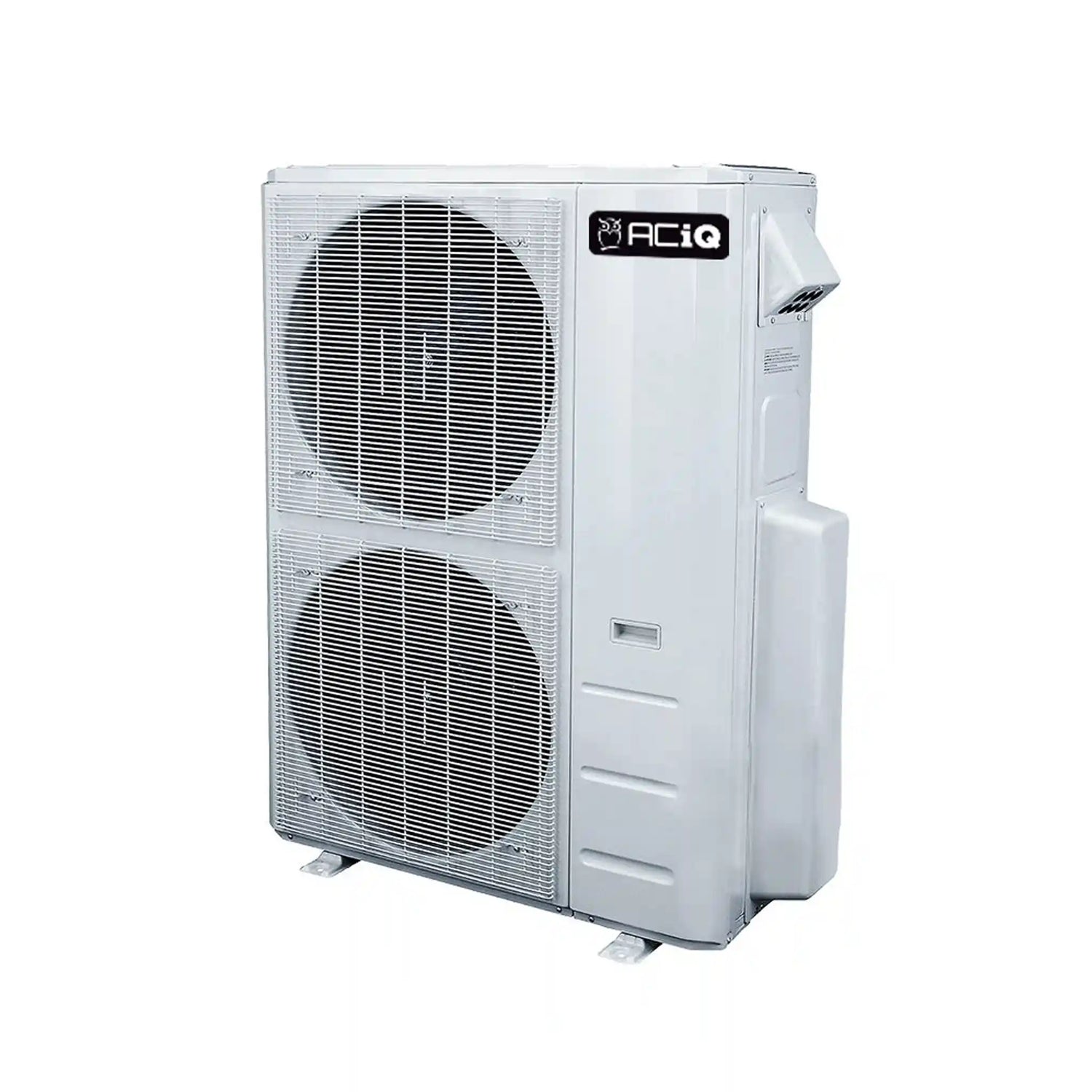

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

• 55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
• Designed to function with up to 6 attached air handlers
• Efficient cooling from -13°F to 122°F outdoor temperatures
• Efficient heating from -13°F to 75°F outdoor temperatures
• Gold Fin full-protection coating on condenser coil
• Quiet operation at even the highest workloads

The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

• 9,000 BTU wall mounted air handler with included remote control
• WiFi capable using free Net Home Plus app, Google Home, or Alexa
• Easy Maintenance and Installation
• Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
• Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.

ACiQ 12K BTU Platinum Air Handler Wall Mounted Mini Split Multi Zone ACIQ-12W-HH-MD

The ACiQ 12,000 BTU wall-mounted air handler delivers powerful, whisper-quiet performance for both single and multizone mini split systems. Compatible with ACiQ’s Multizone and Platinum Series condensers, this unit offers reliable heating and cooling for small to medium spaces. Equipped with smart technology, this unit features intelligent temperature control, an onboard diagnostic LED display, and full integration with WiFi, Alexa, and Google Home for remote access. Whether you're upgrading a zone or building a new system, this wall mount is a dependable choice for comfort and energy efficiency year-round.

Key Features

• 12,000 BTU wall-mounted ductless air handler – ideal for small to medium rooms
• WiFi enabled for smartphone control via Net Home Plus, Alexa, and Google Home
• Compatible with ACiQ Multizone and Platinum Hyper Heat single zone condensers
• Quiet operation – as low as 19.5 dB for undisturbed comfort
• Advanced display panel with real-time temperature and diagnostic alerts
• Enhanced modes: Dry Mode, Intelligent Sleep Mode, and Power Save Mode
• Smart remote control included with LCD feedback screen
• Quick installation with flexible refrigerant line and drain exit
• Energy-efficient R454B refrigerant for reduced environmental impact

Ideal for home offices, bedrooms, or additions, this unit brings precise comfort control and flexible compatibility into any ductless system design.

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD

The 24,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance and can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser for a highly efficient Hyper Heat system. This air handler is ideal for small to medium sized rooms, utilizing adaptive technology to monitor and maintain your desired temperature regardless of external weather conditions.

Key Features

• 24,000 BTU wall mounted air handler with included remote control
• WiFi capable using free Net Home Plus app, Google Home, or Alexa
• Easy Maintenance and Installation
• Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
• Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACIQ-24W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. This unit is WiFi ready, allowing control via smart devices and voice assistants like Amazon Alexa and Google Assistant. Please note that installation with a condenser and other equipment is required for proper functionality.
