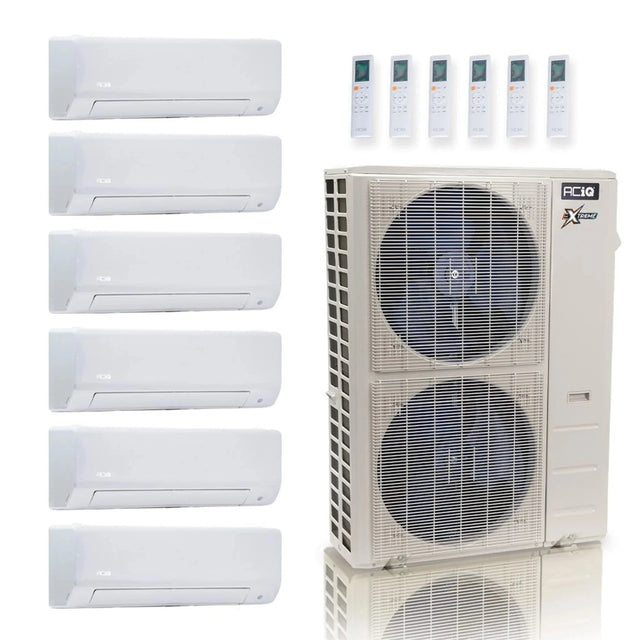

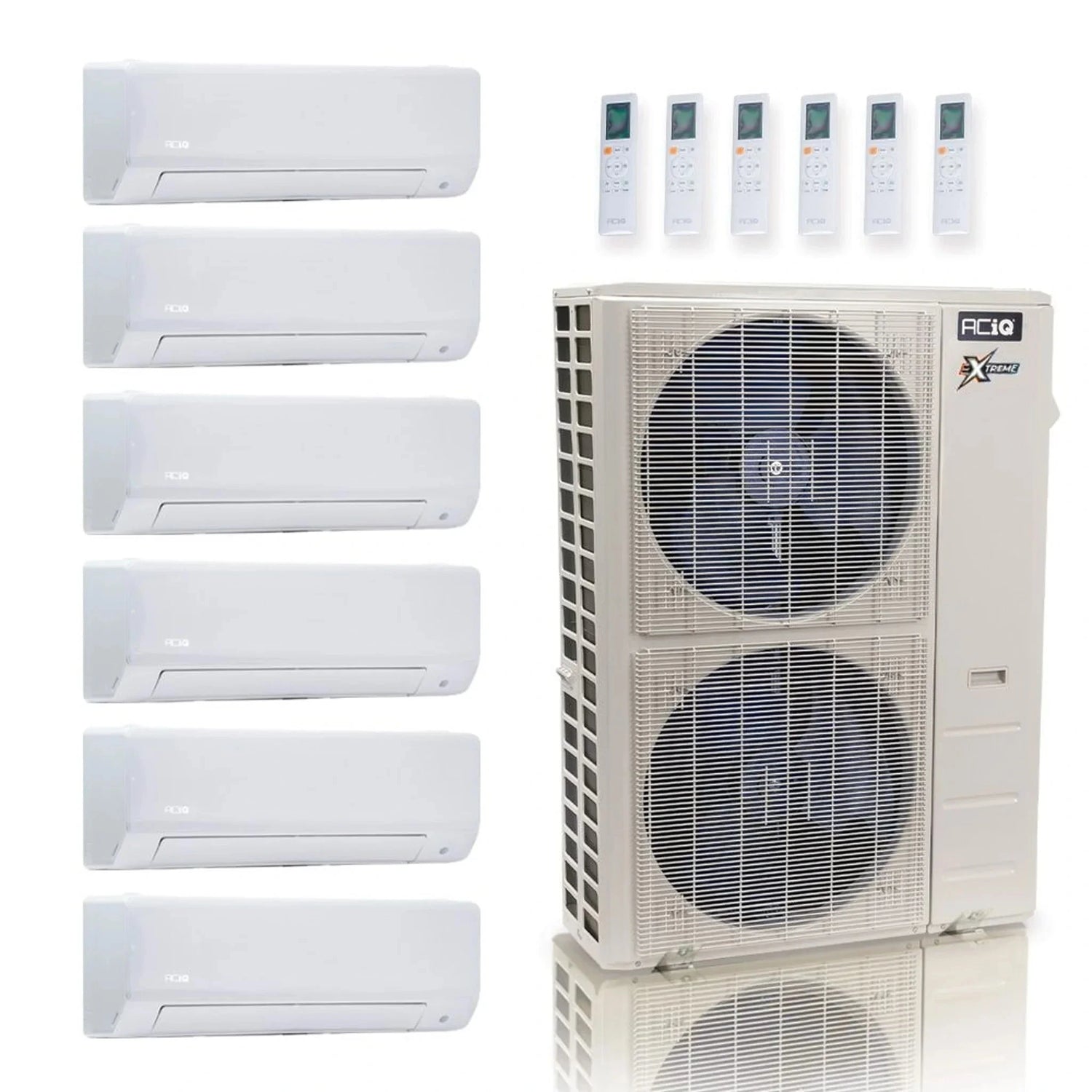

ACiQ 55K BTU 22.2 SEER2 6-Zone Wall Mount Mini Split R454B 230V 9+9+9+9+9+18

By: ACiQ
SKU: ACiQ-55Z-HH-M6C / ACIQ-09W-HH-MD-5 / ACIQ-18W-HH-MD|ID: 105101
$8,099.99
+ Free shipping

Key Features

  • Efficiency: Provides 22.2 SEER2 efficiency to help minimize heating and cooling costs.
  • Capacity: This 55,000 BTU (4.5 ton) six-zone system combines five 9K BTU air handlers with one larger 18K BTU air handler for bigger rooms.
  • Refrigerant: Operates on R454B refrigerant with 208/230V power for safe, efficient performance.
  • Smart Control: Each WiFi-ready wall-mounted air handler can be controlled independently via smartphone app, Alexa, or Google Assistant.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 55K BTU 22.2 SEER2 6-Zone Wall Mount Mini Split R454B 230V 9+9+9+9+9+18

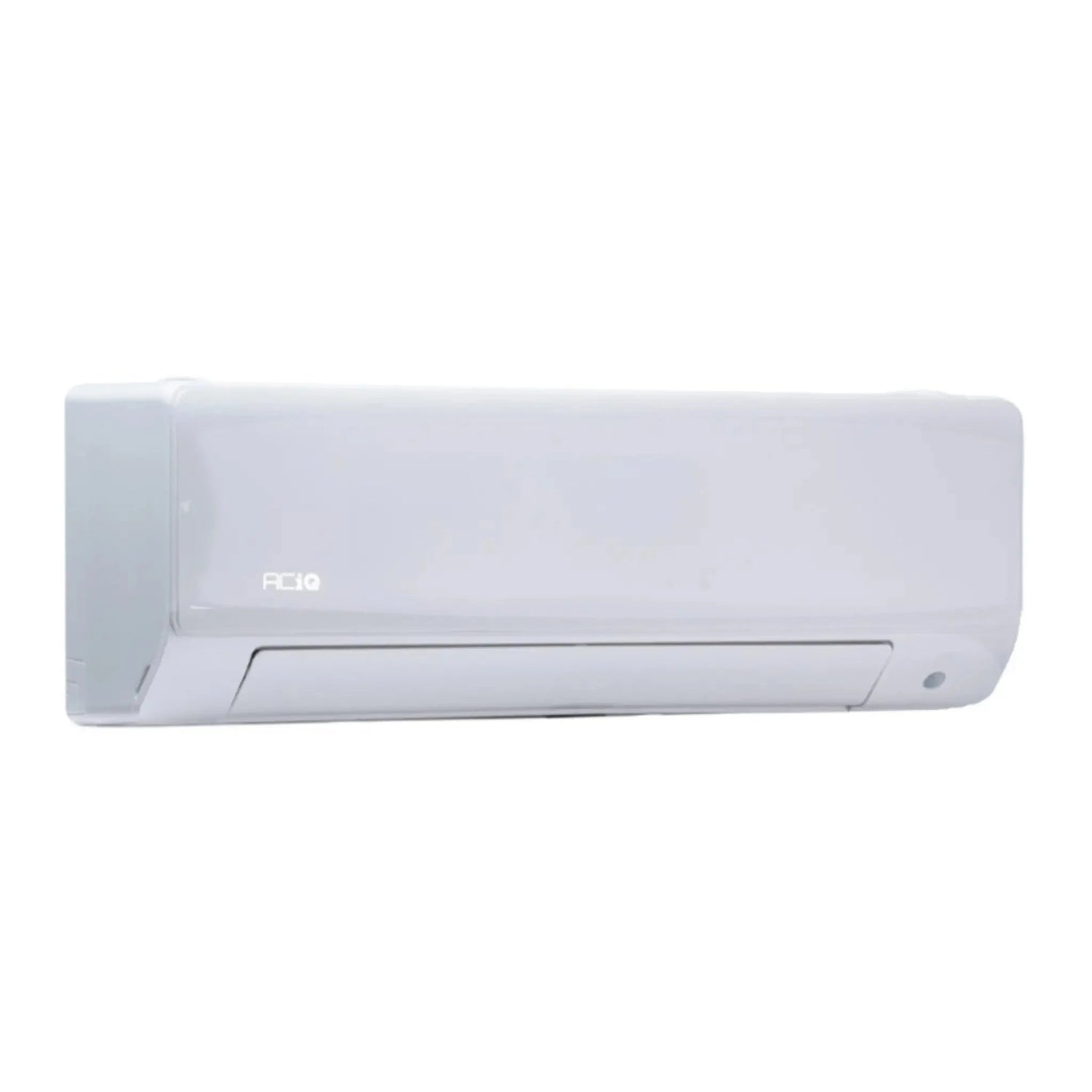

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

The 9,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser to create an efficient Hyper Heat system. Equipped with adaptive technology, it monitors and maintains your ideal temperature regardless of external weather conditions.

Key Features

  • 9,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-09W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board with error code display, and a smart remote with LCD display. It is WiFi ready and compatible with Amazon Alexa and Google Assistant for convenient control.


ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD

The 18,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance for small to medium sized rooms. This air handler can be paired with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient Hyper Heat system. Equipped with adaptive technology, it constantly monitors and maintains your ideal temperature regardless of the weather outside.

Key Features

  • 18,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACiQ-18W-HH-MD air handler features a soft LED display for easy monitoring, self-diagnosing control board for error notifications, and smart remote compatibility. With WiFi capabilities, you can control your home's heating and cooling from anywhere using a smart device. Please note that installation with a condenser and other equipment is required, available at an additional cost if not included in the bundle.


View More

Learning Resources

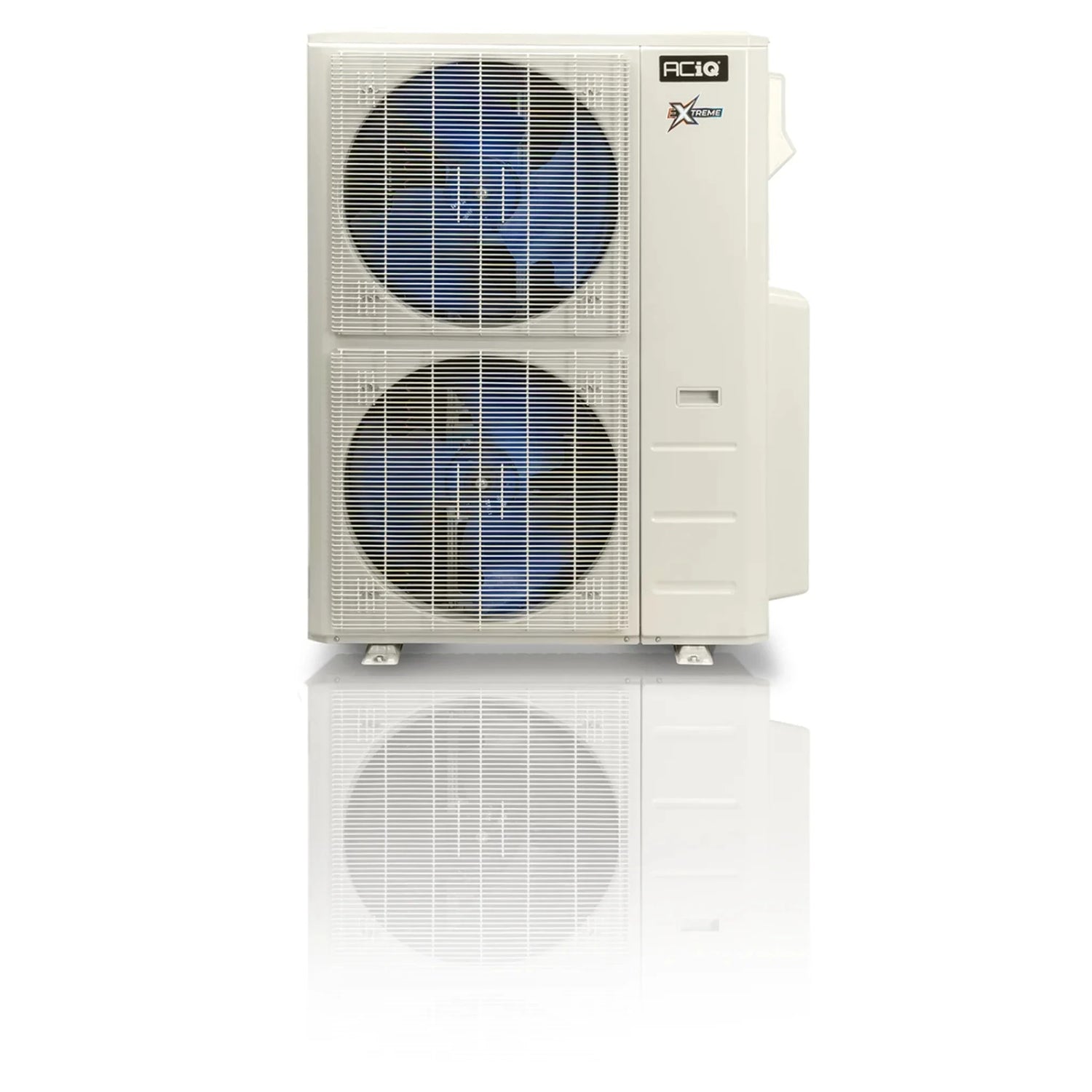

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-55Z-HH-M6C

ACiQ Wall Mount Mini Split Air Handler

Installation & Owner's Manual — All Air Handler Remote Control Manual — All Air Handler Submittal — ACIQ-09W-HH-MD Wi-Fi User Manual — All Air Handler ACiQ Warranty

Specifications

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

BrandACiQ
SKUACIQ-09W-HH-MD
Cooling BTU9000 BTU
Heating BTU10000 BTU
Maximum CFM335.29
Decibel Level (dBA)38
Electric HeatHeat Pump
RefrigerantR454B
SEER23-24
SEER222.3
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Length33.40"
Height11.76"
Depth9.18"
ReplacesN/A

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD

BrandACiQ
SKUACIQ-18W-HH-MD
Product FeaturesLow Ambient Heating
Cooling BTU18000 BTU
Heating BTU18000 BTU
Maximum CFM523.53
Decibel Level (dBA)46.5
Electric HeatHeat Pump
RefrigerantR454B
SEER18-20
SEER222.3
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Length40.06"
Height12.60"
Depth9.72"

Warranty and Product Information

ACiQ 9,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-09W-HH-MD

Standard Warranty5 year parts
Registered Warranty7 year parts

ACiQ 18,000 BTU Platinum Multi Zone Air Handler With WiFi R454B ACIQ-18W-HH-MD

Standard Warranty5 year parts
Registered Warranty7 year parts
