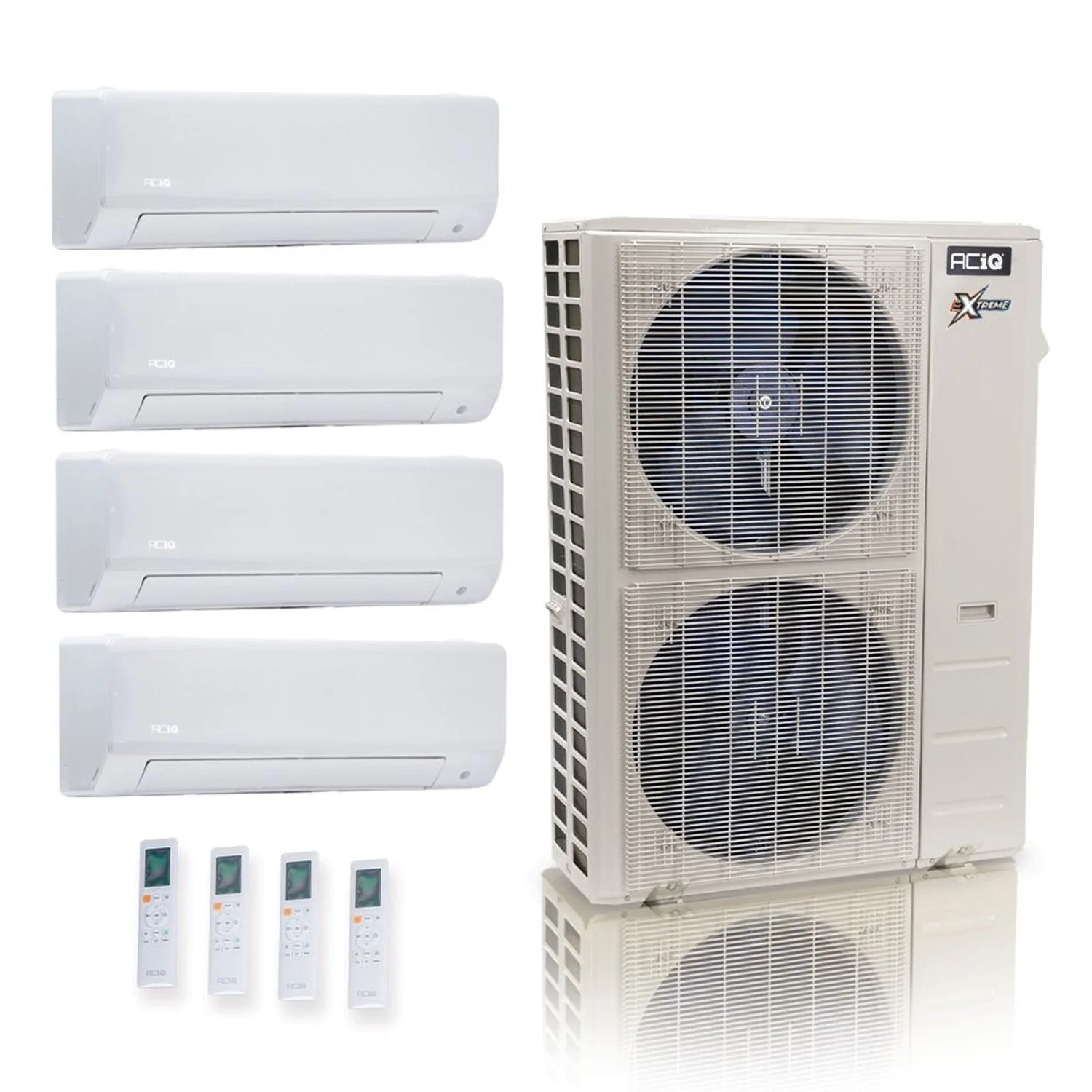

ACiQ 55K BTU 22.2 SEER2 4-Zone Wall Mount Mini Split R454B 230V 6+6+9+24

By: ACiQ
SKU: ACIQ-55Z-HH-M6C / ACIQ-06W-2 / ACIQ-09W / ACIQ-24W|ID: 104088
$7,199.99
+ Free shipping

Key Features

  • System Capacity: Delivers 55,000 BTU (4.5 tons) of heating and cooling power split across four wall-mounted zones sized 6K+6K+9K+24K.
  • Efficiency: Rated at 22.2 SEER2 and 10.5 HSPF2, this inverter-driven condenser keeps energy bills low in extreme heat or cold.
  • Refrigerant and Durability: Runs on eco-friendly R454B refrigerant with a Gold Fin coated coil and twin rotary compressor for lasting performance.
  • Zone Control: Four wall-mounted air handlers let you set custom temperatures room by room from a single 230V outdoor condenser.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 55K BTU 22.2 SEER2 4-Zone Wall Mount Mini Split R454B 230V 6+6+9+24

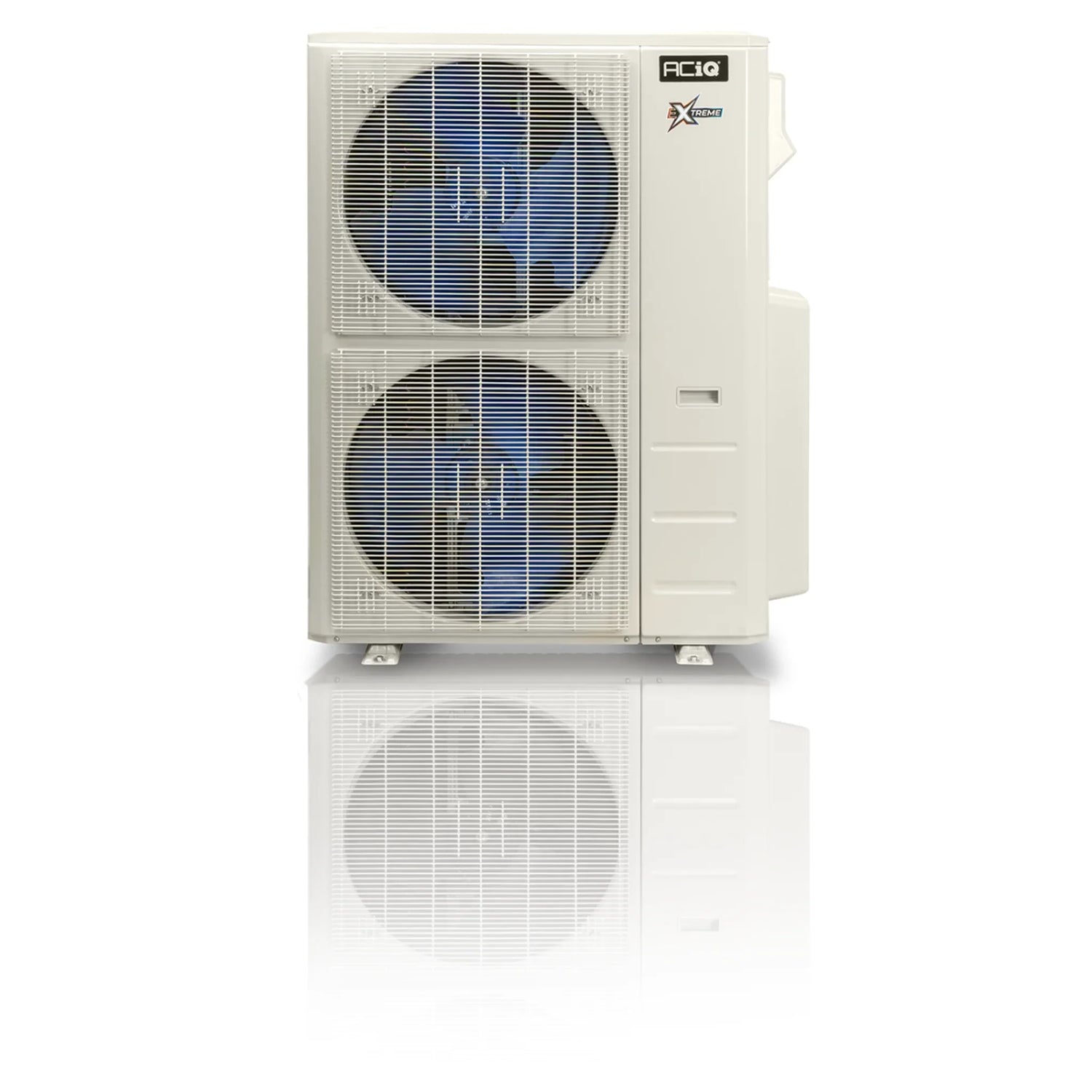

ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C

The ACiQ-55Z-HH-M6C is a 55,000 BTU multi zone heat pump condenser designed to deliver efficient, adaptive climate control for up to six zones. With a high SEER2 rating of 22.2, it offers outstanding performance even in extreme conditions, operating in outdoor temperatures as low as -22°F. This intelligent inverter-driven system supports various configurations, making it ideal for homes that demand quiet, reliable, and flexible heating and cooling. Its advanced base pan heater technology and Gold Fin coil protection enhance durability, while quiet operation ensures comfort without noise disruption.

Key Features

  • 55,000 BTU multi-zone condenser with 4.5-ton capacity
  • Up to 6 compatible indoor air handlers for zone-specific climate control
  • High-efficiency 22.2 SEER2 performance for reduced energy bills
  • Effective cooling from -22°F to 122°F and heating from -22°F to 75°F
  • Integrated Extreme Heat technology and base pan heater for cold climates
  • Gold Fin condenser coil coating for corrosion resistance
  • Twin rotary inverter compressor for quieter and more durable operation
  • Pre-charged with R410A refrigerant for 25’ per line set connection
  • Self-diagnostic control board with alerts for easy troubleshooting
  • Requires professional installation with vacuum and refrigerant charging

The ACiQ-55Z-HH-M6C is ideal for residential applications requiring flexibility, high efficiency, and low ambient performance. Its zone-specific adaptability allows for customized temperature settings in each room, helping to improve comfort and energy savings.


View More

Learning Resources

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACIQ-55Z-HH-M6C

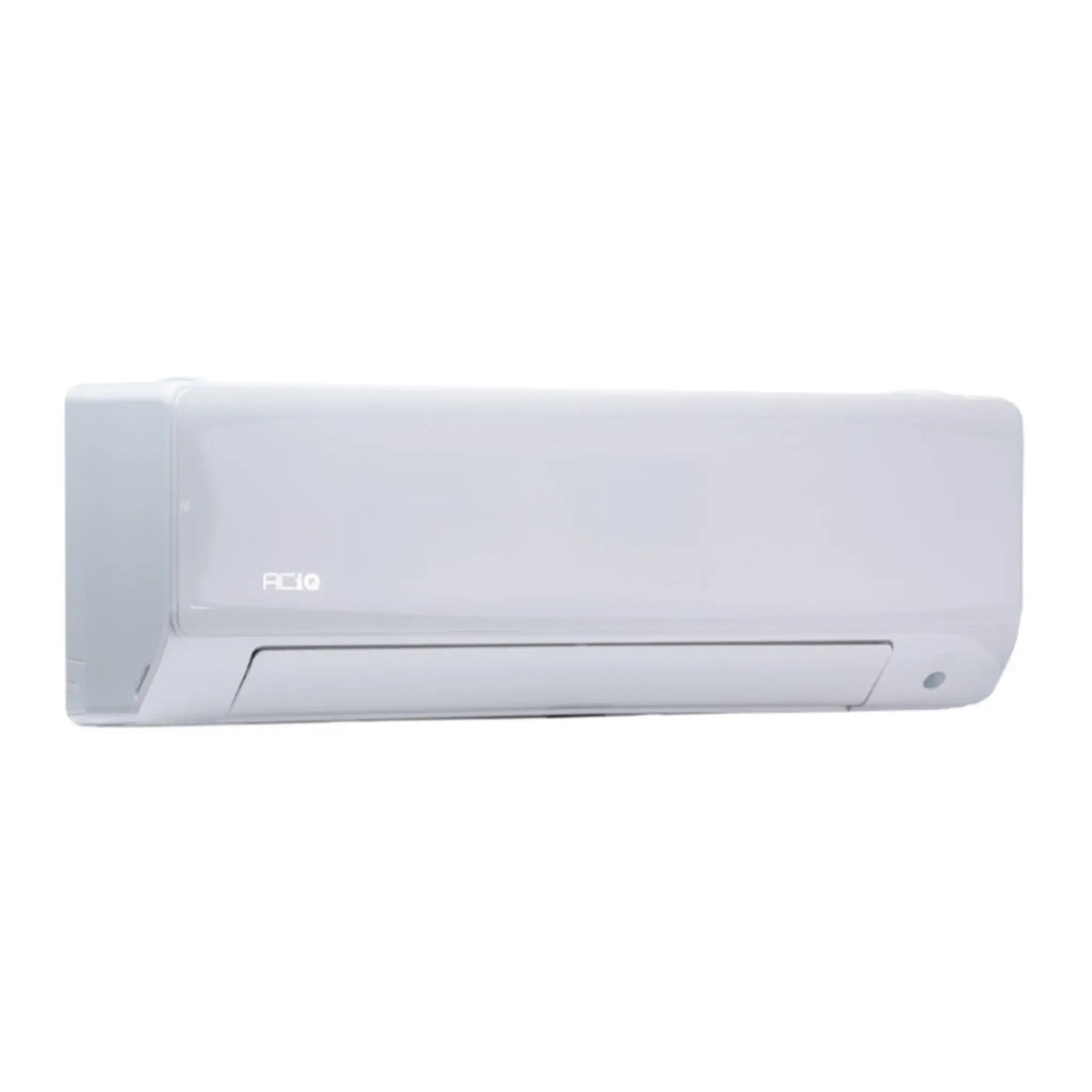

ACiQ Wall Mount Mini Split Air Handler

Installation & Owner's Manual — All Air Handler Remote Control Manual — All Air Handler Submittal — ACIQ-06W-HH-MD Submittal — ACIQ-09W-HH-MD Submittal — ACIQ-24W-HH-MD Wi-Fi User Manual — All Air Handler ACiQ Warranty

Specifications

ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C

BrandACiQ
SKUACIQ-55Z-HH-M6C
Refrigerant Charge151.68 oz.
Weight (in lbs)276
AHRI Certificate Number216032373
ReplacesACIQ-55Z-HH-M5B
Product FeaturesLow Ambient Heating
HSPF210.5
Cooling BTU51000
Heating BTU55000
Maximum CFM4503
Decibel Level (dBA)65
Electric HeatHeat Pump
Energy StarYes
RefrigerantR454B
SEER2 (Efficiency)22.2
Compressor TypeTwin Rotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V, 1 Phase, 60 Hz
PhaseSingle Phase
Max Breaker Size40A
Min. Breaker Size39.5A
Tonnage4.5 Ton
BTU/Tonnage55,000 BTU/4.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"
Warranty12 year compressor, 7 year parts with online registration

Warranty and Product Information

ACiQ 55K BTU Extreme Multi Zone Mini Split Heat Pump Condenser R454B 230V ACIQ-55Z-HH-M6C

Standard Warranty (Parts)5 year parts
Standard Warranty (Compressor)7 year parts
Registered Warranty (Parts)7 year parts
Registered Warranty (Compressor)12 year parts
