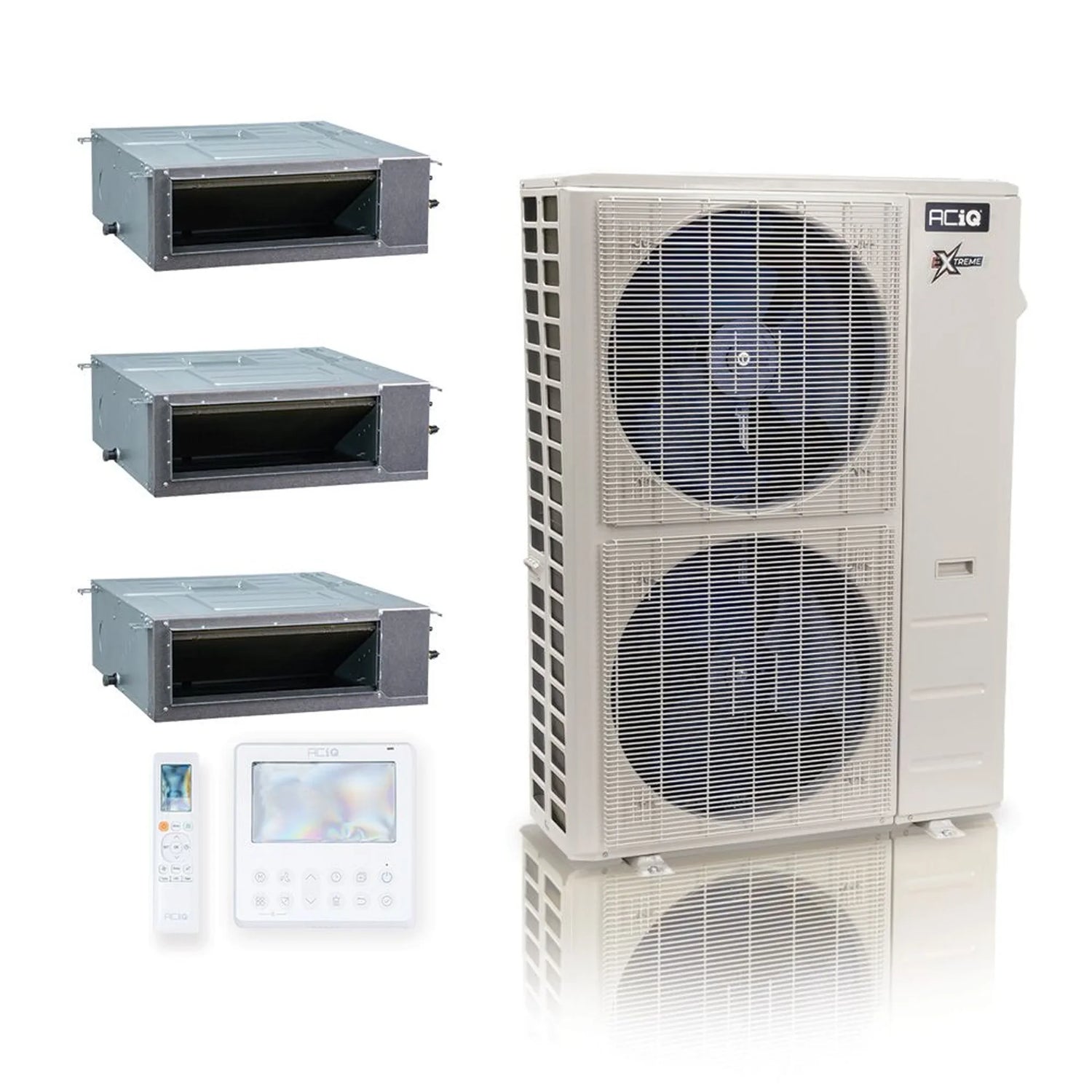

ACiQ 55K BTU 20 SEER2 3-Zone Concealed Duct Mini Split R454B 230V 9+9+24

By: ACiQ
SKU: ACiQ-55Z-HH-M6C / ACIQ-09CD-HH-MC-2 / ACIQ-24CD-HH-MC|ID: 103986
$8,299.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 20.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 55,000 BTUs inverter heat pump conditions up to 3 rooms independently
  • Refrigerant: Runs on low-GWP R454B with an inverter compressor for quiet, adaptive operation
  • Configuration: 3-zone system (4.5 Ton) with ducted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 55K BTU 20 SEER2 3-Zone Concealed Duct Mini Split R454B 230V 9+9+24

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

  • 9,000 BTU of heating or cooling power
  • Dry and fan modes for added versatility
  • Perfect for smaller rooms in most climates
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC offers all the benefits of a multi-zone mini split system without visible air handlers on walls or ceilings. These versatile units can be discreetly installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. Flex ducting connects the concealed duct air handler to ceiling or wall registers for customized air distribution.

Key Features

  • 24,000 BTU for heating or cooling
  • Dry and Fan modes available
  • Suitable for medium-sized rooms in most climates
  • Includes wall-mounted thermostat
  • Concealed Duct design for discreet installation

The ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC provides quiet comfort with precision temperature control and whisper-quiet operation for a peaceful environment.

Learning Resources

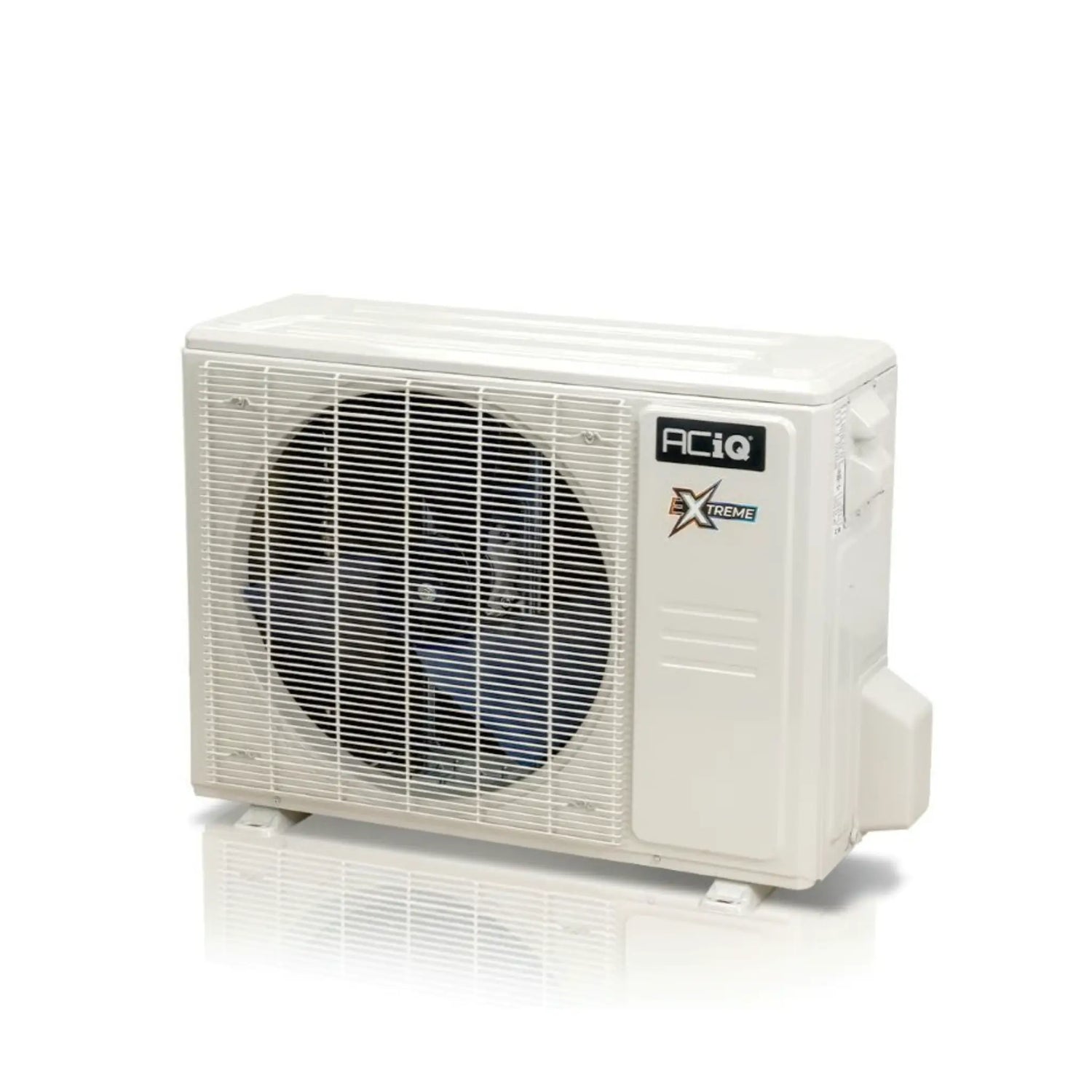

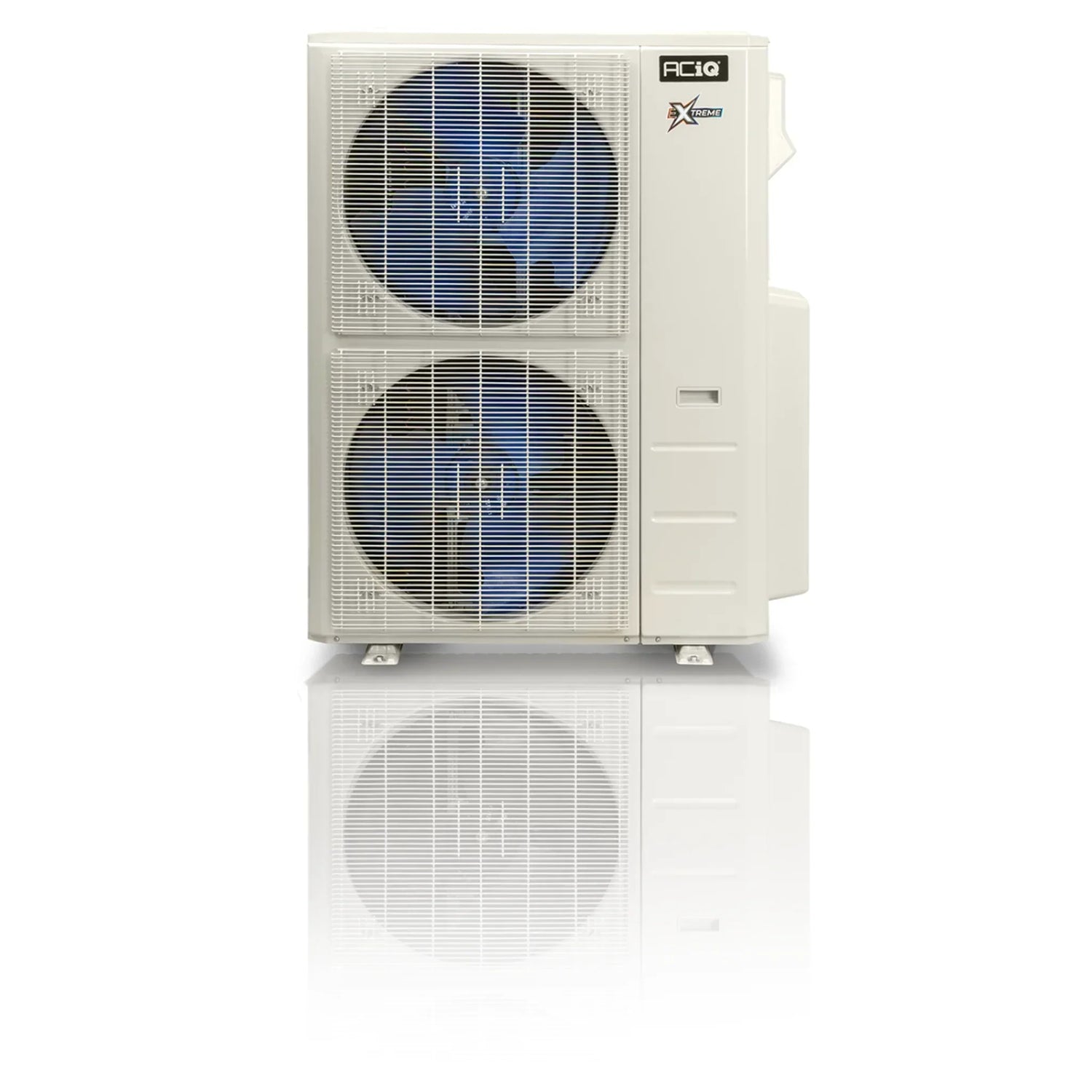

ACiQ Extreme Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Service Manual — 18K-55K Standard & Extreme Submittal — ACiQ-55Z-HH-M6C

ACiQ Concealed Duct Mini Split Air Handler

Brochure — All Air Handler Installation Manual — 9K-60K Owner's Manual — 9K-60K Remote Control Manual — All Air Handler Service Manual — 9K-60K Submittal — ACIQ-09CD-HH-MC Submittal — 24K Concealed Duct ACiQ Warranty

Specifications

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

BrandACiQ
SKUACIQ-09CD-HH-MC
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 27
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

BrandACiQ
SKUACIQ-24CD-HH-MC
Cooling BTU24,000 BTU
Heating BTU26,000 BTU
Maximum CFM853.5
Decibel Level (dBA)As Low as 29.5
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
BTU/Tonnage24,000 BTU/2 Ton & 27,000 BTU/2.25 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height9.65"
Width39.37"
Depth29.53"

Warranty and Product Information

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC

Standard Warranty (Parts)5 year parts
Standard Warranty (Compressor)7 year parts
Registered Warranty (Parts)7 year parts
Registered Warranty (Compressor)12 year parts

ACiQ 24,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-24CD-HH-MC

Standard Warranty (Parts)5 years
Standard Warranty (Compressor)7 years
Registered Warranty (Parts)7 years
Registered Warranty (Compressor)12 years
