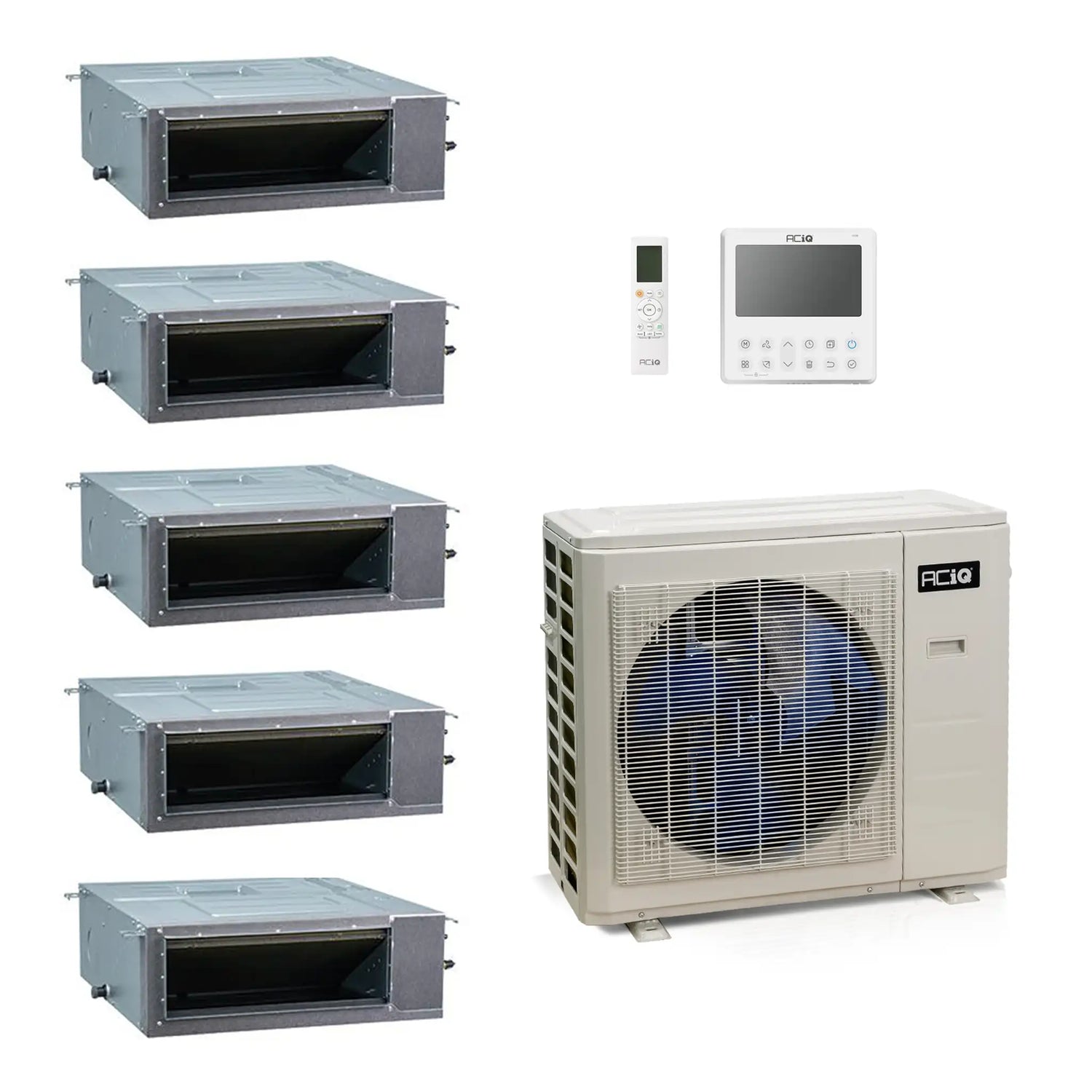

ACiQ 55K BTU 18 SEER2 5-Zone Concealed Duct Mini Split System 230 9+9+9+9+9

By: ACiQ
SKU: ES-55Z-M6C / ACIQ-09CD-HH-MC-5|ID: 104706
$9,149.99
+ Free shipping

Key Features

  • Efficiency: Rated up to 18.0 SEER2 for energy-efficient year-round comfort
  • Capacity: 55,000 BTUs inverter heat pump conditions up to 5 rooms independently
  • Refrigerant: Runs on low-GWP R454B  with an inverter compressor for quiet, adaptive operation
  • Configuration: 5-zone system (4.5 Ton) with ducted mini split system indoor units
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 55K BTU 18 SEER2 5-Zone Concealed Duct Mini Split System 230 9+9+9+9+9

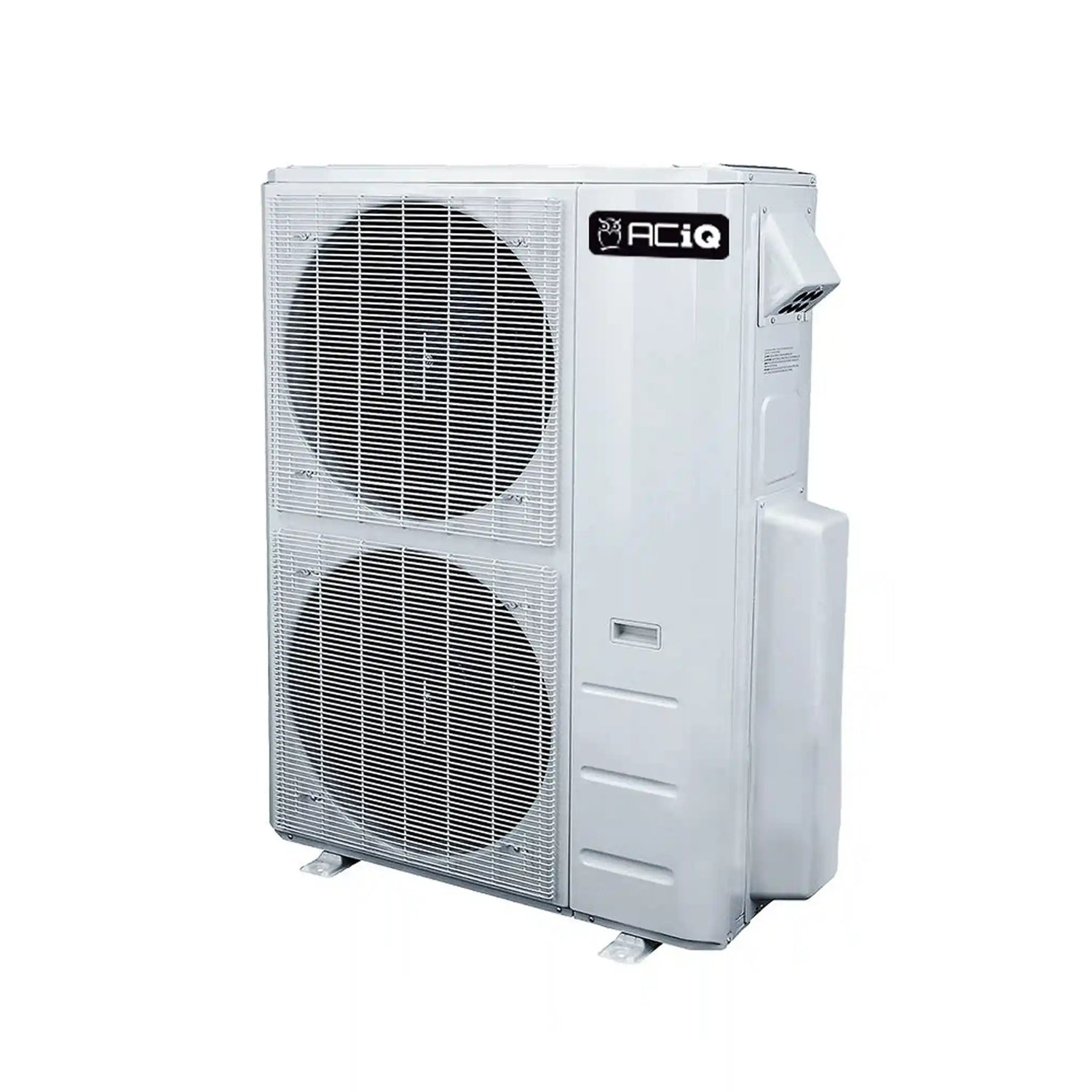

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-55Z-M6C model allows for up to 6 air handlers to run off a single condenser, saving outdoor space while keeping your home comfortable.

Key Features

  • 55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

The 55,000 BTU, ES-55Z-M6C is designed to support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser adjusts to provide the precise amount of heating or cooling needed for each room or zone. With a high efficiency rating of 22.0 SEER2, this system is designed to save you money both initially and over its lifetime.

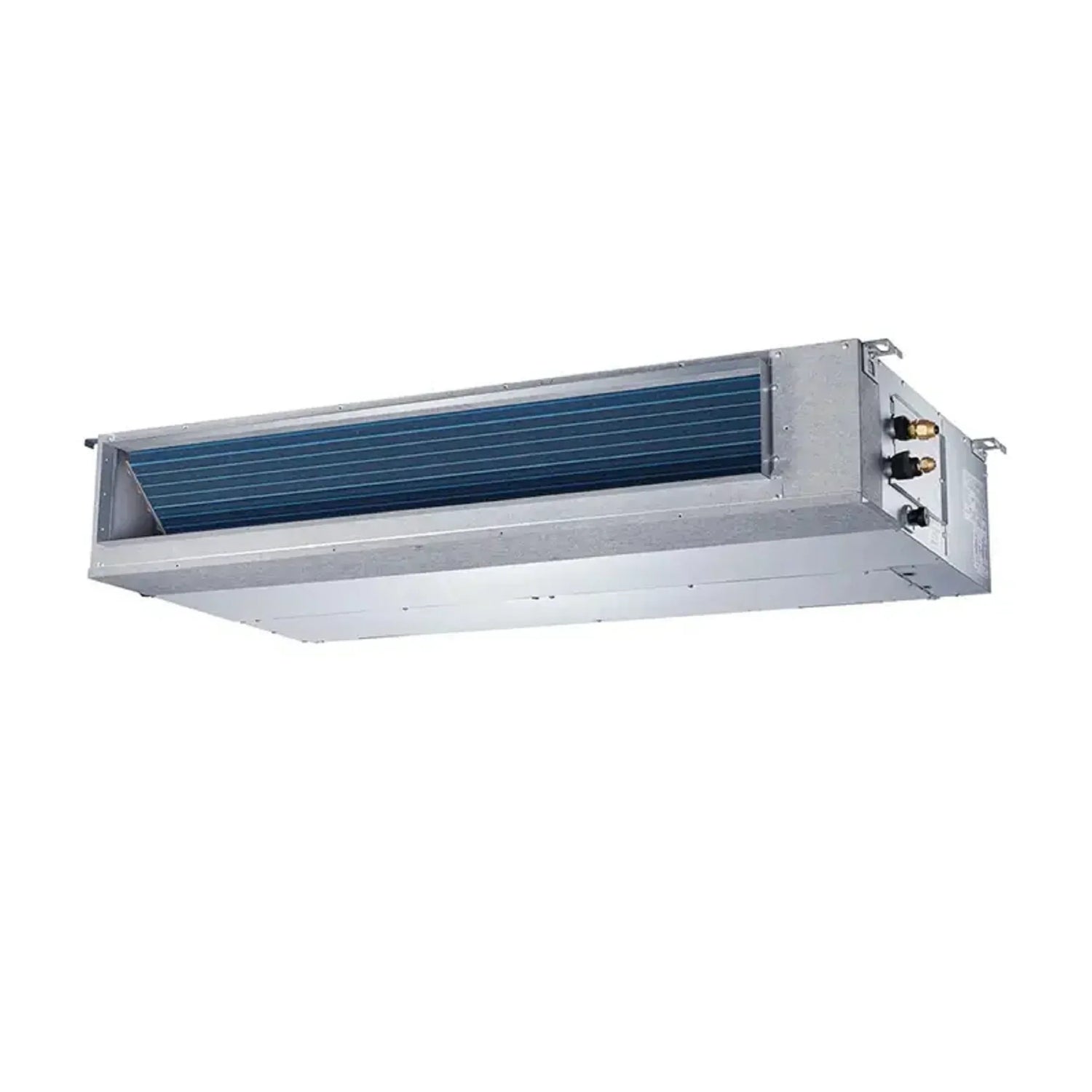

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x5

Experience the convenience of a multi-zone mini split system without visible air handlers with the ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x5. This flexible unit can be installed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit, allowing for customizable air distribution through flex ducting to ceiling or wall registers.

Key Features

  • 9,000 BTU of heating or cooling power
  • Dry and fan modes for added versatility
  • Perfect for smaller rooms in most climates
  • Includes a wall-mounted thermostat for easy temperature control
  • Concealed duct design for a seamless look

Enjoy quiet comfort with the precision engineering of the ACiQ system, maintaining your desired temperature without disrupting your peace and quiet.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-55Z-M6C

ACiQ Concealed Duct Mini Split Air Handler

Brochure Installation Manual — 9K-60K Owner's Manual — 9K-60K Remote Control Manual Service Manual — 9K-60K Submittal — ACIQ-09CD-HH-MC ACiQ Warranty

Specifications

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

BrandACiQ
SKUES-55Z-M6C
Refrigerant Charge147.6'
Weight270.280000
HSPF29.1
Cooling BTU55000 BTU
Heating BTU55000 BTU
Maximum CFM4500
Decibel Level (dBA)62
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
SEER221.3
Compressor TypeRotary
Liquid Line1/4" (5)
Suction Line3/8" (3); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 Amps
Min. Breaker Size40 Amps
BTU/Tonnage55,000 BTU/4.5 Ton
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height52.48"
Width37.48"
Depth16.34"

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x5

BrandACiQ
SKUACIQ-09CD-HH-MC
Cooling BTU9,000 BTU
Heating BTU10,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 27
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
Electric Phase FilterSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Length27.56"
Height7.87"
Depth19.92"

Warranty and Product Information

ACiQ 55,000 BTU 22.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-55Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 9,000 BTU Concealed Duct Mini Split Air Handler R454B ACIQ-09CD-HH-MC x5

Standard Warranty5 year parts
Registered Warranty10 year parts
