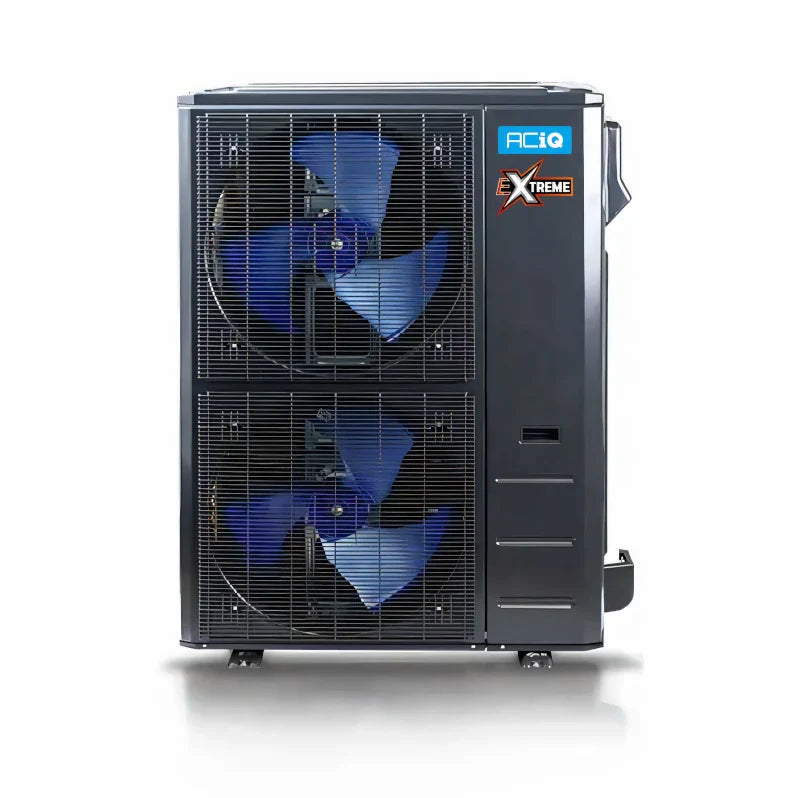

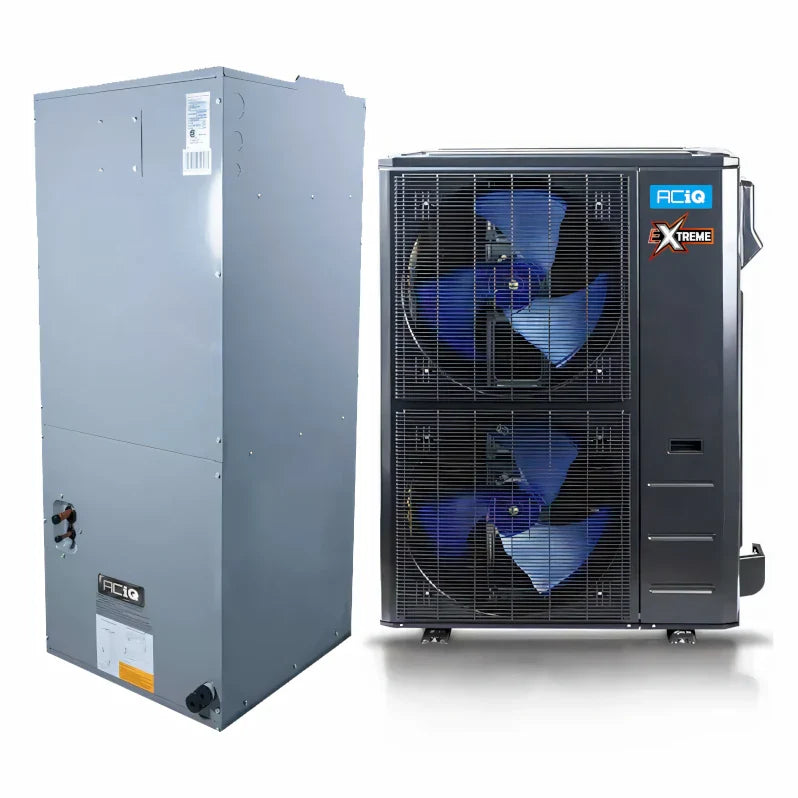

ACiQ 5 Ton 16 SEER2 Central Heat Pump System Inverter Extreme Heat R454B

ACiQ 5 Ton 16 SEER2 Central Heat Pump Inverter Extreme Series R454B ACiQ-60-HPD

The ACiQ 5 Ton Extreme Series heat pump combines powerful performance with advanced inverter technology for energy-efficient, year-round comfort. With a 16 SEER2 rating, it intelligently adjusts output based on demand, ensuring optimal heating and cooling in any weather. Engineered for extreme temperatures and using eco-friendly R454B refrigerant, it’s the perfect high-capacity solution for larger homes or spaces.

Key Features

• 5 Ton Capacity with Variable BTU Output
  Intelligent inverter technology delivers 12,000–54,000 BTU cooling and 12,000–56,000 BTU heating, adjusting performance based on real-time demand.

• Advanced Inverter Technology
  Converts AC to DC power to enable compressor modulation—speeds up or slows down based on conditions, maximizing comfort and energy savings.

• Smart Learning Condenser
  Built-in sensors monitor air temperature, refrigerant pressure, duct performance, and more, entering a learning mode during startup to optimize future operation and efficiency.

• Adaptive Sizing for Year-Round Comfort
  Self-adjusting inverter design scales output to match heating or cooling needs, eliminating overcooling and high humidity during summer when sized for winter performance.

• Extreme Heat Technology for Cold Climates
  Provides 100% heating at 0°F and up to 80% capacity at -22°F, significantly reducing the need for electric backup heat and cutting cold-weather heating costs by up to 75%.

• Eco-Friendly R454B Refrigerant
  Runs on R454B refrigerant, supporting low global warming potential (GWP) and future-ready environmental standards.

• All-Climate Performance
  Efficiently cools in temperatures from -22°F to 122°F and heats from -22°F to 75°F, perfect for both extreme heat and freezing winters.

• Durable Gold Fin Condenser Coil
  Features gold fin anti-corrosion coating for extended system life and resistance against harsh weather conditions.

• Ultra-Quiet Operation
  Engineered for low-noise performance, even under high workloads, ensuring a peaceful indoor environment.

• Ideal for Central Ducted HVAC Systems
  Designed for integration into standard ducted applications, making it perfect for large homes or commercial properties.

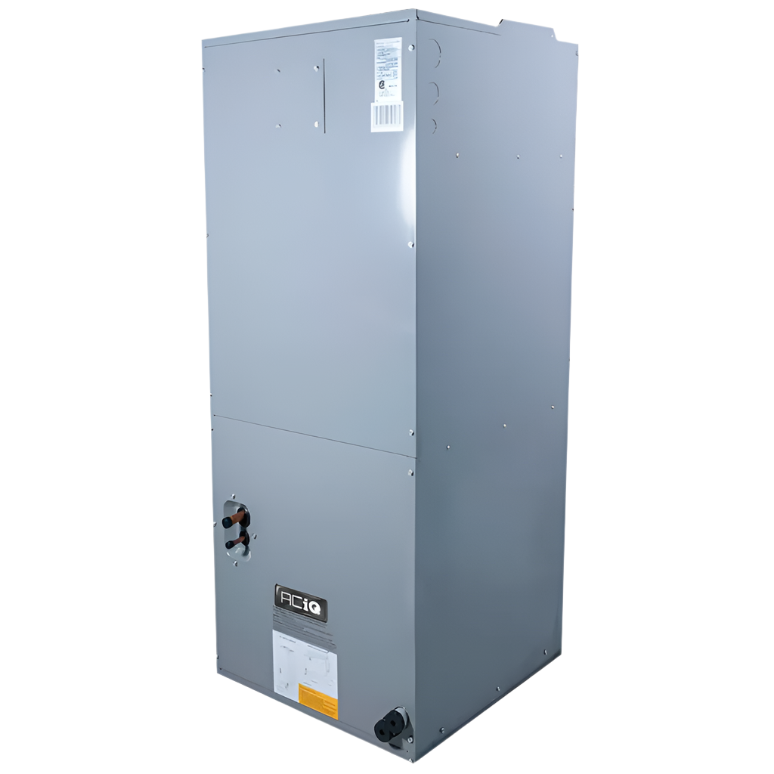

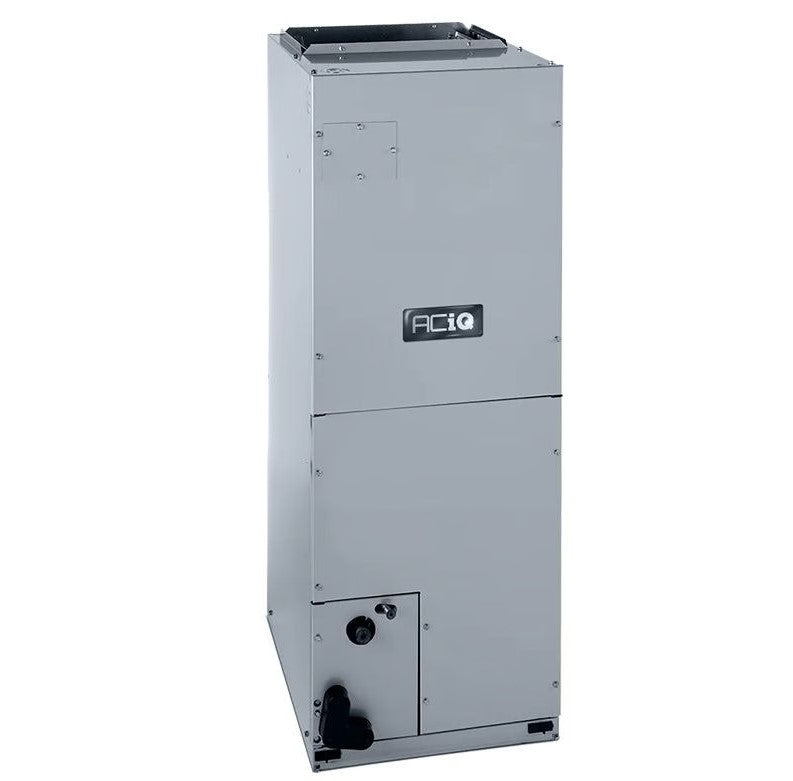

ACiQ 5 Ton Central Ducted Air Handler R454B ACiQ-60-AHD

Designed for high-capacity performance, the ACiQ-60-AHD air handler features a variable speed DC blower and communicating technology for precise comfort and energy efficiency. It works in sync with your thermostat and inverter condenser to automatically adjust output, while integrating seamlessly with your existing ductwork to deliver even heating and cooling throughout your home.

Key Features

• High-Capacity 60,000 BTU / 5 Ton Performance
  Provides robust air distribution for large homes or light commercial spaces, ensuring consistent heating and cooling.

• Compatible with Any 24V Thermostat
  Integrates easily with any 24-volt thermostat, including smart thermostats like Nest, Ecobee, and Honeywell.

• Variable Speed DC Blower Motor
  Energy-efficient variable speed blower adjusts airflow based on demand for quiet operation and lower energy bills.

• Flexible Multi-Position Installation
  Supports upflow, downflow, and horizontal left/right configurations, making it easy to install in almost any ducted HVAC setup.

• R454B Refrigerant Compatible
  Fully compatible with eco-conscious R454B refrigerant, offering a lower global warming potential (GWP) for sustainable HVAC performance.

• Ideal for Central Ducted HVAC Systems
  Perfect for use in new or replacement ducted system installations, delivering reliable, whole-home climate control.

Installation and Maintenance

Installing the ACiQ central ducted air handler is similar to replacing any standard air handler. Your technician will take care of the electrical, refrigerant, thermostat, and communication connections, as well as linking the air handler to your return and supply ductwork.

This air handler is highly versatile, offering multi-positional installation options (upflow, downflow, or horizontal). It is compatible with any 24v thermostat that supports two-stage heating. For additional heating during the coldest days, optional supplemental electric heat kits are available.

If maintenance is ever needed, the air handler’s intelligent control board will display fault codes to quickly identify any system issues.

Please Note:
The air handler requires installation alongside a condenser and other essential components, which are available at an additional cost if not already included in your product bundle. For straight electric heating, an electric heat kit is required, and is also available at an additional cost.
