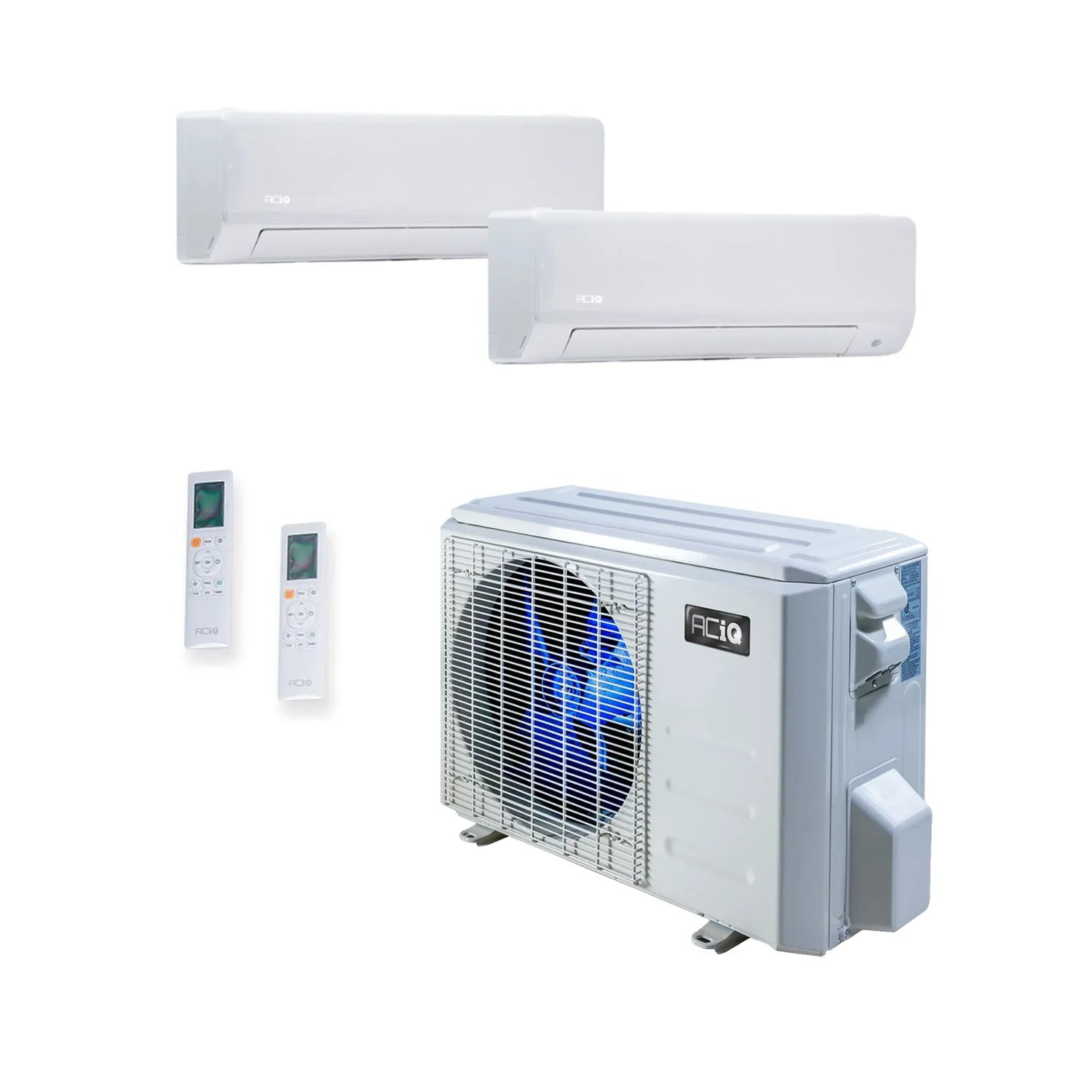

ACiQ 48K BTU 24 SEER2 Wall Mount Mini Split System 2-Zone R454B 230V 24+24

By: ACiQ
SKU: ES-48Z-M6C / ACIQ-24W-HH-MD-2|ID: 103573
$4,800.00
+ Free shipping

Key Features

  • Efficiency: Rated at 24 SEER2 and 10.3 HSPF2, this multi-zone heat pump system delivers efficient performance down to -13F outdoor temperatures.
  • Capacity: The 48,000 BTU (4 ton) condenser powers two matched 24,000 BTU wall mount zones for balanced, independent room-by-room comfort.
  • Refrigerant: The condenser and both indoor units run on R454B refrigerant.
  • Technology: WiFi-enabled wall mount air handlers connect to the Net Home Plus app, Alexa, or Google Home, and the condenser's Gold Fin coil coating adds corrosion resistance and durability.
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

ACiQ 48K BTU 24 SEER2 Wall Mount Mini Split System 2-Zone R454B 230V 24+24

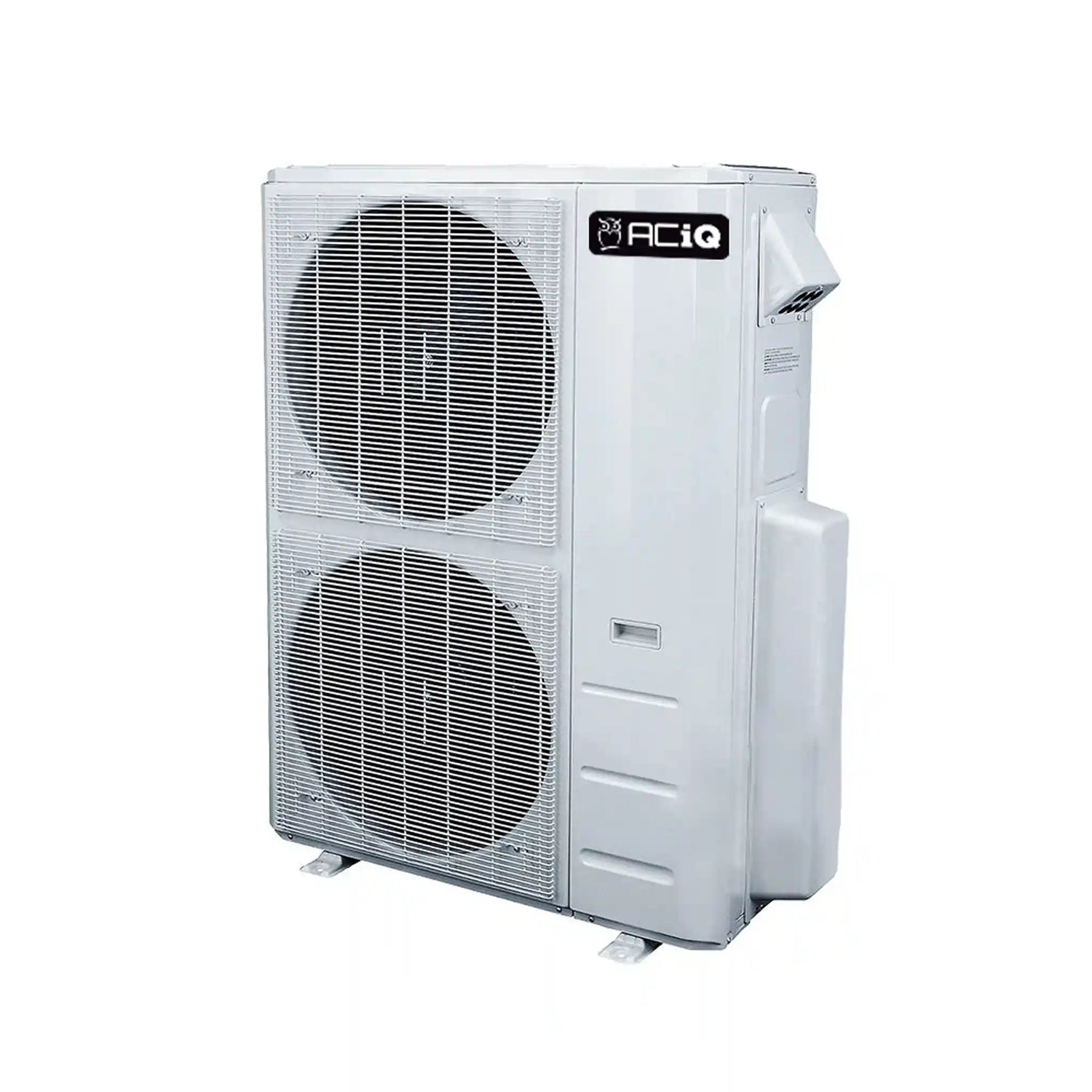

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

ACiQ offers a smart solution for adaptive heating and cooling in various spaces and climates, all at an affordable cost. The ES-48Z-M6C allows up to 6 air handlers to run off a single condenser, saving space and ensuring comfort in your home.

Key Features

  • 48,000 BTU, 24.0 SEER2 multi zone heat pump condenser
  • Designed to function with up to 6 attached air handlers
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Efficient heating from -13°F to 75°F outdoor temperatures
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to the unit's self-diagnosing control board with alerts sent to each connected air handler.

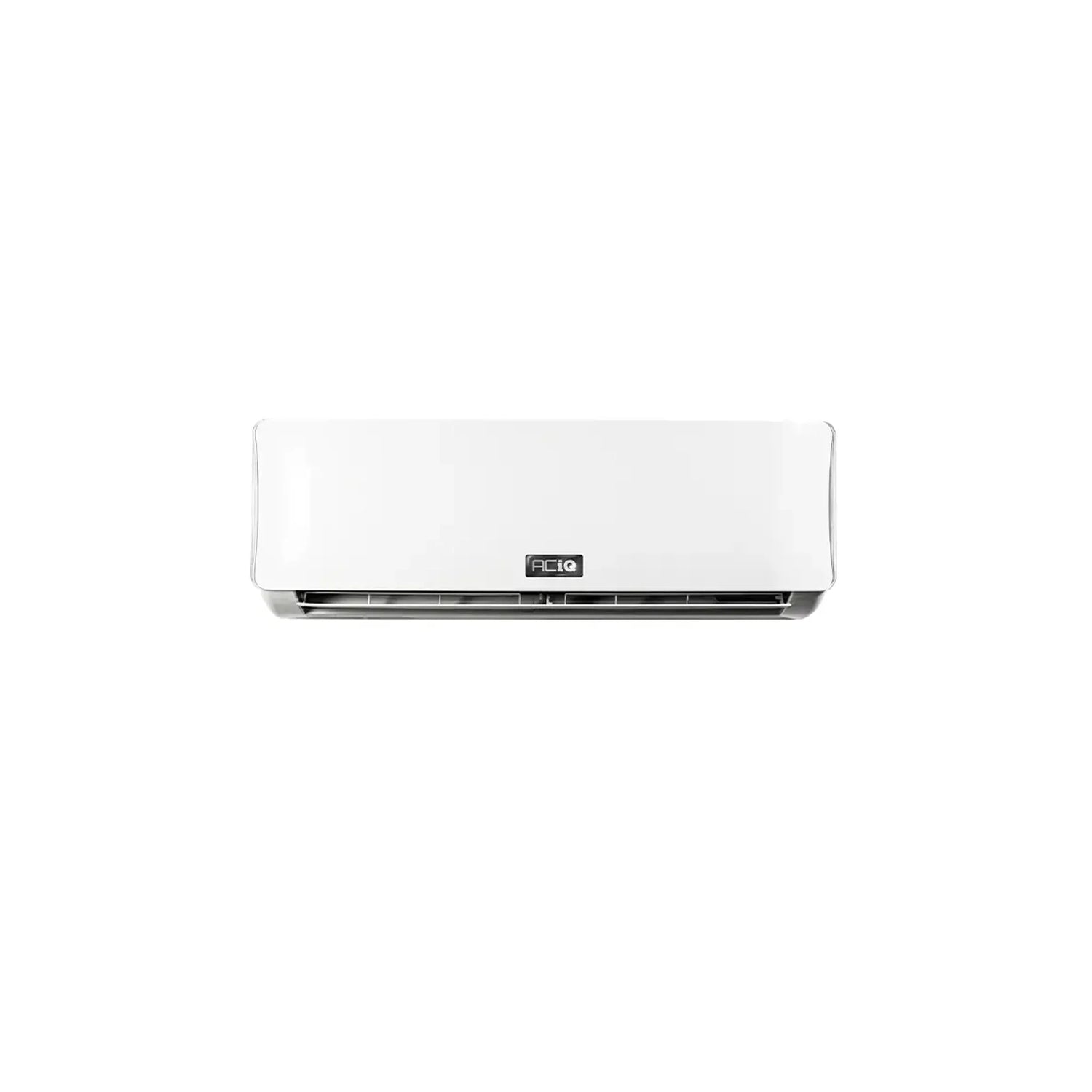

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD x2

The 24,000 BTU ACiQ Platinum Multi Zone Air Handler with WiFi offers platinum performance and can be paired with any ACiQ Multizone condenser or Platinum Single Zone condenser for a highly efficient Hyper Heat system. This air handler is ideal for small to medium sized rooms, utilizing adaptive technology to monitor and maintain your desired temperature regardless of external weather conditions.

Key Features

  • 24,000 BTU wall mounted air handler with included remote control
  • WiFi capable using free Net Home Plus app, Google Home, or Alexa
  • Easy Maintenance and Installation
  • Multizone Compatible - Heat or cool multiple rooms on one outdoor unit
  • Includes Enhanced Dry Mode, Intelligent Sleep Mode, and Power Save Mode

The ACIQ-24W-HH-MD air handler features a soft LED display for easy monitoring and self-diagnosing control board for error notifications. This unit is WiFi ready, allowing control via smart devices and voice assistants like Amazon Alexa and Google Assistant. Please note that installation with a condenser and other equipment is required for proper functionality.

Learning Resources

ACiQ Multi-Zone Condenser

AHRI Certificate — Ducted AHRI Certificate — Non-Ducted Installation & Owner's Manual — 18K-55K Standard & Extreme Nominal Capacity Performance Chart Service Manual — 18K-55K Standard & Extreme Submittal — ES-48Z-M6C

ACiQ Wall Mount Mini Split Air Handler

Installation & Owner's Manual Remote Control Manual Submittal — ACIQ-24W-HH-MD Wi-Fi User Manual ACiQ Warranty

Specifications

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

BrandACiQ
SKUES-48Z-M6C
ReplacesES-48Z-M5B
SEER224
HSPF210.3
Cooling BTU47000 BTU
Heating BTU48000 BTU
Maximum CFM4503
Decibel Level (dBA)63
Electric HeatHeat Pump
RefrigerantR454B
Compressor TypeRotary
Liquid Line1/4" (6)
Suction Line3/8" (4); 1/2" (2)
Electrical208/230V 1 Phase 60 Hz
Electric Phase FilterSingle Phase
Max Breaker Size60 A
Min. Breaker Size40 A
Tonnage4 Ton
BTU/Tonnage48,000 BTU/4 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height52.48"
Width37.48"
Depth16.34"

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD x2

BrandACiQ
SKUACIQ-24W-HH-MD
Weight39.680000
Product FeaturesLow Ambient Heating, WiFi
Cooling BTU24000 BTU
Heating BTU24000 BTU
Maximum CFM611.18
Decibel Level (dBA)44
Electric HeatHeat Pump
RefrigerantR454B
SEER18-20
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Length46.85"
Height14.59"
Depth11.20"

Warranty and Product Information

ACiQ 4 ton 24.0 SEER2 Multi Zone Condenser Inverter R454B 230V ES-48Z-M6C

Standard Warranty5 year parts
Registered Warranty10 year parts

ACiQ 24,000 BTU Platinum Multi Zone Air Handler With WiFi R454B 230V ACIQ-24W-HH-MD x2

Standard Warranty5 year parts
Registered Warranty10 year parts
